Multl-Channel Option (MCO)

The Multi-Channel Option provides multiple output channels for applications such as visual simulation, entertainment and virtual reality. Tightly coupled to the graphics subsystem, the Multi-Channel Option converts digital information stored in the graphics frame buffer into a variety of multiple analog video signals--or channels--which can then be displayed on additional monitors or projection devices.

With up to six independent channels per RealityEngine2 graphics pipeline, the MultiChannel Option is a cost-effective method of delivering several output channels - all from a single system.

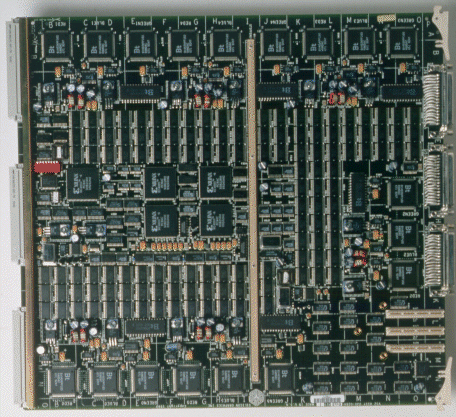

Multi-Channel Option (MCO) Board

MCO Board - allows users to drive multiple channels from a single system and drag/move images from one display
Architected for Low Transport Delay - less than 0.5 milliseconds
Up to Six Channels of output per MCO Board
Three MCO boards in an Onyx with three RealityEngine2 Pipelines - can drive up to 18 channels of output offering a low cost per channel solution for visual simulation, VR, and location-based entertainment application.

Supports a Wide Range of Formats and Timings

----------------------------------------------------------------- Video Formats Raster Managers Channels Resolution Timing 1 2 4 ---------------------------------------------------------------- 2 640 x 480 60 Hz non-interlaced M L L 4 640 x 480 60 Hz non-interlaced S M L 6 640 x 480 60 Hz non-interlaced n/a S M 2 640 x 480 Field sequential RGB M S M 2 640 x 486 30 Hz interlaced S L L 4 640 x 486 30 Hz interlaced n/a M L 6 640 x 486 30 Hz interlaced S S M 6 745 x 224 60 Hz non-interlaced n/a M L 4 960 x 620 60 Hz non-interlaced S S M 2 960 x 680 60 Hz non-interlaced n/a M L 3 960 x 680 60 Hz non-interlaced n/a S M 2 1024 x 768 60 Hz non-interlaced n/a S M 3 1024 x 768 60 Hz non-interlaced n/a S S 2 1200 x 900 72 Hz non-interlaced n/a S M 2 1280 x 1024 60 Hz non-interlaced n/a S M 2 1280 x 1024 60 Hz non-interlaced n/a S M ---------------------------------------------------------------------------------------

M = 4 multi-sample anti-aliasing

L = 8/16 multi-sample anti-aliasing

S = no anti-aliasing

n/a = not available
