Cisco 1000 Series

Product Overview

The Cisco 1000 series LAN extenders and routers are easy-to-install, inexpensive, multiprotocol access products designed for small offices and other remote sites.

• Cisco 1003 ISDN router

  • One 10BaseT Ethernet port (RJ-45)

  • One ISDN BRI WAN port (RJ-45)

  • One console port (RJ-45)

  • One Type-2 PCMCIA slot for Flash ROM card

• Cisco 1004 ISDN router

  • One 10BaseT Ethernet port (RJ-45)

  • One ISDN BRI WAN port (RJ-45), with an integrated NT1 device

  • One console port (RJ-45)

  • One Type-2 PCMCIA slot for Flash ROM card

• Cisco 1005 serial router

  • One 10BaseT Ethernet port (RJ-45)

  • One serial WAN port (DB-60) that supports asynchronous serial communications up to 115.2 kbps (EIA/TIA-232 interface) and synchronous serial such as leased lines, Frame Relay, switched 56 kbps, SMDS, and X.25 up to 2.048 Mbps (EIA/TIA-232, EIA/TIA-449, V.35, X.21, and EIA-530)

  • One console port (RJ-45)

  • One Type-2 PCMCIA slot for Flash ROM card

Cisco 1003 and Cisco 1004 ISDN Routers

The Cisco 1003 and Cisco 1004 routers are small, desktop routers that connect small, remote sites with Ethernet LANs to ISDN WANs.

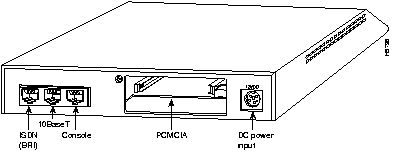

The rear view of the routers looks the same except for the following differences, shown in Figure 10-108:

• The BRI port on the Cisco 1003 is labeled "ISDN S/T," and "Cisco 1003" is stamped on the upper left corner of the chassis (not illustrated).

• The BRI port on the Cisco 1004 is labeled "ISDN U," and "Cisco 1004" is stamped on the upper left corner of the chassis (not illustrated).

Table 10-83 lists a summary of features, and Table 10-84 lists the environmental specifications for the Cisco 1003 and Cisco 1004 routers.

Standard Features

The Cisco 1003 and Cisco 1004 routers include the following standard features:

Hardware

Table 10-85 lists the hardware product numbers for the Cisco 1003 and Cisco 1004 routers. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order.

Software

The Cisco 1003 and Cisco 1004 routers support the following Cisco IOS releases:

Table 10-89 lists the Cisco IOS software product numbers and minimum memory requirements.

The software is available on 2-MB or 4-MB Flash ROM cards, on diskettes or on CD-ROMs as feature packs. For more information about software feature packs, see Chapter 2, "Cisco Internetworking Operating System (IOS) Software."

Cisco 1005 Serial Router

The Cisco 1005 router is a small, desktop router that connects small, remote sites with Ethernet LANs to synchronous WANs at speeds up to 2.048 Mbps or to asynchronous WANs at speeds up to 115.2 kbps.

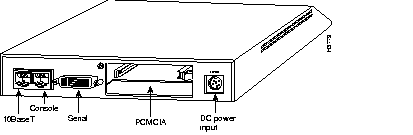

Figure 10-109 shows the rear view of the Cisco 1005 router.

Table 10-86 lists a summary of features, and Table 10-87 lists the environmental specifications for the Cisco 1005 router.

Standard Features

The Cisco 1005 router includes the following features:

Hardware

Table 10-88 lists the hardware product numbers for the Cisco 1005. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order.

Software

The Cisco 1005 router supports the following software releases:

Table 10-89 and Table 10-90 list the Cisco IOS software product numbers and minimum memory requirements for Cisco IOS Release 11.2. Table 10-91 lists the Cisco IOS software product numbers and minimum memory requirements for Cisco IOS Releases 11.1 and 11.0.

Software Feature Sets

Software feature sets for the Cisco 1005 are available on 2-MB or 4-MB Flash ROM cards or on diskettes.

The Cisco 1000 series routers offer the following types of feature sets:

• Basic. The basic feature set for the hardware platform.

• Plus. The basic feature set plus additional features.

• Plus 40. The basic feature set, Plus features, and 40-bit data encryption.

• Plus 56. The basic feature set, Plus features, and 56-bit data encryption.

The Cisco IOS feature set tables use the following conventions to identify features:

• -: The feature is not offered in the feature set.

• Plus: The feature is offered only in the Plus feature sets.

• Encrypt: The feature is in the Encryption feature sets.

Software Feature Packs

Software feature packs consist of CD-ROMs that contain Cisco IOS software feature set images and a Windows 95 application, which loads the images onto a router.

Cisco IOS Feature Set Product Numbers and Upgrades

This section describes the product numbers for Cisco IOS feature sets and upgrades for the Cisco 1000 series routers.

Cisco IOS feature set upgrades are easy to order for the Cisco 1000 series. The following is an example:

You have a Cisco 1003 router with a 4-MB Flash memory card, running the Cisco IOS Release 11.1 IP Routing (basic) feature set. You want to upgrade to the Cisco IOS Release 11.2 IP/IPX/AppleTalk Plus 56 feature set. You are crossing two feature sets: one to get from IP to IP/IPX/AppleTalk, and one to get to IP/IPX/AppleTalk Plus 56 (basic to plus). To complete the upgrade, use the following guidelines:

• Order FL1003CA= (IP to IP/IPX/AppleTalk upgrade license, no charge).

• Order FL1003-Y= (Plus 56 upgrade license, charged item).

• Order DRAM (if you do not have the minimum required DRAM for the new feature set).

• Order SW1003AY-11.2.1= (Cisco 1003/1004 IP/IPX/AppleTalk software on diskette, charged item).
