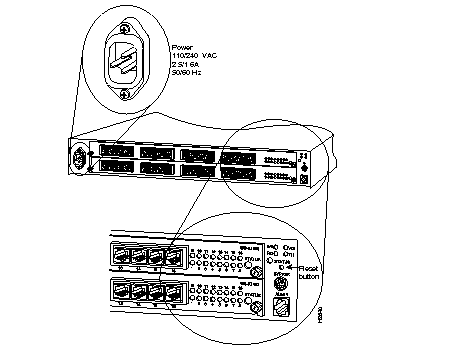

WS-C1400 Concentrator

**Table 15-1: WS -C1400 CDDI/FDDI Concentrator Summary of Features**
Characteristic	Description
Placement	Desktop 19-in. rack (rack-mount bracket kit included)
Network management	SNMP agent (RFC 1155-57) SMT 7.3 FDDI MIB (RFC 1285) MIB II (RFC 1213) Cisco-specific MIB
Maximum station-to-station cabling distance	1.25 miles (2 km) using 62.5- or 50/125-micron multimode fiber 18.6 miles (30 km) using single-mode fiber 330 ft (100 m) using Category 5 UTP 330 ft (100 m) using IBM Type 1 or 2 STP
Front panel LEDs	Concentrator status Ringop Thru Wrap A Wrap B Link status for each link Traffic meter
Rear panel LEDs	Ringop Thru Wrap A Wrap B Concentrator status Link status for each link Line card status
Connectors	CDDI: RJ-45 Multimode FDDI: media interface connector (MIC) Multimode FDDI: SC connector Single-mode FDDI: ST connector
Bypass control	6-pin mini-DIN
Administration interface	RJ-45
Processor	Motorola 68030
Dimensions (H x W x D)	3.35 x 17.2 x 16.4 in. (8.6 x 44.0 x 40.0 cm)
Weight (average shipping)	~25 lb (~11.55 kg)
Agency approvals	UL 1950, CSA C22.2 No.950-M89, and EN 60950 FCC Class A (47 CFR Part 15) FCC Class B (fiber only) EN 55022A VCCI-I VDE Class B (fiber only) CE Mark

**Table 15-2: WS -C1400 CDDI/FDDI Concentrator Environmental Specifications**
Description	Specification
Input	100 to 240 VAC¹ autoranging
Frequency	50 to 60 Hz autoranging
AC current rating	2.5A @ 110V, 1.6A @ 220V
Operating temperature range	32 to 104°F (0 to 40°C)
Nonoperating temperature	-40 to 167°F (-40 to 75°C)

Standard Features

The WS-C1400 concentrator includes the following standard features:

Modular design allows between 4 and 32 CDDI and/or FDDI ports.
Multiple concentrators can be interconnected with UTP wire to allow your network to grow inexpensively.
High port density means three times as many ports can be packed into the same rack space compared with other equivalent products.
Unique traffic generation feature generates up to 100 Mbps of network traffic diagnostics.
Extensive management features:
- Workgroup Director is compatible with SunNet Manager, IBM NetView, and HP OpenView and can be used to remotely manage several workgroup concentrators simultaneously using an intuitive GUI.
- An SNMP agent included to support MIB II, the FDDI MIB, and a Cisco-specific MIB.
- Password-protected administration interface allows for "out-of-band" local network management or remote access via dial-up modem.
- Remote in-band access to the administration interface is provided via a Telnet session.
- Ring map feature can be used to view a sequenced list of stations connected to the same FDDI ring.
- SMT window can be used to view the SMT parameters of any device on the ring.
IP addresses can be configured using the BOOTP server.
You can download new software releases over the network, or locally via the administration interface.
Dual MAC architecture implements graceful insertion, so new stations can be connected without loss of data.
Compact design allows the concentrator to be wall-mounted in 6-inch deep wiring closets or rack-mounted in 19-inch racks. The concentrator is also quiet and attractive enough for desktop environments.
Traffic meter and three-color front panel indicators clearly display status.
Supports up to 1.25 miles (2 km) of 50- or 62.5-micron multimode optical fiber, 18.6 miles (30 km) of single-mode optical fiber, or 330 feet (100 m) of Category 5 UTP or IBM Type 1 or Type 2 STP copper wire.

**Table 15-3: CD DI/FDDI Media Translator Specifications**
Description	Specification
Connectors	1 FDDI MIC 1 CDDI 8-pin RJ-45
LEDs	FDDI signal detect CDDI signal detect Power
Dimensions (H x W x D)	1.5 x 3.5 x 5.6 in.
Translator power requirements	+5V
External power supply	120 VAC¹, UL, CS
Agency compliance	FCC Part 15, Subpart J, Class A

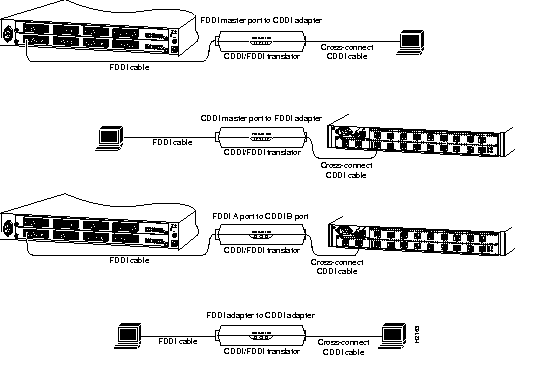

Figure 15-2 shows the most typical configurations for CDDI/FDDI translators. A standard patch cable is used to connect the FDDI side to the media translator. A cross-connect cable is used to connect the CDDI side, except when connecting a workgroup 1000 concentrator (MLT-2), which requires a straight-through cable.

Figure 15-2: Typical Configuration of the CDDI/FDDI Media Translator

UTP cables

ST P-to-UTP converter

: The STP-to-UTP converter (WS-C737) is used to connect CDDI equipment to IBM Type 1 STP cabling systems.

FD DI patch cable

: The FDDI patch cable (WS-C757) is a 7-foot long, fiber-optic cable with MICs on each end.
: The FDDI MIC-to-FDDI SC cable (WS-C767) is a 7-foot long, fiber-optic cable with an MIC on one end and an SC connector on the other end.

Optical attenuation set

: The optical attenuation set (WS-C784) includes two 10-dB optical attenuators, one for each signal direction. The set must be used in single-mode fiber applications having a total link attenuation of less than 10 dB.

Wa ll-mounting kit

: The wall-mounting kit (WS-C1670) contains hardware mounting accessories to mount the WS-C1400 chassis on the wall.

A C power cords

Software and Services

Catalyst 1400 CDDI/FDDI concentrator optional software and services include the following:

CiscoView software for device and network management.
SMARTnet agreements that provide multinational support that can including telephone, onsite, and CCO support
Additional hardware and software documentation

Product Numbers

Table 15-4 lists the product numbers for the WS-C1400 CDDI/FDDI concentrator.

**Table 15-4: WS -C1400 CDDI/FDDI Concentrator Product Numbers**
Description	Product Number
Base Unit
Workgroup concentrator with 2 slots	WS-C1400
Line Cards¹
4-port FDDI (MIC) line card	WS-X1431
4-port single-mode fiber (ST) line card	WS-X1434
8-port FDDI (MIC) line card	WS-X1441
8-port single-mode fiber (ST) line card	WS-X1444
2-port FDDI, 12-port CDDI line card	WS-X1450
10-port FDDI (SC) line card	WS-X1455
16-port CDDI line card	WS-X1483
Accessories
CDDI/FDDI media translator	WS-C703
10-dB optical attenuator set	WS-C784
Wall-mounting kit	WS-C1670
Cables
UTP cross-connect modular cable, 7 ft (2.12 m)	WS-C710
UTP straight-through modular cable, 25 ft (7.57 m)	WS-C725
STP-to-UTP converter	WS-C737
FDDI patch cable, 7 ft (2.12 m), MIC-to-MIC	WS-C757
FDDI patch cable, 7 ft (2.12 m), SC-to-MIC	WS-C767
Cross-connect, 1 ft (.30 m), for A/B CDDI-port daisy chain	WS-C711
Software
CiscoView 3.0.3 for SunNet Manager--SunOS, Solaris	CV-3.0.3-SNM
CiscoView 3.0.3 for HP OpenView--SunOS, Solaris	CV-3.0.3-OVS
CiscoView 3.0.3 for HP OpenView--HP-UX	CV-3.0.3-OVH
CiscoView 3.0.3 for IBM NetView--NetView AIX	CV-3.0.3-NV
Service and Documentation
SMARTnet agreements	See the "Service and Support" chapter.
Additional documentation	See the "Documentation" chapter.

¹ The first two ports on the card in slot 1 can be configured by software as either A + B ports or S + M ports (to support single- attachment concentrator configuration). They can also be configured as two M ports (to support the null-attachment configuration).

Configuration Worksheet

Use the following worksheet to help plan your order or to upgrade an existing system. One blank worksheet is provided, and you can make extra cop ies as needed.
