This chapter provides information on the FastHub 300 series hubs, which include the FastHub 316T and the FastHub 316C. The information is organized into the following sections:
The Cisco FastHub 300 series of 100BaseT hubs combines all the benefits of stackable hubs with unmatched configuration flexibility, affordability and integrated Cisco IOS technologies. These modular, Class II repeaters deliver 10 times the performance of 10BaseT hubs and provide a choice of modules for a combination of cost-effective 10BaseT and 100BaseT bridging, integrated management and port expansion for a highly scalable, manageable, and resilient solution.
The FastHub 300 series hubs are ideal high-performance alternatives to 10BaseT hubs, delivering affordable 100-Mbps performance to workgroups and server farms. The FastHub 316T comes equipped with 16 100BaseTX ports for connecting your workstations and servers with inexpensive UTP wiring. The FastHub 316C has 15 100BaseTX ports and one100BaseFX port for linking UTP devices to a fiber Fast Ethernet backbone.
Both hubs expand easily to 32 ports within a single unit by simply installing a 100BaseTX/16 port module in an expansion slot. The module is hot-swappable, so you can add users without powering down the network and disrupting existing users. Up to four fully configured FastHub 300 series hubs can be interconnected using a hub expansion cable to create a single, 128-port logical repeater. For the ultimate in expandability, the hub's unique Class II design lets you connect two of these 128-port stacks directly together in a single collision domain. The design also lets you distribute and connect hubs and hub stacks in separate wiring closets without requiring an intermediate switch, bridge, or router.
Each FastHub also has a second expansion slot for a hot-swappable bridge management module (BMM) or network management module (NMM). The BMM provides affordable connectivity to 10BaseT environments, extended cabling distances in 100BaseT networks, and integrated management in a single, flexible solution. The NMM delivers integrated management on a per-port, per-hub, and per-stack basis.
A single NMM or BMM is all that is needed to manage an entire FastHub 300 series stack. Both modules deliver Simple Network Management Protocol (SNMP), Telnet, and Remote Monitoring (RMON). An out-of-band management console is supported for comprehensive management and simplified troubleshooting. An extensive array of mode-selectable LEDs offers a convenient visual display of each port's status and the overall traffic load.
Figure 158 shows a front view of the FastHub 316T, Figure 159 shows a front view of the FastHub 316C, Figure 160 shows three FastHub 300 series hubs in a rack-mount installation, and Figure 161 shows the rear view of a stack of FastHub 300 series hubs.

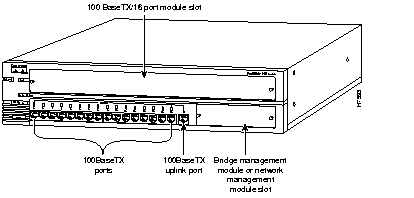

Figure 158: FastHub 316T Front View

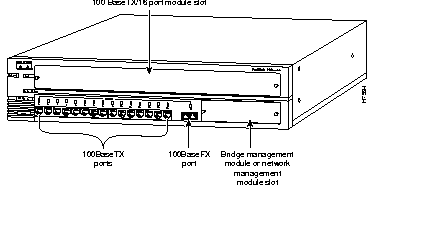

Figure 159: FastHub 316C Front View

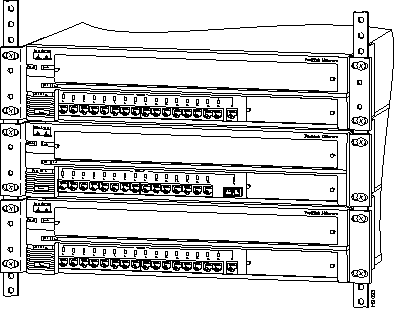

Figure 160: FastHub 300 Series Units in a Rack

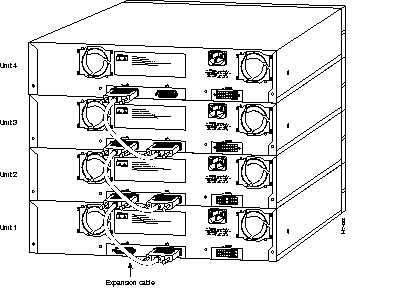

Figure 161 :FastHub 300 Series Stack Rear View (With Expansion Cables)
Table 106 lists a summary of features for the FastHub 300 series, and Table 107 lists the environmental specifications.
Table 106: FastHub 300 Series Hubs Summary of Features
| Characteristic
| Description
|
|---|
| Configuration guidelines
| 1043 ft (318 m) maximum cable distance between any two end stations with one FastHub 300 series hub in the path using a combination of UTP and fiber cabling
731 ft (223 m) maximum cable distance between any two end stations with two FastHub 300 series hubs in the path using UTP wiring only
774 ft (236 m) maximum cable distance between any two end stations with two FastHub 300 series hubs in the path using a combination of UTP and fiber cabling
702 ft (214 m) maximum cable distance between any two end stations with one FastHub 300 series hub and one third-party 100BaseT Class II hub in the path using UTP wiring only
741 ft (226 m) maximum cable distance between any two end stations with one FastHub 300 series hub and one third-party 100BaseT Class II hub in the path using a combination of UTP and fiber cabling
328 ft (100 m) maximum cable distance between a 100BaseTX port and an end node using UTP wiring only
|
| Indicators
| Per-port LEDs indicate Link Integrity, Receive Activity, and Enabled/Disabled status
Per-hub activity meter and Collision LEDs gauge network load
Hub ID and hub status LEDs
Redundant power system status
|
| Cabling requirements
| 100BaseTX ports:
Integrated 100BaseTX media interface for use with two-pair Category 5
UTP cabling
Standard RJ-45 connectors
100BaseFX port:
Integrated 100BaseFX media interface for use with 62.5/125- or 50/125-micron multimode optical fiber
Standard SC connector
|
| Network management support
| SNMP MIB II, SNMP MIB extensions, Ethernet Interface MIB, Repeater MIB, and RS-232 MIB
Manageable under CiscoWorks and other SNMP management systems
IP address assignment via Dynamic Host Control Protocol (DHCP) or Bootstrap Protocol (BOOTP)
Cisco device discovery support using the Cisco Discovery Protocol (CDP) and the CDP MIB
RMON MIB (EtherHistory, EtherStats, Alerts, and Events)
VT100-based Telnet console and out-of-band management console
|
| Dimensions (H x W x D)
| 3.43 x 17.75 x 12.00 in. (8.7 x 45.1 x 30.5 cm)
|
| Weight
| 15 lb (6.8 kg)
|
| Agency approvals
| UL 1950
CE
CSA 950
EN 60950
IEC 950
|
| Electromagnetic emissions certifications
| VCCI II
EN 55022B
CE Marking
FCC Class B
|
Table 107: FastHub 300 Series Environmental Specifications
| Description
| Specification
|
|---|
| Power consumption
| 80Watts
|
| Input voltage
| 90 to 250Volts, 50 to 60 Hz
|
| Operating temperature
| 23° to 113°F (-5 to 45°C)
|
| Storage temperature
| -13° to 158°F (-25° to 70°C)
|
| Operating humidity
| 10 to 85% noncondensing
|
| Operating altitude
| up to 9843 ft (3000 m)
|
Table 108: FastHub 300 Series Bridge Management Module Summary of Features
| Configuration Guidelines
|
|---|
| Maximum cable distance between the BMM and an attached device:
|
| 10BaseT port:
|
| Half-duplex capability enabled: 328 ft (100 m) using UTP wiring
|
| Full-duplex capability enabled: 328 ft (100 m) using UTP wiring
|
| 100BaseTX port:
|
| Half-duplex capability enabled: 328 ft (100 m) using UTP wiring
|
| Full-duplex capability enabled: 328 ft (100 m) using UTP wiring
|
| 100BaseFX port:
|
| Half-duplex capability enabled: 1,352 ft (412 m) using fiber optic cabling
|
| Full-duplex capability enabled: 6,562 ft (2 km) using fiber optic cabling
|
| Indicators
|
| Per-port LEDs indicate Link Integrity, Receive Activity, and Enabled/Disabled status
|
| Module status LEDs indicates module operating status
|
| Cabling Requirements
|
| 10BaseT port:
|
| Integrated 10BaseT media interface for use with two-pair Category 3, 4, or 5 UTP cabling
|
| Standard RJ-45 connector
|
| 100BaseTX port:
|
| Integrated 100BaseTX media interface for use with two-pair Category 5 UTP cabling
|
| Standard RJ-45 connector
|
| 100BaseFX port:
|
| Integrated 100BaseFX media interface for use with 62.5 125- or 50/125-micron multimode optical fiber
|
| Standard SC connector
|
The FastHub 300 series hubs include the following features:
- 100-Mbps peak and aggregate throughput provide high-performance data transfers for workgroups, server farms and entire networks for small- to medium-sized businesses
- Compatibility with the IEEE 802.3u standard guarantees interoperability with other 100BaseT products
- Extensive application-specific integrated circuit (ASIC) integration ensures exceptional performance, reliability, and affordability
- Two 16-port base configuration options offers media flexibility:
- 16 100BaseTX ports (FastHub 316T)
- 15 100BaseTX ports and one 100BaseFX port (FastHub 316C)
- Two expansion slots let you add users, management and 10BaseT and 100BaseT bridging in a single hub. No other vendor offers this convenient, cost-effective configuration.
- Up to four fully configured FastHubs can be interconnected in a stack for a single 128-port logical repeater
- 100BaseT Class II repeater design allows:
- Two FastHub stacks to be directly interconnected to create a single collision domain of up to 254 shared ports
- Two hubs or stacks of hubs to be distributed in separate wiring closets and directly connected
- Hot-swap feature enables the addition or removal of users and FastHubs in the stack while fully powered
- Three modules deliver superior flexibility:
- Cisco's FastHub 300 series Bridge Management Module (BMM) provides affordable connectivity to 10BaseT environments, extended cabling distances and integrated management in a single, flexible solution.
- One bridged 10BaseT port provides a bridged connection from 100BaseT to 10BaseT environments allowing network configuration flexibility and preserving investment in 10BaseT equipment.
- One bridged 100BaseT port, 100BaseTX or 100BaseFX, provides a dedicated full-duplex 100 Mbps connection for high-performance LAN connectivity over extended cabling distances
- Full- and half-duplex auto-negotiation detects the speed of the attached device and automatically configures the port without administrator intervention.
- Spanning Tree Protocol support allows for redundancy between the 10BaseT port and the 100BaseT port in case the primary connection fails.
- Per-port broadcast storm control prevents faulty end stations from degrading overall systems performance.
- Back-pressure flow control on 10BaseT half-duplex connection prevents packet loss
- Network management module (NMM) for comprehensive management and simplified trouble shooting on a per-port, per-hub, and per-stack basis
- 16-port 100BaseTX expansion module for up to 32 ports in a single unit.
- A single BMM or NMM can manage an entire FastHub 300 series stack, lowering cost and providing simplified management
- Two BMMs, NMMs or a combination of the two can be installed in a FastHub 300 stack providing management redundancy in case the primary module fails
- Simple Network Management Protocol (SNMP) and Telnet support for comprehensive in-band manageability, and a menu-based management console for in-depth, out-of-band manageability
- Embedded RMON software agent supports four RMON support for EtherHistory, EtherStats, Alerts, and Events enhances traffic management, monitoring, and analysis
- Manageable by CiscoWorksTM Windows and other SNMP-based management systems on a per-port, per-hub, per-bridge and per-stack basis
- Cisco Discovery Protocol (CDP) enables a CiscoViewTM network management station to automatically discover the hub in a network topology
- Cisco Group Management Protocol (CGMP) and multicast address packet filtering enable the BBM's bridged ports to selectively forward routed IP multicast traffic, reducing overall network traffic
- Works with Cisco 600-Watt RPS to ensure maximum uptime
Part of the Cisco Fast Ethernet line of products, which includes switches, routers, and hubs
- Incorporates Cisco IOSTM technologies for guaranteed interoperability and integrated and consistent management across Cisco's small- to medium-sized business and CiscoFusion solutions.
The FastHub 300 series supports the following applications:
A FastHub 300 series repeater can be used to create a high-performance network while preserving investment in 10BaseT equipment. A FastHub 300 base unit configured with an expansion module will support a total of 32 100BaseT users or servers. The BMM's 10BaseT and 100BaseT bridging functionality provides connectivity to a legacy 10BaseT hub and a direct connection from the hub to a 100BaseT-enabled switch or router.
A network can be designed using FastHub 300 series repeaters to deliver 100-Mbps throughput for high-performance data transfers for workgroups and server farms over an extended distance. Two BMM-enabled FastHub repeaters (or FastHub stacks) can be used to interconnect 100BaseT workgroups and server farms when wiring closets are further apart than the allowable distance defined by the Class II repeater design guideline.
FastHub 300 series hubs or stacks can connect workgroups and server farms to a campus backbone at a distance of up to 2 kilometers. FastHub 300 series hubs or stacks each with a BMM-100BaseFX can be located up to 2 kilometers from the corporate backbone cabling.
Table 109 lists the product numbers you can use to order the FastHub 300 series products.
Table 109: FastHub 300 Series Product Numbers
| Description
| Product Number
|
|---|
| FastHub 316T (16-port 100BaseTX base unit)
| WS-C316T
|
| FastHub 316C (16-port 100BaseFX base unit)
| WS-C316C
|
| 100BaseTX/16 (16-port 100BaseTX repeater module)
| WS-X3116
|
| BMM-100BaseTX (Bridge Management Module 100BaseTX)
| WS-C316-BMM-T
|
| BMM-100BaseFX (Bridge Management Module 100BaseFX)
| WS-C316-BMM-C
|
| NMM (Network Management Module)
| WS-C316-NMM
|
| Expansion cable (Hub stacking cable)
| WS-C316-CAB-EXP
|
