Fast Ethernet Solutions

FastHub 300 Series Hubs

Product Overview

The Cisco FastHub 300 series of 100BaseT hubs combines all the benefits of stackable hubs with unmatched configuration flexibility, affordability and integrated Cisco IOS technologies. These modular, Class II repeaters deliver 10 times the performance of 10BaseT hubs and provide a choice of modules for a combination of cost-effective 10BaseT and 100BaseT bridging, integrated management and port expansion for a highly scalable, manageable, and resilient solution.

The FastHub 300 series hubs are ideal high-performance alternatives to 10BaseT hubs, delivering affordable 100-Mbps performance to workgroups and server farms. The FastHub 316T comes equipped with 16 100BaseTX ports for connecting your workstations and servers with inexpensive UTP wiring. The FastHub 316C has 15 100BaseTX ports and one100BaseFX port for linking UTP devices to a fiber Fast Ethernet backbone.

Both hubs expand easily to 32 ports within a single unit by simply installing a 100BaseTX/16 port module in an expansion slot. The module is hot-swappable, so you can add users without powering down the network and disrupting existing users. Up to four fully configured FastHub 300 series hubs can be interconnected using a hub expansion cable to create a single, 128-port logical repeater. For the ultimate in expandability, the hub's unique Class II design lets you connect two of these 128-port stacks directly together in a single collision domain. The design also lets you distribute and connect hubs and hub stacks in separate wiring closets without requiring an intermediate switch, bridge, or router.

Each FastHub also has a second expansion slot for a hot-swappable bridge management module (BMM) or network management module (NMM). The BMM provides affordable connectivity to 10BaseT environments, extended cabling distances in 100BaseT networks, and integrated management in a single, flexible solution. The NMM delivers integrated management on a per-port, per-hub, and per-stack basis.

A single NMM or BMM is all that is needed to manage an entire FastHub 300 series stack. Both modules deliver Simple Network Management Protocol (SNMP), Telnet, and Remote Monitoring (RMON). An out-of-band management console is supported for comprehensive management and simplified troubleshooting. An extensive array of mode-selectable LEDs offers a convenient visual display of each port's status and the overall traffic load.

Figure 9-1 shows a front view of the FastHub 316T, Figure 9-2 shows a front view of the FastHub 316C, Figure 9-3 shows three FastHub 300 series hubs in a rack-mount installation, and Figure 9-4 shows the rear view of a stack of FastHub 300 series hubs.

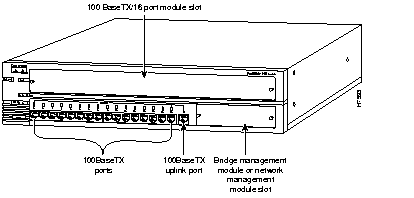

Figure 9-1: FastHub 316T Front View

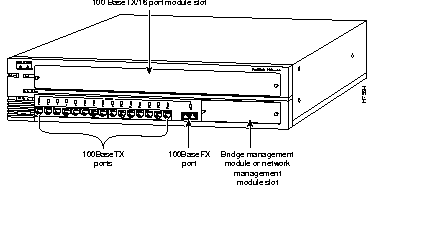

Figure 9-2: FastHub 316C Front View

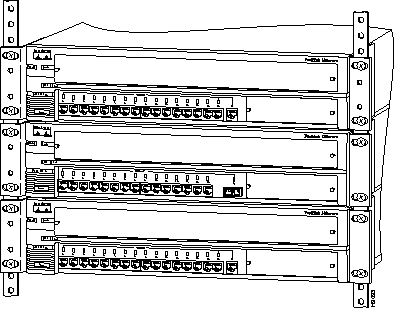

Figure 9-3: FastHub 300 Series Units in a Rack

Figure 9-4: FastHub 300 Series Stack Rear View (With Expansion Cables)

Table 9-1: FastHub 300 Series Hubs Summary of Features

Characteristic	Description
Configuration guidelines	1043 ft (318 m) maximum cable distance between any two end stations with one FastHub 300 series hub in the path using a combination of UTP and fiber cabling 731 ft (223 m) maximum cable distance between any two end stations with two FastHub 300 series hubs in the path using UTP wiring only 774 ft (236 m) maximum cable distance between any two end stations with two FastHub 300 series hubs in the path using a combination of UTP and fiber cabling 702 ft (214 m) maximum cable distance between any two end stations with one FastHub 300 series hub and one third-party 100BaseT Class II hub in the path using UTP wiring only 741 ft (226 m) maximum cable distance between any two end stations with one FastHub 300 series hub and one third-party 100BaseT Class II hub in the path using a combination of UTP and fiber cabling 328 ft (100 m) maximum cable distance between a 100BaseTX port and an end node using UTP wiring only
Indicators	Per-port LEDs indicate Link Integrity, Receive Activity, and Enabled/Disabled status Per-hub activity meter and Collision LEDs gauge network load Hub ID and hub status LEDs Redundant power system status
Cabling requirements	100BaseTX ports: Integrated 100BaseTX media interface for use with two-pair Category 5 UTP cabling Standard RJ-45 connectors 100BaseFX port: Integrated 100BaseFX media interface for use with 62.5/125- or 50/125-micron multimode optical fiber Standard SC connector
Network management support	SNMP MIB II, SNMP MIB extensions, Ethernet Interface MIB, Repeater MIB, and RS-232 MIB Manageable under CiscoWorks and other SNMP management systems IP address assignment via Dynamic Host Control Protocol (DHCP) or Bootstrap Protocol (BOOTP) Cisco device discovery support using the Cisco Discovery Protocol (CDP) and the CDP MIB RMON MIB (EtherHistory, EtherStats, Alerts, and Events) VT100-based Telnet console and out-of-band management console
Dimensions (H x W x D)	3.43 x 17.75 x 12.00 in. (8.7 x 45.1 x 30.5 cm)
Weight	15 lb (6.8 kg)
Agency approvals	UL 1950 CE CSA 950 EN 60950 IEC 950
Electromagnetic emissions certifications	VCCI II EN 55022B CE Marking FCC Class B

Table 9-2: FastHub 300 Series Environmental Specifications

Description	Specification
Power consumption	80Watts
Input voltage	90 to 250Volts, 50 to 60 Hz
Operating temperature	23° to 113°F (-5 to 45°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10 to 85% noncondensing
Operating altitude	up to 9843 ft (3000 m)

Table 9-3: FastHub 300 Series Bridge Management Module Summary of Features

Configuration Guidelines
Maximum cable distance between the BMM and an attached device:
10BaseT port:
Half-duplex capability enabled: 328 ft (100 m) using UTP wiring
Full-duplex capability enabled: 328 ft (100 m) using UTP wiring
100BaseTX port:
Half-duplex capability enabled: 328 ft (100 m) using UTP wiring
Full-duplex capability enabled: 328 ft (100 m) using UTP wiring
100BaseFX port:
Half-duplex capability enabled: 1,352 ft (412 m) using fiber optic cabling
Full-duplex capability enabled: 6,562 ft (2 km) using fiber optic cabling
Indicators
Per-port LEDs indicate Link Integrity, Receive Activity, and Enabled/Disabled status
Module status LEDs indicates module operating status
Cabling Requirements
10BaseT port:
Integrated 10BaseT media interface for use with two-pair Category 3, 4, or 5 UTP cabling
Standard RJ-45 connector
100BaseTX port:
Integrated 100BaseTX media interface for use with two-pair Category 5 UTP cabling
Standard RJ-45 connector
100BaseFX port:
Integrated 100BaseFX media interface for use with 62.5 125- or 50/125-micron multimode optical fiber
Standard SC connector

Standard Features

The FastHub 300 series hubs include the following features:

Standards-Based 100-Mbps Performance

• 100-Mbps peak and aggregate throughput provide high-performance data transfers for workgroups, server farms and entire networks for small- to medium-sized businesses

• Compatibility with the IEEE 802.3u standard guarantees interoperability with other 100BaseT products

• Extensive application-specific integrated circuit (ASIC) integration ensures exceptional performance, reliability, and affordability

Configuration Flexibility/Scalability

• Two 16-port base configuration options offers media flexibility:

  • 16 100BaseTX ports (FastHub 316T)

  • 15 100BaseTX ports and one 100BaseFX port (FastHub 316C)

• Two expansion slots let you add users, management and 10BaseT and 100BaseT bridging in a single hub. No other vendor offers this convenient, cost-effective configuration.

• Up to four fully configured FastHubs can be interconnected in a stack for a single 128-port logical repeater

• 100BaseT Class II repeater design allows:

  • Two FastHub stacks to be directly interconnected to create a single collision domain of up to 254 shared ports

  • Two hubs or stacks of hubs to be distributed in separate wiring closets and directly connected

• Hot-swap feature enables the addition or removal of users and FastHubs in the stack while fully powered

• Three modules deliver superior flexibility:

  • Cisco's FastHub 300 series Bridge Management Module (BMM) provides affordable connectivity to 10BaseT environments, extended cabling distances and integrated management in a single, flexible solution.

  One bridged 10BaseT port provides a bridged connection from 100BaseT to 10BaseT environments allowing network configuration flexibility and preserving investment in 10BaseT equipment.


  One bridged 100BaseT port, 100BaseTX or 100BaseFX, provides a dedicated full-duplex 100 Mbps connection for high-performance LAN connectivity over extended cabling distances


  Full- and half-duplex auto-negotiation detects the speed of the attached device and automatically configures the port without administrator intervention.


  Spanning Tree Protocol support allows for redundancy between the 10BaseT port and the 100BaseT port in case the primary connection fails.


  Per-port broadcast storm control prevents faulty end stations from degrading overall systems performance.


  Back-pressure flow control on 10BaseT half-duplex connection prevents packet loss


  • Network management module (NMM) for comprehensive management and simplified trouble shooting on a per-port, per-hub, and per-stack basis

  • 16-port 100BaseTX expansion module for up to 32 ports in a single unit.

Management and Redundancy

• A single BMM or NMM can manage an entire FastHub 300 series stack, lowering cost and providing simplified management

• Two BMMs, NMMs or a combination of the two can be installed in a FastHub 300 stack providing management redundancy in case the primary module fails

• Simple Network Management Protocol (SNMP) and Telnet support for comprehensive in-band manageability, and a menu-based management console for in-depth, out-of-band manageability

• Embedded RMON software agent supports four RMON support for EtherHistory, EtherStats, Alerts, and Events enhances traffic management, monitoring, and analysis

• Manageable by CiscoWorks^TM Windows and other SNMP-based management systems on a per-port, per-hub, per-bridge and per-stack basis

• Cisco Discovery Protocol (CDP) enables a CiscoView^TM network management station to automatically discover the hub in a network topology

• Cisco Group Management Protocol (CGMP) and multicast address packet filtering enable the BBM's bridged ports to selectively forward routed IP multicast traffic, reducing overall network traffic

• Works with Cisco 600-Watt RPS to ensure maximum uptime

Part of a Total Cisco Solution

Part of the Cisco Fast Ethernet line of products, which includes switches, routers, and hubs

• Incorporates Cisco IOS^TM technologies for guaranteed interoperability and integrated and consistent management across Cisco's small- to medium-sized business and CiscoFusion solutions.

Supported Applications

The FastHub 300 series supports the following applications:

Connecting Legacy 10BaseT Hubs to 100BaseT Environments

A FastHub 300 series repeater can be used to create a high-performance network while preserving investment in 10BaseT equipment. A FastHub 300 base unit configured with an expansion module will support a total of 32 100BaseT users or servers. The BMM's 10BaseT and 100BaseT bridging functionality provides connectivity to a legacy 10BaseT hub and a direct connection from the hub to a 100BaseT-enabled switch or router.

Interconnecting FastHub 300 Series Repeaters Over Extended Distances

A network can be designed using FastHub 300 series repeaters to deliver 100-Mbps throughput for high-performance data transfers for workgroups and server farms over an extended distance. Two BMM-enabled FastHub repeaters (or FastHub stacks) can be used to interconnect 100BaseT workgroups and server farms when wiring closets are further apart than the allowable distance defined by the Class II repeater design guideline.

Connecting FastHub 300 Series Repeaters to the Backbone Over Extended Distances

FastHub 300 series hubs or stacks can connect workgroups and server farms to a campus backbone at a distance of up to
2 kilometers. FastHub 300 series hubs or stacks each with a BMM-100BaseFX can be located up to 2 kilometers from the corporate backbone cabling.

Product Numbers

Table 9-4 lists the product numbers you can use to order the FastHub 300 series products.

Table 9-4: FastHub 300 Series Product Numbers

Description	Product Number
FastHub 316T (16-port 100BaseTX base unit)	WS-C316T
FastHub 316C (16-port 100BaseFX base unit)	WS-C316C
100BaseTX/16 (16-port 100BaseTX repeater module)	WS-X3116
BMM-100BaseTX (Bridge Management Module 100BaseTX)	WS-C316-BMM-T
BMM-100BaseFX (Bridge Management Module 100BaseFX)	WS-C316-BMM-C
NMM (Network Management Module)	WS-C316-NMM
Expansion cable (Hub stacking cable)	WS-C316-CAB-EXP
