Configuring DHCP Relay, DHCP Server, and PAT

Configuring DHCP Relay, DHCP Server, and PAT

Cisco 700 series routers can perform the role of the relay agent, relaying IP configuration information request packets from the LAN interface, over the ISDN interface, to a specified Dynamic Host Configuration Protocol (DHCP) server. Cisco 700 series routers provide DHCP relay, DHCP server, Port Address Translation (PAT), and Internet Protocol Control Protocol (IPCP). This appendix provides descriptions, application notes, and example configurations.

This appendix contains the following sections:

DHCP Description

DHCP is a client-server protocol that allows devices on an IP network (the DHCP clients) to request configuration information from a DHCP server. DHCP allocates network addresses from a central pool on an as-needed basis. DHCP is useful for assigning IP addresses to hosts connected to the network temporarily, or for sharing a limited pool of IP addresses among a group of hosts that do not need permanent IP addresses.

DHCP allows for increased automation and fewer network administration problems by:

DHCP Server Application Notes

The following are application notes for DHCP server:

DHCP Relay Application Notes

The following are application notes for DHCP relay:

PAT Description

Cisco 700 series routers provide PAT, enabling local hosts on a private IP network to communicate externally.

Packets destined for an external address have their private IP address plus port number translated to the router's external IP address before the IP packet is forwarded to the WAN. IP packets returning to the router have their external IP addresses (plus port number) translated back to the private IP addresses and the packets are forwarded to the LAN.

When PAT is enabled, the transmission of RIP packets is automatically disabled to prevent a broadcast of the private IP addresses externally.

PAT Application Notes

A configuration where PAT is on and DHCP relay is enabled is not valid. DHCP relay will attempt to cross from a public to a private domain. PAT prevents access to the private domain. DHCP relay fails because it must reference the router's private address.

IPCP Description

If you are using IP routing, Cisco 700 series routers must be configured for IPCP to connect to routers running Cisco IOS software. Use the set ip framing command in profile mode to enable IPCP for user-defined WAN profiles by setting IP framing to none.

The following example illustrates IPCP enabled by disabling IP framing:

766:2503> set ip framing none

Note Do not set the ip framing or the ipx framing commands to none when configuring the permanent LAN profile.

IPCP Address Negotiation Application Notes

The following are application notes for IPCP address negotiation:

PPP IPCP Negotiation Example

This section describes how to configure a remote Cisco 700 series router for PPP IPCP negotiation to a central site router, such as a Cisco 4500 series router, running Cisco IOS software.

Figure C-1 is an illustration of the configuration used in this example.


Figure C-1:

PPP IPCP Negotiation

Cisco 765 Series Router Commands

Following are the commands for configuring the remote Cisco 765 series router for point-to-point IPCP negotiation with a Cisco 4500 router:

set system 765
set user 4500
set active
set 1 number phone_number
set 2 number phone_number
set ip routing on
set ip rip version 2
set ip rip receive v2
set ip rip update linkup
reboot

Cisco 4500 Series Router Commands

Following are the commands for configuring the Cisco 4500 series router for all examples contained in this chapter:

configure terminal
hostname 4500
username 765
isdn switch-type primary-5ess
interface Ethernet0
ip address 172.168.100.1 255.255.255.0
interface Serial0
shutdown
no fair-queue
interface BRI0
ip unnumbered Ethernet0
ip rip send version 2
ip rip receive version 2
no ip mroute-cache
encapsulation ppp
peer default ip address pool test
dialer idle-timeout 3600
dialer map ip 0.0.0.0 name IOS700 broadcast
dialer-group 1
no fair-queue
compress stac
ppp multilink
router rip
network 172.168.100.0
network 172.168.99.0
network 172.168.101.0
ip local pool test 172.168.99.1
no ip classless
dialer-list 1 protocol ip permit
line con 0
line aux 0
line vty 0 4
login
end

For details regarding the commands listed here, see the related chapter in this publication.

Verify the Configuration

You can use the show ip configuration all and show ip route all commands to see the IPCP negotiation address:

765:4500> show ip configuration all
Profile     Routing Frame IP Address      Netmask         RIP TX  RX  Prop Cost
------------------------------------------------------------------------
Internal    ON      ETH2  172.168.99.1    255.255.255.0   V1  PER V1  ON   1
4500 	ON      IPCP  0.0.0.0         0.0.0.0         V2  LIN V2  ON   1
Profile     PAT Multicast Summarization  Netbios  Spoofing/Left(min)
--------------------------------------------------------------------
Internal    OFF OFF       OFF            OFF              /0
4500 	OFF OFF       OFF            OFF              /0
765:4500> show ip route all
Profile         Type Destination     Bits Gateway         Prop Cost Source Age
------------------------------------------------------------------------
4500 	NET  172.168.100.0   24   172.168.100.1   ON   2    RIP    7
Internal        NET  192.168.99.0    24   DIRECT          ON   1    IPCP   0

DHCP Relay with IPCP Negotiation Example

This section describes how to configure a remote Cisco 700 series router for DHCP relay with IPCP negotiation to a central site router running Cisco IOS software.

Figure C-2 is an illustration of the configuration used in this example.


Figure C-2: DHCP Relay with IPCP Negotiation

Cisco 765 Series Router Commands

set system 765
set user 4500
set 1 number phone_number
set 2 number phone_number
set ip routing on
set ip rip version 2
set ip rip receive v2
set ip rip update linkup
set dhcp relay 172.168.100.2
reboot

Verify the Configuration

You can use the show ip configuration and show ip route commands to see the IPCP negotiation address:

765> show ip configuration all
Profile     Routing Frame IP Address      Netmask         RIP TX  RX  Prop Cost
------------------------------------------------------------------------
Internal    ON      ETH2  172.168.99.1    255.255.255.0   V1  PER V1  ON   1
4500     	ON      IPCP  0.0.0.0         0.0.0.0         V2  LIN V2  ON   1
Profile     PAT Multicast Summarization  Netbios  Spoofing/Left(min)
--------------------------------------------------------------------
Internal    OFF OFF       OFF            OFF              /0
4500 	OFF OFF       OFF            OFF              /0
765> show ip route all
Profile         Type Destination     Bits Gateway         Prop Cost Source Age
------------------------------------------------------------------------
4500        	 NET  172.168.100.0   24   172.168.100.1   ON   2    RIP    0
Internal        NET  172.168.99.0    24   DIRECT          ON   1    IPCP   0

Enter the show dhcp configuration command to see the IP address returned by DHCP:

765> show dhcp configuration
Environment
  DHCP Server               OFF
  DHCP Relay                172.168.100.2
IP Address Pool             NONE
Subnet Mask                 NONE
DNS Configuration
  Primary DNS Server        NONE
  Secondary DNS Server      NONE
  Domain                    ""
Gateways
  Primary Gateway           NONE
  Secondary Gateway         NONE
WINS Configuration
  Primary WINS Server       NONE
  Secondary WINS Server     NONE
Address In Use
  IP Address                Mac Address
0 IP addresses allocated, 0 free

DHCP Server with IPCP Negotiation Example

This section describes how to configure a remote Cisco 700 series router for DHCP server with IPCP negotiation to a central site router running Cisco IOS software.

Figure C-3 is an illustration of the configuration used in this example.


Figure C-3: DHCP Server with IPCP Negotiation

Cisco 765 Series Router Commands

Following are the commands for configuring the remote Cisco 765 series router as a DHCP server with IPCP negotiation with a Cisco 4500 router:

set system 765
set dhcp server
set user 4500
set active
set 1 number phone_number
set 2 number phone_number
set ip routing on
set ip rip version 2
set ip rip receive v2
set ip rip update periodic
reboot

Verify the Configuration

When a call is made, you can use the show ip configuration all and show ip route all commands to see the IPCP negotiation address:

765> show ip configuration all
Profile     Routing Frame IP Address      Netmask         RIP TX  RX  Prop Cost
------------------------------------------------------------------------
LAN         ON      ETH2  10.0.0.1        255.0.0.0       V1  OFF V1  ON   1
Internal    ON      ETH2  172.168.99.1    255.255.255.0   V1  PER V1  ON   1
4500    	 ON      IPCP  0.0.0.0         0.0.0.0         V2  LIN V2  ON   1
Profile     PAT Multicast Summarization  Netbios  Spoofing/Left(min)
--------------------------------------------------------------------
LAN         OFF OFF       OFF            OFF              /0
Internal    OFF OFF       OFF            OFF              /0
4500        OFF OFF       OFF            OFF              /0
IOS700> show ip route all
Profile         Type Destination     Bits Gateway         Prop Cost Source Age
------------------------------------------------------------------------
4500        	 NET  172.168.100.0   24   172.168.100.1   ON   2    RIP    20
Internal        NET  172.168.99.0    24   DIRECT          ON   1    IPCP   0
LAN             NET  10.0.0.0        8    DIRECT          ON   1    DIRECT 0

Enter the show dhcp configuration command to see the IP address returned by DHCP:

765> show dhcp configuration

PAT with IPCP Single-Destination Negotiation Example

This section describes how to configure a remote Cisco 700 series router for PAT with IPCP single-destination negotiation to a central site router running Cisco IOS software.

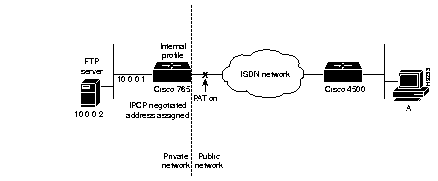

Figure C-4 is an illustration of the configuration used in this example.


Figure C-4: PAT with IPCP Single-Destination Negotiation

Cisco 765 Series Router Commands

Following are the commands for configuring the remote Cisco 765 series router for PAT with IPCP single-destination negotiation with a Cisco 4500 router:

set system 765
set user 4500
set active
set 1 number phone_number
set 2 number phone_number
set ip routing on
set ip rip version 2
set ip rip receive v2
set ip pat on
set ip pat po ftp 10.0.0.2
reboot

Verify the Configuration

When a demand call is made, you can use the show ip config all and show ip route all commands to see the IPCP negotiation address:

765> show ip configuration all
Profile     Routing Frame IP Address      Netmask         RIP TX  RX  Prop Cost
------------------------------------------------------------------------
LAN         ON      ETH2  10.0.0.1        255.0.0.0       V1  OFF V1  ON   1
Internal    ON      ETH2  172.168.99.1    255.255.255.0   V1  PER V1  ON   1
4500     	ON      IPCP  0.0.0.0         0.0.0.0         V2  OFF V2  ON   1
Profile     PAT Multicast Summarization  Netbios  Spoofing/Left(min)
--------------------------------------------------------------------
LAN         OFF OFF       OFF            OFF              /0
Internal    OFF OFF       OFF            OFF              /0
4500        OFF OFF       OFF            OFF              /0
765:4500> show ip route all
Profile     Type Destination      Bits  Gateway    Prop Cost Source Age
------------------------------------------------------------------------
4500        NET 172.168.100.0    24   172.168.100.1 ON 2   RIP    4
Interna     NET 172.168.99.0     24   DIRECT        ON 1   IPCP   0
LAN         NET 10.0.0.0          8   DIRECT        ON 1   DIRECT 0

Enter the show ip pat command to see the services returned by PAT:

765:4500> show ip pat
Dropped - icmp 0, udp 0, tcp 0, map 0, frag 0
Timeout - udp 5 minutes, tcp 30 minutes
Port handlers [no default]:
Port     Handler         Service
-------------------------------------
21       10.0.0.2        FTP
23       Router          TELNET
67       Router          DHCP Server
68       Router          DHCP Client
69       Router          TFTP
80       Router          HTTP
161      Router          SNMP
162      Router          SNMP-TRAP
520      Router          RIP

DHCP Server and PAT with IPCP Single-Destination Negotiation Example

This section describes how to configure a remote Cisco 700 series router for DHCP server with PAT and IPCP single-destination negotiation to a Cisco 4500 series router running Cisco IOS software at a central site.

Figure C-5 is an illustration of the configuration used in this example.


Figure C-5: DHCP Server with PAT and IPCP Single-Destination Negotiation

Cisco 765 Series Router Commands

Following are the commands for configuring the remote Cisco 765 series router for PAT with IPCP single-destination negotiation with a Cisco 4500 router:

set system 765
set user 4500
set active
set 1 number phone_number
set 2 number phone_number
set ip routing on
set ip rip version 2
set ip rip receive v2
set ip pat on
set ip pat po ftp 10.0.0.2
reboot

Verify the Configuration

When a demand call is made, you can use the show ip config all and show ip route all commands to see the IPCP negotiation address.

DHCP Server with PAT and IPCP Dual-Destination PPP Negotiation Example

This section describes how to configure a remote Cisco 700 series router for DHCP server with PAT and IPCP dual-destination PPP negotiation to two routers running Cisco IOS software.

Figure C-6 is an illustration of the configuration used in this example.


Figure C-6: DHCP Server with PAT and IPCP and Dual-Destination PPP Negotiation

Cisco 765 Series Router Commands

Following are the commands for configuring the remote Cisco 765 series router as a DHCP server with PAT and IPCP multilink PPP to two routers running Cisco IOS software:

set system 765
set ip routing on
set ip rip version 2
set ip rip receive v2
set ip rip update periodic
set multidestination on
set ip pat po ftp 172.168.99.3
cd internal
set ip address 172.168.99.1
set dhcp server
cd
set user 4500
set active 4500
set 1 number phone_number
set 2 number phone_number
set pat on
set user 2500
set active
set 1 number phone_number
set 2 number phone_number
set pat on
reboot

Verify the Configuration

When a demand call is made, you can use the show ip configuration all command to see the IPCP negotiation address:

765:2500> show ip configuration all
Profile     Routing Frame IP Address      Netmask         RIP TX  RX  Prop Cost
------------------------------------------------------------------------
Internal    ON      ETH2  172.168.99.1    255.255.255.0   V1  OFF V1  ON   1
4500     	ON      IPCP  172.168.103.1   255.255.255.0   V2  PER V2  ON   1
2500    	 ON      IPCP  172.167.1.1     255.255.255.0   V2  PER V2  ON   1
Profile     PAT Multicast Summarization  NetBIOS  Spoofing/Left(min)
--------------------------------------------------------------------
LAN         OFF OFF       OFF            OFF              /0
4500        OFF OFF       OFF            OFF              /0
2500        OFF OFF       OFF            OFF              /0

Enter the show dhcp connections command to see the IP addresses returned by DHCP:

765:4500> show dhcp connections
Environment
  DHCP Server               ON
  DHCP Relay                OFF
IP Address Pool
  Start IP Address          172.168.99.2
  Count                     128
Subnet Mask                 255.255.255.0
DNS Configuration
  Primary DNS Server        NONE
  Secondary DNS Server      NONE
  Domain                    ""
Gateways
  Primary Gateway           172.168.99.1
  Secondary Gateway         NONE
WINS Configuration
  Primary WINS Server       NONE
  Secondary WINS Server     NONE
Address In Use
  IP Address                Mac Address
<Q> and <enter> to Quit or <enter> for MORE
  172.168.99.2              0000c0e96571
  172.168.99.3              00a0244196b7
2 IP addresses allocated, 126 free

hometocprevnextglossaryfeedbacksearchhelp
Copyright 1989-1997 © Cisco Systems Inc.
