This chapter provides a product overview and describes how to power on the access server to configure it using the prompt-driven setup script.
The following sections are included:
If you prefer to configure the access server manually, proceed to the next chapter "Cisco IOS Software Survival Skills" to familiarize yourself with the command line interface and then proceed to the following chapter, "Configuring the Access Server Manually" for step-by-step instructions.
The Cisco AS5200 universal access server is a versatile data communications platform that provides the functions of an access server, a router, and digital modems in a single modular chassis. The Cisco AS5200 is intended for Internet service providers (ISPs), telecommunications carriers, and other providers that offer managed Internet connections, and also small- to medium-size sites that provide both digital and analog access to users on an enterprise network.
The Cisco AS5200 receives and routes both analog and digital calls on the same chassis simultaneously. By doing so, it provides you with a clear, simple, and easy migration path from today's predominantly analog dial-in services to tomorrow's digital dial-in services. The access server enables dial-in clients to make remote asynchronous and ISDN connections to the access server.

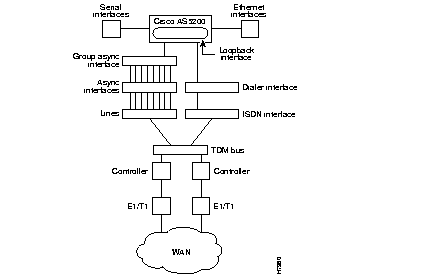

To configure remote services, you must configure three interrelated interfaces on the access server. The loopback interface makes the network appear as if the dial-in users exist on one Ethernet segment. The loopback interface has the following four types of neighboring interfaces used for dial-in operations: ISDN interface, dialer interface, group asynchronous interface, and asynchronous interface. Figure 1-1 shows an internal view of the components used to process incoming ISDN and analog calls on an access server.
All dial-in users exist on one dial-in subnet. Remote asynchronous users dial in through the group asynchronous interface to the access server. Remote ISDN users dial in through the ISDN dialer interface to the access server. Figure 1-2 shows an external view of how remote users dial in to the access server.
Before you turn on the access server and begin to use the setup script, make sure you have already connected the cables to the access server and configured your PC terminal emulation program for 9600 baud, 8 data bits, no parity, and 2 stop bits. All configuration will be performed from your PC terminal emulation program window.
boldface font.
To use the setup script take the following steps:

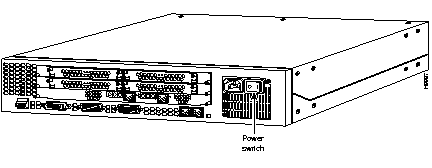

Step 1 Power ON the access server (see Figure 1-3). The power switch is on the rear panel of the access server, at the upper right corner near the power cord.
Messages will begin to appear in your terminal emulation program window.
 | Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time will be interpreted as the first command typed when the messages stop, which may cause you to power cycle the access server and start over. It will take a few minutes for the messages to stop. |
The messages look similar to the following:
System Bootstrap, Version 11.2(7)P, RELEASED SOFTWARE
Copyright (c) 1994-1997 by cisco Systems, Inc.
AS5200 processor with 16384 Kbytes of main memory
program load complete, entry point: 0x3000060, size: 0x23d454
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco Internetwork Operating System Software
IOS (tm) 5200 Software (C5200-JS-L), Version 11.2(7)P, RELEASED
Copyright (c) 1986-1997 by cisco Systems, Inc.
Compiled Tue 20-May-97 20:29 by ccai
Image text-base: 0x2204097C, data-base: 0x00005000
cisco AS5200 (68030) processor (revision B) with 16384K/4096K bytes of memory.
Processor board ID 04277316
Bridging software.
SuperLAT software copyright 1990 by Meridian Technology Corp).
X.25 software, Version 2.0, NET2, BFE and GOSIP compliant.
TN3270 Emulation software.
Primary Rate ISDN software, Version 1.0.
Mother board with terminator card.
1 Ethernet/IEEE 802.3 interface(s)
2 Serial network interface(s)
24 terminal line(s)
2 Channelized T1/PRI port(s)
128K bytes of non-volatile configuration memory.
8192K bytes of processor board System flash (Read ONLY)
8192K bytes of processor board Boot flash (Read/Write)
Notice: NVRAM invalid, possibly due to write erase.
--- System Configuration Dialog ---
At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.
Step 2 When the following message appears, press Return to accept the default entry (yes) in square brackets:
If you answer no, go to Chapter 3, "Configuring the Access Server Manually" to configure the access server, or refer to the Quick Reference Card included with your access server.
Step 3 When the following message appears, press Return to see the current interface summary:
Step 4 Enter a host name for the universal access server:
5200
Step 5 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when viewing the configuration:
lab
Step 6 Enter an enable password. This password is not encrypted (less secure) and can be seen when viewing the configuration:
guessme
Step 7 Enter the virtual terminal password, which is used for remote console access:
guessagain
Step 8 Respond to the following prompts as appropriate for your network:
yes
yes
15
yes
Step 9 Configure the asynchronous serial lines for the integrated modems or terminal adapters on the modules installed in the universal access server:
Configure for Dynamic IP addresses? [no]:
Configure for TCP header compression? [yes]:
Configure for routing updates on async links? [no]:
Enter the starting address of IP local pool? [X.X.X.X]: 172.20.30.40
Enter the ending address of IP local pool? [X.X.X.X]: 172.20.30.88
no
yes
yes
Step 10 Configure the Ethernet 0 interface:
172.21.40.10
8
yes
10
etherzone
yes
Step 11 Configure the Serial 0 interface:
172.22.50.10
8
yes
no
11
serialzone
yes
Step 12 Configure the Serial 1 interface:
172.23.60.10
8
yes
Step 13 Enter the letter corresponding to the ISDN switch type that matches your telco's switch type:
Step 14 Configure the controllers:
When you have completed the initial configuration script, messages similar to the following appear:
hostname 5200 enable secret 5 $1$f4PM$9OraffX1HFObyBNbKF.DI. enable password guessme line vty 0 4 password guessagain snmp-server community public ! appletalk routing no decnet routing ip routing no clns routing ipx routing no vines routing no xns routing no apollo routing no bridge 1 ! ! Turn off IPX to prevent network conflicts. interface Ethernet0 no ipx network interface Serial0 no ipx network interface Serial1 no ipx network ! line 1 24 speed 115200 flowcontrol hardware login local autoselect ppp autoselect during-login modem dialin ip local pool setup_pool 172.20.30.40 172.20.30.88 ! username user password passwd ! arap network 1 ARA Dialins line 1 24 arap enable autoselect arap ! interface Ethernet0 ip address 172.21.40.10 255.255.255.0 appletalk address 10.0 appletalk zone etherzone ipx network 1 no mop enabled ! interface Serial0 ip address 172.22.50.10 255.255.255.0 appletalk address 11.2 appletalk zone serialzone ipx network 2 no mop enabled ! interface Serial1 ip address 172.23.60.10 255.255.255.0 ipx network 3 no mop enabled ! Interface Group-Async1 group-range 1 24 ip unnumbered Ethernet0 encapsulation ppp ppp authentication chap pap peer default ip address pool setup_pool ip tcp header-compression passive async mode interactive ! isdn switch-type primary-5ess ! controller T1 0 pri-group timeslots 1-24 framing esf linecode b8zs ! interface serial0:23 isdn incoming-voice modem ip unnumbered Ethernet0 encapsulation ppp ppp authentication chap pap ppp multilink peer default ip address pool setup_pool dialer-group 1 access-list 101 permit ip any any dialer-list 1 list 101 ! controller T1 1 pri-group timeslots 1-24 framing esf linecode b8zs ! interface serial1:23 isdn incoming-voice modem ip unnumbered Ethernet0 encapsulation ppp ppp authentication chap pap ppp multilink peer default ip address pool setup_pool dialer-group 1 access-list 101 permit ip any any dialer-list 1 list 101 ! router igrp 15 redistribute connected network 172.21.0.0 network 172.22.0.0 network 172.23.0.0 ! end
Step 15 Enter yes to save the configuration or enter no to erase it:
yes
Step 16 When the messages stop displaying on your screen, press Return to get the following prompt:
The access server now has a basic configuration for ISDN or channelized T1 or E1 (depending on your responses to the prompts). The access server should be able to accept incoming calls. However, this is not a complete access server configuration. For more advanced configuration topics, proceed to:
