Release Notes for CDDI/FDDI Workgroup WS-C1400 Concentrator Release 1.8

Release Notes for CDDI/FDDI Workgroup WS-C1400 Concentrator Release 1.8

These release notes describe the features and caveats for CDDI/FDDI Workgroup WS-C1400 Concentrator software Release 1.8. Refer to the CDDI/FDDI C1400 Concentrator Installation and Configuration Guide for detailed information about the CDDI/FDDI Workgroup WS-C1400 Concentrator.

Cisco documentation and additional literature are available in a CD-ROM package, which ships with your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly. Therefore, it might be more up to date than printed documentation. To order additional copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The CD-ROM package is available as a single package or as an annual subscription. You can also access Cisco documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.

This document is divided into the following sections:

Release 1.8 Introduction

The following sections describe the features, caveats, and corrected caveats in Release 1.8.

New Features in Release 1.8

This section describes the Module-Priority Attachment Mode, a new feature in CDDI/FDDI Workgroup WS-C1400 Concentrator Software Release 1.8.

A WS-C1400 concentrator in module-priority attachment mode functions like a concentrator that is in dual-attachment mode, except that Module 1 must be present, enabled, and functional before any master (M) port can connect. If Module 1 experiences a major or minor hardware failure or is disabled or removed, the M ports report as inactive and are disabled.

Module-priority attachment mode can be used to switch a primary WS-C1400 to a secondary WS-C1400 if the primary concentrator loses the main network ring connection due to the removal, disabling, or failure of Module 1. Figure 1 shows an example of a primary and secondary WS-C1400 configuration during a failover.


Note If you are using SNMP to manage the WS-C1400 while in module-priority attachment mode, you must update the CISCO-STACK-MIB.my file. You can obtain the latest version of the CISCO-STACK-MIB.my file from the Cisco Systems FTP site. Refer to the "Using FTP to Obtain the MIB File" section later in this document.

You can also obtain the CISCO-STACK-MIB.my file from Cisco Connection Online (CCO). Refer to the "Cisco Connection Online" section later in this document for information about using CCO.

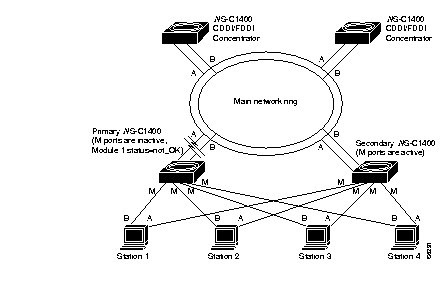

Figure 1: WS-C1400 Configuration During a Failover

To enable module-priority attachment mode, enter the following command from the command-line interface (CLI):

Console> (enable) set attach modpri

Once the set attach modpri command is executed, the following message is displayed:

Attachment type changed to module-priority attach.

The following applies to module-priority attachment:

Console> (enable) show port
Port  Name                  Status      Req-Path   Cur-Path   Type  Neigh
----  --------------------  ----------  ---------  ---------  ----  -----
1/1                         notconnect  secondary  isolated    A     U
1/2                         notconnect  primary    isolated    B     U
1/3                         inactive    primary    isolated    M     U
1/4                         inactive    primary    isolated    M     U
:
:
1/16                        disabled    primary    isolated    M     U
2/1                         inactive    primary    isolated    M     U
:
:
2/8                         inactive    primary    isolated    M     U

Note Module-priority attachment mode does not affect ports that you disable. All ports that you disable remain disabled until configured otherwise. All disabled ports are identified as disabled in the show port command display.
Console> (enable) set port 2/9 enable
Port 2/9 inactive due to dual priority attachment mode in effect.
In this case, the port is enabled in NVRAM. However, it is set to inactive during the failover. When the main network ring connection is restored, the port is activated. Use the show port command to display the current M-port status.
Console> (enable) set module 1 enable
Module 1 M-ports may be inactive due to module priority attach mode in effect.
Console> (enable) set module 2 enable
Module 2 ports inactive due to module priority attach mode in effect.
Attachment type changed to module-priority attach.
Must reset concentrator for this to take effect!
At this point, you must reset the WS-C1400 before module-priority attachment takes effect. There is no need to reset the concentrator when you switch between module-priority, dual-priority, and dual-attachment modes.

Release 1.8 Caveat Corrections

This section describes caveats that have been corrected in the 1.8 release.

Release 1.8 Caveats

This section describes the caveats for Release 1.8.

Console> (enable) set ipaddress new_ipaddress
Console> (enable) set ipaddress old_ipaddress old_ipaddress

Release 1.7 Introduction

The following section describes caveats and caveats that have been corrected for Release 1.7.

Release 1.7 Caveat Corrections

The following caveat is resolved in Release 1.7: When a standby PHY-A port transitions up and down due to normal standby port activity, the dual-homed concentrator no longer sends SNMP trap messages. [CSCdi66807]

Release 1.7 Caveats

This section describes the caveats for Release 1.7.

Console> (enable) set ipaddress new_ipaddress
Console> (enable) set ipaddress old_ipaddress old_ipaddress

Release 1.6 Introduction

The following sections describe features, caveats, and caveat corrections for Release 1.6.

New Features in Release 1.6

The following enhancements added to Release 1.6 are described in the following sections:

Dual-Priority Attachment Mode

A WS-C1400 concentrator in dual-priority attachment mode functions like a concentrator that is in dual-attachment mode, except that the A or B ports must be active before any master (M) port can connect. If the A or B ports are not active, the M ports will report as inactive and are disabled until either the A or B port becomes active.

Dual-priority attachment mode can be used to switch a primary WS-C1400 to a secondary WS-C1400 if the primary loses the main network ring connection via the A and B ports. Figure 2 shows an example of a primary and secondary WS-C1400 configuration during a main network ring disconnect.


Note If you are using SNMP to manage the WS-C1400 while in dual-priority attachment mode, you must update the CISCO-STACK-MIB.my file. You can obtain the latest version of the CISCO-STACK-MIB.my file from the Cisco Systems FTP site. Refer to the "Using FTP to Obtain the MIB File" section later in this document.

You can also obtain the CISCO-STACK-MIB.my file from Cisco Connection Online (CCO). Refer to the "Cisco Connection Online" section later in this document for information about using CCO.

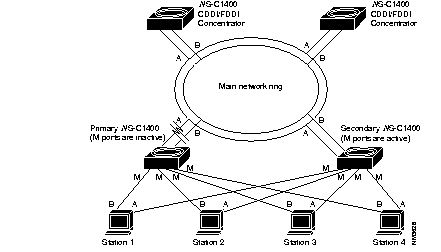

Figure 2: WS-C1400 Configuration During a Main Network Ring Disconnect


Note It is recommended that you set the primary WS-C1400 to dual-priority attachment mode and set the secondary WS-C1400 to dual-attachment mode when only two concentrators are connected to the main network ring or when two concentrators are connected back-to-back.

To enable dual-priority attachment mode, enter the following command from the command-line interface (CLI):

Console> (enable) set attach dualpri

Once the set attach dualpri command is executed, the following message is displayed:

Attachment type changed to dual-priority attach.

The following applies to dual-priority attachment:

Console> (enable) show port
Port  Name                  Status      Req-Path   Cur-Path   Type  Neigh
----  --------------------  ----------  ---------  ---------  ----  -----
1/1                         notconnect  secondary  isolated    A     U
1/2                         notconnect  primary    isolated    B     U
1/3                         inactive    primary    isolated    M     U
1/4                         inactive    primary    isolated    M     U
:
:
1/16                        disabled    primary    isolated    M     U
2/1                         inactive    primary    isolated    M     U
:
:
2/8                         inactive    primary    isolated    M     U

Note Dual-priority attachment mode does not affect ports that you disable. All ports that you disable remain disabled until configured otherwise. All disabled ports are identified as disabled in the show port command display.
Console> (enable) set port 1/9 enable
Port 1/9 inactive due to dualpriority attachment mode in effect.
The port is enabled in NVRAM. However, it is set to inactive during the disconnect. When the main network ring connection is restored, the port is active. Use the show port command to display the current M-port status.
Console> (enable) set module 1 enable
Module 1 M-ports may be inactive due to dual attach priority mode in effect.
Console> (enable) set module 2 enable
Module 2 ports inactive due to dual attach priority mode in effect.
Attachment type changed to dual-priority attach.
Must reset concentrator for this to take effect!
At this point, you must reset the WS-C1400 before dual-priority attachment takes effect. There is no need to reset the concentrator when you switch between dual-priority attachment and dual-attachment modes.

Ring-Map Enable/Disable

The set ringmap [enable | disable] command enables or disables the WS-C1400 ring-mapping feature and saves the state to NVRAM. The default is enable.

To enable ring-mapping, enter the following command:

Console> (enable) set ringmap enable
Ring mapping enabled

To disable ring-mapping, enter the following command:

Console> (enable) set ringmap disable
Ring mapping disabled

To verify the ring map status, use the show ringmap command.

Release 1.6 Caveat Corrections

The following caveats are resolved in Release 1.6:

Release 1.6 Caveats

This section describes the caveats for Release 1.6.

As a workaround, disable the trap by using the following command:
Console> (enable) set port trap 1 disable
Console> set ipaddress new_ipaddress
Console> set ipaddress old_ipaddress old_ipaddress

Release 1.5 Introduction

The following sections describe enhancements, caveats, and caveat corrections for Release 1.5.

New Features in Release 1.5

The following enhancement has been added to Release 1.5:

This release supports a timeout feature that is configured from the console. It lets you change the time interval until the system disconnects an idle session after a period of non-activity. Use the following command:

Console> (enable) set logout timeout

The timeout variable is the number of minutes, from 0 to 10,000, until the system disconnects an idle session. The default is 20 minutes, and 0 disables the feature.

Release 1.5 Caveat Corrections

The following caveats are resolved in Release 1.5:

Release 1.5 Caveats

This section describes possibly unexpected behavior by Release 1.5.

Release 1.4 Introduction

The following sections describe enhancements, caveats, and corrections for Release 1.4.

New Features in Release 1.4

The following enhancements have been added to Release 1.4:


Note No trap is generated if a port transitions from a dormant or standby state to an up state or vice versa.

Release 1.4 Caveat Corrections

The following caveats are resolved for Release 1.4:

To change the default for the linkUp or linkDown trap for a specific port, use the following command:
Console> (enable) set porttrap
Usage: set porttrap
Console> (enable)
Console> (enable) set porttrap 2/1 disable
Port 2/1 up/down trap disabled.
Console> (enable)

Release 1.4 Caveats

This section describes possibly unexpected behavior by Release 1.4.

Console> (enable) set ipaddress old_ipaddress old_ipaddress
Console> (enable) set ipaddress new_ipaddress

Release 1.3 Introduction

The following sections describe new features, important information, and caveats for Release 1.3.

New Features in Release 1.3

The following enhancements have been added to Release 1.3:

To enable the concentrator, use the following command:
Console> (enable) set unreachable enable
ICMP Unreachables enabled

To view the status of the ICMP unreachables, use the following command:


Console> (enable) show snmp
To receive traps on an SNMP management station, follow these steps:

Step 1 Use the following command to configure an IP address to the concentrator:

Step 2 Use the ping utility to verify that you can reach the SNMP management station. If the SNMP management station is on a different network, set a default gateway for the concentrator by using the following command:

Step 3 Use the following command to enable the trap on the concentrator:

Step 4 Use the following command to set the trap receiver address with the proper community string:

Step 5 Use the following command to view the status of the SNMP configuration:

The following is an example of the show snmp output:


Port  Name                 Status     Req-Path  Cur-Path  Conn-State Type Neigh
----  -------------------- ---------- --------- --------- ---------- ---- -----
1/1                        notconnect secondary isolated  standby     A    M
1/2                        connected  primary   concat    active      B    M
1/3                        notconnect primary   isolated  connecting  M    U
1/4                        notconnect primary   isolated  connecting  M    U
1/5                        notconnect primary   isolated  connecting  M    U
1/6                        notconnect primary   isolated  connecting  M    U
1/7                        notconnect primary   isolated  connecting  M    U
1/8                        notconnect primary   isolated  connecting  M    U
1/9                        notconnect primary   isolated  connecting  M    U
1/10                       notconnect primary   isolated  connecting  M    U
1/11                       notconnect primary   isolated  connecting  M    U
1/12                       notconnect primary   isolated  connecting  M    U
1/13                       notconnect primary   isolated  connecting  M    U
1/14                       notconnect primary   isolated  connecting  M    U
1/15                       notconnect primary   isolated  connecting  M    U
1/16                       notconnect primary   isolated  connecting  M    U
      Ler    Ler  Ler   Ler
Port  Cond   Est  Alarm Cutoff Lem-Ct     Lem-Rej-Ct tl-min  Media   Link-Trap
----  -----  ---- ----- ------ ---------- ---------- ------- ------  ---------
1/1   false  16   8     7      0          0          286     tp-pmd  enable
1/2   false  15   8     7      0          0          286     tp-pmd  enable
1/3   false  16   8     7      0          0          286     tp-pmd  enable
1/4   false  16   8     7      0          0          286     tp-pmd  enable
1/5   false  16   8     7      0          0          286     tp-pmd  enable
1/6   false  16   8     7      0          0          286     tp-pmd  enable
1/7   false  16   8     7      0          0          286     tp-pmd  enable
1/8   false  16   8     7      0          0          286     tp-pmd  enable
1/9   false  16   8     7      0          0          286     tp-pmd  enable
1/10  false  16   8     7      0          0          286     tp-pmd  enable
1/11  false  16   8     7      0          0          286     tp-pmd  enable
1/12  false  16   8     7      0          0          286     tp-pmd  enable
1/13  false  16   8     7      0          0          286     tp-pmd  enable
1/14  false  16   8     7      0          0          286     tp-pmd  enable
1/15  false  16   8     7      0          0          286     tp-pmd  enable
1/16  false  16   8     7      0          0          286     tp-pmd  enable

Release 1.3 Important Notes

Release 1.3 supports RFC 1572. For more information, refer to the Evolution of the Interfaces Group of MIB-II.

The latest version of the CISCO-STACK-MIB.my file can be obtained from the Cisco Systems FTP site. Refer to the "Using FTP to Obtain the MIB File" section.

You can also obtain the CISCO-STACK-MIB.my file from Cisco Connection Online (CCO). Refer to the "Cisco Connection Online" section later in this document for information about using CCO.

Using FTP to Obtain the MIB File

You can obtain the CISCO-STACK-MIB.my file that describes the Cisco MIB by following these steps:

Step 1 Use FTP to access the ftp.cisco.com server.

Step 2 Use the anonymous username to log into the server.

Step 3 Enter your e-mail name when prompted for the password.

Step 4 At the ftp> prompt, change directories to /pub/mibs/.

Step 5 Change directories to one of the following:

Step 6 Use the get README command to display the file that has the list of available files.

Step 7 Use the get CISCO-STACK-MIB.my command to obtain a copy of the MIB file.

Release 1.3 Caveats

The following caveats describe possibly unexpected behavior by Release 1.3:

Release 1.2 Introduction

The following sections describe new features and important Flashcode information for Release 1.2.

New Features in Release 1.2

The following enhancement has been added to Release 1.2:

The set tlmin command sets the time required for PHY hardware to transmit a given line state before advancing to the next physical connection management (PCM) state at the station management (SMT) level. The mod_num is 1 or 2, and the port_num is 1 through 16, depending on the card. The hexvalue is between 0 and 0xffff. The tl_min setting is stored in the TL_MIN register (also known as the LS_MAX register) as part of the SMT MIB structure in nonvolatile memory and is used for initializing the PHY hardware setting each time the concentrator is rebooted.

Console> (enable) set tlmin ?
Usage: set tlmin
       (hexvalue is in 2's complement)
Console> (enable) set tlmin 2/5 fdfd
Port 2/5 tlmin set to 0xfdfd.
Console> (enable)

Release 1.2 Important Notes

After the Workgroup WS-C1400 Concentrator firmware Version 1.2 is installed, future network downloads will allow only Flashcode with the WS-C1400 signature to be loaded. Version 1.2 and later versions of the Workgroup WS-C1400 Concentrator Flashcode will contain the WS-C1400 signature.

To download or copy an earlier Flashcode version, you must specifically request the no-signature option by adding the nosig argument to the download command. The following is an example of a download attempt without using the nosig argument:

Console> (enable) download 198.133.219.40 c1400_11.net
This command will disconnect your telnet session.
Download image c1400_11.net from host 198.133.219.40 to flash (y/n) [n]? y
\
Done.  Finished Network Download.  (453636 bytes)
ERROR: Downloaded code signature incorrect

The following is an example of a successful download using the nosig argument:

Console> (enable) download 198.133.219.40 c1400_11.net nosig
This command will disconnect your telnet session.
Download image c1400_11.net from host 198.133.219.40 to flash (y/n) [n]? y
\
Done. Finished Network Download. (453636 bytes)
Initializing flash...Erasing Flash...Done
Programming flash
Base....Code....Length....Time....Done
Disconnected from FDDI ring.
Connection closed by foreign host.

Cisco Connection Online

Cisco Connection Online (CCO) is Cisco Systems' primary, real-time support channel. Maintenance customers and partners can self-register on CCO to obtain additional information and services.

Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and value-added services to Cisco's customers and business partners. CCO services include product information, product documentation, software updates, release notes, technical tips, the Bug Navigator, configuration notes, brochures, descriptions of service offerings, and download access to public and authorized files.

CCO serves a wide variety of users through two World Wide Web (WWW) interfaces that are updated and enhanced simultaneously: a character-based version and a multimedia version. The character-based version of CCO supports Zmodem, Kermit, Xmodem, FTP, and Internet e-mail, and it is excellent for quick access to information over lower bandwidths. The multimedia version of CCO provides richly formatted documents with photographs, figures, graphics, and video. Both versions provide hyperlinks to related information.

You can access CCO in the following ways:

For a copy of CCO's Frequently Asked Questions (FAQ), contact cco-help@cisco.com. For additional information, contact cco-team@cisco.com.


Note If you are a network administrator and need personal technical assistance with a Cisco product that is under warranty or covered by a maintenance contract, contact Cisco's Technical Assistance Center (TAC) at 800 553-2447, 408 526-7209, or tac@cisco.com. To obtain general information about Cisco Systems, Cisco products, or upgrades, contact 800 553-6387, 408 526-7208, or cs-rep@cisco.com.


hometocprevnextglossaryfeedbacksearchhelp
Copyright 1989-1998 © Cisco Systems Inc.
