FastHub 112F Connectors

This appendix describes the connectors for the FastHub 112F.

The 100Base-FX Connectors

The FastHub 112F uses standard ST connectors. The arrangement of the pins is shown in Figure B-1.

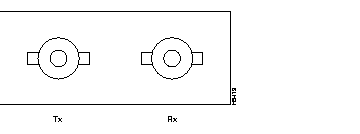

Figure B-1: 100Base-FX Connector
