This chapter describes how to configure the Cisco DistributedDirector (the Director) and the primary domain DNS server for DNS caching name server mode.
Use DNS caching name server mode when you want the Director to act as the caching DNS name server for a specific subdomain.
To configure the Director for DNS caching name server mode, you need to set up the software on the following network equipment:
DNS caching name server mode works for all IP services. HTTP session redirector mode works only for HTTP services. You should choose the mode that best meets your networking requirements for a particular group of distributed servers. The Director supports multiple groups of distributed servers, and each group can operate in different configurations and modes.
DNS caching name server mode configuration is described in the following sections:
For complete information about Director commands, see the chapter, "Command Summary and Reference."
Gather the following information:
For DNS caching name server mode, you need to determine if the primary DNS server and secondaries are running BIND version 4.9.3 or higher. If not, you need to upgrade them because of a time-to-live (TTL) problem in earlier BIND versions. In addition, these servers must be nonrecursive.
The Director can be placed anywhere in the corporate intranet. For ease of management, you should install the Director topologically close to the primary DNS server.
The following sections describe how to configure the Director and the primary DNS server for DNS caching name server mode:
For advanced configuration options, refer to the chapter "Configuring Advanced Features."
The Director can be placed anywhere in the corporate intranet. For ease of management, install the Director topologically close to the primary DNS server.
Perform the following steps to configure the Director for DNS caching name server mode. The tasks associated with each step are described in the subsections that follow this list:
Step 1 Specify IP Address of the Default DNS Server and Define Virtual Host Names
Step 2 Configure the Default Weight Metrics
Step 3 Define an Access List to Enable Security for DRP
Step 4 Configure a Regular Expression for Address Sorting
Step 5 Set Up MD5 Authentication with Passwords as Another Security Measure
Perform the following steps in global configuration mode to specify the IP address of the Director's default DNS server and to define the virtual host names to be used for distributed servers:
| Task | Command |
|---|---|
| Step 1 Configure the Ethernet interface. | Refer to the chapter "Configuring the Director Software Interfaces." |
| Step 2 Specify the IP address of the default DNS server to which the Director should send requests (the primary domain's DNS primary server). | ip name-server DNS-server-IP-address |
| Step 3 Define the virtual host name(s) to be used for the set(s) of distributed servers. | ip director host name |
| Step 4 Define the IP addresses of the remote servers, and associate them with a virtual host name. | ip host [name] address1 [address2... address8] |
To configure default weight metrics, perform the following task in global configuration mode:
| Task | Command |
|---|---|
| Configure the default weight metrics. | ip director default-weights {[drp-int n] [drp-ext n] [drp-ser n] [random n] [admin n]} |
Default weights are used for all host names sorted by the Director. Following are the valid metric options:
When the associated metric is referenced in the sorting decision, it is always multiplied by the appropriate metric weight. In this way, you can specify that some metrics weigh more heavily than others. You may determine the weights you want to use through experimentation. The weights do not need to add to 100.
To override default weights for a certain host, specify host-specific weights in the Director configuration. For more information, also refer to the section "Setting Metrics and the Server Connection Parameter" in the chapter "Configuring Advanced Features."
To view the default weights setting, use the show ip director default-weights command.
Perform the following tasks in global configuration mode to define an access list to enable security for DRP:
Perform the following tasks in global configuration mode to configure a regular expression which the Director uses to match against host names. If the host name in the incoming DNS A (address) query matches the pattern specified in the Director access list, then the Director will be asked to sort the addresses. If not, all addresses will be returned in the response as normal.
If ip director access-group is not configured, then all host names are considered "interesting" to the Director. All incoming DNS A queries will then be passed to the Director for address sorting before the creation of the A response.
Perform the following tasks in global configuration mode:
| Task | Command |
|---|---|
| Step 1 Set up a key chain and password. | key chain name-of-chain |
| Step 2 Enable the DRP authentication key chain. | ip drp authentication key-chain name-of-chain |
The key chain is an encrypted password that helps prevent DRP-based denial-of-service attacks, which can be a security threat. The key chain (a character string without spaces) must match the key chain of the DRP server agents with which that the Director communicates.
The tasks associated with these steps are described in the subsections that follow:
Step 1 Add a Start of Authority Record in the Director
Step 2 Associate Each Distributed Server with its DRP Server Agent (if you intend to configure DRP metrics)
Step 3 Identify the Distributed Servers
Step 4 Specify Information for Server Verification
Step 5 Specify Host-Specific Weights or Metric Priorities
Step 6 Set Up Server Preferences
Perform the following task to add a Start of Authority (SOA) record in the Director to define the Director as the authoritative server for the subdomain name associated with the distributed servers:
| Task | Command |
|---|---|
| In the Director, add a Start of Authority (SOA) record that gives the Director authority for the subdomain. | ip dns primary domain soa primary contact [refresh [retry [expire [minimum]]]] |
For example, the following record makes the private DNS server authoritative for the www.sleet.com subdomain:
ip dns primary www.sleet.com. soa dd.sleet.com sysadmin.sleet.com 21600 900 7776000 86400
The above command tells the Director that it is the primary DNS server authoritative for the www.sleet.com domain. It indicates that the DNS host name of the Director is dd.sleet.com, and the administrative contact for this zone is sysadmin@sleet.com.
The refresh-interval (the time interval that must elapse between each poll of the primary by the secondary name server) is 6 hours, a retry-interval (the time interval used between successive connection attempts by the secondary to reach the primary name server in case the first attempt failed) is 15 minutes, the expire-ttl (the time interval after which the secondary expires its data if it cannot reach the primary name server) is 90 days, and a minimum-ttl (the minimum time-to-live value, which specifies how long other servers should cache data from the name server) is 1 day.
The values shown are suggested default values. You can configure the Director with the shown default values by simply using the following command:
ip dns primary domain soa primary contact
In the example, you would use:
ip dns primary www.sleet.com soa dd.sleet.com sysadmin.sleet.com
If you intend to configure any DRP metrics, associate each distributed server with its DRP server agent.
Perform the following task in global configuration mode:
| Task | Command |
|---|---|
| Associate each distributed server with its DRP server agent. | ip director server {hostname | host-ip-address} drp-association {name | ip-address} |
For example:
ip director server 11.0.0.2 drp-association 11.0.0.3
The Director will query its default DNS server for name-to-address bindings. If you use host/router names instead of IP addresses, you must make sure to configure the appropriate A records in the Director's default DNS server. You should use your primary domain server as the Director's default DNS server to ensure that all such name-to-address binding requests can be satisfied.
Perform the following task in global configuration mode to identify the IP address(es) of the distributed server(s) with a domain name:
| Task | Command |
|---|---|
| Identify the distributed servers. | ip host name [tcp-port-number] address1 [address2...address8] |
For example, to identify the distributed servers with IP addresses 10.0.0.2, 11.0.0.2, and 12.0.0.2 as members of the www.sleet.com domain, you would use the following command:
ip host www.sleet.com 10.0.0.2 11.0.0.2 12.0.0.2
Perform the following task in global configuration mode:
| Task | Command |
|---|---|
| Specify information for server verification. | ip director host name connect port connection-interval |
For example, you would use the following command to instruct the Director to create a TCP connection to port 80 on each distributed server associated with www.sleet.com every 15 minutes:
ip director host www.sleet.com connect 80 15
Servers that yield unsuccessful TCP connections are marked as unavailable. Subsequent successful TCP connections to the server will reinstate it as available. See "Specifying the Server Connection Parameter" in the chapter "Configuring Advanced Features" for more details.
To specify host-specific weights or metric priorities, perform either or both of the following tasks in global configuration mode:
An example for host-specific weights follows:
ip director host www.sleet.com weights drp-ext 80 random 10 admin 10
An example for metric priorities follows:
ip director host www.sleet.com priority drp-ext 1 admin 2 random 3
Because there is no default prioritization, all metrics with nonzero weights are considered at the same time and after all other prioritized metrics. Metric priorities must be explicitly configured.
See the section "Setting Metrics and the Server Connection Parameter" in the chapter "Configuring Advanced Features" for more information.
You might want to configure DRP-associations, host-specific weights, and priorities in the Director's default DNS server. This may be useful if you use scripting tools to generate and maintain your DNS configurations.
See the "Configuring Advanced Features" chapter for more information.
To set a preference for a distributed server based on cost, perform the following task in global configuration mode.When sorting, the Director uses the server preference value as that server's administrative (admin) metric.
| Task | Command |
|---|---|
| Assign a preference for a distributed server (host). | ip director server {hostname | host-ip-address} preference [cost] |
For example, to set a preference in the Director for the distributed server www-west.sleet.com, you might use the following command:
ip director server www-west.sleet.com preference 50
or
ip director server 10.0.0.2 preference 50
This example makes the www-west.sleet.com host less preferred to others because it has a higher "cost" than the others (a cost of 50 in this case).
Perform these steps to configure the primary DNS server for Director DNS caching name server mode:
| Task | Resource Record |
|---|---|
| Step 1 In the DNS tables of the primary DNS server, add a DNS name server resource record that associates a subdomain with a Director DNS name. | subdomain-name. in ns Director-name
|
| Step 2 Add an address resource record that associates the Director name with the Director IP address. | Director-name. in a Director-IP-address
|
For example, the following record specifies that dd.sleet.com is a name server for the www.sleet.com subdomain:
www.sleet.com. in ns dd.sleet.com
For example, the following record associates Director name dd.sleet.com with the Director IP address 10.0.0.1:
dd.sleet.com. in a 10.0.0.1
The primary DNS server will identify the Director as the authoritative name server for the specified subdomain. These records will automatically be flushed to the secondary name servers as a result of the DNS zone transfer mechanism.
You can test your setup by using a program such as host or nslookup to send a DNS A query to the Director. For example:
host www.sleet.com 10.0.0.1
or
nslookup www.sleet.com 10.0.0.1
If you query the same host multiple times and you are using the random metric, and you have the Director's caching turned, you should receive different addresses.
To turn off Director caching when using the random metric, configure the following:
ip director default-weight random 1 no ip director cache
With the Director's cache turned off, you should receive different addresses.

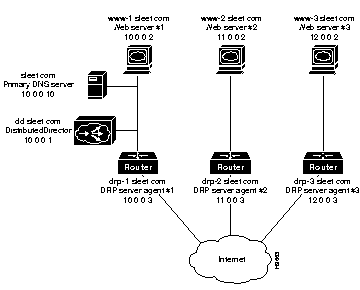

This section shows a sample configuration for DNS caching name server mode, using the network arrangement in Figure 7-1. In the following sections, configurations for the Director and primary DNS server are shown.
After configuring the Ethernet interface, you might enter the following commands to configure the Director.
ip name-server 10.0.0.10
ip director default-weights drp-int 10 drp-ext 90
access-list 1 permit 10.0.0.3
access-list 1 permit 11.0.0.3
access-list 1 permit 12.0.0.3
access-list 1 deny any
ip drp access-group 1
ip director access-list 1 permit ^www.*
ip director access-list 1 deny any
ip director access-group 1
key chain violet key 5 key-string carnation
This sets up an authentication key chain, which is a character string without spaces, containing one key. Then make this the DRP authentication key chain with the following global configuration command:
ip drp authentication key-chain violet
You could use the following commands to configure these parameters on the Director:
ip dns primary www.sleet.com. soa dd.sleet.com sysadmin.sleet.com 21600 900 7776000 86400 ip director server 10.0.0.2 drp-association 10.0.0.3 ip director server 11.0.0.2 drp-association 11.0.0.3 ip director server 12.0.0.2 drp-association 12.0.0.3 ip host www.sleet.com 10.0.0.2 11.0.0.2 12.0.0.2
You have set up www.sleet.com as a subdomain and set up the Director IP address as the authoritative DNS caching name server for that subdomain. At the same time, you also set up A records giving the IP addresses of all of the mirrored distributed servers for this subdomain. You have specified the DRP server agent (router) which is associated with each distributed server. The commands shown are required when DRP metrics are used.
Even though the Director is only a caching DNS server, it is configured as the primary so that it is authoritative for the requested host name(s). Because it does not have full tables, the Director will forward DNS requests to its default DNS server, cache the results, issue DRP queries to the DRP server agents, gather DRP responses, sort the A records (if configured for sorting), and send the "best" IP address back to the client.
You could either use IP addresses (as shown above) or use host names, as follows (see Figure 7-1):
ip director server www-1.sleet.com drp-association drp-1.sleet.com ip director server www-2.sleet.com drp-association drp-2.sleet.com ip director server www-3.sleet.com drp-association drp-3.sleet.com
The Director will query its default DNS server for name-to-address bindings. If you use host/router names instead of IP addresses, you must make sure to configure the appropriate A records in the Director's default DNS server. You should use your primary domain server as the Director's default DNS server to ensure that all such name-to-address binding requests can be satisfied.
To add host-specific weights, you would add more information to the Director. For example, you could configure host-specific weights like this:
ip director host www.sleet.com weights drp-ext 80 random 10 admin 10
The weights do not need to add up to 100. When the associated metric is referenced in the sorting decision, it will always be multiplied by the appropriate metric weight. In this way, you can specify that some metrics should be "heavier" than others.
To use metric priorities, you could use this configuration on the Director:
ip director host www.sleet.com priority drp-ext 1 admin 2
With this configuration, all clients would be assigned to the server that is closest to them according to BGP hop count distance. If two or more servers are at the same distance, the choice should be according to administrative preference.
You could set up an administrative preference with the following command:
ip director server www-west.sleet.com preference 50
This example makes the www-west.sleet.com host less preferred to others because it has a higher "cost" than the others (a cost of 50 in this case).
For more information, refer to the section "Setting Metrics and the Server Connection Parameter" in the chapter "Configuring Advanced Features."
For this example, there is a primary DNS server for the domain sleet.com, and you would like the Director to handle requests for the www.sleet.com subdomain only. You could set up your primary DNS server as follows:
www.sleet.com. in ns dd.sleet.com. dd.sleet.com. in a 10.0.0.1
These records pass authority for the www.sleet.com host name (now treated as a subdomain name) to the dd.sleet.com name server (the Director).
|
|
