Installation

This chapter describes how to install and remove the Catalyst 2820 modules and how to use the module LEDs to interpret the results of the module power-on self-test (POST). When unpacking the Catalyst 2820 modules, check the contents of the package against the list in "Packing List" in the "Introduction" chapter.

---

Note All of the Catalyst 2820 modules are hot-swappable: you can install one without turning off the switch.

---

Removing a Blank Faceplate

Blank faceplates on the Catalyst 2820 cover the high-speed expansion slots, as shown in Figure 2.1.

Figure 2-1: Catalyst 2820 with Blank Faceplates

To remove a faceplate, follow these steps:

Step 1 Loosen the thumbscrews attaching the faceplate to the Catalyst 2820.

Step 2 Remove the faceplate from the Catalyst 2820 and store it for future use. Figure 2-2 shows a Catalyst 2820 with an empty expansion slot.

Figure 2-2: Catalyst 2820 with an Empty Expansion Slot

Installing a Module

After the faceplate has been removed, follow these steps to install a module in an empty Catalyst 2820 high-speed expansion slot:

Warning Class 1 laser product.

Warning Avoid exposure to the laser beam.

Caution When installing a FDDI module, do not remove the rubber plugs from the fiber-optic port or the rubber caps from the fiber-optic cable until you are ready to connect the cable. The plugs and caps protect the fiber-optic port and cable from contamination and ambient light.

Step 1 Slide the module into the slot card-guides until you feel the card touch the back of the unit.

Step 2 Push the module firmly until you feel it snap into place. Tighten the thumbscrews on the module faceplate.

When the module is installed correctly, its faceplate is flush with the front of the Catalyst 2820 unit.

Step 3 Attach the cable. If you are attaching a fiber-optic cable, remove the rubber plugs from the fiber-optic port on the module and store the plugs for future use.

Attach the cable for a specific module as follows:

• 100BaseFX ST connector

Line up the two small tabs on the cable header with the keyed holes in the fiber-optic connector. Insert the cable into the fiber-optic port and turn it one-quarter turn clockwise.

• MIC connector

For a MIC connector, remove the rubber caps from the cable, and insert the connector in the fiber-optic connector, as shown in Figure 2-3, pushing until it snaps into place.

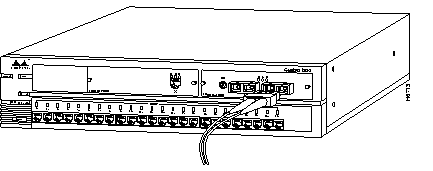

Figure 2-3: Attaching a Fiber-Optic Cable to the FDDI Module

• 100BaseTX and FDDI UTP SAS RJ-45 connector

Insert the cable into the RJ-45 connector on the module as shown in Figure 2-4.

Figure 2-4: Attaching a UTP Cable to a 100BaseT Module

---

Note When interconnecting two Catalyst 2820s using a UTP cable, use a crossover cable.

---

Removing a Module

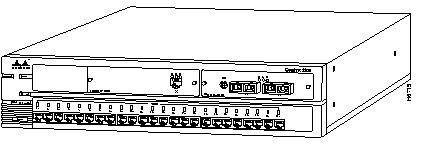

Figure 2-5: Installed FDDI Modules

Figure 2-5 shows a Catalyst 2820 with two FDDI modules installed. To remove a module from a Catalyst 2820 slot, follow these steps:

Step 1 Disconnect the cable from the module port.

• If you are removing a fiber-optic cable from an ST connector, grasp the circular part of the cable header, push it in slightly while turning it one-quarter turn counter-clockwise, then pull the cable from the port.

• If you are removing fiber-optic cable from a MIC connector, press in the locks on the cable header and then pull the cable from the port. Replace the protective cap on the end of the fiber-optic cable and the rubber plugs in the fiber-optic port.

• If you are removing a UTP cable, disconnect it from the RJ-45 connector.

Step 2 Loosen the thumbscrews attaching the module faceplate to the Catalyst 2820.

Step 3 Remove the module by grasping the thumbscrews and pulling the module out of the slot.

Step 4 Replace the blank faceplate to cover the empty expansion slot if you are not replacing the module with another.

POST for FDDI

When first powered on, the expansion slot LED of the Catalyst 2820 and all LEDs on the module front panel are green. A power-on self-test (POST) is automatically started. If the module passes the POST, the expansion slot LED (A or B) on the Catalyst 2820 remains green. If the module fails the POST, the expansion slot LED turns amber.

If an FDDI module fails the POST, the LEDs on the module indicate the type of failure. Table 2-1 shows how to use the LEDs to interpret POST failures.

For more information about the A and B expansion slot LEDs, refer to the Catalyst 2820 and Catalyst 1900 User Guide.

Table  2-1: LED Indicators of Failed FDDI POST

Failed Component	Connected LED	Activity LED	Disabled LED	Response
CPU	On	On	On	Call for assistance.
FLASH	On	On	On
Local RAM	On	On	On
Shared RAM	Slow blink	On	Slow blink	Start the management console and check for errors.
100-Mbps controller	Slow blink	Slow blink	On
FDDI controller	Slow blink	On	On
ES loopback test	Fast blink	Slow blink	On
FDDI loopback test	Fast blink	On	On
Player+ (A)	On	On	Fast blink
Player+ (B)	On	Fast blink	On

POST for 100BaseT Modules

When first powered on, all LEDs on the module front panel are green, and a POST automatically begins. If the module passes POST, the expansion slot LED (A or B) on the Catalyst 2820 remains green. If the module fails POST, the expansion slot LED turns amber.

For a complete description of each LED, see "100BaseT Module LEDs" in the chapter "Introduction."
