Getting Started on Solstice Enterprise Manager

This chapter briefly describes some CiscoWorks applications and provides instructions on how to use them. It also contains an overview of how CiscoWorks functions with your Solstice Enterprise Manager (EM) network management platform. The chapter includes the following sections:

For detailed CiscoWorks application information, refer to the CiscoWorks online help system.

CiscoWorks Online Help

CiscoWorks now includes a new form of online help based on help systems supplied with Windows-based platforms.

Once you start the CiscoWorks online help system, you can jump to any topic within the system. For information on how to use the Help viewer, select Help>How to Use Help when the first help window appears.

Online help is available from several parts of CiscoWorks and its network management platforms:

Network management platform menus, so you can view help before starting a CiscoWorks application.
CiscoWorks application Help menus, which start the help system and display the Contents page for that application.
CiscoWorks Toolbox application, so you can view help before starting a CiscoWorks application.

CiscoWorks online help includes a Find button that allows you to do full-text searches within the help system. For information on how to do a search, select Help>How to Use Help when the first Help window appears.

Viewing Online Help

The online system includes help descriptions for all CiscoWorks menus and windows, including windows that do not have help menus. You can view your online help system in the following ways:

View CiscoWorks online help from Enterprise Manager by selecting Tools>CW - Application Help. The CiscoWorks Help Contents window opens.
Start help from inside a CiscoWorks application.
- Select Help>On window_name from any CiscoWorks window that has a Help menu. The CiscoWorks Help Contents window for that application opens.
Start help from the CiscoWorks Toolbox application:
- Press the F1 key while pointing to a CiscoWorks application icon in the Toolbox window. The CiscoWorks Help Contents window for that application opens.
Get help for a window that does not have a Help menu or get help for a menu:
- Start the Help system for that application from a window that has a Help menu or use one of the other methods for starting the help system.
The Contents page for each application, titled "Using Application_name," includes highlighted jumps to topics containing lists of all the windows and menus for that application.
- Click on the highlighted jumps, Application_name windows or Application_name menus, for information on windows and menus.

Learning to Use CiscoWorks

CiscoWorks applications appear on your Enterprise Manager menus. To use CiscoWorks features and Enterprise Manager software to the fullest, you must understand how to start the applications and complete some basic tasks. This section describes the location of the CiscoWorks applications on the EM menus and provides an overview of the post-installation tasks to complete before you begin to use CiscoWorks.

CiscoWorks Applications

Table 6-1 lists the CiscoWorks applications and their menu locations, and explains the tasks they perform. The CiscoWorks applications are listed in alphabetical order.

In Enterprise Manager, start the CiscoWorks applications via the Tools or Glyphs menu.

**Table 6-1: Accessing CiscoWorks Applications**
Enterprise Manager Menu Location	Tasks
Tools>CW - Application Help	CiscoWorks online help system that allows you to investigate different levels of details within the online help system by selecting highlighted text to open additional windows. The online help system provides overview, related information, procedures, and glossary data on the CiscoWorks applications and features. It allows both keyword and full-text searches to enable users to search for specific text.
Tools>CW - AutoInstall Manager	Remotely deploy a new router using a neighbor router. Perform AutoInstall tasks remotely by running CiscoWorks instead of a Telnet session.
Tools>CW - Config Management	Access configuration files of local and remote Cisco Systems devices to analyze or edit them as necessary. Compare the contents of two configuration files in the database, or compare the configuration currently running on a device with the configuration that represents the last Database to Device command you performed.
Tools>CW - Configuration Snap-In Mgr	Create and execute selected or custom UNIX commands on a device or group of devices at any time with Global Command Scheduler.
Glyph Tools>CW - Contacts	Obtain information about the contact for a specific device, including the complete name, phone number, e-mail address, title, location, and address of the person responsible for the operation of the device.
Tools>CW - Device Mgmt	Create and maintain a database that holds a complete inventory of your network--hardware, software, release levels of operation components, individuals responsible for maintaining the devices, and associated locations. Enter or change data in the database tables for network devices, networks, interfaces, contacts, vendors, and so on.
Tools>CW - Device Monitor	Monitor your network devices for information about environmental and interface statistics. Specify how often CiscoWorks should check this information.
Tools>CW - Device Polling	Probe and extract information about the condition of your networks using a polling feature. The information acquired is stored in the database for further evaluation and analysis. Compare the relative performance and status of devices and interfaces on the network.
Glyph Tools>CW - Device SW Mgr	Automate the upgrade of a system software or microcode image on a Cisco device.
Tools>CW - Domain Mgr	Create groups of devices (called domains) that CiscoWorks applications can use to accomplish network management tasks such as security, configuration, and device polling.
Glyph Tools>CW - Environmental Monitor	View the environmental status of Cisco AGS+ and Cisco 7000 routers including temperature and voltage statistics. This function is available on AGS+ routers running System Software Release 10.3 or later with an ENVM¹ card running ENVM Microcode Version 2.0 or later.
Tools>CW - Global Command Mgr	Create, store, and execute system commands on a device or group of devices at any time with Global Command Scheduler.
Tools>CW - Global Command Scheduler	Schedule commands or other jobs at regularly scheduled times using the crontab utility.
Glyph Tools>CW - Health Monitor	View information about the status of a device, including buffers, CPU load, available memory, and protocols and interfaces being used. Enables you to display the Show Commands and Real-Time Graphs windows from the Health Monitor window.
Tools>CW - Login	Perform a generic login for all CiscoWorks applications that require user authentication so that you do not have to log in to each application separately.
Tools>CW - Logout	Log out of secured CiscoWorks applications to ensure security for those applications with authority checking turned on.
Tools>CW - Path Tool or Glyph Tools>CW - Path Tool	View and analyze the path between two devices. Perform analysis on the path to collect utilization and error data. Display the devices encountered between the source and the destination device, the link speeds connecting these EMP devices, and the interface names.
Tools>CW - Polling Summary	Summarize the polling setup completed within Device Polling. Browse data, and stop and start polling.
Tools>CW - Process Mgr	Start, stop, and view status of CiscoWorks-related processes including Polling (nmpolld), CiscoConnect (httpd), System Log (syslogd), Sybase Server (dataserver), and TACACS (xtacacsd) daemons.
Glyph Tools>CW - Real-Time Graphs	View device information such as the router health (buffer space, CPU load, environment, free memory, and security); interface health (bits per second, bytes, errors, packets per second, packets, and queues); and protocol traffic (IP, ICMP, SNMP, TCP, UDP, AppleTalk, DECnet IV, Novell, VINES, and XNS) using a grapher utility.
Tools>CW - SA Password	Log in to the Sybase database account so you can perform system administrator tasks.
Tools>CW - Security Mgr	Create authority checking procedures to protect selected CiscoWorks applications and network devices from unauthorized individuals by requiring a login to use protected applications. This protection ensures that only users with a valid account and password can perform tasks such as configuring a router, deleting database device information, or defining polling procedures.
Glyph Tools>CW - Show Commands	View device data about any SNMP² device, including Cisco routers and communication servers. This data includes the software version, buffers, selected device interfaces, traffic mix, IP accounting checkpoint, ARP, and IP route. Emulates the EXEC show commands for Cisco routers.
Tools>CW - Software Inventory Mgr	Update the Sybase database to include current device software and hardware status. Sort device information according to platform and software image, and invoke Device Software Manager to update specific devices.
Tools>CW - Software Library Mgr	Maintains a master storage area that contains a list of all available Cisco system software. These Cisco IOS software images are retrieved by the user with a variety of methods.
Tools>CW - Sync w/Sybase or Glyph Tools>CW - Sync w/Sybase	Synchronize the NMS and Sybase databases. CiscoWorks maintains data in the Sybase database, whereas each NMS maintains its own database. Sync w/Sybase ensures that device data from the NMS database is in the Sybase database (Sync w/Platform) and vice versa. Generally, synchronize the databases whenever new devices are added to your network. Use Sync Selected to add individual devices.
Tools>Sybase ESQR	Use Sybase ESQR utilities to run and print reports on any table created with the Device Polling application.
Tools>CW - TACACS Mgr	Maintain the TACACS password file on UNIX hosts that act as TACACS servers. Create and update TACACS accounts and computer-generated passwords.
Tools>CW - Toolbox	Allows you to start CiscoWorks applications directly, without using the menus on your network management platform. Click on an application's icon in the Toolbox window to start the application. You can also display help for each application from the Toolbox.

¹ ENVM=Environmental Monitor
² SNMP=Simple Network Management Protocol

Enterprise Manager Post-Installation Tasks

Perform the following tasks before using the CiscoWorks application on Enterprise Manager. However, before performing any of these tasks, you must become familiar with the EM Viewer window and learn how to access its menu items.

Run the EM Discover application to create an EM database and a network map with network devices. For more information, refer to "Running the EM Discover Utility," later in this chapter. For detailed information, refer to the Solstice Enterprise Manager Reference Manual.
Create other network maps and submaps, and add appropriate devices. Refer to the section "Adding Cisco Devices to Your EM Network Map," later in this chapter.
Use the CiscoWorks Sync w/Sybase application to synchronize the EM database with the Sybase database. Refer to the section "Synchronizing the EM Database with Sybase," later in this chapter.
Check out the expanded CiscoWorks online help. Refer to the section "CiscoWorks Online Help," earlier in this chapter.

CiscoWorks on Enterprise Manager

CiscoWorks is integrated with Enterprise Manager.

Note To understand the relationship between your EM and CiscoWorks, you must become familiar with certain EM features. Refer to your EM documentation for the EM Object menu and Discover application to ensure that your platform is set up properly.

During installation and configuration, CiscoWorks adds customized schema files with Cisco-specific device types (such as the Cisco AGS+) to the platform's schema files directory. CiscoWorks also adds its applications to the EM menus.

Note Familiarize yourself with the user interface conventions used by Motif or your preferred windowing system. CiscoWorks supports Motif standards for all its graphical user-interface components, such as using the mouse, opening windows and menus, and manipulating windows and icons. They are not covered within this guide.

It is important to understand the EM environment and how to use your platform software in conjunction with CiscoWorks. To answer your EM network management questions, refer to the Solstice EM documentation.

Getting Started with CiscoWorks

The following sections provide detailed information on EM post-installation tasks, and an overview of how CiscoWorks functions on the EM network management platform:

Starting CiscoWorks on Enterprise Manager

This section briefly explains how to start the EM Viewer to run CiscoWorks. For a more detailed description and options, refer to the Solstice Enterprise Manager Reference Manual.

Perform the following steps to start CiscoWorks on the EM Viewer:

Step 1 If you are starting CiscoWorks for the first time after configuring CiscoWorks, enter the following command:

% em_services -r

Step 2 Bring up the Application Launcher (if it is not already up) by entering the following command:

% /opt/SUNWconn/em/bin/em &

Step 3 Launch the EM Viewer from the Application Launcher window.

On EM, you run CiscoWorks applications either from the Tools menu or the Glyphs menu. Figure 6-1 shows the CiscoWorks applications that are available on the Tools menu.

Figure 6-1: CiscoWorks Applications on the Enterprise Manager Tools Menu

EM also has a menu that becomes available when you click on an icon. To display the menu, select an icon, place the pointer anywhere in the window pane, and press the MENU mouse button. On EM, icons are called glyphs, and the menu that becomes available is called the Glyph menu (Figure 6-2).

Figure 6-2: CiscoWorks Applications on the Glyph Menu

CiscoWorks Use of Enterprise Manager Utilities

CiscoWorks uses two EM utilities: the Results Browser and the Grapher. Following is a brief description of each and how it is used by CiscoWorks:

Results Browser--The EM Results Browser retrieves, organizes, and views network management data. The Results Browser is used in several CiscoWorks applications, including Polling Summary.

: For example, Polling Summary uses the Results Browser to display query reports on polled device groups. You can display report data or send this data to the EM Grapher.

Grapher--The EM Grapher presents real-time or logged network data in graphical format. The Grapher is used by Health Monitor and Real-Time Graphs to display data in graphical format. You can change the properties of your graph with EM to reflect your customized colors; delta, absolute, or cumulative graphing formats; and so on.

For more detailed information on the Results Browser and Grapher, refer to your EM documentation.

EM Processes That Affect CiscoWorks

Some EM processes affect how CiscoWorks runs, depending on their configuration in EM. As you continue to work with EM processes and CiscoWorks, consider the following conditions in which the two environments coexist:

In EM, you can use the Discover application to automatically create your map. You also can manually add devices to your map.
To create a true network map (which includes different hierarchical views, devices, connections, and buses), refer to the Enterprise Manager Reference Manual. You also can use the Object menu or CiscoWorks Device Management, AutoInstall Manager, or Sync w/Sybase applications to add new devices to your network map.
For a brief overview on how to use the Discover utility, refer to the section "Running the EM Discover Utility," later in this chapter. For a detailed description of Discover, refer to your Enterprise Manager Reference Guide.

Running the EM Discover Utility

Most CiscoWorks applications require a database of network devices. They also require a network map that contains these network devices.

You can use the Discover utility to find the devices in the primary network to which your system is attached. Use the Discover utility to create a view (map) of your network and a run-time database for EM.

Note The amount of time that the Discover utility takes to find all the devices on your network depends on the size of your subnet and the number of devices attached to it.

To run the Discover utility, perform the following steps:

Step 1 Display the Application Launcher (if it is not already up) by entering the following command:

% /opt/SUNWconn/em/bin/em &

The Application Launcher window appears.

Step 2 Select Discover from the Application Launcher.

Step 3 Select Properties.

Step 4 Enter the required information in the dialog box.

Step 5 Click Start Discover to add devices to the viewer sub-map.

Adding Cisco Devices to Your EM Network Map

To add a device to your EM network map, perform the following steps:

Step 1 Display your network map.

Step 2 Select Object>New Device

An Object Configuration Tool window appears.

Step 3 Refer to the Solstice Enterprise Manager Reference Manual for help on entering the required information.

Learning About Other CiscoWorks Applications

This section briefly outlines the steps you must complete on your EM before continuing with CiscoWorks tasks. For instructions on using specific CiscoWorks applications, refer to the appropriate sections or to the CiscoWorks online help system.

Follow these steps to learn about CiscoWorks applications that use the Sybase database:

Step 1 Start Enterprise Manager.

Refer to the sections "Starting CiscoWorks on Enterprise Manager" earlier in this chapter.

Caution You must create a CiscoWorks user before you turn on security. If you do not create a CiscoWorks user, you will lock yourself out of Sybase. To find out how to create a user, go to the section "Setting Up the CiscoWorks Default Account" in the "Setting Up Domains and Securing Applications" chapter of the CiscoWorks User Guide.

Step 2 Access Security Manager to turn on authentication checking and provide users and groups access privileges to CiscoWorks applications.

For more information, refer to the CiscoWorks online help section on setting up domains and securing applications in Security Manager.

Step 3 Set up your EM database using the utilities provided with your NMS software.

For information on the EM Discover utility, refer to the section "Running the EM Discover Utility," or to the EM documentation.

Step 4 Use Sync w/Sybase to synchronize your EM database devices with the CiscoWorks Sybase database.

If you are adding individual devices, use the Device Management, AutoInstall Manager, or Sync w/Sybase applications to add device data to the Sybase database. For information on AutoInstall Manager, Sync w/Sybase, and Device Management, refer to the appropriate CiscoWorks online help sections.

Note Sync w/Sybase synchronizes, or adds, devices in your EM database to the CiscoWorks database. The Sync w/Platform command, located within Sync w/Sybase, allows you to add devices from the CiscoWorks database to the EM database.

Step 5 Use the CiscoWorks applications and EM utilities to help you monitor and manage your network activity.

Table 6-2 lists the general network management tasks and their responsible software applications. Use this table to determine which documentation set (CiscoWorks or EM) to use if you have questions or need information. The X indicates that this information is located in the EM manual set for the utility or application.

**Table 6-2: Cisco Works Versus EM Task Descriptions**
Task	EM Software	CiscoWorks Software
Start EM software	X
Use the Object application	X
Traverse your network map (EM database)	X
Create or find devices or device properties	X	AutoInstall Manager, Device Mgmt, and Sync w/Sybase
Modify or change device or device properties	X	Device Mgmt, Sync w/Sybase
Move or connect devices	X
Copy or delete devices	X	Device Mgmt, Domain Manager
Modify a graph display	X
Print graphs, windows, or text files	X
Check the cause of an event	X
View or change the status of requests	X
View error and traps	X
Manage SNMP devices	X	All CiscoWorks applications

Synchronizing the EM Database with Sy base

CiscoWorks uses two separate databases:

The EM database, or nms, stores information about Cisco network devices, configuration details, and other data needed by each application. This is the database that Sync w/Sybase uses.
The polling database, or polldb, stores dynamic polling information from your Cisco devices. The information stored in this database is deleted frequently, based on the thresholds you set up during installation.

The EM run-time database is a third database that interacts with the CiscoWorks databases. This platform database stores information about the network. By synchronizing the Sybase database with the EM database of the network platform, you build a complete resource of information.

Your EM platform maintains a run-time database of devices that you create using EM utilities. In order to use CiscoWorks applications, you must list devices in the Sybase database. Sync w/Sybase performs the following functions to enable you to use CiscoWorks applications:

Adds entries for your network devices to the EM database.
Confirms that the device lists in the EM platform and Sybase databases match one another.

Use Sync w/Sybase to synchronize database information. The Sync w/Sybase application appears in the CiscoWorks menu and device popup menus, as shown in Figure 6-3. Run Sync w/Sybase if you just initialized your EM and want to fully synchronize both databases. Run Sync w/Sybase from the device menu if you want to synchronize one or more specific devices. In both cases, the Sync w/Sybase window, from which you can select other options, displays.

Figure 6-3: Sync w/Sybase Window

Depending on the number of database records and the information contained in each, database synchronization can be time-consuming.

Time Saver First-time CiscoWorks users should run the Device (Network>Sybase) option to synchronize all device information. If you are a first-time user and want the quickest method of synchronizing, use Quick Sync, which synchronizes all the devices, with the warning that device information will not be complete. If you use Quick Sync, you may want to return to Sync w/Sybase when you have more time to use the Device (Network>Sybase) option to fill in the incomplete device information.

To adjust for synchronization time and to meet special needs, select one of the following commands from the Options menu of the Sync w/Sybase window:

Devices (Network>Sybase)

: Copies the complete number and contents of database records from your NMS database to Sybase. These records might include information about the hardware platforms, community strings, and so forth. Allows you to choose the NMS device records that you want to add to Sybase. To select contiguous items, hold down the Shift key and click on additional device names, or drag through a range of names. To select noncontiguous items, hold down the Control key and select individual device names. With the device name(s) selected, click on Sync.

Domains (Network>Sybase)

: Updates device records for the selected domain in the Sybase database. With the domain name selected, click on Sync.

Quick Sync (NMS>Sybase)

: Creates entries in the Sybase table only for the devices listed in your NMS, but excludes specific information such as inventory details or hardware platforms. Use this command if you need the databases to quickly recognize the devices contained in each. Later, if you decide that you want the complete device information available from your NMS platform, you can copy it with another command from the Options menu of Sync w/Sybase, or enter the information via the CiscoWorks Device Management application.

Timeout Interval

: Displays a dialog box where you can specify how much time can elapse before synchronization terminates and declares the device unreachable. You can also specify the default timeout using the X Resource timeout Interval in your .Xdefaults file. The resource name is synchTimeout.

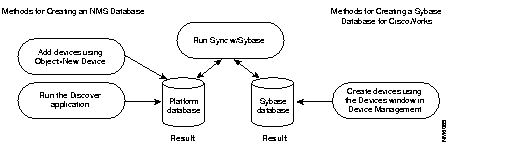

Figure 6-4 illustrates the relationship between your EM and CiscoWorks databases. Although you can add device names directly to either database, you must run Sync w/Sybase to confirm that the information about a particular device is correct in both places.

Figure 6-4: Database Creation for EM Platform and CiscoWorks

For more detailed information about the database and the Sync w/Sybase and Sync with NMS applications, refer to the CiscoWorks online help on "Sync w/Sybase." For more information about the AutoInstall Manager application, refer to the CiscoWorks online help on "AutoInstall Manager."

When you have finished creating a run-time database with network devices, follow these steps to run the Sync w/Sybase application:

Step 1 Select Tools>Sync w/Sybase.

The Sync w/Sybase window appears.

Step 2 Select one of the synchronization options.

The synchronization process takes from 3 minutes to over an hour, depending on the size of your network and the number of devices you are synchronizing.

Step 3 Select File>Exit to exit this window. This also stops the synchronization process. Any devices synchronized up to this point are saved in the Sybase database.

Setting Environment Variables

To use your NMS and CiscoWorks, you must make sure that the environment variables are set correctly. Refer to the section "Verifying Changes to the .cshrc or .kshrc or .profile File" in the "Validating CiscoWorks Installation" chapter.

Normally, these environment variables are set during the CiscoWorks installation process.

Quick Tutorial on Using a CiscoWorks Application

This section provides an overview of how to use a CiscoWorks application. It uses the Path Tool application as an example. For a detailed explanation of all CiscoWorks applications, refer to the CiscoWorks online help.

To use the Path Tool application, you must have at least two network devices in the Sybase database. Use Sync w/Sybase to add network devices to the Sybase database.

Displaying the Path Between Two Devices

The Path Tool application enables you to display the routing path between a source device and a destination device.

To graphically display the path between two devices, perform the following steps:

Step 1 In the EM Viewer, click on an SNMP device and then display the Glyph menu. Next, select Path Tool from the Glyph menu.

A window similar to that in Figure 6-5 appears. The information about the source device is completed.

Figure 6-5: Path Tool Window

Step 2 To select the destination device, click on Select next to the Path Destination field or enter the complete device name in the Path Destination field.

If you click on Select, the Device Selection window (similar to the window shown in Figure 6-6) appears. It lists the devices in the EM database.

Figure 6-6: Device Selection Window

Step 3 Click on the device that you want to specify as the destination and click on OK.

After the connection has been established, the device name appears in the Path Destination field in the Path Tool window.

Step 4 Click on OK in the Path Tool window to display the Path Tool Hops window.

A window appears (similar to the window shown in Figure 6-7), displaying the progress of the Path Tool as it makes each network hop from the source to the destination device.

Figure 6-7: Path Tool Window with Text

After the connection is established, another Path Tool window appears (similar to the window shown in Figure 6-8), graphically displaying the path between the source and destination devices you specified.

Figure 6-8: Path Tool Window with a Graphic Display

Step 5 Select File>Exit to close the window.

For more information on how to use the Path Tool, refer to the online help for Path Tool.

Security Options

If you use the Security Manager application to protect specific applications, all users must enter a valid username and password to access applications. For a detailed description of which CiscoWorks applications you can protect, refer to the CiscoWorks online help section on setting up domains and securing applications.

Each CiscoWorks application has varying levels of access privileges. Users are granted inherent privileges to certain applications (such as the ability to display devices) based solely on their group-domain associations. The CiscoWorks administrator governing Security Manager can grant further levels of "application-specific" privileges (such as add or change database information) to selected groups.

CiscoWorks Login and Logout Functions

When security is enabled, if you previously used the Login command to log in to CiscoWorks, a user identification window does not appear. If you do not use the Login command, CiscoWorks prompts you for a username and password each time you run a secured application. This login controls access to the application.

If you use Security Manager to secure your CiscoWorks applications, you can use Login and Logout. For more information on logging in and out, refer to the CiscoWorks online help section on Login and Logout.

Time Saver By using Login, you need to log in only once. If you do not use Login, CiscoWorks requires user identification information (a username and password) each time you attempt to start a secured application.

Table of Contents
