Cables

Cables

This appendix describes all the cables available from Cisco for use with your FastPAD. These cables are built to the following standards:


  1. 93 percent minimum braid coverage.

  2. Full die-cast metal back shells on the connector.

  3. Full, 360 degree, shield termination to the back shell of the connector, full bonding.

  4. Braid is captured in a metal thimble to prevent loss of bonding. This thimble traps the braid and provides good contact to the shell for a full 360 degree connection to the shell. No plastic grommets for braid capture are ever used.

  5. Full 360 degree braid bonding.

Table C-1 lists cable designations, by table, in this appendix.


Table  C-1: Cable Designations
Table Cable Designation DB25M to... Interface Card

Table C-2

 OPALE DIN to DB25, DB9F

Table C-4

 Direct V.24/V.28 DB25 male IF-V.28

Table C-5

 Direct V.35 34P male

Table C-6

 Direct X.21/V.11 DB15 male IF-V.28

Table C-7

 Direct X.21bis
V.10/V.11 DTE 		RS449 male
37 pin

Table C-8

 Direct X.21bis
V.10/V.11 DCE 		RS449 male
37 pin 		IF-V.28

Table C-9

 Crossed cable
V.24 DTE
(125 managed) 		DB25 male

Table C-10

 Crossed cable
V.24 DTE
(117 managed) 		DB25 male IF-V.28

Table C-11

 Crossed cable
X.21/V.11 DTE 		X.21
15 pin

Table C-12

 French Videotext
Terminal Cable 		IF-V.28

Table C-13

 RJ45 Crossed Cable for G.703 RJ45 to RJ45 IF-V.28

Front Panel DIN Connector Cable

Table C-2 lists the front panel DIN connector pins and signals. Figure C-1 shows the DIN connectors attached to the DB-25 and DB-9 connectors. Table C-3 lists the DIN connector pinouts.


Table  C-2: Front Panel DIN Connector Cable
DIN Connector Pin Signal Function
1 RBGA CT104 V.28 DCE

System

Monitor

Dbug

VT

2 TBGA CT103 V.28 DCE
3 Logic 0 Logical Ground
6 RBGB CT104 V.28 DCE
8 TBGB CT103 V.28 DCE VT
4 WDBL Watchdog Output 1
7 Reserved
5 Ground Equipment Ground

1 The front panel DIN connector outputs a "Watchdog" signal on Pin 4. Signal OFF indicates operating unit; Signal ON indicates faulty unit. (Corresponding software module must also be installed.) This is an open collector output.

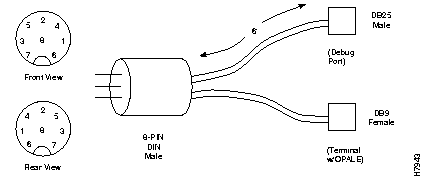

Figure C-1: DIN Connector Attached to the DB-25 and DB-9 Connectors



Note Use the STD DIN connector size, not the mini.

Table  C-3: DIN Connector Pinout
Signal DIN-8 Pin Number DEBUG DB-25 PIN Number TERM DB-9 PIN Number DEBUG DB-9 PIN Number
RBGA 1 (2) (3)
TBGA 2 (3) (2)
Logic ø 3 (7) (5) (5)
RBGB 6 (3)
TBGB 8 (2)
GND 5
(7-8)1

1 Jumper pins 7 and 8 on the DB-9 connector (CTS and RTS).

Direct V.28 Cable

The V.28 cable is a shielded, 9 twisted-pair cable for use with the a V.28 interface card. For the mp6, Line 0 and Line 1-5 in DCE. (See Table C-4.)


Table  C-4: Direct V.28 Cable
RS232 P1 Male
DB25 ISO 2110 		RS232P2 Male
DB25 ISO 2110 		Signals Abbreviations
1 1 Shield FG
2 2 103 (Transmitted Data) TD
3 3 104 (Received Data) RD
4 4 105 (Request to Send) RTS
5 5 106 (Clear to Send) CTS
6 6 107 (Data Set Ready) DSR
8 8 109 (Data Carrier Detector) DCD
15 15 114 (Transmit Element Timing) TC
7 7 102 (Signal Ground) GND
17 17 115 (Receive Element Timing) RC
18 18 141 (Local Loopback (loop 3)) LL
20 20 108 (Data Terminal Ready) DTR
21 21 140 (Remote Interface Loop (loop 2)) RIL
10 10 117 (Standby Indicator) SI
9 9 116 (Selector (DTE))
22 22 125 (Ring Indicator) RI
23 23 111 (Data Signal Rate Selector (DTE)) DRS
25 25 142 (Test Indicator) TI

Direct V.35 Cable

The V.35 cable is a 12 twisted-pair shielded cable for use with the a V35 interface card. (See Table C-5.)

On line 0 for the mp6.


Table  C-5: Direct V.35 Cable
RS232 P1 Male DB25 ISO 2110 P2 Male 34-pin ISO 2593 Signals Abbreviations
17 V 115A (Receive Element Timing) RC
12 X 115B (Receive Element Timing) RC
15 Y 114A (Transmit Element Timing) TC
13 AA 114B (Transmit Element Timing) TC
3 R 104A (Received Data) RD
16 T 104B (Received Data) RD
2 P 103A (Transmitted Data) TD
14 S 103B (Transmitted Data) TD
7 B 102 (Signal Ground) GND
5 D 106 (Clear to Send) CTS
8 F 109 (Data Carrier Detector) DCD
22 J 125 Ring indicator RI
18 L 141 (Local Loopback (loop 3)) LL
21 N 140 (Remote Interface Loop (loop 2)) RIL
6 E 107 (Data Set Ready) DSR
20 H 108 (Data Terminal Ready) DTR
4 C 105 (Request to Send) RTS
25 NN 142 (Test Indicator) -
1 A Shield (Cable Screening) FG
24 U 113A (Transmit Clock to modem) TC
11 W 113B (Select Transmit Frequency) QM

Direct X.21/V.11 Cable

The V.11 cable is a 6 twisted-pair, shielded cable for use with a V.11 interface card. (See Table C-6.)

For the mp6 on line L0 and L1 and L3 if V.11 DCE.


Table  C-6: Direct X.21/V.11 Cable
RS232 P1 Male
DB25 ISO 2110 		P2 Male
15-pin ISO 4903 		Signals
1 1 Shield
7 8 Ground
2 2 TA Transmit
14 9 TB
3 4 RA Receive
16 11 RB
4 3 CA Control
23 10 CB
8 5 IA Indication
9 12 IB
15 6 SA Signal Element Timing
13 13 SB

X.21bis V.10/V.11 DTE Cable

The X.21bis DTE cable is a 12 twisted-pair shielded cable used to connect a V.11 interface card to a DTE device. For line 0 on the mp6. (See Table C-7.)


Table  C-7: X.21bis V.10/V.11 DTE Cable
RS232 P1 Male
DB25 ISO 2110 		RS449 P2 Male
37-pin ISO 4902 		Signals Abbreviations
1 1 Shield FG
7 37 102A (Signal Ground) GND
10 20 102B (Common Ground) CG
2 4 103A (Transmitted Data) TD
14 22 103B (Transmitted Data) (S)TD
3 6 104A (Received Data) RD
16 24 104B (Received Data) (S)RD
4 7 105A (Request to Send) RTS
23 25 105B (Request to Send) DRS
5 9 106 (Clear to Send) CTS
10 27 102B (Common Ground) CG
6 11 10 7 (Data Set Ready) DSR
10 29 102B (Common Ground) CG
20 12 108 (Data Terminal Ready) -
7 30 102A (Signal Ground) GND
8 13 109A (Data Carrier Detector) DCD
9 31 109B (Carrier Detect) CD
15 5 114A (Transmit Element Timing) TC
13 23 114B (Transmit Element Timing) (S)CTS
17 8 115A (Receive Element Timing) RC
12 26 115B (Receive Element Timing) (S)DCD
21 14 140 (Remote Interface loop (loop 2)) RIL
18 10 141 (Local loopback (loop 3)) LL
25 18 142 (Test Indicator) -

X.21bis V.10/V.11 DCE Cable

The X.21bis DCE cable is a 12 twisted-pair shielded cable used to connect a V.11 interface card to a DCE device. For line 0 on the mp6. (See Table C-8.)


Table  C-8: X.21bis V.10/V.11 DCE Cable
RS232 P1 Male
DB25 ISO 2110 		RS449 P2 Male
37-pin ISO 4902 		Signals Abbreviations
1 1 Shield FG
10 37 102A (Signal Ground) GND
7 20 102B (Common Ground) CG
2 4 103A (Transmitted Data) TD
14 22 103B (Transmitted Data) (S)TD
3 6 104A (Received Data) RD
16 24 104B (Received Data) (S)RD
4 7 105A (Request to Send) RTS
23 25 105B (Request to Send) DRS
5 9 106 (Clear to Send) CTS
7 27 102B (Common Ground) CG
6 11 107 (Data Set Ready) DSR
7 29 102B (Common Ground) CG
20 12 108 (Data Terminal Ready) DTR
10 30 102A (Signal Ground)
8 13 109A (Data Carrier Detector) DCD
9 31 109B (Carrier Detect) CD
15 5 114A (Transmit Element Timing) TC
13 23 114B (Transmit Element Timing) (S)CTS
17 8 115A (Receive Element Timing) RC
12 26 115B (Receive Element Timing) (S)DCD
21 14 140 (Remote Interface loop (loop 2)) RIL
18 10 141 (Local Loopback (loop 3)) LL
25 18 142 (Test Indicator) --

Crossed Cable V.24 DTE (125 Managed)

This cable is only for the mp6, Lines L1-L5:

See Table C-9.


Table  C-9: Crossed Cable V.24 DTE (125 managed)
Signals P1 25 pts M (ISO 2110) P2 25 pts M (ISO 2110) Signals
Shield 1 1 Shield
103 2 3 104
104 3 2 103
102 7 7 102
115 17 15 114
109 8 4 105
108 20 5 106
114 15 17 115
105 4 8 109
111 23 6 107
106 5 20 108
142 25 21 140
117 10 18 141
125 22 18 141
141 18 22 125
107 6 23 111
140 21 25 142

Crossed Cable V.24 (117 Managed)

This cable is only for the mp6, Lines L1-L5:


Table  C-10: Crossed Cable V.24 DTE (117 Managed)
Signals P1 25 pts M (ISO 2110) P2 25 pts M (ISO 2110) Signals
Shield 1 1 Shield
102 7 7 102
115 17 15 114
104 3 2 103
103 2 3 104
109 8 4 105
108 20 5 106
114 15 17 115
111 23 6 107
105 4 8 109
106 5 20 108
142 25 21 140
117 10 18 141
125 22 18 141
141 18 10 117
107 6 23 111
140 21 25 142

Crossed Cable X.21/V.11 DTE

This cable is only for Lines L1-L3 on the mp6:

See Table C-11.


Table  C-11: Crossed Cable X.21/V.11 DTE
Signals P1 25 pts M (ISO 2110) P2 25 pts M (ISO 4903) Signals
102 7 8 102
104A 3 2 103A
104B 16 9 103B
103A 2 4 104A
103B 14 11 104B
109A 8 3 105A
109B 9 10 105B
105A 4 5 109A
105B 23 12 109B
114A 15 6 114A
114B 13 13 114B

French Videotext Terminal Cable

This cable is for use with the IF-TTL card:

See Table C-12.


Table  C-12: French Videotext Terminal Cable
P1 25 pts M (ISO 2110) P2 5 pts M Signals
2 1 CT103
3 3 CT104
7 2 and 4 CT102

RJ-45 Crossed Cable for G.703

The RJ-45 cable included with the G.703 interface kit is a male-to-male crossover cable with the signals listed in Table C-13.


Table  C-13: RJ-45 Crossed Cable for G.703
P1 Signal P2 Signal

5

TXPRY

2

RCPRY

4

TRPRX

1

RCPRX

2

RCPRY

5

TRPRY

1

RCPRX

4

TRPTRX

6

NC

6

NC

3

NC

3

NC

8

NC

8

NC

7

NC

7

NC
