Cabling Specifications

Cabling Specifications

Cabling Specifications

This appendix provides the following pinout information:


Management Card Console Cable and Pinouts

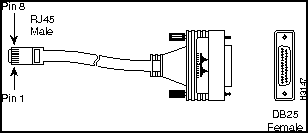

Figure D-1 shows the management card console cable, and Table D-1 lists the pinouts.

Figure D-1 : Management Card Console Cable


Table D-1 : Management Card Console Port Pinouts

RJ-45 Pins Description DB-25 Female Pins
1 RxD 3
2 GND 7
-- CTS 51
-- RTS 41
8 TxD 2

1 Pins 5 and 4 are connected.


Console and Auxiliary Port Signals and Pinouts

Following are the pinouts for the router card auxiliary port (see Table D-2), and the router card console port (Table D-3):

Note To use the auxiliary port as a console port, you must set jumpers on the router card. See the section "Router Card Jumper Settings" in the appendix "Router Card Maintenance."

Table D-2 : Router Card Auxiliary Port Pinouts (RJ-45)

Auxiliary Port
Pin Signal Input/Output
1 RTS Output
2 DTR Output
3 TXD Output
4 GND --
5 GND --
6 RXD Input
7 DSR Input
8 CTS Input

Table D-3 : Router Card Console Port Pinouts (RJ-45)

Console Port
Pin Signal Input/Output
1 -- --
2 DTR Output
3 TxD Output
4 GND --
5 GND --
6 RxD Input
7 DSR Input
8 -- --

Refer to Table D-4 for a list of the pins used on the RJ-45 connector, the male/female DTE adapter, the male/female DCE adapter, and the male modem adapter used to connect terminals and modems to the Cisco 2518. The connection of pins between the RJ-45 connector and the end device depends on the type of cable used, either straight or rolled. A straight cable connects pin 1 to pin 1, pin 2 to pin 2, and so on. A rolled cable connects pin 1 to pin 8, pin 2 to pin 7, and so on. The Cisco 2518 ships with a rolled cable. Refer to Table D-5 for the cable and adapter configurations that can be used to connect terminals and modems to the Cisco 2518.

Table D-4 : Pins for the RJ-45 Connector, M/F DTE, M DCE, and MMOD Adapters

Cable DB-25 Adapters
RJ-45 Pins M/F DTE Pins1 M DCE Pins MMOD Pins2
1 4 5 5
2 20 6 8
3 2 3 3
4 7 7 7
5 7 7 7
6 3 2 2
7 6 20 20
8 5 4 4

1 The FDTE adapter that is available through Cisco is labeled "Terminal."
2 The MMOD adapter that is available through Cisco is labeled "Modem."

Table D-5 : Connection Configuration

Router Card Port RJ-45 Cable Type DB-25 Adapter End Device
Console/auxiliary Rolled FDTE Terminal
Console/auxiliary Straight FDCE Terminal
Console/auxiliary Rolled MDCE1 Modem
Console/auxiliary Straight MDTE1 Modem
Auxiliary/console Rolled MMOD1 Modem

1 Modify by removing DB-25 pin 6 and replacing it in the Pin 8 position.


BRI Port Pinout and Signals

Table D-6 lists the router card BRI port pinout and signals.

Table D-6 : BRI Port Pinout (RJ-45)

Pin1 TE2 NT3 Polarity
3 Transmit Receive +
4 Receive Transmit +
5 Receive Transmit --
6 Transmit Receive --

1 Pins 1, 2, 7, and 8 are not used.
2 TE refers to terminal terminating layer 1 aspects of TE1, TA, and NT2 functional groups.
3 NT refers to network terminating layer 1 aspects of NT1 and NT2 functional groups.

fig_1.gif Caution To prevent damage to the system, make certain you connect the BRI cable to the BRI connector only and not to any other RJ-45 connector. The console, auxiliary, and BRI ports all use RJ-45 connectors.


RJ-45 Ethernet Port Pinout

Table D-7 lists the pinout for the Ethernet interface ports.

Table D-7 : Ethernet Pinout (RJ-45)

RJ-45 Pins Signal
1 GND
2 GND
3 Tx
4 Rx
5 Tx
6 Rx
7 GND
8 Not used


AUI Ethernet Port Pinout

Table D-7 lists the pinout for the Ethernet AUI port.

Table D-8 : Ethernet Pinout (AUI)

AUI Pins Signal
1 GND
2 GND
3 Tx
4 Rx
5 Tx
6 Rx
7 GND
8 Not used


Serial Cable Assemblies and Pinouts

The following illustrations and tables provide assembly drawings and pinouts for the EIA-530 DCE, and EIA/TIA-232, EIA/TIA-449, V.35, and X.21 DTE and DCE cables.


EIA-530

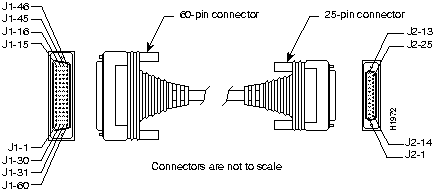

Figure D-2 shows the EIA-530 serial cable assembly, and Table D-9 lists the pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

Figure D-2 : EIA-530 Serial Cable Assembly


Table D-9 : EIA-530 DTE Cable Pinout (DB-60 to DB-25)


60 Pin1
Signal
25 Pin
Signal 		Direction
DTE DCE2
J1-1
J1-2 		CTS/RTS+
CTS/RTS-- 		J2-5
J2-13 		CB(A), CTS+
CB(B), CTS-- 		<---
<---
J1-3
J1-4 		DSR/DTR+
DSR/DTR-- 		J2-6
J2-22 		CC(A), DSR+
CC(B), DSR-- 		<---
<---
J1-5
J1-6 		DCD/DCD+
DCD/DCD-- 		J2-8
J2-10 		CF(A), DCD+
CF(B), DCD-- 		<---
<---
J1-7
J1-8 		DTR/DSR+
DTR/DSR-- 		J2-20
J2-23 		CD(A), DTR+
CD(B), DTR-- 		--->
--->
J1-9
J1-10 		RTS/CTS+
RTS/CTS-- 		J2-4
J2-19 		CA(A), RTS+
CA(B), RTS-- 		--->
--->
J1-11
J1-12 		TxD/RxD+
TxD/RxD-- 		J2-2
J2-14 		BA(A), TxD+
BA(B), TxD-- 		--->
--->
J1-13
J1-14 		TxCE/TxC+
TxCE/TxC-- 		J2-24
J2-11 		DA(A), TxCE+
DA(B), TxCE-- 		--->
--->
J1-24
J1-23 		TxC/RxC+
TxC/RxC-- 		J2-15
J2-12 		DB(A), TxC+
DB(B), TxC-- 		<---
<---
J1-26
J1-25 		RxC/TxCE+
RxC/TxCE-- 		J2-17
J2-9 		DD(A), RxC+
DD(B), RxC-- 		<---
<---
J1-28
J1-27 		RxD/TxD+
RxD/TxD-- 		J2-3
J2-16 		BB(A), RxD+
BB(B), RxD-- 		<---
<---
J1-44
J1-45 		LL/DCD
Circuit_GND 		J2-18
J2-7 		LL
Circuit_ GND 		--->
--
J1-46
J1-47 		Shield_GND
MODE_2 		J2-1
-- 		Shield
-- 		Shorted
J1-48
J1-49 		GND
MODE_1 		--
-- 		--
-- 		Shorted
J1-51
J1-52 		GND
MODE_DCE 		--
-- 		--
-- 		Shorted

1 Any pin not referenced is not connected.
2 The EIA-530 interface cannot be operated in DCE mode. A DCE cable is not available for the EIA-530 interface.


EIA/TIA-232

Figure D-3 shows the EIA/TIA-232 cable assembly; Table D-10 lists the DTE pinout; and Table D-11 lists the DCE pinout. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

Figure D-3 : EIA/TIA-232 Cable Assembly


Table D-10 : EIA/TIA-232 DTE Cable Pinout (DB-60 to DB-25)

60 Pin1 Signal Description Direction 25 Pin Signal
J1-50
J1-51
J1-52 		MODE_0
GND
MODE_DCE 		Shorting group -- -- --
J1-46 Shield GND Single -- J2-1 Shield GND
J1-41
Shield 		TxD/RxD
-- 		Twisted pair no. 5 --->
-- 		J2-2
Shield 		TxD
--
J1-36
Shield 		RxD/TxD
-- 		Twisted pair no. 9 <---
-- 		J2-3
Shield 		RxD
--
J1-42
Shield 		RTS/CTS
-- 		Twisted pair no. 4 --->
-- 		J2-4
Shield 		RTS
--
J1-35
Shield 		CTS/RTS
-- 		Twisted pair no. 10 <---
-- 		J2-5
Shield 		CTS
--
J1-34
Shield 		DSR/DTR
-- 		Twisted pair no. 11 <---
-- 		J2-6
Shield 		DSR
--
J1-45
Shield 		Circuit GND
-- 		Twisted pair no. 1 --
-- 		J2-7
Shield 		Circuit GND
--
J1-33
Shield 		DCD/LL
-- 		Twisted pair no. 12 <---
-- 		J2-8
Shield 		DCD
--
J1-37
Shield 		TxC/NIL
-- 		Twisted pair no. 8 <---
-- 		J2-15
Shield 		TxC
--
J1-38
Shield 		RxC/TxCE
-- 		Twisted pair no. 7 <---
-- 		J2-17
Shield 		RxC
--
J1-44
Shield 		LL/DCD
-- 		Twisted pair no. 2 --->
-- 		J2-18
Shield 		LTST
--
J1-43
Shield 		DTR/DSR
-- 		Twisted pair no. 3 --->
-- 		J2-20
Shield 		DTR
--
J1-39
Shield 		TxCE/TxC
-- 		Twisted pair no. 6 --->
-- 		J2-24
Shield 		TxCE
--

1 Any pin not referenced is not connected.

Table D-11 : EIA/TIA-232 DCE Cable Pinout (DB-60 to DB-25)

60 Pin1 Signal Description Direction 25 Pin Signal
J1-50
J1-51 		MODE_0
GND 		Shorting group --
--
--
J1-46 Shield GND Single -- J2-1 Shield GND
J1-36
Shield 		RxD/TxD
-- 		Twisted pair no. 9 <---
-- 		J2-2
Shield 		TxD
--
J1-41
Shield 		TxD/RxD
-- 		Twisted pair no. 5 --->
-- 		J2-3
Shield 		RxD
--
J1-35
Shield 		CTS/RTS
-- 		Twisted pair no. 10 <---
-- 		J2-4
Shield 		RTS
--
J1-42
Shield 		RTS/CTS
-- 		Twisted pair no. 4 --->
-- 		J2-5
Shield 		CTS
--
J1-43
Shield 		DTR/DSR
-- 		Twisted pair no. 3 --->
-- 		J2-6
Shield 		DSR
--
J1-45
Shield 		Circuit GND
-- 		Twisted pair no. 1 --
-- 		J2-7
Shield 		Circuit GND
J1-44
Shield 		LL/DCD
-- 		Twisted pair no. 2 --->
-- 		J2-8
Shield 		DCD
--
J1-39
Shield 		TxCE/TxC
-- 		Twisted pair no. 7 --->
-- 		J2-15
Shield 		TxC
--
J1-40
Shield 		NIL/RxC
-- 		Twisted pair no. 6 --->
-- 		J2-17
Shield 		RxC
--
J1-33
Shield 		DCD/LL
-- 		Twisted pair no. 12 <---
-- 		J2-18
Shield 		LTST
--
J1-34
Shield 		DSR/DTR
-- 		Twisted pair no. 11 <---
-- 		J2-20
Shield 		DTR
--
J1-38
Shield 		RxC/TxCE
-- 		Twisted pair no. 8 <---
-- 		J2-24
Shield 		TxCE
--

1 Any pin not referenced is not connected.


EIA/TIA-449

Figure D-4 shows the EIA/TIA-449 cable assembly; Table D-12 lists the DTE pinout, and Table D-13 lists the DCE pinout. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

Figure D-4 : EIA/TIA-449 Cable Assembly


Table D-12 : EIA/TIA-449 DTE Cable Pinout (DB-60 to DB-37)

60 Pin1 Signal Description Direction 37 Pin Signal
J1-49
J1-48 		MODE_1
GND 		Shorting group -- -- --
J1-51
J1-52 		GND
MODE_DCE 		Shorting group -- -- --
J1-46 Shield_GND Single _ J2-1 Shield GND
J1-11
J1-12 		TxD/RxD+
TxD/RxD-- 		Twisted pair no. 6 --->
---> 		J2-4
J2-22 		SD+
SD--
J1-24
J1-23 		TxC/RxC+
TxC/RxC-- 		Twisted pair no. 9 <---
<--- 		J2-5
J2-23 		ST+
ST--
J1-28
J1-27 		RxD/TxD+
RxD/TxD-- 		Twisted pair no. 11 <---
<--- 		J2-6
J2-24 		RD+
RD--
J1-9
J1-10 		RTS/CTS+
RTS/CTS-- 		Twisted pair no. 5 --->
---> 		J2-7
J2-25 		RS+
RS--
J1-26
J1-25 		RxC/TxCE+
RxC/TxCE-- 		Twisted pair no. 10 <---
<--- 		J2-8
J2-26 		RT+
RT--
J1-1
J1-2 		CTS/RTS+
CTS/RTS-- 		Twisted pair no. 1 <---
<--- 		J2-9
J2-27 		CS+
CS--
J1-44
J1-45 		LL/DCD
Circuit_GND 		Twisted pair no. 12 --->
_ 		J2-10
J2-37 		LL
SC
J1-3
J1-4 		DSR/DTR+
DSR/DTR-- 		Twisted pair no. 2 <---
<--- 		J2-11
J2-29 		DM+
DM--
J1-7
J1-8 		DTR/DSR+
DTR/DSR-- 		Twisted pair no. 4 --->
---> 		J2-12
J2-30 		TR+
TR--
J1-5
J1-6 		DCD/DCD+
DCD/DCD-- 		Twisted pair no. 3 <---
<--- 		J2-13
J2-31 		RR+
RR--
J1-13
J1-14 		TxCE/TxC+
TxCE/TxC-- 		Twisted pair no. 7 --->
---> 		J2-17
J2-35 		TT+
TT--
J1-15
J1-16 		Circuit_GND
Circuit_GND 		Twisted pair no. 9 --
-- 		J2-19
J2-20 		SG
RC

1 Any pin not referenced is not connected.

Table D-13 : EIA/TIA-449 DCE Cable Pinout (DB-60 to DB-37)

60 Pin1 Signal Description Direction 37 Pin Signal
J1-49
J1-48 		MODE_1
GND 		Shorting group -- -- --
J1-46 Shield_GND Single -- J2-1 Shield GND
J1-28
J1-27 		RxD/TxD+
RxD/TxD-- 		Twisted pair no. 11 <---
<--- 		J2-4
J2-22 		SD+
SD--
J1-13
J1-14 		TxCE/TxC+
TxCE/TxC-- 		Twisted pair no. 7 --->
---> 		J2-5
J2-23 		ST+
ST--
J1-11
J1-12 		TxD/RxD+
TxD/RxD-- 		Twisted pair no. 6 --->
---> 		J2-6
J2-24 		RD+
RD--
J1-1
J1-2 		CTS/RTS+
CTS/RTS-- 		Twisted pair no. 1 <---
<--- 		J2-7
J2-25 		RS+
RS--
J1-24
J1-23 		TxC/RxC+
TxC/RxC-- 		Twisted pair no. 9 --->
---> 		J2-8
J2-26 		RT+
RT--
J1-9
J1-10 		RTS/CTS+
RTS/CTS-- 		Twisted pair no. 5 --->
---> 		J2-9
J2-27 		CS+
CS--
J1-29
J1-30 		NIL/LL
Circuit_GND 		Twisted pair no. 12 --->
-- 		J2-10
J2-37 		LL
SC
J1-7
J1-8 		DTR/DSR+
DTR/DSR-- 		Twisted pair no. 4 --->
---> 		J2-11
J2-29 		DM+
DM--
J1-3
J1-4 		DSR/DTR+
DSR/DTR-- 		Twisted pair no. 2 <---
<--- 		J2-12
J2-30 		TR+
TR--
J1-5
J1-6 		DCD/DCD+
DCD/DCD-- 		Twisted pair no. 3 --->
---> 		J2-13
J2-31 		RR+
RR--
J1-26
J1-25 		RxC/TxCE+
RxC/TxCE-- 		Twisted pair no. 10 <---
<--- 		J2-17
J2-35 		TT+
TT--
J1-15
J1-16 		Circuit_GND
Circuit_GND 		Twisted pair no. 8 _
_ 		J2-19
J2-20 		SG
RC

1 Any pin not referenced is not connected.


V.35

Figure D-5 shows the V.35 cable assembly; Table D-14 lists the DTE pinout, and Table D-15 lists the DCE pinout. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

Figure D-5 : V.35 Cable Assembly


Table D-14 : V.35 DTE Cable Pinout (DB-60 to 34-Pin)

60 Pin1 Signal Description Direction 34 Pin Signal
J1-49
J1-48 		MODE_1
GND 		Shorting group -- -- --
J1-50
J1-51
J1-52 		MODE_0
GND
MODE_DCE 		Shorting group -- -- --
J1-53
J1-54
J1-55
J1-56 		TxC/NIL
RxC_TxCE
RxD/TxD
GND 		Shorting group -- -- --
J1-46 Shield_GND Single -- J2-A Frame GND
J1-45
Shield 		Circuit_GND
-- 		Twisted pair no. 12 --
-- 		J2-B
Shield 		Circuit GND
--
J1-42
Shield 		RTS/CTS
-- 		Twisted pair no. 9 --->
-- 		J2-C
Shield 		RTS
--
J1-35
Shield 		CTS/RTS
-- 		Twisted pair no. 8 <---
-- 		J2-D
Shield 		CTS
--
J1-34
Shield 		DSR/DTR
-- 		Twisted pair no. 7 <---
-- 		J2-E
Shield 		DSR
--
J1-33
Shield 		DCD/LL
-- 		Twisted pair no. 6 <---
-- 		J2-F
Shield 		RLSD
--
J1-43
Shield 		DTR/DSR
-- 		Twisted pair no. 10 --->
-- 		J2-H
Shield 		DTR
--
J1-44
Shield 		LL/DCD
-- 		Twisted pair no. 11 --->
-- 		J2-K
Shield 		LT
--
J1-18
J1-17 		TxD/RxD+
TxD/RxD-- 		Twisted pair no. 1 --->
---> 		J2-P
J2-S 		SD+
SD--
J1-28
J1-27 		RxD/TxD+
RxD/TxD-- 		Twisted pair no. 5 <---
<--- 		J2-R
J2-T 		RD+
RD--
J1-20
J1-19 		TxCE/TxC+
TxCE/TxC-- 		Twisted pair no. 2 --->
---> 		J2-U
J2-W 		SCTE+
SCTE--
J1-26
J1-25 		RxC/TxCE+
RxC/TxCE-- 		Twisted pair no. 4 <---
<--- 		J2-V
J2-X 		SCR+
SCR--
J1-24
J1-23 		TxC/RxC+
TxC/RxC-- 		Twisted pair no. 3 <---
<--- 		J2-Y
J2-AA 		SCT+
SCT--

1 Any pin not referenced is not connected.

Table D-15 : V.35 DCE Cable Pinout (DB-60 to 34-Pin)

60 Pin1 Signal Description Direction 34 Pin Signal
J1-49
J1-48 		MODE_1
GND 		Shorting group -- -- --
J1-50
J1-51 		MODE_0
GND 		Shorting group -- -- --
J1-53
J1-54
J1-55
J1-56 		TxC/NIL
RxC_TxCE
RxD/TxD
GND 		Shorting group -- -- --
J1-46 Shield_GND Single -- J2-A Frame GND
J1-45
Shield 		Circuit_GND
-- 		Twisted pair no. 12 --
-- 		J2-B
Shield 		Circuit GND
--
J1-35
Shield 		CTS/RTS
-- 		Twisted pair no. 8 <---
-- 		J2-C
Shield 		RTS
--
J1-42
Shield 		RTS/CTS
-- 		Twisted pair no. 9 --->
-- 		J2-D
Shield 		CTS
--
J1-43
Shield 		DTR/DSR
-- 		Twisted pair no. 10 --->
-- 		J2-E
Shield 		DSR
--
J1-44
Shield 		LL/DCD
-- 		Twisted pair no. 11 --->
-- 		J2-F
Shield 		RLSD
--
J1-34
Shield 		DSR/DTR
-- 		Twisted pair no. 7 <---
-- 		J2-H
Shield 		DTR
--
J1-33
Shield 		DCD/LL
-- 		Twisted pair no. 6 <---
-- 		J2-K
Shield 		LT
--
J1-28
J1-27 		RxD/TxD+
RxD/TxD-- 		Twisted pair no. 5 <---
<--- 		J2-P
J2-S 		SD+
SD--
J1-18
J1-17 		TxD/RxD+
TxD/RxD-- 		Twisted pair no. 1 --->
---> 		J2-R
J2-T 		RD+
RD--
J1-26
J1-25 		RxC/TxCE+
RxC/TxCE-- 		Twisted pair no. 4 <---
<--- 		J2-U
J2-W 		SCTE+
SCTE--
J1-22
J1-21 		NIL/RxC+
NIL/RxC-- 		Twisted pair no. 3 --->
---> 		J2-V
J2-X 		SCR+
SCR--
J1-20
J1-19 		TxCE/TxC+
TxCE/TxC-- 		Twisted pair no. 2 --->
---> 		J2-Y
J2-AA 		SCT+
SCT--

1 Any pin not referenced is not connected.


X.21

Figure D-6 shows the X.21 cable assembly; Table D-16 lists the DTE pinout, and Table D-17 lists the DCE pinout. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

Figure D-6 : X.21 Cable Assembly


Table D-16 : X.21 DTE Cable Pinout (DB-60 to DB-15)

60 Pin1 Signal Description Direction 15 Pin Signal
J1-48
J1-47 		GND
MODE_2 		Shorting group -- -- --
J1-51
J1-52 		GND
MODE_DCE 		Shorting group -- -- --
J1-46 Shield_GND Single -- J2-1 Shield GND
J1-11
J1-12 		TxD/RxD+
TxD/RxD-- 		Twisted pair no. 3 --->
---> 		J2-2
J2-9 		Transmit+
Transmit--
J1-9
J1-10 		RTS/CTS+
RTS/CTS-- 		Twisted pair no. 2 --->
---> 		J2-3
J2-10 		Control+
Control--
J1-28
J1-27 		RxD/TxD+
RxD/TxD-- 		Twisted pair no. 6 <---
<--- 		J2-4
J2-11 		Receive+
Receive--
J1-1
J1-2 		CTS/RTS+
CTS/RTS-- 		Twisted pair no. 1 <---
<--- 		J2-5
J2-12 		Indication+
Indication--
J1-26
J1-25 		RxC/TxCE+
RxC/TxCE-- 		Twisted pair no. 5 <---
<--- 		J2-6
J2-13 		Timing+
Timing--
J1-15
Shield 		Control_GND
-- 		Twisted pair no. 4 --
-- 		J2-8
Shield 		Control GND
--

1 Any pin not referenced is not connected.

Table D-17 : X.21 DCE Cable Pinout (DB-60 to DB-15)

60 Pin1 Signal Description Direction 15 Pin Signal
J1-48
J1-47 		GND
MODE_2 		Shorting group -- -- --
J1-46 Shield_GND Single -- J2-1 Shield GND
J1-28
J1-27 		RxD/TxD+
RxD/TxD-- 		Twisted pair no. 6 <---
<--- 		J2-2
J2-9 		Transmit+
Transmit--
J1-1
J1-2 		CTS/RTS+
CTS/RTS-- 		Twisted pair no. 1 <---
<--- 		J2-3
J2-10 		Control+
Control--
J1-11
J1-12 		TxD/RxD+
TxD/RxD-- 		Twisted pair no. 3 --->
---> 		J2-4
J2-11 		Receive+
Receive--
J1-9
J1-10 		RTS/CTS+
RTS/CTS-- 		Twisted pair no. 2 --->
---> 		J2-5
J2-12 		Indication+
Indication--
J1-24
J1-23 		TxC/RxC+
TxC/RxC-- 		Twisted pair no. 4 --->
---> 		J2-6
J2-13 		Timing+
Timing--
J1-15
Shield 		Control_GND
-- 		Twisted pair no. 5 --
-- 		J2-8
Shield 		Control GND
--

1 Any pin not referenced is not connected.

HomeTOCPrevNextGlossSearchHelp
-

Copyright 1988-1996 © Cisco Systems Inc.
