The IGS is a two-port multiprotocol router in a fixed configuration system. This compact router is available either with an Ethernet connection and a single synchronous serial port, or with two Ethernet connections, and supports a number of serial interfaces.
The IGS features an MC68020 processor running at 16 MHz. There is no separate processor card for the IGS; this server is a single-card unit.
Figure 1-1 shows the IGS chassis from a front view.

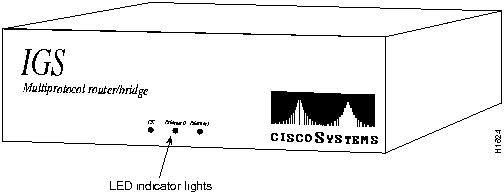

Figure 1-1 IGS Router---Front View
From the observer's left to right, the light emitting diodes (LED) indicator lights represent, depending on which option is installed as the second interface:
Table 1-1 provides a summary of the IGS hardware specifications.
Table 1-1 IGS Hardware Specifications
| Dimensions | 13"W x 14"D x 4"H |
|---|---|
| Weight | 15 lbs. |
| Power | 90-132 or 175-264VAC at 47-63Hz80 watts (maximum)273 BTU/hr |
| Processor | Motorola 68020---16 MHz |
| Memory | RAM---1MB (expandable to 4.5 MB)ROM---1MB (expandable to 8 MB)16KB Nonvolatile configuration |
| Network Interfaces | Ethernet and 1 Synchronous Serialor 2 Ethernet |
| Serial Interfaces | RS-232, RS-449, V.35, X.21 |
| Console Ports | 2 RS-232 DB-25 connectors |
| Environment | 0-40 degrees C |
Figure 1-2 shows a rear view of the IGS router configured with an Ethernet port and a serial port.

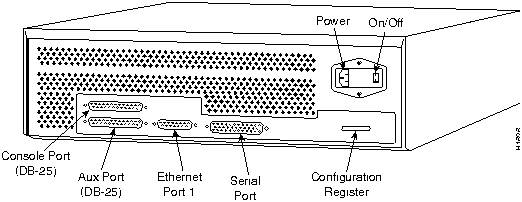

Figure 1-2 IGS Router---Rear View with Ethernet Port and Serial Port
Figure 1-3 shows a rear view of the IGS router configured with two Ethernet ports.

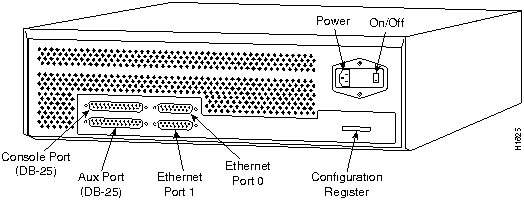

Figure 1-3 IGS Router---Rear View with Two Ethernet Ports
|
