Managing LightStream 2020 Traps

Procedure for Turning an Individual Trap On or Off

This section tells you how to turn a particular trap on or off. Turning a trap on allows it to be passed to the MMA, even if it has a priority level below the trap filter level set for the process filter.

The default for all traps in all processes is off. The process filter determines which traps that are turned off pass to the MMA. For more information, see the section "Working with Trap Filter Levels."

To turn a trap on or off, perform the following steps:

Step 1 Start CLI and enter protected mode:

cli> protected

Step 2 Enter the protected mode password:

Enter password:


Step 3 Verify that the target switch is correct:

* cli> show chassis general


If you need instructions on using the set SNMP hostname command to change the target switch, refer to the LightStream 2020 Network Operations Guide.

Step 4 Set the SNMP community to a read/write community:

* cli> set snmp community <community name>


Where

<community name> is the SNMP read/write community that you want to access.

Step 5 If you want to turn the trap on or off for a particular process:

* cli> walksnmp lwmaTrapCliAlias

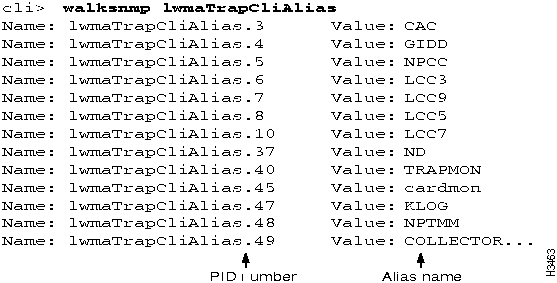

Find the process you want in the resulting list. Figure 2-1 shows the typical output from this command.

Step 6 Turn a trap on or off using either of the following commands:

If you want the trap on for a single process:

* cli> set trap pid{<#|alias>} {on|off} <trap#> [<group name>]


If you want the trap on for all processes:

* cli> set trap global {on|off} <trap#> [<group name>]


Where

• {<#>|<alias>} is the process number or alias name.


• {on|off} specifies whether the trap is on or off. The default is off.


Figure 2-1 : Typical Walksnmp Display

• <trap#> is the trap(s) you want to turn on or off. Enter the symbolic trap name or trap number. You can set multiple trap numbers by specifying the trap numbers (for example, ndd_3 ndd_14 lcc_5), or by using the wild card character " * " to specify all traps for a particular process. If you use * , you must enclose the expression in which it appears with quotes. For example, to specify all NDD traps, type show trap "ndd*" .


• [<group name>] is an optional argument that defines a group of traps. For this argument to be used, the group must be defined in an ASCII file called cli.groups in the /usr/app/base/config directory. Refer to the section "Creating the cli.groups File" later in this chapter for instructions on creating the cli.groups file.


Step 7 To display the status of the trap for a single process, enter

* cli> show trap pid {<#>|<alias>} "*"

To display the status of the trap for all processes:

* cli> show trap "*"

The status display shows whether a trap is on, off, or disabled. If the status is either on or off, the trap is enabled. Otherwise, the trap is disabled.

At the conclusion of this procedure, each trap that you have turned on passes to the MMA whenever that trap is generated in the selected process. The process filter determines which traps that are turned off pass to the MMA. For more information, see the section "Working with Trap Filter Levels."

Procedure for Enabling/Disabling an Individual Trap

This section tells you how to enable or disable individual traps for all processes. When you disable a trap in an LS2020 switch, the MMA does not send it to an NMS or a terminal running the CLI session, though it will still go into the trap log and be displayed on the console. You may want to disable a trap if it appears frequently and you feel that its display is unnecessary.

To enable or disable a trap, perform the following steps:

Step 1 Start CLI and enter protected mode:

cli> protected

Step 2 Enter the protected mode password:

Enter password:

Step 3 Verify that the target switch is correct:

* cli> show chassis general

If you need instructions on using the set SNMP hostname command to change the target switch, refer to the LightStream 2020 Network Operations Guide.

Step 4 Set the SNMP community to a read/write community:

* cli> set snmp community <community name>

Where

<community name> is the SNMP read/write community that you want to access.

Step 5 Enable or disable the trap:

* cli> set trap {enable|disable} <trap#> [<group name>]

Where

• {enable|disable} indicates whether the trap is to be enabled or disabled. The default is enabled.


• <trap#> identifies the trap(s) that you want to turn on or off. Enter the symbolic trap name or trap number. You can set multiple trap numbers by specifying the trap numbers (ndd_3 ndd_14 lcc_5), or by using the wild card character ( * ) to specify all traps for a particular process. If you use the wild card character ( * ), you must enclose the expression in which it appears with quotes. For example, to specify all NDD traps, you type show trap "ndd*"


• [<group name>] is an optional argument used to define a group of traps that you want to turn on or off. For this argument to be used, the group must be defined in an ASCII file called cli.groups in the /usr/app/base/config directory. Refer to the section "Creating the cli.groups File," later in this chapter, for instructions on creating the cli.groups file.


Step 6 Display the status of each trap in the MMA:

* cli> show trap "*"

The status display shows whether a trap is on, off, or disabled. If the status is either on or off, the trap is enabled. Otherwise, the trap is disabled. See the section "Procedure for Turning an Individual Trap On or Off" above for a more detailed description of trap handling in a specific process.

After you perform this procedure, the disabled trap for the selected node is neither passed to the CLI nor displayed on a third-party NMS.

Displaying the Trap Status

This section tells you how to view the status of every trap within a particular process or for an MMA. The status display shows traps as either on or off and enabled or disabled. See the section "Procedure for Turning an Individual Trap On or Off," earlier in this chapter, for a description of the on/off state. See the section "Procedure for Enabling/Disabling an Individual Trap," for a description of the enabled/disabled state.

View Status of One or More Traps for a Process

To view the status of one or more traps for a process, perform the following steps:

Step 1 Verify that the target switch is correct:

cli> show chassis general

If you need instructions on using the set SNMP hostname command to change the target switch, refer to the LightStream 2020 Network Operations Guide.

Step 2 Set the SNMP community to a read/write community:

cli> set snmp community <community name>

Where

<community name> is the SNMP read/write community that you want to access.

Step 3 View the status of one or more traps for the process:

cli> show trap pid {<#>|<alias>} <trap#> [<group name>]

Where

• {<#>|<alias>} is t he number or the alias name of the process. See the section "Procedure for Turning an Individual Trap On or Off" earlier in this chapter for information on obtaining pid numbers and aliases.


• <trap#> is the number of the trap(s). Enter the symbolic trap name or trap number. You can set multiple traps by specifying the trap numbers (for example, ndd_3 ndd_14 lcc_5), or by using the wild card character ( * ) to specify all traps for a particular process. If you use the wild card character ( * ), you must enclose the expression in which it appears with quotes. For example, to specify all NDD traps, you type show trap "ndd*" .


• [<group name>] is an optional argument used to define a group of traps for which you want to show status. For this argument to be used, the group must be defined in an ASCII file called cli.groups in the /usr/app/base/config directory. Refer to the section "Creating the cli.groups File," later in this chapter, for instructions on creating the cli.groups file.


View Status of One or More Traps for MMA

To view the status of one or more traps for an MMA, perform the following steps:

Step 1 Verify that the target switch is correct:

cli> show chassis general

If you need instructions on using the set SNMP hostname command to change the target switch, refer to the LightStream 2020 Network Operations Guide.

Step 2 Set the SNMP community to a read/write community:

cli> set snmp community <community name>

Where

<community name> is the SNMP read/write community that you want to access.

Step 3 View the status of one or more traps for the MMA:

cli> show trap <trap#> [<group name>]

Where

• <trap#> is the number of the trap(s). Enter the symbolic trap name or trap number. You can set multiple trap by specifying the trap numbers (for example, ndd_3 ndd_14 lcc_5), or by using the wild card character ( * ) to specify all traps for a particular process. If you use the wild card character ( * ), you must enclose the expression in which it appears with quotes. For example, to specify all NDD traps, you type show trap "ndd*" .


• [<group name>] is an optional argument that defines a group of traps. For this argument to be used, the group must be defined in an ASCII file called cli.groups in the /usr/app/base/config directory. Refer to the section "Creating the cli.groups File," later in this chapter, for instructions on creating the cli.groups file.

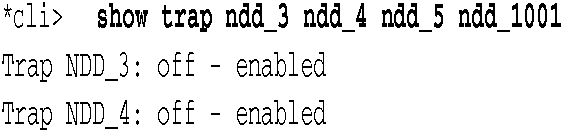

For example, if you now enter the command show trap ndd_3 ndd_4 ndd_5 ndd_1001, the status of these traps is displayed (see Figure 2-2).

Figure 2-2 : Sample Status Display for Specific Traps

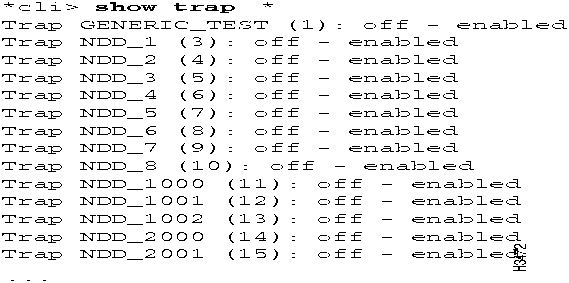

If you enter the command show trap "*", the status of all traps in the MMA is displayed (see Figure 2-3). Figure 2-3 shows a partial display; several screens of traps are displayed when you issue this command.

Figure 2-3 : Sample Status Display for All Traps

Creating the cli.groups File

The cli.groups file defines groups of traps. You can use this file as an argument for the commands described in the sections above entitled "View Status of One or More Traps for a Process" and "View Status of One or More Traps for MMA." If you do not create and maintain this file, you must manually enter each trap number used with those commands.

To create the cli.groups file, perform the following steps:

Step 1 Start CLI and enter protected mode:

cli> protected

Step 2 Enter the protected mode password:

Enter password:

Step 3 Escape from the CLI to the LynxOS bash shell:

*cli> shell bash

Step 4 Move to the /usr/app/base/config directory:

LSnode:2# cd /usr/app/base/config

Step 5 Invoke the vi editor:

LSnode:2# vi cli.groups

When the editor opens the file, enter the group names and trap numbers in the format shown below. Each group definition begins with a colon.

:<groupname> <trap#> <trap#> ...
:<groupname> <trap#> <trap#> ...

Where

• <groupname> is a name that defines the group of traps.


• <trap#> is the trap numbers within the group.


The contents of your file will be similar to this:

:nd_group NDD_1 NDD_2 NDD_3
:lcc_group LCC_3000 LCC_3002

Step 6 When you have finished entering the group names and trap numbers in the file, exit the vi editor by pressing the Esc key or ^[, and entering ZZ .

Step 7 Return to the CLI:

LSnode:2# exit

Step 8 Exit protected mode:

*cli> exit

Working with Trap Filter Levels

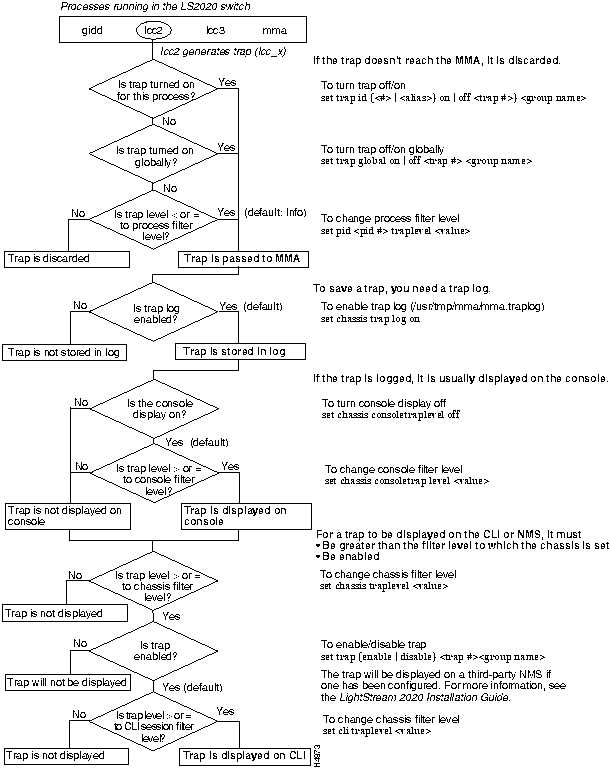

This section explains how to set trap filter levels. Trap filters control which trap types are dropped, saved, or displayed. Because trap filters reside on a trap path, you might need to modify the settings of more than one filter in order to achieve your desired goal. For instance, if your system uses the default setting and you want to view a trace trap for a particular process on the console, you would need to modify the process filter as well as the console filter. For an overview of trap filter levels, refer to the chapter entitled "About LightStream 2020 Traps."

This section discusses the four trap filters:

• The process filter determines which traps are passed from an active software process to the MMA.


• The console filter determines which traps are passed from the MMA to the local console for display.


• The chassis filter determines which traps are passed from the MMA to the CLI process or to the NMS for display.


• The CLI session filter determines which traps are passed to the CLI process for display on the CLI terminal.


By default, the trap filter levels are set so that SNMP and operational traps are displayed, and SNMP, operational, and informational traps are logged. Trace and debug traps are discarded. The default works well for most networks.

Passing Traps Through the Process Filter

Setting the trap filter level for a particular process determines which traps generated by that process will be passed to the MMA. Traps that are passed from the processes into the MMA are, by default, logged in the trap log. (For more information, see the section entitled "Logging Traps.")

The default trap filter level for all processes is informational. This level transmits all SNMP, operational, and informational traps to the MMA. This level is appropriate for most applications. If the defaults have not been changed, you would use the following procedure to let in all trace or debug traps for a specific process or to exclude all info or oper traps for a specific process.

cbufpr [-hv] [-all] [-tail] <-number> [-f] [-stat] <-level> /usr/tmp/mma/mma.traplog | more

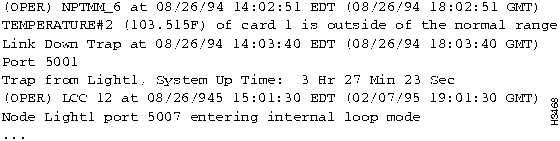

cli> show file traplog
