This appendix illustrates typical cable management and space requirements for various system configurations in the STRATM cabinet. It also contains a table with the height of StrataCom components in inches, centimeters, and rack-mount units (RMUs). This can help in the calculation of height requirements for individual setups. The last illustration shows the bracket installation in the STRATM (for a BPX, in this case). The sequence of sections is as follows:
Figure B-1 : Back View of Empty STRATM Cabinet

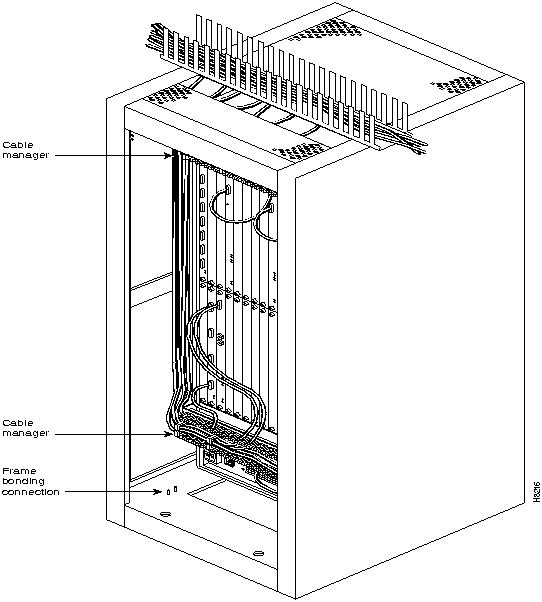

Figure B-2 : Typical Cable Management, IGX-32 in STRATM Cabinet

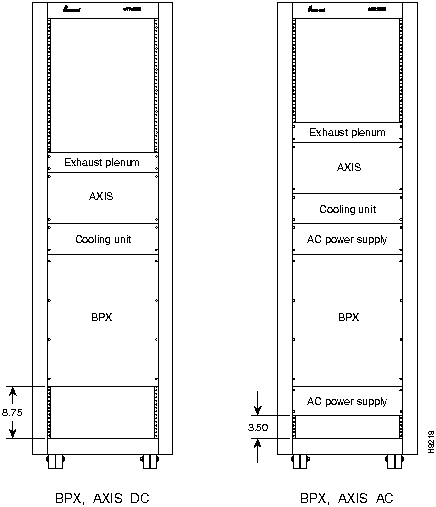

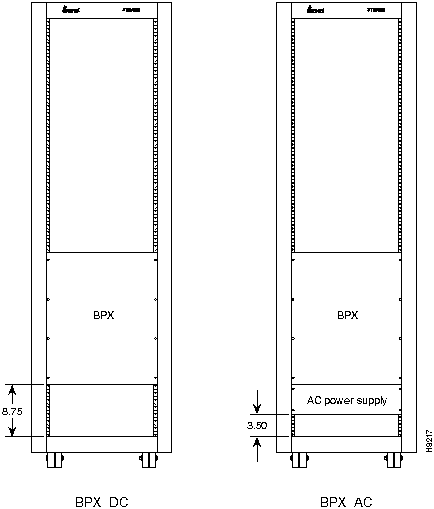

Figure B-3 : Typical Stacking Order, Single BPX, DC and AC-Powered
Figure B-4 : Typical Stacking Order, Single BPX and Single AXIS, DC and AC-Powered

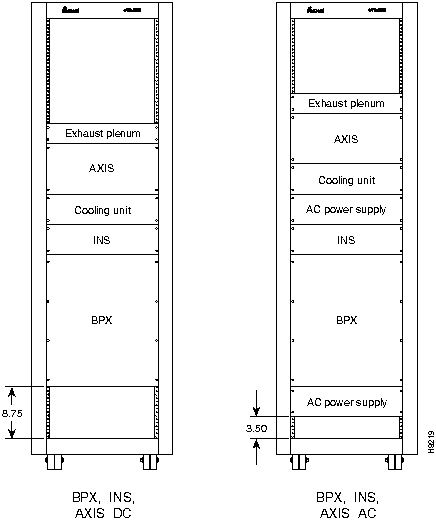

Figure B-5 : Typical Stacking Order, BPX, AXIS, and INS, DC and AC-Powered

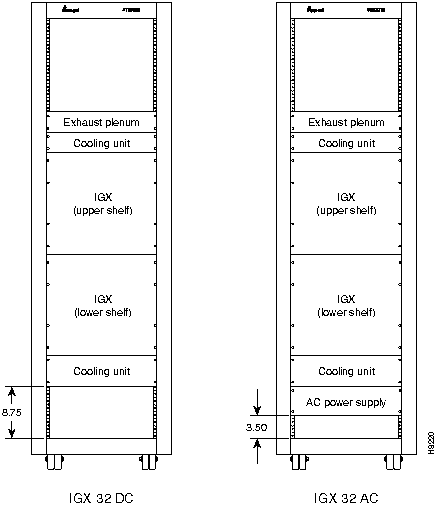

Figure B-6 : Typical Stacking Order, IGX 32, DC and AC-Powered

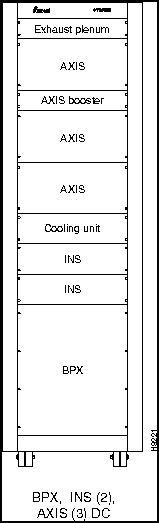

Figure B-7 : Typical Stacking Order, BPX With 2 INS and 3 AXIS, DC Powered

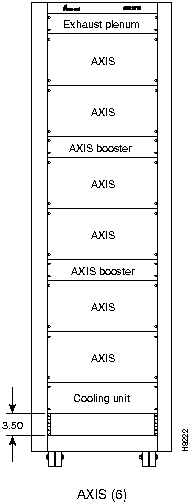

Figure B-8 : Typical Stacking Order, Six AXIS, DC Powered

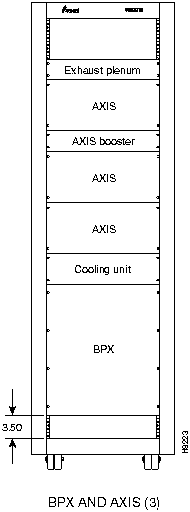

Figure B-9 : Typical Stacking Order, BPX With Three AXIS, DC Powered
Table B-1 : Table of STRATM Cabinet and Component Heights
| Unit Height | |||
|---|---|---|---|
| Components | Inches | CM. | RMUs |
| AXIS Card Cage | 8.75 | 22.225 | 5 |
| AXIS AC Power Supply shelf | 5.25 | 13.335 | 3 |
| AXIS Booster Fan Assembly | 3.5 | 8.89 | 2 |
| AXIS Cooling Assembly | 5.25 | 13.335 | 3 |
| AXIS Exhaust Plenum | 3.5 | 8.89 | 2 |
| BPX AC Power Supply shelf | 5.25 | 13.335 | 3 |
| BPX Card Cage | 22.75 | 57.785 | 13 |
| IGX AC Power Supply shelf | 5.25 | 13.335 | 3 |
| IGX Booster Fan Assembly | 3.5 | 8.89 | 2 |
| IGX Card Cage | 17.5 | 44.45 | 10 |
| IGX Cooling Assembly | 5.25 | 13.335 | 3 |
| IGX Exhaust Plenum | 3.5 | 8.89 | 2 |
| IGX-8 | 24.5 | 62.23 | 14 |
| INS | 5.5 | 13.97 | 4 |
| Inside Height | |||
| Cabinet | Inches | CM. | RMUs |
| STRATM Cabinet | 71.75 | 1822.45 | 41 |

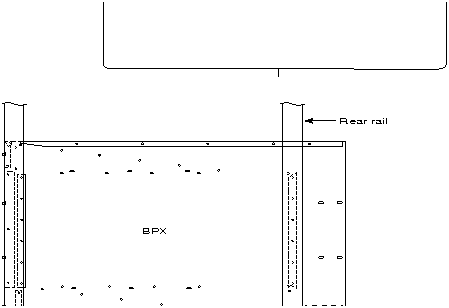

Figure B-10 : Mounting Brackets (BPX)
|
