Access Solutions

Cisco 4000 Series

Product Overview

The Cisco 40 00 series co nsists of the Ci sco 4000, Ci sco 4000-M, Cisco 4500, Cisco 4500-M, Cisco 4700, and Cisco 4700-M routers. Although the Cisco 4000, Cisco 4500, and Cisco 4700 routers are no longer orderable, they are still supported. The Cisco 4000, Cisco 4500, and Cisco 4700 routers have been replaced by the Cisco 4000-M, Cisco 4500-M, and Cisco 4700-M routers.

The Cisco 4000 series routers run Cisco IOS software, Cisco's industry-leading networking software that provides a variety of feature sets. You can choose a feature set that supports your specific protocol environment. Cisco IOS software assures robust, reliable internetworks by supporting both LAN and WAN protocols, optimizing WAN services, and controlling internetwork access. In addition, Cisco IOS software allows centralized, integrated, and automated installation and management of internetworks.

The Cisco 4000 series routers offer Flash EPROM technology as a standard feature. Flash EPROMs enable you to distribute new software releases from a central location. After the software is distributed, the routers can reboot from programs stored in local Flash memory.

All models provide a configurable modular router platform by using network processor modules (NPMs)--individual removable cards used for external network connections. Because the router's modules support many variations of protocols, line speeds, and transmission media, the Cisco 4000 series can accommodate all types of network computing environments. As Cisco introduces new modules, the Cisco 4000 series can be upgraded to keep pace with technological advances.

This catalog introduces new versions of the high density serial NPM and the 1-port single-mode ATM OC-3c NPM. Both are supported on the 4500, 4500-M, 4700 and 4700-M (but not on the 4000 or 4000-M).

In the case of the high density serial module 2 new versions have been added, one which mixes 8 low speed serial ports of RS232 with 8 low speed ports of V.35 (NP-2T16S-232V35) and another which mixes 8 low speed serial ports of RS232 with 8 low speed serial ports of X.21 (NP-2T16S-232X21). These are in addition to the V.35, RS232 and X.21 only versions (NP-2T16S-V.35, NP-2T16S-RS232, NP-2T16S-X21).

In the case of the 1-port single-mode ATM OC-3c NPM, we have added a version that supports "long reach" distances (NP-1A-SM-LR) to the current version which supports "intermediate reach" distances (NP-1A-SM).

The Ci sco 40 00 se ries ro uters can support combinations of up to three of the following NPMs:

1-, 2-, or 6-port Ethernet
1-port Fast Ethernet
1- or 2-port Token Ring
1-port multimode FDDI (both single [SAS] and dual [DAS] attachment stations)
1-port single-mode FDDI (DAS)
2- or 4-port synchronous serial (sync/async)
2-port high-speed serial and 16-port low-speed serial
4- or 8-port ISDN BRI
1-port channelized T1/ISDN PRI
1-port channelized E1/ISDN PRI (balanced or unbalanced)
4-port serial G.703 and G.704 (balanced or unbalanced)
1-port HSSI
1-port ATM (multimode, single mode-intermediate reach, single mode-long reach) OC-3c
1-port ATM DS-3
1-port ATM E3

Note See the "Hardware" section later in this chapter for the maximum number of each type of module, the minimum Cisco IOS software level for each type of module, and compatibility issues for each type of module.

Figure 10-1 shows the rear view of the Cisco 4000 series router.

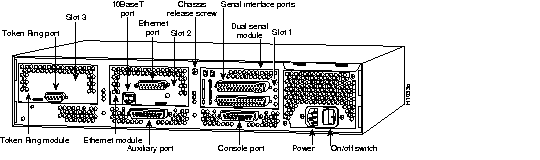

Figure 10-1: Cisco 4000 Series Rear View

Table 10-1 lists a summary of features for Cisco 4000 series routers, and Table 10-2 lists the environmental specifications.

**Table 10-1: Cisco 4000 Series Summary of Features**
Characteristic	Cisco 4000-M	Cisco 4500-M	Cisco 4700-M ¹
Supported network interfaces	Ethernet Token Ring FDDI Serial ISDN BRI Channelized E1/T1 ISDN PRI	Ethernet Token Ring FDDI Serial HSSI High-density serial ISDN BRI Channelized E1/T1 ISDN PRI ATM OC-3c ATM DS-3 ATM E3	Ethernet Token Ring FDDI Serial HSSI High-density serial ISDN BRI Channelized E1/T1 ISDN PRI ATM OC-3c ATM DS-3 ATM E3
Slots available for modules	3	3	3
Software options-- Cisco IOS Release 11.2	IP IP Plus IP Plus 40 IP Plus 56 Desktop (IP/IPX/AppleTalk/DEC) Desktop (IP/IPX/AppleTalk/DEC) Plus Desktop (IP/IPX/AppleTalk/DEC) Plus 40 Desktop (IP/IPX/AppleTalk/DEC) Plus 56 IP/IPX/APPN with IBM base functionality Enterprise Enterprise Plus Enterprise Plus 40 Enterprise Plus 56 Enterprise/APPN Plus Enterprise/APPN Plus 40 Enterprise/APPN Plus 56	IP IP Plus IP Plus 40 IP Plus 56 Desktop (IP/IPX/AppleTalk/DEC) Desktop (IP/IPX/AppleTalk/DEC) Plus Desktop (IP/IPX/AppleTalk/DEC) Plus 40 Desktop (IP/IPX/AppleTalk/DEC) Plus 56 IP/IPX/APPN with IBM base functionality Enterprise Enterprise Plus Enterprise Plus 40 Enterprise Plus 56 Enterprise/APPN Plus Enterprise/APPN Plus 40 Enterprise/APPN Plus 56	IP IP Plus IP Plus 40 IP Plus 56 Desktop (IP/IPX/AppleTalk/DEC) Desktop (IP/IPX/AppleTalk/DEC) Plus Desktop (IP/IPX/AppleTalk/DEC) Plus 40 Desktop (IP/IPX/AppleTalk/DEC) Plus 56 IP/IPX/APPN with IBM base functionality Enterprise Enterprise Plus Enterprise Plus 40 Enterprise Plus 56 Enterprise/APPN Plus Enterprise/APPN Plus 40 Enterprise/APPN Plus 56
Software options-- Cisco IOS Releases 11.0 and 11.1	IP Routing IP Routing with IBM base functionality IP/IPX Routing IP/IPX Routing with IBM base functionality IP/IPX/APPN with IBM base functionality Desktop Desktop with IBM base functionality Enterprise Enterprise/APPN	IP Routing IP Routing with IBM base functionality IP/IPX Routing IP/IPX Routing with IBM base functionality IP/IPX/APPN with IBM base functionality Desktop Desktop with IBM base functionality Enterprise Enterprise/APPN	IP Routing IP Routing with IBM base functionality IP/IPX Routing IP/IPX Routing with IBM base functionality IP/IPX/APPN with IBM base functionality Desktop Desktop with IBM base functionality Enterprise Enterprise/APPN
Processor type	40-MHz 68030	100-MHz IDT Orion RISC	133-MHz IDT Orion RISC
Flash memory	4 MB standard, expandable to 8 or 16 MB	4 MB standard, expandable to 8 or 16 MB	4 MB standard, expandable to 8 or 16 MB
Main memory	8 MB standard, expandable to 16 or 32 MB	16 MB standard, expandable to 32 MB	16 MB standard, expandable to 32 or 64 MB
Shared memory	4 MB ² standard, expandable to 16 MB	4 MB standard, expandable to 8 or 16 MB	4 MB standard, expandable to 8 or 16 MB
Nonvolatile random-access memory (NVRAM)	128 KB	128 KB	128 KB
Dimensions (H x W x D)	3.4 x 17.6 x 17.7 in. (8.6 x 44.7 x 43.4 cm)	3.4 x 17.6 x 17.7 in. (8.6 x 44.7 x 43.4 cm)	3.4 x 17.6 x 17.7 in. (8.6 x 44.7 x 43.4 cm)
Weight (average shipping)	24 lb (10.9 kg)	24 lb (10.9 kg)	24 lb (10.9 kg)
Agency approvals	UL 1950, CSA 22.2, TÜV-GS mark, EN 60950, FCC Class A, Canadian DOC Class A, VDE Class B, EN 55022 Class B, VCCI Class 2	UL 1950, CSA 22.2, TÜV-GS mark, EN 60950, FCC Class A, Canadian DOC Class A, VDE Class B, EN 55022 Class B, VCCI Class 2	UL 1950, CSA 22.2, TÜV-GS mark, EN 60950, FCC Class A, Canadian DOC Class A, VDE Class B, EN 55022 Class B, VCCI Class 2

¹ The Cisco 4700-M includes an additional 64-MB main memory option, which was not available for the Cisco 4700. The 64-MB option significantly increases the routing table sizes that can be supported in the router.
² Cisco 4000 routers and early versions of Cisco 4000-M routers shipped with 1 MB of standard shared memory. Those systems must be upgraded to 4 MB of shared memory when you install an FDDI interface or have more than five physical or virtual interfaces.

**Table 10-2: Cisco 4000 Series En vironmental Sp ecifications**
Description	Specification
Consumption	200W (682 BTU¹/hour)
Input	100 to 240 VAC²
Frequency	47 to 63 Hz
Current rating	3.0A @ 100V; 1.5A @ 240V
Operating temperature range	32 to 104°F (0 to 40°C)
Nonoperating temperature range	-4 to 149°F (-20 to 65°C)
Humidity (noncondensing)	5 to 95%

¹ BTUs = British Thermal Units.
² VAC = volts alternating current.

Standard Features

Cisco 4000 series routers have the following standard features:

Three slots for NPMs, which can be Ethernet, Token Ring, FDDI, HSSI, ISDN BRI, ISDN PRI, ATM, or serial network interfaces. See the "Hardware" section in this chapter for configuration information.
40-MHz 68030 processor (Cisco 4000-M), 100-MHz IDT Orion RISC (Cisco 4500-M), or 133-MHz IDT Orion RISC (Cisco 4700).
8 MB (Cisco 4000-M) or 16 MB (Cisco 4500-M and Cisco 4700-M) of expandable RAM.
128 KB of NVRAM.
4 MB of expandable Flash memory.
4 MB of expandable shared memory.
AC or DC internal power supply models and models to work with an external redundant power system (3 models of each of the Cisco 4000-M, Cisco 4500-M and Cisco 4700-M).
Power cord.

Hardware

The network processor modules available for the Cisco 4000 series routers and their hardware options are described in the following sections:

Network Processor Modules

Cisco 40 00 se ries routers support combinations of up to three network processor modules (NPMs). Table 10-3 describes the maximum number of each module supported by a specific system and the minimum Cisco IOS software release required for each module. Table 10-3 also lists product numbers for the NPMs.

**Table 10-3: NPM Configurations--Cisco 4000 Series**
NPM Type	Cisco 4000 and Cisco 4000-M	Cisco 4500, Cisco 4500-M, and Ci sco 4700-M ¹	Minimum Cisco IOS Software Release Required	Prod uct Numbers	Hardware Restrictions with Other NPMs
1-port 10BaseT Ethernet	3	-	9.14(1)	NP-1E	No restrictions
1-port 100BaseTX Fast Ethernet	-	2	11.1(5)²	NP-1FE	If one NP-1FE is installed, only one ATM or one FDDI module can be installed in the same router. If two NP-1FEs are installed, you cannot install any ATM or FDDI modules in the same router. Full-duplex mode is supported only when the Fast Ethernet module is the sole high-speed module configured.
2-port 10BaseT Ethernet	3	3	9.14(1)	NP-2E	No restrictions
6-port 10BaseT Ethernet	-	3	10.3(6)	NP-6E	No restrictions
1-port Token Ring	3	3	9.14(5)	NP-1RV2	No restrictions
2-port Token Ring	3	3	9.14(5)	NP-2R	No restrictions
1-port single attachment multimode FDDI	1	2	9.14(1)	NP-1F-S-M	Maximum of two high-speed modules can be installed per router.
1-port dual attachment multimode FDDI	1	2	9.14(1)	NP-1F-D-MM	Maximum of two high-speed modules can be installed per router.
1-port dual attachment single-mode FDDI	1	2	9.14(3)	NP-1F-D-SS	Maximum of two high-speed modules can be installed per router.
2-port serial	3	3	9.14(6)	NP-2T³	No restrictions
4-port serial	3	3	10.1	NP-4T	4 Mbps maximum speed per interface.
2-port high-speed synchronous and 16-port low-speed sync/async	-	2	11.2(4)P	NP-2T16S-V.35 NP-2T16S-RS232 NP-2T16S-X21 NP-2T16S-232V35 NP-2T16S-232X21	Maximum of two 2-port high-speed synchronous and 16-port low-speed synchronous modules can be installed per router. No restrictions with other modules.
1-port HSSI	-	2	11.2(5)P	NP-1HSSI	Maximum of two HSSI modules when both are run at high speeds. Maximum of 12 Mbps per HSSI when two HSSI modules are configured and another high-speed module is also installed.
4-port ISDN BRI	2	2	10.2	NP-4B⁴	Not compatible with the three PRI modules, unless the PRI modules are configured for channelized service.
8-port ISDN BRI	1	2	10.2	NP-8B4	Not compatible with the three PRI modules, unless the PRI modules are configured for channelized service.
1-port channelized T1/ISDN PRI	1	2	10.3(4)	NP-CT1	When configured for PRI, the NP-CTI is not compatible with the 4- and 8-port ISDN BRI modules. Is compatible with these modules when configured for channelized service.
1-port channelized E1/ISDN PRI, unbalanced	1	2	10.3(4)	NP-CE1U	When configured for PRI, the NP-CE1U is not compatible with the 4- and 8-port ISDN BRI modules. Is compatible with these modules when configured for channelized service.
1-port channelized E1/ISDN PRI, balanced	1	2	10.3(4)	NP-CE1B	When configured for PRI, the NP-CE1B is not compatible with the 4- and 8-port ISDN BRI modules. Is compatible with these modules when configured for channelized service.
4-port serial E1/G.703 and E1/G.704, unbalanced	3	3	10.2(4)	NP-4GU	No restrictions
4-port serial E1/G.703 and E1/G.704, balanced	3	3	10.2(4)	NP-4GB	No restrictions
1-port single-mode ATM OC-3c	-	1	10.3(4)	NP-1A-SM	Maximum of two high-speed modules can be installed per router.
1-port single-mode ATM OC-3c Long Reach	-	1	11.2(9)P	NP-1A-SM-LR	Maximum of two high-speed modules can be installed per router.
1-port multimode ATM OC-3c	-	1	10.3(4)	NP-1A-MM	Maximum of two high-speed modules can be installed per router.
1-port ATM DS-3	-	2	11.0(5)	NP-1A-DS3	Maximum of two high-speed modules can be installed per router.
1-port ATM E3	-	1	11.0(5)	NP-1A-E3	Maximum of two high-speed modules can be installed per router.

¹ A maximum of two high-speed interfaces is supported on the Cisco 4500 and Cisco 4700 routers. This includes Fast Ethernet, FDDI, and ATM OC-3 or DS-3. The only exception to this rule is that you cannot configure more than one ATM OC-3 on a single router.
² For Cisco IOS Release 11.2, the NPE-1FE NPM is not supported until Cisco IOS Release 11.2(2)P.
³ The NP-2T does not support half-duplex, but the NP-4T does.
⁴ A maximum of either two NP-4B NPMs or one NP-8B NPM is supported on the Cisco 4000 and Cisco 4000-M routers.

Table 10-4 lists incompatible NPM configurations. The basic rule states that you cannot configure a Cisco 4500 or Cisco 4700 with more than two high-speed NPMs.

**Table 10-4: Incompatible NPM Configurations**
NPM Type	Product Number
1 ATM OC-3c, 1 FDDI, 1 ATM DS-3 or ATM E3	1 NP-1A-MM or SM + 1 NP-1F-D-MM/S-M/D-SS + 1 NP-1A-DS3 or E3
1 ATM OC-3c, 1 Fast Ethernet, 1 ATM DS-3 or E3	1 NP-1A-MM or SM + 1 NP-1FE + 1 NP-1A-DS3 or E3
2 Fast Ethernet and 1 FDDI	2 NP-1FE + 1 NP-1F-D-MM/S-M/D-SS
2 Fast Ethernet and 1 ATM DS-3 or E3	2 NP-1FE + 1 NP-1A-DS3 or E3
2 Fast Ethernet and 1 ATM OC-3c	2 NP-1FE + 1 NP-1A-MM or SM
2 ATM OC-3c	2 NP-1A-MM or SM
3 FDDI	3 NP-1F-D-MM/S-M/D-SS
1 ATM OC-3c and 2 FDDI	1 NP-1A-MM or SM + 2 NP-1F-D-MM/S-M/D-SS

Figure 10-2 through Figure 10-22 show the Cisco 4000 series network processor modules.

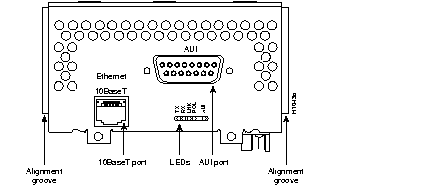

Figure 10-2: 1-Port 10BaseT Ethernet NPM (NP-1E)

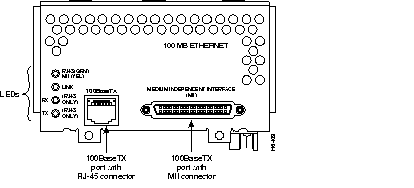

Figure 10-3: 1-Port 100BaseTX Fast Ethernet NPM (NP-1FE)

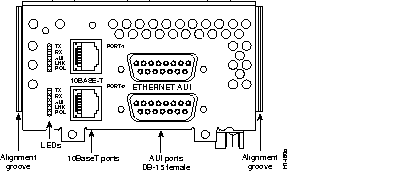

Figure 10-4: 2-Port 10BaseT Ethernet NPM (NP-2E)

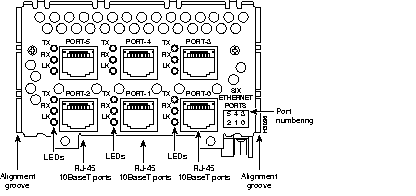

Figure 10-5: 6-Port 10BaseT Ethernet NPM (NP-6E)

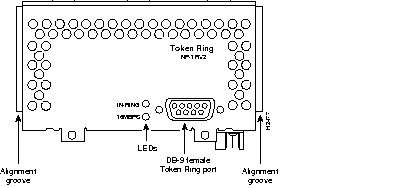

Figure 10-6: 1-Port Token Ring NPM (NP-1RV2)

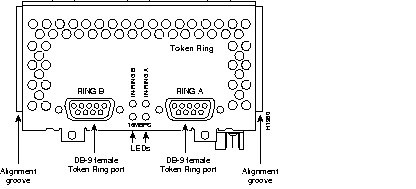

Figure 10-7: 2-Port Token Ring NPM (NP-2R)

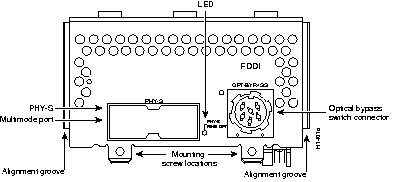

Figure 10-8: 1-Port Single Attachment Multimode FDDI NPM (NP-1F-S-M)

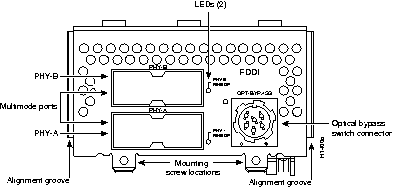

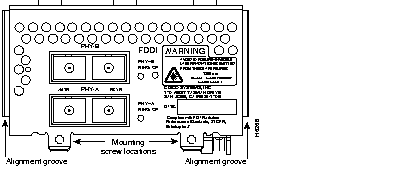

Figure 10-9: 1-Port Dual Attachment Multimode FDDI NPM (NP-1F-D-MM)

Figure 10-10: 1-Port Dual Attachment Single-Mode FDDI NPM (NP-1F-DD-SS)

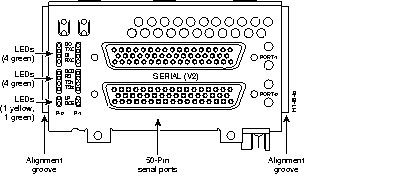

Figure 10-11: 2-Port Serial NPM (NP-2T)

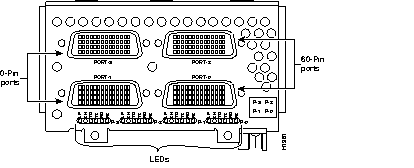

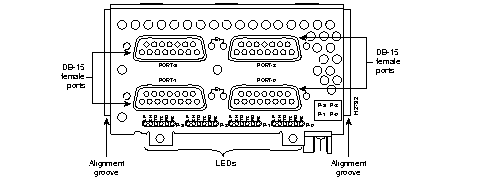

Figure 10-12: 4-Port Serial NPM (NP-4T)

(NP-2T16S-V.35, NP-2T16S-RS232, NP-2T16S-X21, NP-2T16S-232V35, and NP-2T16S-232X21)

Note NP-2T16S-232V35 has 8 low speed RS-232 and 8V.35 ports. NP-2T16S-232X21 has 8 low-speed RS-232 and 8 X.21 ports.

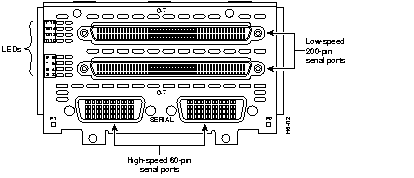

Figure 10-13: 2-Port High-Speed Serial and 16-Port Low-Speed Serial NPM

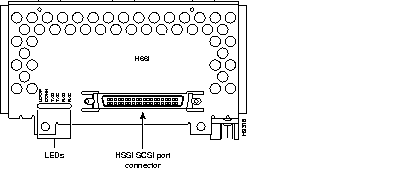

Figure 10-14: 1-Port High-Speed Serial Interface NPM (NP-1HSSI)

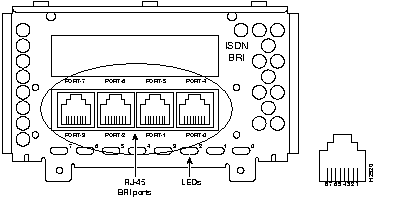

Figure 10-15: 4-Port ISDN BRI NPM (NP-4B)

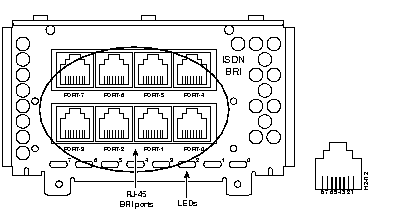

Figure 10-16: 8-Port ISDN BRI NPM (NP-8B)

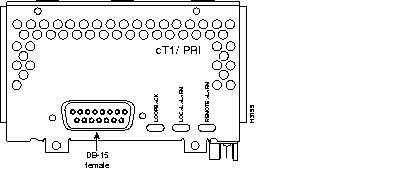

Figure 10-17: 1-Port Channelized T1/ISDN PRI NPM (NP-CT1)

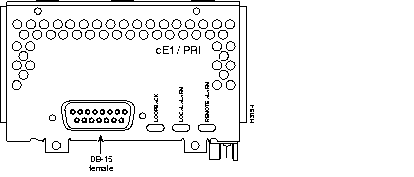

Figure 10-18: 1-Port Channelized E1/ISDN PRI Balanced/Unbalanced NPM (NP-CE1B and NP-CE1U)

Figure 10-19: 4-Port Serial E1/G.703 and E1/G.704 Balanced/Unbalanced NPM (NP-4GB and NP-4GU)

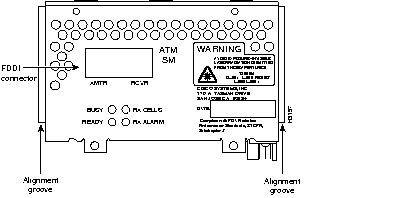

Figure 10-20: 1-Port Single-Mode ATM OC-3c NPM (NP-1A-SM)

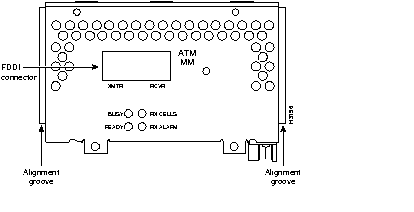

Figure 10-21: 1-Port Multimode ATM OC-3c NPM (NP-1A-MM)

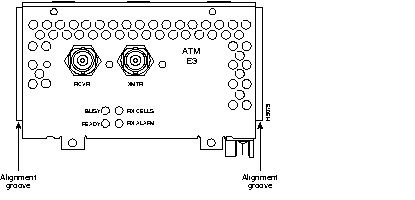

Figure 10-22: 1-Port ATM DS-3/E3 NPM (NP-1A-DS3 and NP-1A-E3)

Memory Options

All Cisco 40 00 series routers share the same physical design. Each router offers three slots for LAN or WAN connectivity and uses the same optional NPMs and software features for compatibility and investment protection. Three different types of memory are available for the Cisco 4000 series--main memory, shared memory, and system Flash memory. Each type of memory serves a different purpose in routing packets from one interface to another. The benefit of this architecture is that the system can read program instructions or routing table data from main memory at the same time as it is moving packets between interfaces (using shared memory), thus increasing overall system performance and lowering network latency.

Factors That Affect Memory Requirements

You can ch ange me mory configurations in the Cisco 4000 series to accommodate internetworking demands. The memory requirements are driven by the following three factors:

Ma in DR AM memory--can be upgraded to allow for network expansion, the use of additional protocols or Cisco IOS services, or newer Cisco IOS software releases.
Sh ared DR AM memory--can be upgraded to improve I/O performance or to use higher densities or more physical or virtual interfaces.
Fl ash me mory--can be upgraded to hold several Cisco IOS software images for easy management.

Main DRAM Memory

The Cisco 4000 series runs from an image stored in main DRAM. This memory is also used by the system for tables and stacks. The amount of main memory required is determined by the size of the image and by the configuration of the internetwork. Cisco regularly publishes product bulletins that detail what memory is required for any particular Cisco IOS feature subset, and also releases documentation that specifies what memory is needed.

Shared DRAM Memory

The Cisco 4000 series routers use shared DRAM (also known as packet memory) for handling user data. The recommended amount of shared memory is determined by the type and number of physical or virtual interfaces supported by the router. Other factors that impact the amount of required shared memory are the type of routing selected and the degree of throughput to the various interfaces.

The standard configuration for shared DRAM is 4 MB for the Cisco 4000 series. This is sufficient for most configurations with fewer than 24 physical or virtual interfaces. For routers with 24 or more interfaces or B channels (for example, NP-9B, CT1, and CE1), upgrading to a minimum of 8 MB of shared memory is required.

Table 10-5 lists the minimum shared memory requirements for NPMs used in Cisco 4000, Cisco 4500, and Cisco 4700 series routers.

**Table 10-5: Shared Memory Requirements--Cisco 4000 Series Routers**
Network Processor Module	Minimum Shared Memory
Cisco 4000 Router
NP-1E	0.1 MB
NP-2E, NP-2T	0.2 MB
NP-2R, NP-4T	0.4 MB
NP-4B	4.0 MB
NP-8B	8.0 MB
NP-CT1, NT-CE1U, NT-CE1B (PRI)	8.0 MB
NP-CT1, NT-CE1U, NT-CE1B (Channelized mode)	0.5 MB
NP-1F-S-M, NP-1F-D-MM, NP-1F-D-SS	2.0 MB
Cisco 4500 and Cisco 4700 Routers
NP-2E, NP-2T	0.4 MB
NP-2R, NP-4T, NP-GU, NP-4GB	0.6 MB
NP-6E	1.2 MB
NP-4B	4.0 MB
NP-8B	8.0 MB
NP-CT1, NT-CE1U, NT-CE1B (PRI)	8.0 MB
NP-CT1, NT-CE1U, NT-CE1B (Channelized mode)	0.5 MB
NP-1F-S-M, NP-1F-D-MM, NP-1F-D-SS, NP-1A-SM, NP-1A-SM-LR, NP-1A-MM, NP-1A-DS3, NP-1A-E3	2.0 MB
2 NP-1F-S-M, NP-1F-D-MM, NP-1F-D-SS	3.0 MB
NP-1FE	1.5 MB
NP-1HSSI	1.0 MB
NP-2T16S	0.6 MB

System Flash Memory

The Cisco 4000 series software images are stored and compressed in system Flash memory. Flash memory is more reliable than traditional diskette-resident system software and provides maximum availability and easy software upgrades and maintenance. The Cisco 4000 series routers are shipped with a default of 4 MB of system Flash memory. This is adequate for most Cisco IOS software feature sets and leaves room for future image growth. However, certain feature sets require 8 MB of system Flash memory. With Cisco IOS Release 11.2, for example, the 4500-M requires 8 MB of system Flash memory for the Enterprise feature Set.

Most of the Cisco 4000 series support 4, 8, and 16 MB of system Flash memory. You might need to order more system Flash memory than the minimum required to store multiple images for the Cisco 4000 series router itself, and to store images for other routers so that the Cisco 4000 series can be used as a TFTP server for other Cisco routers.

The following types of memory are also used in the Cisco 4000 series, but they are not critical components that drive the minimum memory requirements for the system.

System Boot Flash

The Cisco 4500, Cisco 4500-M, and Cisco 4700 store their boot images in the system Flash memory. The standard configuration of 4 MB is sufficient for use on these platforms. Currently no upgrades are offered.

Boot Helper Flash

The Cisco 4500, Cisco 4500-M, and Cisco 4700 store a small software image in the boot helper Flash, which is also called XBoot Flash memory. This memory is in the form of Flash SIMMs. The XBoot image is used to boot the Cisco IOS software across a network. You might need to boot across the network when there is no image in the system Flash or the image has been corrupted. The standard configuration of 4 MB is sufficient for use on these platforms. You only need to upgrade the XBoot image to the latest version when support for booting over a network is required using an unrecognized NPM. For example, if you have added a new NPM that was not available when your system was originally shipped, you need to upgrade the XBoot image. New XBoot images can be downloaded from Cisco Connection Online (CCO).

Boot EPROM

The boot image is stored in EPROM on the Cisco 4000 and Cisco 4000-M routers. This boot image is called RXBoot. The Cisco 4000 and Cisco 4000-M boot EPROMs are 2 MB. The boot EPROM provides the same functionality on the Cisco 4000 and Cisco 4000-M as the boot helper Flash provides on the Cisco 4500, Cisco 4500-M, Cisco 4700, and Cisco 4700-M. The boot helper Flash simplifies the process of upgrading software images. Rather than changing the EPROMs when you want to load a new image, you can simply download a new image, using TFTP, into the onboard Flash memory.

ROMMON

The ROMMON performs initialization tasks in the Cisco 4000 series. It performs power diagnostics and sets variables after checking memory sizes. After this is completed, the main image is booted (as a default) from system Boot Flash (for the Cisco 4500 and the Cisco 4700) and from the boot EPROM (for the Cisco 4000). If you have configured your system to boot from XBoot, ROMMON boots from the secondary image. You cannot configure the amount of ROMMON memory available.

Hardware Product Numbers

The Cisco 4000 series offers the hardware, memory, and NPM cable options listed in Table 10-6, and the power supply options listed in Table 10-7. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order. If a Cisco 4000 series product number ends with -CH, the item is available either through the Cisco authorized reseller channel, or through your local Cisco sales office. Other hardware options can also be ordered through the Cisco authorized reseller channel.

Note For options that apply to most systems, refer to the "Cables and Transceivers" or "Power Cords" chapters later in the catalog.

For cable illustrations, refer to the "Specifications" and "ATM Cable Specifications" sections in the "Cables and Transceivers" chapter later in the catalog.

A console cable is not included as a standard feature. A standard 25-pin EIA/TIA-232 straight-through cable can be used for console port connections.

**Table 10-6: Cisco 40 00 Se ries Hardware Product Numbers**
Description	Product Number
Network Processor Modules (NPMs)	See Table 10-3.
Cisco 4000 Memory
Additional 4-MB Flash memory upgrade (spare)	MEM-4000-4F=
8-MB Flash memory upgrade (spare)	MEM-4000-8F=
16-MB Flash memory upgrade (spare)	MEM-4000-16F=
4-MB shared memory upgrade (spare)	MEM-4000-4S=
16-MB main memory upgrade (spare)	MEM-4000-16D=
Cisco 4000-M Memory
4- to 8-MB Flash memory factory upgrade	MEM-4000M-4U8F
Additional 4-MB Flash memory (spare)	MEM-4000M-4F=
Additional 4-MB Flash memory (spare)	MEM-4000M-8F=
4- to 16-MB shared memory factory upgrade	MEM-4000M-4U16S
16-MB shared memory upgrade (spare)	MEM-4000M-16S=
8- to 16-MB shared memory factory upgrade	MEM-4000M-8U16D
16-MB main memory upgrade (spare)	MEM-4000M-16D=
8- to 32-MB main memory factory upgrade	MEM-4000M-8U32D
32-MB main memory upgrade (spare)	MEM-4000M-32D=
Cisco 4500 Memory
Additional 4-MB Flash memory upgrade (spare)	MEM-4500-4F=
16-MB shared memory upgrade (spare)	MEM-4500-16S=
32-MB main memory upgrade (spare)	MEM-4500-32D=
Cisco 4500-M Memory
4- to 8-MB Flash memory factory upgrade	MEM-4500M-4U8F
4-MB Flash memory upgrade (spare)	MEM-4500M-4F=
8-MB Flash memory upgrade (spare)	MEM-4500M-8F=
4- to 16-MB Flash memory factory upgrade	MEM-4500M-4U16F
16-MB Flash memory upgrade (spare)	MEM-4500M-16F=
4- to 8-MB shared memory factory upgrade	MEM-4500M-4U8S
8-MB shared memory upgrade (spare)	MEM-4500M-8S=
4- to 16-MB shared memory factory upgrade	MEM-4500M-4U16S
16-MB shared memory upgrade (spare)	MEM-4500M-16S=
16- to 32-MB main memory factory upgrade	MEM-4500M-16U32D
32-MB main memory upgrade (spare)	MEM-4500M-32D=
Cisco 4700 Memory
4-MB Flash memory upgrade (spare)	MEM-4700-4F=
8-MB Flash memory upgrade (spare)	MEM-4700-8F=
16-MB Flash memory upgrade (spare)	MEM-4700-16F=
8-MB shared memory upgrade (spare)	MEM-4700-8S=
16-MB shared memory upgrade (spare)	MEM-4700-16S=
32-MB main memory upgrade (spare)	MEM-4700-32D=
Cisco 4700-M Memory
4- to 8-MB Flash memory factory upgrade	MEM-4700M-4U8F
4-MB Flash memory upgrade (spare)	MEM-4700M-4F=
8-MB Flash memory upgrade (spare)	MEM-4700M-8F=
4- to 16-MB Flash memory factory upgrade	MEM-4700M-4U16F
16-MB Flash memory upgrade (spare)	MEM-4700M-16F=
4- to 8-MB shared memory factory upgrade	MEM-4700M-4U8S
8-MB shared memory upgrade (spare)	MEM-4700M-8S=
4- to 16-MB shared memory factory upgrade	MEM-4700M-4U16S
16-MB shared memory upgrade (spare)	MEM-4700M-16S=
16- to 32-MB main memory factory upgrade	MEM-4700M-16U32D
32-MB main memory upgrade (spare)	MEM-4700M-32D=
16- to 64-MB main memory factory upgrade	MEM-4700M-16U64D
64-MB main memory upgrade (spare)	MEM-4700M-64D=
Serial Ca bles for 1-Port Channelized T1/E1/PRI NPM
MIP-CT1: DSX1 to CSU DB-15 straight-through cable, 10 ft (3 m)	CAB-7KCT1DB15
MIP-CT1: DSX1 to CSU DB-15 null modem cable, 10 ft (3 m)	CAB-7KCT1NULL
E1 for 75-ohm, unbalanced connections (with BNC connectors), 10 ft (3 m)	CAB-E1-BNC
E1 for 120-ohm, balanced connections (with DB-15 connector), 10 ft (3 m)	CAB-E1-DB15
E1 for 120-ohm, balanced connections (with Twinax connector), 10 ft (3 m)	CAB-E1-TWINAX
E1 ISDN PRI cable, 10 ft (3 m)	CAB-E1-PRI
Serial Cables for 2-Port Serial NPM
EIA/TIA-232 male DTE interface, 10 ft (3 m)	CAB-NP232T
EIA/TIA-232 female DCE interface, 10 ft (3 m)	CAB-NP232C
EIA/TIA-449 male DTE interface, 10 ft (3 m)	CAB-NP449T
EIA/TIA-449 female DCE interface, 10 ft (3 m)	CAB-NP449C
EIA/530 male DTE interface, 10 ft (3 m)	CAB-NP530
X.21 male DTE interface, 10 ft (3 m)	CAB-NPX21T
X.21 female DCE interface, 10 ft (3 m)	CAB-NPX21C
V.35 male DTE interface, 10 ft (3 m)	CAB-NPV35TV2
V.35 female DCE interface, 10 ft (3 m)	CAB-NPV35CV2
Serial Cables for 4-Port Serial NPM and 2 High-Speed Ports on NP-2T16S
EIA/TIA-232 male DTE interface, 10 ft (3 m)	CAB-232MT
EIA/TIA-232 female DCE interface, 10 ft (3 m)	CAB-232FC
EIA/TIA-449 male DTE interface, 10 ft (3 m)	CAB-449MT
EIA/TIA-449 female DCE interface, 10 ft (3 m)	CAB-449FC
EIA/530 male DTE interface, 10 ft (3 m)	CAB-530MT
X.21 male DTE interface, 10 ft (3 m)	CAB-X21MT
X.21 female DCE interface, 10 ft (3 m)	CAB-X21FC
V.35 male DTE interface, 10 ft (3 m)	CAB-V35MT
V.35 female DCE interface, 10 ft (3 m)	CAB-V35FC
V.35 male cable DCE interface, 10 ft (3m)	CAB-V35MC
V.35 female cable DTE interface, 10 ft (3m)	CAB-V35FT
Cables for NP2T16S NPM, Low-Speed Ports
8-lead octal cable with 8 male V.35 DTE connectors	CAB-OCT-V35-MT
8-lead octal cable with 8 female V.35 DCE connectors	CAB-OCT-V35-FC
8-lead octal cable with 8 male EIA/TIA-232.V.24 DTE connectors	CAB-OCT-232-MT
8-lead octal cable with 8 female EIA/TIA-232.V.24 DCE connectors	CAB-OCT-232-MC
8-lead octal cable with 8 male X21 DTE connectors	CAB-OCT-X21-MT
8-lead octal cable with 8 female X21 DCE connectors	CAB-OCT-X21-MC
Cables for HSSI NPM
HSSI cable, male-to-male connectors, 10 ft	CAB-HSI1=
HSSI cable, male-to-male null modem cable, 10 ft	CAB-HNUL=
Cables for 4-Port E1/G.703 and E1/G.704 NPM
E1 cable, BNC E1, 75 ohms, unbalanced, 10 ft (3 m)	CAB-E1-BNC-3M
E1 cable, Twinax 120 ohms, balanced, 10 ft (3 m)	CAB-E1-TWINAX-3M
ATM Cables
RG-59 coaxial cable with BNC connectors	CAB-ATM-DS3/E3
Kits
Blank NPM fi ller card (spare)	ACS-NPPN=
Telco/wall-mo unt kit	ACS-NPWM
19-in. rack-mo unt kit	ACS-NPRM
Redun dant Power System
600W Redundant AC Power System without DC power cables	PWR-600-AC-RPS-NCAB
24-inch rack mount kit	ACS-3640RM-24(=)
RPS Field Upgrade for C4000 series	ACS-4000-RPS=
RPS 22/18 two-to-one DC power cable	CAB-RPSY-2218(=)
RPS 22/18 one-to-one DC power cable	CAB-RPS-2218(=)

**Table 10-7: Cisco 4000 Series Models and Power Supply Options**
Model	Description	Product Number
Cisco 4000-M	Cisco 4000-M with AC-input power supply	CISCO4000-M
Cisco 4000-DC-M	Cisco 4000-M with -48 VDC DC-input power supply	CISCO4000-DC-M
Cisco 4000-RPS-M	Cisco 4000-M, use with RPS	CISCO4000-RPS-M
Cisco 4500-M	Cisco 4500-M with AC-input power supply	CISCO4500-M
Cisco 4500-M (re seller channel)	Cisco 4500-M with AC-input power supply, 3 open slots, IP/IPX/AppleTalk	CISCO4500-M-CH
Cisco 4500-DC-M	Cisco 4500-M with -48 VDC DC-input power supply	CISCO4500-DC-M
Cisco 4500-RPS-M	Cisco 4500-M, use with RPS	CISCO4500-RPS-M
Cisco 4700-M	Cisco 4700-M with AC-input power supply	CISCO4700-M
Cisco 4700-DC-M	Cisco 4700-M with -48 VDC DC-input power supply	CISCO4700-DC-M
Cisco 4700-M (re seller channel)	Cisco 4700-M with AC-input power supply, 3 open slots, IP/IPX/AppleTalk	CISCO4700-M-CH
Cisco 4700-RPS-M	Cisco 4700-M, use with RPS	CISCO4700-RPS-M

Software

Software Feature Sets

The Cisco 4000 Series supports the following Cisco IOS feature sets:

IOS Release 11.2
IOS Release 11.1
IOS Release 11.0

For more information about Cisco IOS software feature sets for this platform, see Chapter 2, "Cisco Internetworking Operating System (IOS) Software."

Note For all Cisco 4000 series routers, software must be ordered separately from the chassis. Traditional software packaging is no longer included in the base price of the system.

The Cisco 4000, Cisco 4500, and Cisco 4700 routers are no longer orderable, but Cisco IOS Releases 11.2, 11.1, and 11.0 are supported on these routers. The Cisco 4000, Cisco 4500, and Cisco 4700 routers have been replaced by the Cisco 4000-M, Cisco 4500-M, and Cisco 4700-M routers.

The Cisco 4000 series offers the following types of feature sets:

Basic. The basic feature set.
Plus. The basic feature set plus additional features.
Plus 40. The basic feature set, plus features, and 40-bit data encryption.
Plus 56. The basic feature set, plus features, and 56-bit data encryption.

Note Cisco IOS images with 40-bit Data Encryption Standard (DES) support may legally be distributed to any party eligible to receive Cisco IOS software. 40-bit DES is not a cryptographically strong solution, so its use should be carefully evaluated.

Cisco IOS images with 56-bit DES are possibly subject to export and/or import controls and may have a limited distribution. For more information, contact your sales representative or distributor, or visit CCO at http://www.cisco.com/wwl/export/encrypt.html , or send e-mail to export@cisco.com.

The Cisco IOS feature set tables use the following conventions to identify features:

-D: The feature is offered in the basic feature set.
-: The feature is not offered in the feature set.
Plus: The feature is offered in the Plus feature sets.
Encrypt: The feature is offered in the Encryption feature sets.

Software Feature Packs

Software feature packs consist of CD-ROMs that contain Cisco IOS software feature set images and a Windows 95 application, which loads the images onto a router. For more information about Cisco IOS feature packs, see Chapter 2, "Cisco Internetworking Operating System (IOS) Software."

Note You can also order a Cisco IOS software feature pack for Cisco 4500-M and Cisco 4700-M models.

Software Product Numbers

Adding a feature set or feature pack might require you to purchase additional memory. Table 10-8 lists the software feature set and feature pack product numbers and minimum memory requirements for Cisco IOS Release 11.2. Table 10-9 lists the software feature set product numbers and minimum memory requirements for Cisco IOS Releases 11.1 and 11.0.

The minimum memory requirements listed were chosen for typical branch and remote office applications. If your network is very large, using complex routing protocols, or using RMON, you might need more memory. Configuration analysis and testing are encouraged.

Table 10-8: So ftware Pr oduct N umbers and Mi nimum Me mory Requirements for Cisco IOS
Release 11.2--Cisco 4000 Series
	Product Numbers and Minimum Memory Requirements
			Cisco IOS Release 11.2
Feature Set	Cisco 4000 Series Model	Product Number	Flash	Main DRAM	Shared DRAM
IP	Cisco 4000	SF4C-11.2.1 SW4C-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4C-11.2.1 SW4C-11.2.1=	4 MB	8 MB	4 MB
	Cisco 4500	SF45C-11.2.1 SW45C-11.2.1= CD45-C-11.2=¹	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB
IP Plus	Cisco 4000	SF4CP-11.2.1 SW4CP-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4CP-11.2.1 SW4CP-11.2.1=	4 MB	8 MB	4 MB
	Cisco 4500	SF45CP-11.2.1 SW45CP-11.2.1= CD45-CP-11.2=1	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB
IP Plus 40	Cisco 4000	SF4CW-11.2.1 SW4CW-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4CW-11.2.1 SW4CW-11.2.1=	4 MB	8 MB	4 MB
	Cisco 4500	SF45CW-11.2.1 SW45CW-11.2.1 CD45-CW-11.2=1	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	1 MB
	Cisco 4700-M		4 MB	16 MB	1 MB
IP Plus 56	Cisco 4000	SF4CY-11.2.1 SW4CY-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4CY-11.2.1 SW4CY-11.2.1=	4 MB	8 MB	4 MB
	Cisco 4500	SF45CY-11.2.1 SW45CY-11.2.1= CD45-CY-11.2=1	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB
Desktop (IP/IPX/AT/DEC)	Cisco 4000	SF4B-11.2.1 SW4B-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4B-11.2.1 SW4B-11.2.1=	4 MB	8 MB	4 MB
	Cisco 4500	SF45B-11.2.1 SW45B-11.2.1= CD45-B-11.2=1	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB
Desktop Plus	Cisco 4000	SF4BP-11.2.1 SW4BP-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4BP-11.2.1 SW4BP-11.2.1=	4 MB	16 MB	4 MB
	Cisco 4500	SF45BP-11.2.1 SW45BP-11.2.1= CD45-BP-11.2=1	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB
Desktop Plus 40	Cisco 4000	SF4BW-11.2.1 SW4BW-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4BW-11.2.1 SW4BW-11.2.1=	4 MB	8 MB	4 MB
	Cisco 4500	SF45BW-11.2.1 SW45BW-11.2.1= CD45-BW-11.2=1	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB
Desktop Plus 56	Cisco 4000	SF4BY-11.2.1 SW4BY-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4BY-11.2.1 SW4BY-11.2.1=	4 MB	16 MB	4 MB
	Cisco 4500	SF45BY-11.2.1 SW45BY-11.2.1= CD45-BY-11.2=1	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB
IP/IPX/IBM and APPN	Cisco 4000	SF4DSN-11.2.1 SW4DSN-11.2.1=	4 MB	16 MB	4 MB
	Cisco 4000-M	SF4DSN-11.2.1 SW4DSN-11.2.1=	4 MB	32 MB	4 MB
	Cisco 4500	SF45DSN-11.2.1 SW45DSN-11.2.1=	8 MB	32 MB	16 MB
	Cisco 4500-M		8 MB	32 MB	8 MB
	Cisco 4700		8 MB	32 MB	8 MB
	Cisco 4700-M		8 MB	32 MB	8 MB
Enterprise	Cisco 4000	SF4A-11.2.1 SW4A-11.2.1=	4 MB	16 MB	1 MB
	Cisco 4000-M	SF4A-11.2.1 SW4A-11.2.1=	4 MB	16 MB	4 MB
	Cisco 4500	SF45A-11.2.1 SW45A-11.2.1= CD45-A-11.2=1	8 MB	32 MB	4 MB
	Cisco 4500-M		8 MB	16 MB	4 MB
	Cisco 4700		8 MB	16 MB	4 MB
	Cisco 4700-M		8 MB	16 MB	4 MB
Enterprise Plus	Cisco 4000	SF4AP-11.2.1 SW4AP-11.2.1=	8 MB	16 MB	1 MB
	Cisco 4000-M	SF4AP-11.2.1 SW4AP-11.2.1=	8 MB	16 MB	4 MB
	Cisco 4500	SF45AP-11.2.1 SW45AP-11.2.1= CD45-AP-11.2=1	8 MB	32 MB	4 MB
	Cisco 4500-M		8 MB	16 MB	4 MB
	Cisco 4700		8 MB	16 MB	4 MB
	Cisco 4700-M		8 MB	16 MB	4 MB
Enterprise Plus 40	Cisco 4000	SF4AW-11.2.1 SW4AW-11.2.1=	8 MB	16 MB	1 MB
	Cisco 4000-M	SF4AW-11.2.1 SW4AW-11.2.1=	8 MB	16 MB	4 MB
	Cisco 4500	SF45AW-11.2. SW45AW-11.2.1= CD45-AW-11.2=1	8 MB	32 MB	4 MB
	Cisco 4500-M		8 MB	16 MB	4 MB
	Cisco 4700		8 MB	16 MB	4 MB
	Cisco 4700-M		8 MB	16 MB	4 MB
Enterprise Plus 56	Cisco 4000	SF4AY-11.2.1 SW4AY-11.2.1=	8 MB	16 MB	1 MB
	Cisco 4000-M	SF4AY-11.2.1 SW4AY-11.2.1=	8 MB	16 MB	4 MB
	Cisco 4500	SF45AY-11.2.1 SW45AY-11.2.1= CD45-AY-11.2=1	8 MB	32 MB	4 MB
	Cisco 4500-M		8 MB	16 MB	4 MB
	Cisco 4700		8 MB	16 MB	4 MB
	Cisco 4700-M		8 MB	16 MB	4 MB
Enterprise/APPN Plus	Cisco 4000	SF4ANP-11.2.1 SW4ANP-11.2.1=	8 MB	16 MB	4 MB
	Cisco 4000-M	SF4ANP-11.2.1 SW4ANP-11.2.1=	8 MB	32 MB	4 MB
	Cisco 4500	SF45ANP-11.2.1 SW45ANP-11.2.1=	8 MB	32 MB	16 MB
	Cisco 4500-M		8 MB	32 MB	8 MB
	Cisco 4700		8 MB	32 MB	8 MB
	Cisco 4700-M		8 MB	32 MB	8 MB
Enterprise/APPN Plus 40	Cisco 4000	SF4ANW-11.2.1 SW4ANW-11.2.1=	8 MB	16 MB	4 MB
	Cisco 4000-M	SF4ANW-11.2.1 SW4ANW-11.2.1=	8 MB	32 MB	4 MB
	Cisco 4500	SF45ANW-11.2.1 SW45ANW-11.2.1=	8 MB	32 MB	16 MB
	Cisco 4500-M		8 MB	32 MB	8 MB
	Cisco 4700		8 MB	32 MB	8 MB
	Cisco 4700-M		8 MB	32 MB	8 MB
Enterprise/APPN Plus 56	Cisco 4000	SF4ANY-11.2.1 SW4ANY-11.2.1=	8 MB	16 MB	4 MB
	Cisco 4000-M	SF4ANY-11.2.1 SW4ANY-11.2.1=	8 MB	32 MB	4 MB
	Cisco 4500	SF45ANY-11.2.1 SW45ANY-11.2.1=	8 MB	32 MB	16 MB
	Cisco 4500-M		8 MB	32 MB	8 MB
	Cisco 4700		8 MB	32 MB	8 MB
	Cisco 4700-M		8 MB	32 MB	8 MB

¹ Software feature pack on a CD-ROM. You must order a feature pack with a -CH model of the Cisco 4500-M or Cisco 4700-M. The feature pack software is preinstalled on -CH models.

Table 10-9: Software Product Numbers and Minimum Memory Requirements for Cisco IOS
Releases 11.1 and 11.0--Cisco 4000 Series
		Product Numbers and Minimum Memory Requirements
			Cisco IOS Releases
			11.1			11.0
Feature Set	Cisco 4000 Series Model	Product Number	Flash	Main DRAM	Shared DRAM	Flash	Main DRAM	Shared DRAM
IP	Cisco 4000	SF-G4C-xx.x.x SW-G4C-xx.x.x=	4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
	Cisco 4000-M	SF-G4C-xx.x.x SW-G4C-xx.x.x=	4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4500	SF-G45C-xx.x.x SW-G45C-xx.x.x=	4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4500-M		4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
IP with IBM base	Cisco 4000	SF-G4CS-xx.x.x SW-G4CS-xx.x.x=	4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
	Cisco 4000-M	SF-G4CS-xx.x.x SW-G4CS-xx.x.x=	4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4500	SF-G45CS-xx.x.x SW-G45CS-xx.x.x=	4 MB	32 MB	4 MB	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
IP/IPX	Cisco 4000	SF-G4D-xx.x.x SW-G4D-xx.x.x=	4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
	Cisco 4000-M	SF-G4D-xx.x.x SW-G4D-xx.x.x=	4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4500	SF-G45D-xx.x.x SW-G45D-xx.x.x=	4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4500-M		4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4700		4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
	Cisco 4700-M		4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
IP/IPX with IBM base	Cisco 4000	SF-G4DS-xx.x.x SW-G4DS-xx.x.x=	4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
	Cisco 4000-M	SF-G4DS-xx.x.x SW-G4DS-xx.x.x=	4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4500	SF-G45DS-xx.x.x SW-G45DS-xx.x.x=	4 MB	32 MB	4 MB	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
IP/IPX with IBM base and APPN	Cisco 4000	SF-G4DSN-xx.x.x SW-G4DSN-xx.x.x=	4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4000-M	SF-G4DSN-xx.x.x SW-G4DSN-xx.x.x=	4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4500	SF-G45DSN-xx.x.x SW-G45DSN-xx.x.x=	4 MB	32 MB	16 MB	4 MB	32 MB	16 MB
	Cisco 4500-M		4 MB	16 MB	8 MB	4 MB	16 MB	8 MB
	Cisco 4700		4 MB	16 MB	8 MB	4 MB	16 MB	8 MB
	Cisco 4700-M		4 MB	16 MB	8 MB	4 MB	16 MB	8 MB
Desktop	Cisco 4000	SF-G4B-xx.x.x SW-G4B-xx.x.x=	4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
	Cisco 4000-M	SF-G4B-xx.x.x SW-G4B-xx.x.x=	4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4500	SF-G45B-xx.x.x SW-G45B-xx.x.x=	4 MB	32 MB	4 MB	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
Desktop with IBM base	Cisco 4000	SF-G4BS-xx.x.x SW-G4BS-xx.x.x=	4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
	Cisco 4000-M	SF-G4BS-xx.x.x SW-G4BS-xx.x.x=	4 MB	8 MB	4 MB	4 MB	8 MB	4 MB
	Cisco 4500	SF-G45BS-xx.x.x SW-G45BS-xx.x.x=	4 MB	32 MB	4 MB	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
Enterprise	Cisco 4000	SF-G4A-xx.x.x SW-G4A-xx.x.x=	4 MB	16 MB	1 MB	4 MB	16 MB	1 MB
	Cisco 4000-M	SF-G4A-xx.x.x SW-G4A-xx.x.x=	4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4500	SF-G45A-xx.x.x SW-G45A-xx.x.x=	4 MB	32 MB	4 MB	4 MB	32 MB	4 MB
	Cisco 4500-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4700-M		4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
Enterprise with APPN	Cisco 4000	SF-G4AN-xx.x.x SW-G4AN-xx.x.x=	4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4000-M	SF-G4AN-xx.x.x SW-G4AN-xx.x.x=	4 MB	16 MB	4 MB	4 MB	16 MB	4 MB
	Cisco 4500	SF-G45AN-xx.x.x SW-G45AN-xx.x.x=	8 MB	32 MB	16 MB	4 MB	32 MB	16 MB
	Cisco 4500-M		8 MB	16 MB	8 MB	4 MB	16 MB	8 MB
	Cisco 4700		8 MB	16 MB	8 MB	4 MB	16 MB	8 MB
	Cisco 4700-M		8 MB	16 MB	8 MB	4 MB	16 MB	8 MB

Cisco IOS Feature Set Upgrades

Cisco IOS feature set upgrades are easy to order for the Cisco 4000 series. The following is an example:

You have a Cisco 4500-M router running the Cisco IOS Release 11.2 IP Routing (basic) feature set. You want to upgrade to the Cisco IOS Release 11.2 Enterprise/APPN Plus 56 feature set. You are crossing three feature sets: one to get from IP to Enterprise, one to add APPN, and one to add Plus 56 (basic to plus). To complete the upgrade, use the following guidelines:

Order FL45-CA= (IP to Enterprise upgrade license, charged item)
Order FL45-APPN= (APPN upgrade license, charged item)
Order FL45-Y= (Plus 56 upgrade license, charged item)
Order additional DRAM and Flash card memory (if you do not have the minimum required DRAM and Flash card memory for the new feature set)
Order SW45ANY-11.2.1= (Cisco IOS 4500/4700 Enterprise/APPN Plus 56 software on diskette, charged item)

Table 10-10 lists software upgrade product numbers for the Cisco 4000 series.

**Table 10-10: Software Upgrades for Cisco IOS Release 11.2--Cisco 4000 Series**
Feature Set Upgrade¹	Cisco 4000 and Cisco 4000-M Product Numbers	Cisco 4500, Cisco 4500-M, and Cisco 4700-M Product Numbers
Plus	FL4-P=	FL45-P=
Plus 40	FL4-W=	FL45-W=
Plus 56	FL4-Y=	FL45-Y=
APPN	FL4-APPN=	FL45-APPN=
IP to Desktop (IP/IPX/AppleTalk/DEC)	FL4-CB=	FL45-CB=
IP to Enterprise	FL4-CA=	FL45-CA=
Desktop (IP/IPX/AppleTalk/DEC) to Enterprise	FL4-BA=	FL45-BA=
IP/IPX to Desktop (IP/IPX/AppleTalk/DEC)	FL4-DB=	FL45-DB=
IP/IPX to Enterprise	FL4-DA=	FL45-DA=

¹ Use the preceding example above to determine if you also need to order Cisco IOS Release 11.2 feature set software on diskette.

Feature sets for Cisco IOS Releases 11.1 and 11.0 can be upgraded as described in Table 10-11. To order an upgrade, you must use two product numbers; one represents the upgrade license, and the other represents the software. For example, to upgrade from an IP feature set to an IP feature set with IBM base functionality, order product number FR-G4X-CCS= (the upgrade license) and SW-G4CS-xx.x.x= (the software for a Cisco 4000-M). To upgrade to a feature set with APPN, you must first purchase the upgrade license for the desired feature set and then purchase the upgrade license and upgrade software for the APPN feature set.

**Table 10-11: Software Upgrades for Cisco IOS Releases 11.1 and 11.0--Cisco 4000 Series**
Feature Set Upgrade	Cisco 4000 and Cisco 4000-M Product Numbers¹	Cisco 4500, Cisco 4500-M, and Cisco 4700-M Product Numbers 1
IP to IP with IBM base functionality	FR-G4X-CCS= and SW-G4CS-xx.x.x=	FR-G4X-CCS= and SW-G45CS-xx.x.x=
IP to IP/IPX	FR-G4X-CD= and SW-G4D-xx.x.x=	FR-G4X-CD= and SW-G45D-xx.x.x=
IP to IP/IPX with IBM base functionality	FR-G4X-CDS= and SW-G4DS-xx.x.x=	FR-G4X-CDS= and SW-G45DS-xx.x.x=
IP to IP/IPX with IBM base functionality and APPN	FR-G4X-CDS=, FR-G4X-APPN=, and SW-G4DSN-xx.x.x=	FR-G4X-CDS=, FR-G4X-APPN=, and SW-G45DSN-xx.x.x=
IP to Desktop	FR-G4X-CB= and SW-G4B-xx.x.x=	FR-G4X-CB= and SW-G45B-xx.x.x=
IP to Desktop with IBM base functionality	FR-G4X-CBS= and SW-G4BS-xx.x.x=	FR-G4X-CBS= and SW-G45BS-xx.x.x=
IP to Enterprise	FR-G4X-CA= and SW-G4A-xx.x.x=	FR-G4X-CA= and SW-G45A-xx.x.x=
IP to Enterprise and APPN	FR-G4X-CA=, FR-G4X-APPN=, and SW-G4AN-xx.x.x=	FR-G4X-CA=, FR-G4X-APPN=, and SW-G45AN-xx.x.x=
IP with IBM base to IP/IPX with IBM base functionality	FR-G4X-CSDS= and SW-G4DS-xx.x.x=	FR-G4X-CSDS= and SW-G45DS-xx.x.x=
IP with IBM base to IP/IPX with IBM base functionality and APPN	FR-G4X-CSDS=, FR-G4X-APPN=, and SW-G4DSN-xx.x.x=	FR-G4X-CSDS=, FR-G4X-APPN=, and SW-G45DSN-xx.x.x=
IP with IBM base to Desktop with IBM base functionality	FR-G4X-CSBS= and SW-G4BS-xx.x.x=	FR-G4X-CSBS= and SW-G45BS-xx.x.x=
IP with IBM base functionality to Enterprise	FR-G4X-CSA= and SW-G4A-xx.x.x=	FR-G4X-CSA= and SW-G45A-xx.x.x=
IP with IBM base functionality to Enterprise and APPN	FR-G4X-CSA=, FR-G4X-APPN=, and SW-G4AN-xx.x.x=	FR-G4X-CSA=, FR-G4X-APPN=, and SW-G45AN-xx.x.x=
IP/IPX to IP/IPX with IBM base functionality	FR-G4X-DDS= and SW-G4DS-xx.x.x=	FR-G4X-DDS= and SW-G45DS-xx.x.x=
IP/IPX to IP/IPX with IBM base functionality and APPN	FR-G4X-DDS=, FR-G4X-APPN=, and SW-G4DSN-xx.x.x=	FR-G4X-DDS=, FR-G4X-APPN=, and SW-G45DSN-xx.x.x=
IP/IPX to Desktop	FR-G4X-DB= and SW-G4B-xx.x.x=	FR-G4X-DB= and SW-G45B-xx.x.x=
IP/IPX to Desktop with IBM base functionality	FR-G4X-DBS= and SW-G4BS-xx.x.x=	FR-G4X-DBS= and SW-G45BS-xx.x.x=
IP/IPX to Enterprise	FR-G4X-DA= and SW-G4A-xx.x.x=	FR-G4X-DA= and SW-G45A-xx.x.x=
IP/IPX to Enterprise and APPN	FR-G4X-DA=, FR-G4X-APPN=, and SW-G4AN-xx.x.x=	FR-G4X-DA=, FR-G4X-APPN=, and SW-G45AN-xx.x.x=
IP/IPX with IBM base to Desktop with IBM base	FR-G4X-DSBS= and SW-G4BS-xx.x.x=	FR-G4X-DSBS= and SW-G45BS-xx.x.x=
IP/IPX with IBM base to IP/IPX with IBM base functionality and APPN	FR-G4X-APPN= and SW-G4DSN-xx.x.x=	FR-G4X-APPN= and SW-G45DSN-xx.x.x=
IP/IPX with IBM base to Enterprise	FR-G4X-DSA= and SW-G4A-xx.x.x=	FR-G4X-DSA= and SW-G45A-xx.x.x=
IP/IPX with IBM base to Enterprise and APPN	FR-G4X-DSA=, FR-G4X-APPN=, and SW-G4AN-xx.x.x=	FR-G4X-DSA=, FR-G4X-APPN=, and SW-G45AN-xx.x.x=
Desktop to Desktop with IBM base	FR-G4X-BBS= and SW-G4BS-xx.x.x=	FR-G4X-BBS= and SW-G45BS-xx.x.x=
Desktop to Enterprise	FR-G4X-BA= and SW-G4A-xx.x.x=	FR-G4X-BA= and SW-G45A-xx.x.x=
Desktop to Enterprise and APPN	FR-G4X-BA=, FR-G4X-APPN=, and SW-G4AN-xx.x.x=	FR-G4X-BA=, FR-G4X-APPN=, and SW-G45AN-xx.x.x=
Desktop with IBM base to Enterprise	FR-G4X-BSA= and SW-G4A-xx.x.x=	FR-G4X-BSA= and SW-G45A-xx.x.x=
Desktop with IBM base to Enterprise and APPN	FR-G4X-BSA=, FR-G4X-APPN=, and SW-G4AN-xx.x.x=	FR-G4X-BSA=, FR-G4X-APPN=, and SW-G45AN-xx.x.x=

¹ Substitute the release number for xx.x.x in the product number (for example, SW-G4CS-11.1.1=).

Table of Contents
