FastHub 100 Series Hubs

FastHub 100 Series Hubs

Product Overview

The FastHub 100 series of standalone 100BaseT hubs provides the lowest-cost 100-Mbps performance for power workgroups and users where management is not critical. Available in 4-, 8-, and 16-port densities, these Class II hubs offer a cost-effective solution for a range of workgroup sizes and are a key element in Cisco's end-to-end solutions.

The FastHub 100 series' unique Class II design lets you connect two hubs together, creating a collision domain of up to
30 ports. The FastHub 100 series hubs can connect to other Class II hubs, including the FastHub 300 and FastHub 200 series. The Class II design also lets you distribute and connect hubs in separate wiring closets, without an intermediate switch, bridge, or router.

The FastHub 100 series of hubs consists of the following models:

A 4-port 100BaseTX hub (see Figure 9-8) that works with 100BaseT switches to provide affordable, 100-Mbps performance to multiple workstations
An 8-port 100BaseTX hub (see Figure 9-9) for connecting small workgroups over UTP cabling
A 16-port 100BaseTX hub (see Figure 9-10 and Figure 9-11) for connecting workgroups consisting of up to
16 workstations over UTP cabling

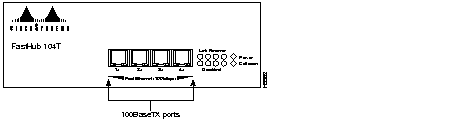

Figure 9-8: FastHub 104T 100BaseTX Hub




Figure 9-9:
FastHub 108T 100BaseTX Hub

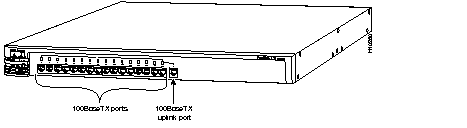

Figure 9-10:
FastHub 116T 100BaseTX Hub Front View

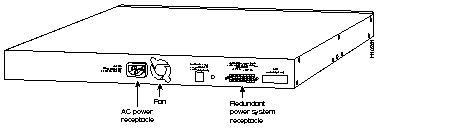

Figure 9-11:
FastHub 116T 100BaseTX Hub Rear View




Table 9-8: FastHub 100 Series Hubs Summary of Features
Characteristic Description
Compatibility Compatible with IEEE 802.3u standard for interoperability with other 100BaseT products

IEEE 802.3u Class II repeater-compliant

Placement Desktop (FastHub 104T and FastHub 108T)

19-inch rack-mount hardware included (FastHub 116T)

Performance 100-Mbps peak and aggregate throughput
Configuration guidelines Maximum cable distance between any two end stations with one FastHub 100 series hubs in the path:
656 ft (200 m)

Maximum cable distance between any two end stations with two hubs in
the path:

731 ft (223 m) with 1 FastHub 116T

708 ft (216 m) with 2 FastHub 104Ts or 2 FastHub 108Ts,
or 1 FastHub 104T and 1 FastHub 108T

702 ft (214 m) with 1 FastHub 116T and 1 FastHub 104T, or
1 FastHub 116T and 1 FastHub 108T

702 ft (214 m) with 1 FastHub 116T and 1 third-party 100BaseT
Class II hub

Maximum cable distance between 100BaseTX port and an end node:
328 ft (100 m)

Cabling requirements 100BaseTX ports:
Integrated 100BaseTX media interface for use with two-pair Category 5 UTP cabling and standard RJ-45 connectors

Uplink port on the FastHub 116T:
Straight-through cable to connect to a non-uplink port on a second hub

Non-uplink port on a FastHub 100 series hub:
Crossover cables to connect to a non-uplink port on a second hub

Direct 100BaseT connection between two hubs:
Maximum of one

Redundancy Supports connection to the optional Cisco redundant power system (RPS)
(FastHub 116T only)
Indicators FastHub 104T and FastHub 108T:

Per-port LEDs for link integrity, receive activity, and enabled/disabled status

Collision LED for gauging network load

Power LED for AC operation status

FastHub 116T:

Per-port LEDs for link integrity, receive activity, and enabled/disabled status

Hub utilization and collision LED for gauging network load

System LED for AC operation status

Redundant power system status LED

Dimensions (H x W x D) FastHub 104T and 108T: 2 x 9.4 x 6.2 in. (5.1 x 23.9 x 15.7 cm)

FastHub 116T: 1.73 x 17.50 x 8.25 in. (4.4 x 44.5 x 21 cm)

Weight FastHub 104T and 108T: 4 lb (1.8 kg)

FastHub 116T: 11 lb (5 kg)

Agency approvals FastHub 104T and FastHub 108T:
UL 1950, CSA 22.2, LR100902, TUV, EN 60950, CE,

FastHub 116T:
AS/NZS 3260, TS001, UL 1950/CSA 22.2 No. 950, IEC 950/EN 60950, NOM 019, CE

Electromagnetic emissions certifications FastHub 104T and FastHub 108T:
FCC Class A, EN 55022A, Vfg 243, CE

FastHub 116T:
FCC Part 15 Class B, EN 55022B Class B (CISPR22 Class B), VCCI Class II, AS/NRZ 3548 Class B, CE


Table 9-9: FastHub 100 Series Hubs Environmental Specifications
Description Specification
Power consumption FastHub 104T: 15W

FastHub 108T: 25W

FastHub 116T: 40W

Input voltage FastHub 104T and FastHub 108T:
90 to 240 VAC1, 50 to 60 Hz

FastHub 116T:
100 to 127/200 to 240 VAC autoranging, 50 to 60 Hz

Operating temperature FastHub 104T and FastHub 108T:

32 to 104°F (0 to 40° C)

FastHub 116T:

23 to 113×F (-5 to 45×C)

Operating relative humidity FastHub 104T and FastHub 108T:

5 to 80% noncondensing

FastHub 116T:

10 to 85% noncondensing

Operating altitude FastHub 104T and FastHub 108T:

Up to 10,000 ft (3,048 m)

FastHub 116T:

Up to 9842 ft (3,000 m)


1 VAC = volts alternating current.

Standard Features

The FastHub 100 series hubs support the following standard features:

Supported Applications

FastHub 100 series hubs can function in a wide variety of applications, as follows:

FastHub 100 series hubs can connect to any Catalyst switch or Cisco router that has a Fast Ethernet connection to accommodate power workgroups or a power user with multiple workstations.
With FastHub 100 series hubs, you can affordably build decentralized or centralized high-performance server farms attached to Cisco routers or Catalyst switches. A range of densities (4, 8, or 12 ports) is available to support the appropriate number of servers.

Product Numbers


Table 9-10: FastHub 100 Series 100BaseT Hubs Product Numbers
Description Product Number
FastHub 104T (4-port 100BaseTX, unmanaged hub) WS-C104
FastHub 108T (8-port 100BaseTX, unmanaged hub) WS-C108
FastHub 116T (16-port 100BaseTX, unmanaged hub) WS-C116T
600W redundant power system, AC-input with DC power cables PWR600-AC-RPS-CAB
600W redundant power system, AC-input without DC power cables PWR600-AC-RPS-NCAB
FastHub 100 series SMARTnet maintenance See the chapter "Service and Support", later in the catalog.
Documentation See the chapter "Documentation", at the end of the catalog.
