Cisco AccessPath

Product Overview

Cisco's AccessPath integrated access system is designed to meet the demands of rapidly growing Internet service providers (ISPs), telecommunication carriers, and other network service providers who offer managed Internet services. This universal connection server family also provides a ready solution for large enterprises who are expanding their intranet requirements to include dial access.

As the first member in a new family of integrated access/server solutions, AccessPath provides an immediate solution for dial points of presence (POPs) in a single, complete system, in order to accommodate rapidly expanding networks. AccessPath is a cost-effective solution that offers breakthroughs in POP management, density, and scalability, while continuing to provide the rich set of access services that are part of the Cisco IOSTM software.

In addition to supporting both asynchronous and Integrated Services Digital Network (ISDN) connections on every access line, the AccessPath server also includes a full range of backhaul routing interfaces, network and service management capability, and a highly resilient design to ensure network availability. By providing all these functions in a single package, the AccessPath solution meets the rapid deployment requirements of the fastest-growing service providers and enterprises, while at the same time delivering a cost-effective growth solution for the leanest ones.

The AccessPath family also supports the most complete set of access protocols through the Cisco IOS software, including IP, IPX, AppleTalk, Point-to-Point Protocol (PPP), Serial Line Internet Protocol (SLIP), and X.3/X.28. This extensive protocol support enables Cisco to offer the industry's premier universal access functionality for large-scale deployment.

Key Features and Benefits

The AccessPath family provides the following features and benefits:

Complete POP solution, which eliminates ordering complexity and significantly reduces deployment time and cost. AccessPath can be shipped directly to the POP location, eliminating the need for an intermediate stop for integration (for example, rack-mounting and wiring) and configuration.
Modular architecture, which enables organizations to start with modest configurations and grow as necessary. AccessPath also permits easy upgrades to new platforms that support higher performance, higher densities, and new access technologies while preserving the original investment.
Highly resilient design, which provides redundant paths and separates user and management traffic.
Extensive modem management information and capabilities.
Fail-safe management path based on the Cisco 2500, which has been successfully deployed in more than 500,000 locations.
Widest range of backhaul interfaces, which are compatible with port adapters for the Cisco 7000, 7200, and 7500 platforms.
Remote POP management using Cisco's AccessPath Manager application.
High-speed compression or encryption-assist hardware can be optionally included in the process server.
Equipment is preinstalled in a rack, cabled, configured, and ready to go.
Full Cisco IOS software support, which ensures that customers with Cisco network infrastructures protect and leverage their existing management and training investments.
Full range of Cisco service and support options from network implementation and hardware maintenance services to advanced technical consulting, which enables customers to select the most appropriate level of service and support according to their specific needs.

**Table 10-103: AccessPath Features and Benefits Chart**
Feature	Benefits
Carrier Class Remote Access System	Scalability: 144 to 720 hybrid asynchronous/ISDN dial ports High availability, hot swap No single point of failure
Preconfigured, integrated system, including access servers, backbone router, switching engine, and preloaded software configurations	Reduced time to deploy Simplifies setup Reduced operational costs Eliminates ordering complexity
Differentiated dial services	With current Cisco IOS software, Cisco Security software, and other Cisco products, many new services such as virtual private networks, multiple class-of-service levels, detailed billing, and more are possible today.
Cisco AccessPath Management Software	Easy accessibility via web-based interface Centralized system-level dial management, reducing operation costs Carrier class data collection
Modular, scalable architecture with MMP capable of carrying increased density and higher-speed traffic	Allows customers to start small and add additional shelves, as required, while still being able to dial into one call center. Protects initial investment while maintaining growth potential.
Full Cisco IOS support	Provides the widest array of networking and routing protocol support in the industry for large-scale deployment. Consistent software, user interface, and services across all Cisco dial platforms reduces operational cost. Instant access to software updates and new releases (available with Cisco maintenance contracts)
Modem management, including modem statistics, real-time call-in-progress, monitoring modem activity log, modem hard/soft busy out, modem firmware upgrade, and so on	Monitors modem call progress and statistics in real time to reduce problem detection and resolution time.
Highly resilient DASA^TM design with redundant paths for user and management traffic	Improves network (and service) availability, reducing time and money lost to network outages. Each component is operationally independent, resulting in a system with an unmatched MTBF.
Common Port Adapters with Cisco 7000, 7200, and 7500 (for backhaul interfaces)	Simplifies sparing, protects customer investment in interfaces.
WAN optimization, including compression, routing filters, snapshot routing, and dial-on-demand routing	Helps customers reduce WAN costs, the single largest cost of internetwork operation.
Security management, including TACACS+, RADIUS, access lists, and violation logging	Provides comprehensive security throughout customer's core network infrastructure.
Flexible, dual-bank Flash architecture	Enables rapid switch-in of known good images. Reduces software upgrade time and allows the storage of multiple software images in the same chassis.
Integrated CSUs, router, and modems accommodate ISDN Primary Rate Interface (PRI) T1/E1 lines or channelized T1 lines	Terminates asynchronous modem and digital ISDN calls with one phone number and allows a simple, cost-efficient migration path from today's analog dialup environment to the fast-growing ISDN digital services.
Global, life-cycle-focused support solutions	Increases ROI Improved network reliability Increased network efficiency Flexibility to scale network as demand grows Access to technical leadership

Specifications

**Table 10-104: AccessPath Technical Specifications**
Processor Type Dial access server shelf Router shelf Fail-safe management processor shelf Switch shelf	68030 (per two T1/E1/PRI) MIPS4700 @ 150 Mhz 68030 68040
Main Memory Dial access server shelf Router shelf Fail-safe management processor shelf Switch shelf	16-MB main DRAM, and 16-MB packet DRAM 1-MB processor SRAM, with 64-MB DRAM 16-MB DRAM 8-MB
Flash Memory Dial access server shelf Router shelf Fail-safe management processor shelf Switch shelf	16-MB system Flash dual memory bank 20-MB 16-MB 4-MB
Trunk Interfaces	Up to 24 T1/E1/PRI for dial clients Also supports CT3, NxT1, NxCT1 for dedicated connections
Modems/ISDN session (any call can be either async or ISDN)	E1 system:180-720 T1 system:144-576
Backhaul Interfaces	Fast Ethernet, FDDI, ATM, HSSI, V.35 serial, 100VG-AnyLAN, Token Ring, 10BaseT, 10BaseFL (multiple support for redundant configurations)
Dimensions	Including rack: Height: 80.31" Width: 23.09" Depth: 36.00"
Weight	Average shipping: Minimum: 250 lb. (113.6 kg) Maximum: approx. 900 lb. (409 kg)

**Table 10-105: Environmental Conditions and Power Requirements**
Input Watts (MAX) Dial access server shelf Router shelf Fail-safe management processor shelf Switch shelf	252W (per shelf) 392W (per shelf) 56W 526W
Output Watts Dial access server shelf Router shelf Fail-safe management processor shelf Switch shelf	180W (per shelf) 280W (per shelf) 40W 376W AC
Input Voltage	100-240 VAC
Frequency	50-60 Hz
AC Input Current Dial access server shelf Router shelf Fail-safe management processor shelf Switch shelf	3.0A @ 110 VAC 5.0A @ 110 VAC 1.0A @ 110 VAC 6.0A @ 110 VAC
DC Input Voltage	-48 VDC nominal
DC Input Current Dial access server shelf Router shelf Fail-safe management processor shelf Switch shelf	6.0A max @ -48 VDC 8.5A max @ -48 VDC 1.16A max @ -48VDC 11.0A max @ -48 VDC
Operating temperature	32 to 104°F (0 to 40°C)
Nonoperating temperature	-4 to 149°F (-20 to 65°C)
Operating relative humidity	10 to 85%, noncondensing
Nonoperating relative humidity	5 to 95%, noncondensing

Microcom Modem Specifications

Actual speeds vary depending on line conditions. Due to FCC limitations, speeds in the United States are less than 56 Kbps.

K56Flex modulation at 56000, 54000, 52000, 50000, 48000, 46000, 44000, 42000, 40000, 38000, 36000, 34000, and 32000 bps:

ITU-T V.42bis compression and MNP Class 5 data compression
ITU-T V.42 error correction (including MNP Class 2, 3, and 4 and LAPM)
ITU-T V.34 33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200, 4800, and 2400 bps
ITU-T V.32 at 9600 and 4800 bps
ITU-T V.25 modem standard
ITU-T V.23 in two modes: split speed and half-duplex 1200 bps
ITU-T V.22bis at 2400 bps
ITU-T V.22 at 1200 and 600 bps
ITU-T V.21 at 300 bps Bell 212A, at 1200 bps Bell 103A, at 0 to 300 bps MNP Class 10 ACE MNP 10EC for adverse line conditions, including cellular

**Table 10-106: Regulatory Compliance**
Safety Certifications (Component Level)	UL 1950, Third Edition CSA 950, Third Edition EN 60950, with Amendments 1, 2, and 3 IEC 950 with Amendments 1,2,3 and all country deviations AS/NZS 3260 TS 001
Safety Certifications: (Stack Level)	UL approval to UL 1950, Third Edition without deviations. CSA approval to CSA 22.2 No. 950, Third Edition TUV-GS (EN60950 with Amendments 1, 2, and 3) AS/NZS 3260 and TS-001 CB Report (IEC950 with Amendments 1, 2, and 3) with all country deviations
Electromagnetic Emissions Certifications (Component Level)	EN 55022 A/B NZ/AS3548 A VCCI I/II FCC A/ B
Electromagnetic Emissions Certifications (Stack Level)	FCC A
Electromagnetic Immunity (Component Level)	1000-4-2 (electrostatic discharge) 1000-4-3 (radiated emissions) 1000-4-4 (electrical fast transients) 1000-4-5 (surge) 1000-4-6 (conducted emissions)
Network Homologation (Component Level)	CTR4/NET5 European Union CTR12 European Union CTR13 European Union JATE Japan, FCC Part 68 United States CS03 Canada TS014 Australia TS016 Australia SS 636234 Sweden
NEBs	AccessPath-TS shelf components are designed to be compliant with NEBs. Contact Cisco for compliance information.

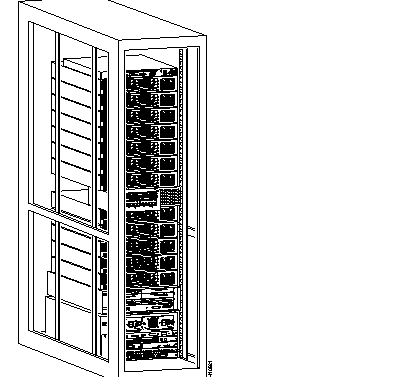

Figure 10-120: AccessPath System

Figure 10-121: AccessPath Schematic

Figure 10-122: AccessPath Modular Configuration

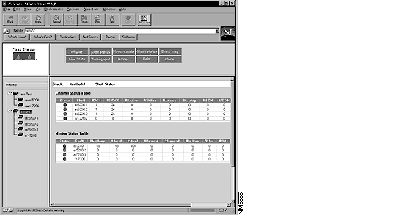

Figure 10-123: AccessPath GUI Screen Shot

Figure 10-124: The AccessPath Solution Supports Multiprotocol Dial-In Needs of Large Enterprise Customers

Figure 10-125: The AccessPath Solution Deployed in a Geographically Dispersed Architecture

Ordering Information

Questions to Answer Before Ordering

Will the AccessPath product go into a T1 or E1 environment?
Will the AccessPath go into an AC or DC environment?
How do you want IOS configured (single channel, or multichannel)? Do you want to specify revision of IOS? The latest tested image is the default.
What backhaul interfaces are desired (if any)? A maximum of two backhaul interfaces can be ordered per router shelf.
Will a redundant call processor be required? What backhaul interfaces are desired for the secondary router shelf?
If a redundant call processor is required, then only 10 dial shelves can be ordered. If a redundant call processor is not required, 12 dial shelves can be ordered. Determine how many dial shelves are desired. Each dial shelf is equivalent to an AS5200 and comes in either 48 or 60 ports/box depending on whether one is ordering T1 or E1, respectively. (If E1/R2 signaling is required, R2 line card kits must be ordered for an external Anadigicom converter box.)
Will you need the modem management technology license? Please order one license for each dial shelf?
What cables are required? Power, E1, Backhaul, and so on.
Do you want AccessPath Manager?

Each base unit comes with a 7-foot rack fully configured with an off-load/backhaul processor (7206), console management processor (2511), switch interconnect (CAT5000), and OOB modem. All systems are configured with the maximum amount of memory except the 7206, which has 64MB; thus, no memory options are required in AccessPath. Must order one.

**Table 10-107: Access Path Base Unit Product Numbers**
Description	Product Number
AccessPath Base System, T1 with AC power	AP400
AccessPath Base System, T1 with DC power	AP400-DC
AccessPath Base System, E1 with AC power	AP401
AccessPath Base System, E1 with DC power	AP401-DC
DC Fuse Panel for Base System with DC power (optional)	AP-DC-PANEL

Cisco AccessPath IOS Software Licenses

An IOS license must be ordered. The latest revision is the default for each feature set.

**Table 10-108: Access Path IOS Software Licenses Product Numbers**
Description	Product Number
Cisco AccessPath IP Feature Set	SFAPSC-REV-1.X
Cisco AccessPath IP Upgrade media	SWAPSC-REV-1.X=

Configuration Option

To shorten the time to bring AccessPath up and running, the factory will install the following configurations. Must order one.

**Table 10-109: Access Path Configuration Option Product Numbers**
Description	Product Number
PRI, single router shelf, MMP enabled	FRAPS-T1-PRI-1-MMP
PRI, dual router shelf, MMP enabled	FRAPS-T1-PRI-2-MMP
PRI, single router shelf, MMP disabled (single channel)	FRAPS-T1-PRI-1-SC
Channelized T1, single router shelf, MMP disabled	FRAPS-T1-CT1-1-SC

For E1 Configurations:
Description	Product Number
PRI, single router shelf, MMP enabled	FRAPS-E1-PRI-1-MMP
PRI, dual router shelf, MMP enabled	FRAPS-E1-PRI-2-MMP
PRI, single router shelf, MMP disabled (single channel)	FRAPS-E1-PRI-1-SC
Channelized E1, single router shelf, MMP disabled	FRAPS-E1-CT1-1-SC

Primary and Secondary Router Shelf

Each AccessPath comes with a primary router shelf. It must be ordered separately so the factory knows what backhaul interfaces should go into which router shelf. An additional Cisco 7206 can be added to provide additional ISDN processing power, or redundant routing and backhauling. If an additional 7206 is required, the number of dial servers will be reduced by 2. (Optional)

**Table 10-110: Access Path Primary and Secondary Router Shelf Product Numbers**
Description	Product Number
AccessPath primary router shelf with AC power	AP7206
AccessPath primary router shelf with DC power	AP7206-DC

For dual 7206 applications:
Description	Product Number
AccessPath primary router shelf with AC power	AP7206/1
AccessPath redundant router shelf processor with AC power	AP7206/2
AccessPath primary router shelf with DC power	AP7206/1-DC
AccessPath redundant router shelf with DC power	AP7206/2-DC

Note The following part descriptions are for router shelves purchased with the AccessPath at initial purchase. The second router shelf can be ordered using the standard Cisco 7206 product. (See the "Buying Additional Shelves After Initial Purchase" section later in this chapter.)

Cisco AccessPath Backhaul Interface Choices

For single router shelf configurations (AP7206), only one back haul interface can be ordered. For dual router shelf configurations, three back haul interfaces can be ordered per AP7206. (Optional)

**Table 10-111: Access Path Primary and Secondary Router Shelf Product Numbers**
Description	Product Number
HSSI port	PA-H1
HSSI ports	PA-2H 2
1-port ATM (OC-3 rate) single-mode, single-width port	PA-A1-OC3SM
1-port ATM (OC-3 rate) multimode	PA-A1-OC3MM
100-Mbps AnyLAN (voice grade)	PA-100VG
4-port Ethernet 10BaseT Port Adapter	PA-4E
8-port Ethernet 10BaseT Port Adapter	PA-8E
5-port Ethernet 10BaseFL Port Adapter	PA-5EFL
1 Fast Ethernet 100BaseTx port adapter	PA-FE-TX
1 Fast Ethernet 100BaseFx port adapter	PA-FE-FX
4 synchronous serial ports supporting EIA/TIA-232, EIA/TIA-449, EIA-530, X.21, and V.35	PA-4T
8-port serial adapter V.35	PA-8T-V35,
8-port serial adapter- X.21	PA-8T-X21,
8-port serial adapter-V.35 PA-4R 4 Token Ring ports	PA-8T-232
4 Token Ring ports, full-duplex	PA-4R-FDX
1 FDDI multimode	PA-F-MM
1 FDDI single-mode	PA-F-SM
1 full-duplex FDDI multimode	PA-F/FD-MM
1 full-duplex FDDI single-mode	PA-F/FD-SM

Add On Dial Servers

A minimum of three dial servers must be ordered per AccessPath. The maximum number of dial servers is:

12 if there is not a redundant 7206
10 if there is a redundant 7206

**Table 10-112: Access Path Add-on Dial Server Product Numbers**
Description	Product Number
48-port modem dial shelf, 2 T1/PRI	AP5248
48-port modem dial shelf, 2 T1/PRI	AP5248-DC
60-port modem dial shelf, 2 E1/PRI	AP5260
60-port modem dial shelf, 2 E1/PRI	AP5260-DC

Note The following part descriptions are for dial shelves purchased with the AccessPath at initial purchase. Additional dial shelves can be ordered using the standard AS5200 product.

For Customers Requiring R2 Signaling

The E1/PRI card natively supports ISDN but not Channelized E1/R2. Because we do not have an "in-board" channelized E1/R2 solution, we have provided a series of kits that can be ordered to provide this functionality. These E1/R2 kits provide R2 signaling via an external converter box. A converter box supports via line cards up to six AP5260. Two converter boxes will be used if more than six AP5260s are ordered.

Order the number of line cards required (one line card kit per AP5260 dial shelf). The converter boxes will automatically come in AC or DC based on which AP400 base unit is ordered.

**Table 10-113: Access Path R2 Signaling Product Numbers**
Description	Product Number
R2 converter line card kit including balanced network connection converter line cards that slide into converter chassis	AP52-2E1R2-BLC-60
R2 converter line card kit including unbalanced network connection converter line cards that slide into converter chassis	AP52-2E1R2-ULC-60

Technology License (Optional)

For customers desiring to take advantage of Cisco's modem management, one technology license must be ordered per AP5200. Each AP5200 comes standard with basic modems that have management capabilities roughly equivalent to the industry norm. The managed modems support the following extra capabilities via an out-of-band management port or via AccessPath Network Manager:

Sending AT commands (while the modem is connected) for additional testing and debugging capabilities
Polling modems
Gathering detailed statistical and status information while a call is in progress

**Table 10-114: AccessPath Technology License Product Numbers**
Description	Product Number
AccessPath 48 Modem Management Technology License	FRAP-MMTL-48
AccessPath 60 Modem Management Technology License	FRAP-MMTL-60

Cisco AccessPath Network Management (Optional)

One AccessPath Network Management Software (APM) can be used to manage many AccessPaths. Customers must buy one APM for each network management workstation they wish APM to reside on

**Table 10-115: AccessPath Network Management Product Number**
Description	Product Number
AccessPath Network Management Software only (includes NMS for AP400 and Netscape)	AP-NM-001

Cisco AccessPath Cables

Each AccessPath should be ordered with the appropriate power cable kit.

One must be ordered per AccessPath
Only one need be ordered per AccessPath

**Table 10-116: AccessPath Cable Product Numbers**
Description	Product Number
Shielded power cables, United States	CAB-AP-AC
Shielded power cables, Australia	CAB-AP-ACA
Shielded power cables, Italy	CAB-AP-AI
Shielded power cables, Europe	CAB-AP-ACE
Shielded power cables, United Kingdom	CAB-AP-ACU

The ISDN version of the E1 card can be ordered with any of the cables that are available on the 4000 Series E1 cards. Some cables support balanced, and some support unbalanced network connections.

The pinouts on the Anadigicom converter are different from those on the E1 card on the 5200. Therefore, none of the E1 cables offered above work with the converter. If a customer is purchasing a channelized E1 system with a converter, they must supply their own cables for the connection to the network.

For Dial Shelf: (Same as AS5200)
Description	Product Number
E1 for 75-ohm, unbalanced connections (with BNC connectors)	CAB-E1-BNC
E1 for 120-ohm, balanced connections (with DB-15 connector)	CAB-E1-DB15
E1 for 120-ohm, balanced connections (with Twinax connector)	CAB-E1-TWINAX
E1 ISDN PRI cable, 10 ft (3m)	CAB-E1-PRI

For Call Processor Shelf: (Same as 7206)
Description	Product Number
Null modem, DTE, HSSI, 10-ft male to male, 10 ft for PA-H and PA-2H	CAB-HNUL=
Null modem, DTE, HSSI, 10-ft male to male, 10 ft for PA-H and PA-2H	CAB-HSI1=
X.21 high-density male DTE	CAB-X21MT
X.21 high-density female DCE	CAB-X21FC
EIA/TIA-449 high-density male DTE	CAB-449MT
EIA/TIA-449 high-density female DCE	CAB-449FC
V.35 high-density male DTE	CAB-V35MT
V.35 high-density female DCE	CAB-V35FC
EIA/TIA-232 high-density male DTE	CAB-232MT
EIA/TIA-232 high-density female DCE	CAB-232FC
EIA-530 high-density male DTE	CAB-530MT
V.35 compact serial male DTE	CAB-OCT-V35-MT
V.35 compact serial female DCE	CAB-OCT-V35-FC
X.21 compact serial male DTE	CAB-OCT-X21-MT
X.21 compact serial female DCE	CAB-OCT-X21-FC
EIA/TIA-232 compact serial male DTE	CAB-OCT-232-MT
EIA/TIA-232 compact serial female DCE	CAB-OCT-232-FC

AccessPath Maintenance Services

**Table 10-117: Advanced Installation Service**
Product	Description	Service Product #
AP40X	AP400/401 AccessPath System	SP-DEP-40X
SP Base S/W Support
AP40X	AP400/401 144-180 ports	SP-SW-AP40X
AP52XX	AP5248/5260 48-60-port dial shelf	SP-SW-AP52XX
AP7206	AP7206 redundant call processor	SP-SW-AP7206
AP-NM-001	Cisco NMS S/W	SP-SW-APNM1
SP Base with H/W Advance Replace 8x5xNBD Support
AP40X	AP400/401 144-180 ports	SP-AR1-AP40X
AP52XX	AP5248/5260 48-60-port dial shelf	SP-AR1-AP52XX
AP7206	AP7206 redundant call processor	SP-AR1-AP7206
SP Base with H/W Advance Replace 8x5x4 Support
AP40X	AP400/401 144-180 ports	SP-AR2-AP40X
AP52XX	AP5248/5260 48-60-port dial shelf	SP-AR2-AP52XX
AP7206	AP7206 redundant call processor	SP-AR2-AP7206
SP Base with H/W Advance Replace 24x7x4 Support
AP40X	AP400/401 144-180 ports	SP-AR3-AP40X
AP52XX	AP5248/5260 48-60-port dial shelf	SP-AR3-AP52XX
AP7206	AP7206 redundant call processor	SP-AR3-AP7206
SP Base with H/W On-site 8x5xNBD Support
AP40X	AP400/401 144-180 ports	SP-OS1-AP40X
AP52XX	AP5248/5260 48-60-port dial shelf	SP-OS1-AP52XX
AP7206	AP7206 redundant call processor	SP-OS1-AP7206
SP Base with H/W On-site 8x5x4 Support
AP40X	AP400/401 144-180 ports	SP-OS2-AP40X
AP52XX	AP5248/5260 48-60-port dial shelf	SP-OS2-AP52XX
AP7206	AP7206 redundant call processor	SP-OS2-AP7206
SP Base with H/W On-site 24x7x4 Support
AP40X	AP400/401 144-180 ports	SP-OS3-AP40X
AP52XX	AP5248/5260 48-60-port dial shelf	SP-OS3-AP52XX
AP7206	AP7206 redundant call processor	SP-OS3-AP7206

Documentation Included

The following documentation is included:

AccessPath Hardware Installation Guide--78-4117-01
AccessPath Software Configuration Guide--78-4116-01
AccessPath Release Note
AccessPath Configuration Note

A CD is included with the following documents:

Cisco AS5200 Universal Access Server Software Configuration Guide--78-3875-01
Cisco AS5200 Universal Access Server Installation Guide--78-3002-02
Cisco 2500 Series Access Server User Guide--78-1892-01
Cisco 7206 Installation and Configuration Guide--78-3229-01
Catalyst 5000 Installation Guide--78-2715-01
Catalyst 5000 Series Module Manual--78-4151-01 module install manual

Buying Additional Shelves After Initial Purchase

For additional dial and router shelves, please use the following standard AS5200 and 7206 product descriptions. Two high-speed serial cards will not need to be ordered for the secondary 7206. They can be removed from the primary 7206.

**Table 10-118: Additional Dial and Router Shelves**
Quantity	Description	Product Number
Add T1, AC Dial Shelf
1	AS5201, 48 56K Modems, Dual T1	AS5248-56K
1	Power Cord, 110V	CAB-AC
1	SF52CP--IP/PLUS SOFTWARE	IP/+ SW AS5200
1	Cisco 5200 Series IOS IP Plus Feature Set	SF52CP-11.2.5P
1	Microcom Modem Microcode, Version 1.0.23	MC-MM-1.0.23
1	AS5200 48-Modem Management Technology License	FR52-MMTL-48
1	AS5200 Shared DRAM Upgrade (from 4 MB to16 MB)	MEM-16S-52
1	AS5200 Main DRAM Upgrade (from 8 MB to16 MB)	MEM-16M-52
1	AS5200 Boot Flash Upgrade (from 4 MB to 8 MB)	MEM-8BF-52
1	AS5200 System Flash Upgrade (from 8 MB to 16 MB) (Dual Bank)	MEM-1X16-AS52
Add T1, DC Dial Shelf
1	AS5201-DC, 48 56K Modems, Dual T1	AS5248-56K-DC
1	SF52CP--IP/PLUS SOFTWARE	IP/+ SW AS5200
1	Cisco 5200 Series IOS IP Plus Feature Set	SF52CP-11.2.5P
1	Microcom Modem Microcode, Version 1.0.23	MC-MM-1.0.23
1	AS5200 48-Modem Management Technology License	FR52-MMTL-48
1	AS5200 Shared DRAM Upgrade (from 4 MB to16 MB)	MEM-16S-52
1	AS5200 Main DRAM Upgrade (from 8 MB to16 MB)	MEM-16M-52
1	AS5200 Boot Flash Upgrade (from 4 MB to 8 MB)	MEM-8BF-52
1	AS5200 System Flash Upgrade (from 8 MB to 16 MB) (Dual Bank)	MEM-1X16-AS52
Add E1, AC Dial Shelf
1	AS5201, 60 56K Modems, Dual ISDN E1	AS5260-56K
1	Power Cord, 110V	CAB-AC
1	Cisco 5200 Series IOS IP Plus Feature Set	SF52CP-11.2.5P
1	Microcom Modem Microcode, Version 1.0.23	MC-MM-1.0.23
1	AS5200 60-Modem Management Technology License	FR52-MMTL-60
1	AS5200 Shared DRAM Upgrade (from 4 MB to16 MB)	MEM-16S-52
1	AS5200 Main DRAM Upgrade (from 8 MB to16 MB)	MEM-16M-52
1	AS5200 Boot Flash Upgrade (from 4 MB to 8 MB)	MEM-8BF-52
1	AS5200 System Flash Upgrade (from 8 MB to 16 MB) (Dual Bank)	MEM-1X16-AS52
1	Zero Dollar Dual E1/PRI Card, Balanced	AS52-2E1-B-BUN
Add E1, DC Dial Shelf
1	AS5260-DC, 60 56K Modems, Dual ISDN E1	AS5260-56K-DC
1	Cisco 5200 Series IOS IP Plus Feature Set	SF52CP-11.2.5P
1	Microcom Modem Microcode, Version 1.0.23	MC-MM-1.0.23
1	AS5200 60-Modem Management Technology License	FR52-MMTL-60
1	AS5200 Shared DRAM Upgrade (from 4 MB to16 MB)	MEM-16S-52
1	AS5200 Main DRAM Upgrade (from 8 MB to16 MB)	MEM-16M-52
1	AS5200 Boot Flash Upgrade (from 4 MB to 8 MB)	MEM-8BF-52
1	AS5200 System Flash Upgrade (from 8 MB to 16 MB) (Dual Bank)	MEM-1X16-AS52
1	Zero Dollar Dual E1/PRI Card, Balanced	AS52-2E1-B-BUN
Add AC Router Shelf
1	Cisco 7206, 6-Slot chassis, 1 AC Power Supply	CISCO7206
1	Cisco 7200 AC Power Supply Option	PWR-7200
1	Cisco 7200 Dual AC Power Supply Option, 280W	PWR-7200/2
2	Power Cord, 110V	CAB-AC
1	Cisco 7200 Series IOS IP Only Feature Set	SF72C-11.2.6
1	Cisco 7200 Fast Ethernet Input/Output Controller	C7200-I/O-FE-MII
1	Cisco 7200 I/O PCMCIA Flash Memory, 20-MB Option	MEM-I/O-FLC20M
1	Cisco 7200 Series Network Processing Engine 150, 1-MB SRAM	NPE-150
1	Cisco 7200 NPE 64-MB DDRAM Upgrade Kit	MEM-NPE-64MB
1	1-Port Fast Ethernet 100BaseTx Port Adapter	PA-FE-TX
Add DC Router Shelf
1	Cisco 7206, 6-Slot chassis, 1 AC Power Supply	CISCO7206
1	Cisco 7200 DC Power Supply Option	PWR-7200-DC
1	Cisco 7200 Dual DC Power Supply Option	PWR-7200/2-DC
1	Cisco 7200 Series IOS IP Only Feature Set	SF72C-11.2.6
1	Cisco 7200 Fast Ethernet Input/Output Controller	C7200-I/O-FE-MII
1	Cisco 7200 I/O PCMCIA Flash Memory, 20-MB Option	MEM-I/O-FLC20M
1	Cisco 7200 Series Network Processing Engine 150, 1-MB SRAM	NPE-150
1	Cisco 7200 NPE 64-MB DDRAM Upgrade Kit	MEM-NPE-64MB
1	1-Port Fast Ethernet 100BaseTx Port Adapter	PA-FE-TX
Add DC Fuse Panel
1	Spare DC Fuse Panel for Access Path	AP-DC-PANEL=

Anadigicom Converter Homologation Schedule


Table 10-119: Country	Anadigicom Homologation
North America
United States	NA
Canada	NA
Mexico	FCS¹
Europe UK
(CE MARK)	7/14/97²
Germany	7/14/97 4
France	7/14/97 4
Belgium	7/14/97 4
Denmark	7/14/97 4
Finland	7/14/97 2
Greece	7/14/97 2
Netherlands	7/14/97 2
Norway	7/14/97 2
Portugal	7/14/97 2
Sweden	7/14/97 2
Austria	7/14/97 2
Italy	7/14/97 2
Ireland	7/14/97 2
Iceland	7/14/97 2
Luxembourg	7/14/97 2
Spain	7/14/97 2
Switzerland	7/14/97 2
Other
China	FCS³
Australia	TBD
New Zealand	7/14/97 2
South Korea	FCS⁴
Hong Kong	FCS 1
Taiwan	FCS 1
Philippines	FCS 1
Singapore	FCS 1
Argentina	FCS 1
Bolivia	FCS 1
Brazil	FCS 1
Chile	FCS 1
Columbia	FCS 1
Costa Rica	FCS3
Ecuador	FCS 1
Jamaica	FCS3
Panama	FCS3
Paraguay	FCS3
Peru	FCS 1
Puerto Rico	FCS3
Uruguay	FCS 1
Venezuela	FCS 1
Russia	FCS3
Turkey	FCS3
Poland	FCS3
Hungry	FCS3
Czech Republic	FCS3
Slovak Republic	FCS3
Bulgaria	FCS3
Albania	FCS3
Armenia	FCS3
Azerbaijan	FCS3
Belarus	FCS3
Bulgaria	FCS3
Estonia	FCS3
Georgia	FCS3
Kazakhstan	FCS3
Kyrgyz	FCS3
South Africa	FCS3
Saudi Arabia	FCS3
Israel	FCS3
UAE	FCS3

¹ Shippable because no homologation is required for that country.
² These dates are supplied by Anadigicom and are under Anadigicom's control.
³ Shippable because there are no known homologation requirements for that country.
⁴ Cleared for immediate sell to the buyer, Telco Dacom Korea, and requires no homologation.

Table of Contents
