Installing Your Hub

This chapter describes the following information about unpacking and installing your Cisco Micro Hub:

Safety Information--Guidelines and safety precautions for installing the hub.
Unpacking Your Micro Hub--Items that are included in the box that your hub came in.
Installing the Hub--How to install your hub, and connect it to other hubs to create a stack.

Time Saver You can also use the quick reference card that came with your hub for quick instructions on how to install and configure your hub.

Safety Information

To ensure personal safety and protect the equipment, follow these guidelines:

Keep the chassis area clear and dust-free during and after installation.
Keep tools and chassis components away from walk areas.
Do not wear loose clothing that could get caught in the chassis. Fasten your tie or scarf and roll up your sleeves.
Wear safety glasses when working under conditions that might be hazardous to your eyes.
Do not perform any action that creates a hazard to people or makes the equipment unsafe.

Caution Do not place anything on top of the hub that could block the air flow from the vents on top of the hub. Products designed specifically to interoperate with the hub, and which are stacked on top of the hub with the included stacking clip, will not block the air flow from the vents.

Warning Read the installation instructions before you connect the system to its power source.

Warning Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.

Warning Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord.

Warning Ultimate disposal of this product should be handled according to all national laws and regulations.

Warning The power supply is designed to work with TN power systems.

Warning Do not work on the system or connect or disconnect cables during periods of lightening activity.

Warning The ports labeled "1X" through "8X," "CONSOLE," "OUT," and "IN" are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits. Avoid connecting these circuits to telephone network voltage (TNV) circuits.

Unpacking Your Micro Hub

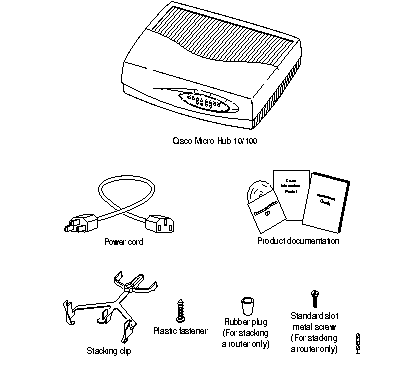

Make sure that you receive all the items shown below.

Note If anything in the box appears to be missing or damaged, contact the Cisco reseller nearest you.

Installing the Hub

There are five major steps for installing the hub:

Stacking Hubs (if you are using more than one hub)
Connecting Hubs (if you are using more than one hub)
Connecting the Power and Turning the Hub On
Connecting Other Network Devices to the Hub
Connecting the CONSOLE Port (Micro Hub 1503 only)

Stacking Hubs

Time Saver If you are using only one hub, skip the next two sections, and go directly to the section "Connecting the Power and Turning the Hub On."

Up to four Cisco Micro Hubs can be stacked directly on top of one another and connected using ports on the rear panel. Each hub comes with a stacking clip and a screw that are used to keep multiple hubs together in a stack.

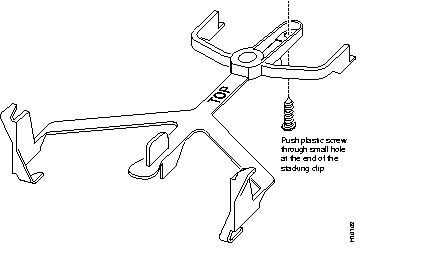

Before using the clip, you must assemble the clip and the screw, as shown below.

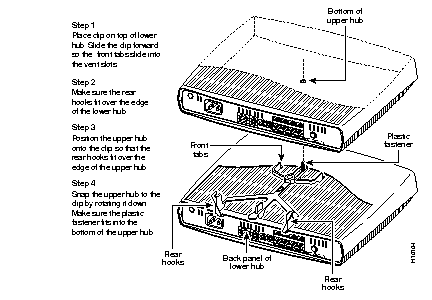

After pushing the screw into the stacking clip, use the clip as shown below.

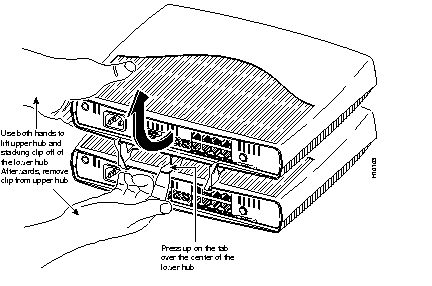

Disengage hubs, once they are stacked together using the clips, as shown below.

Connecting Hubs

This section describes the two ways that the hubs can be connected to each other.

Note You can use up to four Cisco Micro Hubs in one stack. This means that a stack can contain one Micro Hub 1503 and any combination of the Micro Hub 1501 and Micro Hub 1502.

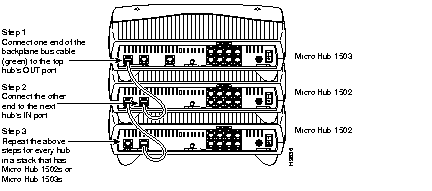

If the stack contains only Micro Hub 1503s and Micro Hub 1502s, connect the hubs as shown below.

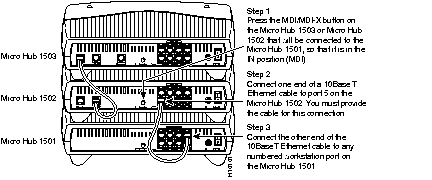

If the stack contains a Micro Hub 1501, connect it as shown below.

Connecting the Power and Turning the Hub On

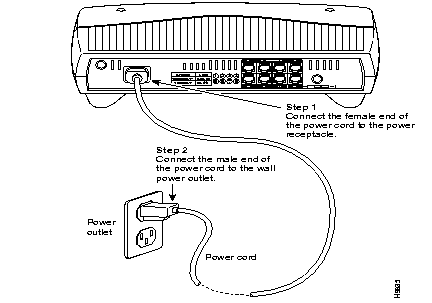

Connect power and turn the hub on as shown below. (This step should be performed for each hub in a stack of hubs.)

Warning This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 10A international) is used on the phase conductors (all current-carrying conductors).

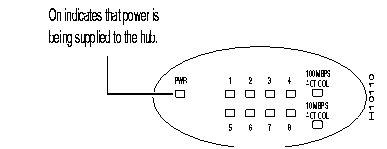

After turning the hub on, check the hub's front panel to make sure the correct LEDs are on, as indicated below.

Connecting Other Network Devices to the Hub

There are two types of devices that you can connect to the hub's workstation ports, labeled 1 through 8:

Network devices, such as PCs, workstations, or servers
Compatible 10BaseT hubs or 10BaseT switches.

This section describes how to connect these different types of devices to the hub.

Connecting a PC, Workstation, or Server to the Hub.

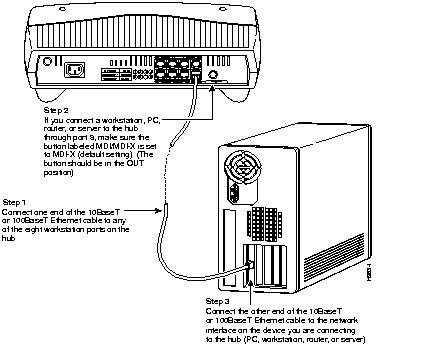

Connect network devices such as a workstations, PCs, routers, or servers to the ports on the hub labeled 1 through 8, as shown in the following illustration. The network device must have a 10BaseT network interface in order for it to be connected to the hub.

Note If you connect a workstation, PC, or server to the hub through port 5, be sure the button labeled MDI/MDI-X on the rear panel of the hub is set to MDI-X (default setting). (The button should be in the OUT position.)

Note If you are not sure what kind of Ethernet cable to use, read the section "Ethernet Cable Specifications" in the appendix "Hub Specifications and Cable Wiring."

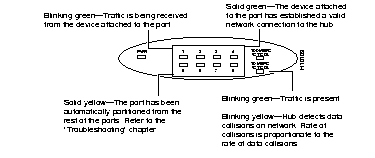

After connecting a network device to the hub, check the corresponding port LED (labeled 1 through 8) on the front panel. The color and blinking pattern of the LED indicate the activity for the corresponding workstation port.

Connecting a Compatible 10BaseT Hub or Switch to the Hub

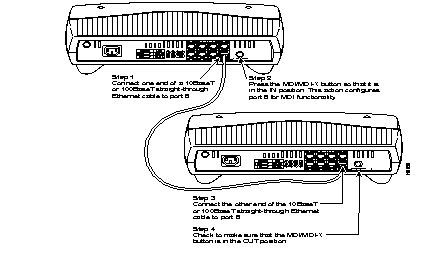

Connect compatible 10BaseT hubs or switches to the Cisco Micro Hub through port 5, as shown in the following illustration.

Note Hubs connected together in this way cannot be managed by a Micro Hub 1503 that is part of the same stack. Only Cisco Micro Hubs connected to the stack through the IN and OUT ports can be managed by a Micro Hub 1503.

Note If you are not sure what kind of Ethernet cable to use, read the section "Ethernet Cable Specifications" in the appendix "Hub Specifications and Cable Wiring."

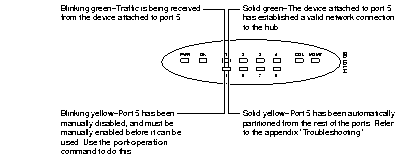

After connecting a hub or switch to port 5, check the LED labeled 5 on the front panel. The color and blinking pattern of the LED indicate activity for port 5.

Connecting the CONSOLE Port

This section applies only to the Micro Hub 1503; the Micro Hub 1502 and the Micro Hub 1501 do not have a CONSOLE port.

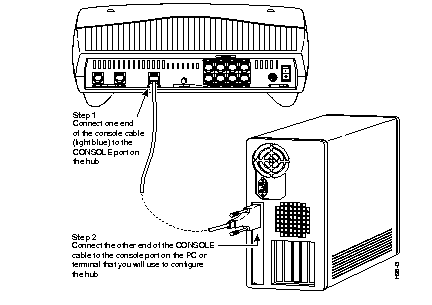

Connect the Micro Hub 1503's CONSOLE port to a PC, as shown in below, or to a terminal, so that you can control and monitor the hub using network management software or using terminal emulation software.

The terminal or terminal emulation software should be configured with the following settings: 9600 baud, 8 data bits, 1 stop bit, no parity, and no flow control.

Note You might have to use one of the two console cable adapters (light gray) that came with your hub, if the PC or terminal does not have an RJ-45 console interface.

You have now completed the basic hardware installation of the hub. To configure the hub, go to the next chapter "Using Your Hub Software."
