The Cisco 2000 is a two-port multiprotocol router in a fixed-configuration system with specific software features that is ready for external network hardware connections. (See Figure 1-1.) This chapter contains the following sections:

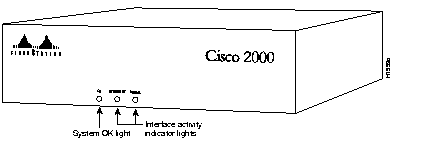

Figure 1-1: Router with Ethernet and Serial Interface Configuration Option
Licensed Software Features
Licensed software features of the router are as follows.
LAN Protocols
- Internet Protocol (IP)
- Novell Internetwork Packet Exchange (IPX)
- AppleTalk Phase 1 and 2
- Transparent bridging
IP Routing Protocols
- Interior Gateway Routing Protocol (IGRP)
- Routing Information Protocol (RIP)
- Open Shortest Path First (OSPF))
WAN Protocols
- High-Level Data Link Control (HDLC))
- Point-to-Point Protocol (PPP)
- X.25 Transport
- Dial-on-demand routing (DDR)
- Frame Relay
IBM Protocols
- Remote source-route bridging (RSRB)
- IP encapsulation
- Fast Sequenced Transport (FST/IP) encapsulation
- Media Access Control (MAC) layer encapsulation
- Proxy explorer
- Local termination and Logical Link Control (LLC2) link-level support
- Systems Network Architecture (SNA) Local LU Address Prioritization
- Administrative filtering
- Network Basic Input/Output System (NetBIOS) name caching
- NetBIOS access control filtering
Network Management
- Simple Network Management Protocol (SNMP)
- LAN Network Manager
- Standard and extended access lists for the supported protocols
- IP and extended IP
- Ethernet-type code and address
- AppleTalk
- Novell, extended Novell, and Novell Service Advertisement Protocol (SAP)
System Specifications
Design specifications of the router follow:
- Fixed, two-port router platform
- 20-MHz Motorola 68EC030 microprocessor
- Light-emitting diodes (LEDs) that indicate network activity
- Dynamic random-access memory (DRAM) single in-line memory modules (SIMMs) for convenient router memory expansion
Table 1-1 lists the router system specifications.
System Specifications
| Description
| Design Specifications
|
|---|
| Dimensions W x D x H
| 13" x 14" x 4" (33 x 35.6 x 10 cm)
|
| Weight
| 15 lb (6.8 kg)
|
| Power
| 110/220 VAC at 50-60 Hz
55W (max.)
273 Btu/hr
|
| Processor
| Motorola 68EC030--20 MHz
|
| Memory
| 1-MB RAM
32-KB nonvolatile configuration RAM
|
| Network Interface Options
| 1 Token Ring and 1 synchronous serial
or 1 Ethernet and 1 synchronous serial
|
| Token Ring
| 802.5
|
| Ethernet Interfaces
| Ethernet (AUI) 802.3
|
| Serial Interfaces
| RS-232, RS-449, V.35, X.21, EIA-530
|
| Console Port
| RS-232 DB-25 female connector
|
| Auxiliary Port
| RS-232 DB-25 male connector
|
| Operating Environment
| 32-104×F (0-40×C)
|
| Nonoperating Temperature
| -40-185×F (-40-85×C )
|
| Operating Humidity
| 5-95%, noncondensing
|
| Noise Level
| 40 dBa
|
