Cisco Product Number: PWR-4X00-AC=, PWR-4X00-DC=
This document contains instructions for replacing AC and DC power supplies in Cisco 4000 series routers.
This document is for the power supply installer, who should be familiar with electronic circuitry and wiring practices and have experience as an electronic or electromechanical technician.
If you have a Cisco 4000-M, Cisco 4500-M, or Cisco 4700-M router, use this document with the Cisco 4000 Series Installation Guide and the Cisco 4000 Series Public Network Certification document that shipped with your router. If you have a Cisco 4000 router, refer to the Cisco 4000 Hardware Installation and Maintenance publication. If you have a Cisco 4500 or Cisco 4700 router, refer to the Cisco 4000 Series Hardware Installation and Maintenance publication.
This document contains the following sections, including step-by-step procedures for replacing a Cisco 4000 series power supply:
![]() | Caution To avoid damaging ESD-sensitive components, discharge all static electricity from your body before opening the chassis. Before performing procedures described in this document, review the sections "Safety Recommendations," "Safety with Electricity," and "Tools and Equipment Required." |
![]() |
![]() | Warning The ports labeled "Ethernet," "10BaseT," "Token Ring," "Console," and "AUX" are safety extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits. Because the BRI circuits are treated like telephone-network voltage, avoid connecting the SELV circuit to the telephone network voltage (TNV) circuits. |
![]() | Warning The ISDN connection is a source of voltage that should be inaccessible to user contact. Do not attempt to tamper with or open any public telephone operator (PTO)-provided equipment or connection hardware. Any hardwired connection (other than by nonremovable, connect-one-time-only lug) must be made only by PTO staff or suitably trained engineers. |
![]() | Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. |
![]() | Warning Network hazardous voltages are present in the BRI cable. If you detach the BRI cable, detach the end away from the router first to avoid possible electric shock. Network hazardous voltages also are present on the system card in the area of the BRI port (RJ-45 connector), regardless of when power is turned off. |

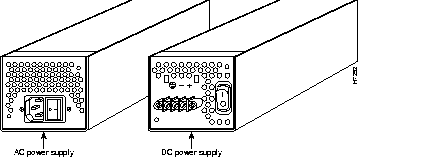

Figure 1 illustrates the AC and DC power supplies.Figure 2 shows an AC power supply mounted in a Cisco 4000 series router. Table 1 contains the AC power supply specifications and Table 2 contains the DC power supply specifications.
Description | Specification |
---|---|
Input voltage | 100 to 240 VAC1 |
Frequency | 50 to 60 Hz |
Current Rating | 3.0 A maximum at 100 VAC, 1.5 A maximum at 240 VAC |
Description | Specification |
---|---|
Input voltage | 40 to 72 VDC |
Current Rating | 5.0 A maximum at 40 VDC, 2.8 A maximum at 72 VDC |
Wire gauge for DC-input power connections | 14 AWG1 |
Follow these guidelines to ensure general safety:
![]() | Warning Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground. This can cause serious burns or even result in welding to the terminals. |
Follow these guidelines when working on equipment powered by electricity:
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures.
Always follow ESD prevention procedures when removing and replacing the power supply. Ensure that the router chassis is electrically connected to earth ground. Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact and operates effectively. Connect the clip to an unpainted surface of the chassis frame to safely channel unwanted ESD voltages to ground.
![]() | Caution If no wrist strap is available, ground yourself by touching the metal part of the chassis. For safety, periodically check the resistance value of the antistatic strap, which should be between 1 to 10 megohms (Mohms). |
The following tools and equipment are required to remove and install power supplies in a Cisco 4000 series router:
To access the power supply of a Cisco 4000 series router, you must first remove the component tray. Procedures for removing the component tray follow.
Some Cisco 4000 series routers have a safety latch tab on the chassis that affects removing the component tray. (See Figure 3 and Figure 4.)
If your chassis has a safety latch tab, refer to the next section, "Removing the Component Tray from a Chassis with a Safety Latch."
If your chassis does not have a safety latch tab, go to the section "Removing the Component Tray from a Chassis without a Safety Latch."
![]() | Warning Do not touch the power supply when the power cord is connected. For systems with a power switch, line voltages are present within the power supply even when the power switch is OFF and the power cord is connected. For systems without a power switch, line voltages are present within the power supply when the power cord is connected. |
Take the following steps to remove the component tray from a chassis with a safety latch:
Step 1 Turn OFF the system power.
Step 2 Attach your ESD-preventive wrist strap.
Step 3 Remove all network cables. Proceed with Step 4 if you have an AC power supply. Proceed with Step 5 if you have a DC power supply.
Step 4 If you have an AC-powered router, remove the power cord.
![]() | Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position. |
Step 5 If you have a DC-powered router, take the following steps to remove the power cables:
(a) Use a screwdriver to loosen the captive installation screws on the terminal block cover.
(b) Lift and remove the terminal block cover.
(c) Use a screwdriver to remove the three power leads from the terminal block in the following order: negative, positive, then ground.
![]() | Warning Before opening the chassis, disconnect the telephone-network cables to avoid contact with telephone-network voltages. |

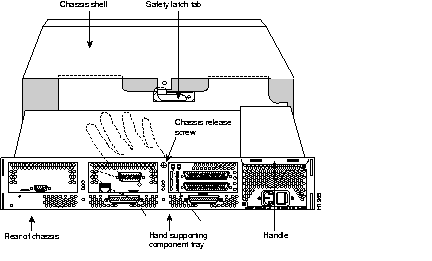

Step 6 Loosen the nonremovable chassis release screw on the rear panel of the chassis. (See Figure 3.)
Step 7 Pull on the handle located on the upper right corner of the chassis to slide the component tray out of the chassis shell until the safety latch catches. (See Figure 3.)
![]() | Warning Before releasing the safety latch, support the component tray from underneath, either on your work surface or with your hands, to prevent injury. |
Step 8 Support the component tray with one hand, push down on the safety latch tab, and pull the component tray out completely.
Step 9 Set the component tray on your work surface.
Proceed with the section "Removing AC and DC Power Supplies."
![]() | Warning Do not touch the power supply when the power cord is connected. For systems with a power switch, line voltages are present within the power supply even when the power switch is off and the power cord is connected. For systems without a power switch, line voltages are present within the power supply when the power cord is connected. |
Take the following steps to remove the component tray from a chassis without a safety latch:
Step 1 Turn OFF the system power.
Step 2 Attach your ESD-preventive wrist strap.
Step 3 Remove all network cables. Proceed with Step 4 if you have an AC power supply. Proceed with Step 5 if you have a DC power supply.
Step 4 If you have an AC-powered router, remove the power cord.
![]() | Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position. |
Step 5 If you have a DC-powered router, take the following steps to remove the power cables:
(a) Use a screwdriver to loosen the captive installation screws on the terminal block cover.
(b) Lift and remove the terminal block cover.
(c) Use a screwdriver to remove the three power leads from the terminal block in the following order: negative, positive, then ground.
![]() | Warning Before opening the chassis, disconnect the telephone-network cables to avoid contact with telephone-network voltages. |

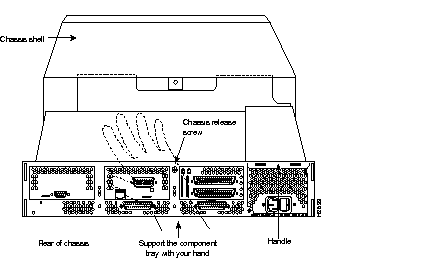

Step 6 Loosen the nonremovable chassis release screw on the rear panel of the chassis. (See Figure 4.)
![]() | Caution Support the component tray from underneath, either on your work surface or with your hands, to prevent it from falling. |
Step 7 Pull on the handle located on the upper right corner of the chassis to slide the component tray out of the chassis shell while you support the component tray with one hand.
Step 8 Set the component tray on your work surface.
Proceed with the section "Removing AC and DC Power Supplies."
After you remove the component tray from the chassis shell, remove the power supply from the chassis.
Take the following steps to remove a power supply:
![]() | Caution When cutting the cable tie-wraps be careful not to cut into the power cables. |

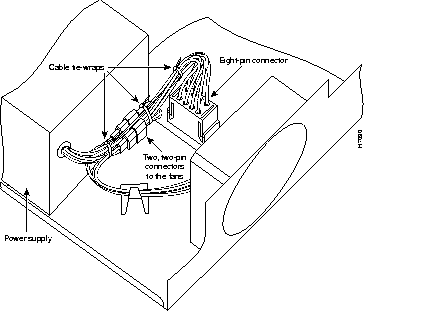

Step 1 Locate the power cable harness located on the rear of the power supply (toward the front of the router), then carefully cut the cable tie-wraps on the harness. (See Figure 5.)

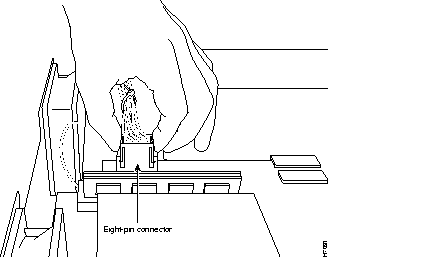

Step 2 Locate the main power connector on the motherboard. Grasp the plug on the ends, press in toward the middle, and lift the plug away from the connector. (See Figure 6.)
Step 3 Locate the two small two-pin connectors used to power the fans. Separate both of the small connectors by grasping each end of the connector firmly and then pulling the connector apart. (See Figure 5.)
Step 4 Remove the two external rear mounting screws and set them aside. (See Figure 7.)

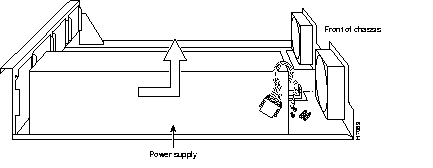

Step 5 Slide the power supply forward slightly in the chassis. (See Figure 8.) This disengages the hook built into the chassis that helps secure the power supply.
Step 6 Lift the power supply out of the chassis.
Proceed with the section "Replacing AC and DC Power Supplies."
Take the following steps to replace a power supply in the chassis:

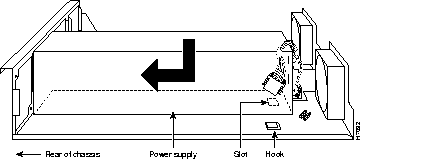

Step 1 Place the power supply in the chassis with the power supply faceplate slightly forward of the chassis rear panel. This will allow the hook in the chassis to engage the cutout in the bottom of the power supply. (See Figure 9.)
Step 2 Slide the power supply toward the rear of the chassis, engaging the hook in the chassis.
Step 3 Replace the external rear mounting screws. (See Figure 7.)
Step 4 Insert the large power connector into the receptacle on the motherboard. (See Figure 6.)
Step 5 Join the small connectors used to power the cooling fans. (See Figure 5.)
Step 6 Using tie-wraps, secure the power cables into a bundle that clears the edge of the chassis and keeps the cables away from the fan. Be sure that the cables to the fans are routed under the hook provided in the bottom of the chassis. (See Figure 5.)
Proceed with the section "Replacing the Component Tray."
Take the following steps to replace the component tray in the chassis shell:
Step 1 Reinsert the component tray into the shell, pushing on the back of the tray while pressing on the chassis release screw (as shown in Figure 3 and Figure 4) with the thumb of your right hand.
Step 2 Retighten the chassis release screw.
Proceed with the section "Replacing Connections to the Router."
Take the following steps to make the final connections to the router:
![]() | Warning Read the installation instructions before you connect the system to its power source. |
Step 1 Replace all network connections.
Step 2 If you have an AC-powered system, plug the system power cord into a 3-terminal, single-phase power source that provides power within the acceptable range (100-240 VAC, 50-60 Hz, 3.0-1.5 A).
Step 3 If you have a DC-powered system, rewire the DC-input power supply (40 to 72 VDC) to the terminal block using 14 AWG copper wires. The proper wiring sequence is ground to ground, positive to positive, and negative to negative. (See Figure 10.)
![]() | Warning When stranded wiring is required, use approved wiring terminations, such as closed-loop or spade-type with upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the insulation and conductor. |
![]() | Warning This unit is intended for installation in restricted access areas. |
![]() | Warning The illustration shows the DC power supply terminal block. Wire the DC power supply using the appropriate lugs at the wiring end, as illustrated. The proper wiring sequence is ground to ground, positive to positive (line to L), and negative to negative (neutral to N). Note that the ground wire should always be connected first and disconnected last. |
![]() | Warning After wiring the DC power supply, remove the tape from the circuit breaker switch handle and reinstate power by moving the handle of the circuit breaker to the ON position. |
Step 4 Turn ON the system power switch. The power LED on the front panel of the router should go ON. )
Step 5 Check the OK LED on the right side of the front panel to verify that it goes ON after a few seconds delay when booting. If you have problems, see the section "Troubleshooting the Power Supply Installation" and the section "Cisco Connection Online."
This completes the power supply replacement procedure.
Check the following items to help isolate problems with the power supply installation:
