Meanings and Values of BSC 3270 Parameters Defined in Class 13

Parameters displayed	Meaning of parameters	Possible values
1
.
.	BSC 3270 station address	0 to 31
.
32

Programming principle of a BSC 3270 line

---

Note In the programming example, the stations and the controllers are defined by a control unit number. Each control unit number has fixed addresses which identify the unit in the BSC 3270 protocol frame. See the table below.

---

Example:

• Controller 0 is identified in a polling frame by its address 20 (ASCII) or 40 (EBCDIC)

• Controller 0 is identified in a select frame by its address SD (ASCII) or 60 (EBCDIC).

• Station 21 is identified in a select or text frame by its address 4E (ASCII) or D5 (EBCDIC).

Table  F-1: BSC 3270 Addresses

CONTROL UNIT		POLL ADDRESS			SELECT ADDRESS			DEVICE ADDRESS
		ASCII	EBCDIC		ASCII	EBCDIC		ASCII	EBCDIC
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31		20 41 42 43 44 45 46 47 48 49 5B 2E 3C 28 2B 21 26 4A 4B 4C 4D 4E 4F 50 51 52 5D 24 2A 29 3B 5E	40 C1 C2 C3 C4 C5 C6 C7 C8 C9 4A 4B 4C 4D 4E 4F 50 D1 D2 D3 D4 D5 D6 D7 D8 D9 5A 5B 5C 5D 5E 5F		2D 2F 53 54 55 56 57 58 59 5A 7C 2C 25 5F 3E 3F 30 31 32 33 34 35 36 37 38 39 3A 23 40 27 3D 22	60 61 E2 E3 E4 E5 E6 E7 E8 E9 6A 6B 6C 6D 6E 6F F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 7A 7B 7C 7D 7E 7F		20 41 42 43 44 45 46 47 48 49 5B 2E 3C 28 2B 21 26 4A 4B 4C 4D 4E 4F 50 51 52 5D 24 2A 29 3B 5E	40 C1 C2 C3 C4 C5 C6 C7 C8 C9 4A 4B 4C 4D 4E 4F 50 D1 D2 D3 D4 D5 D6 D7 D8 D9 5A 5B 5C 5D 5E 5F

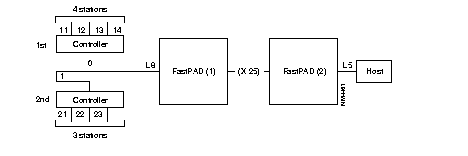

Figure F-1: Programming a BSC 3270 Line

Profiles of class 12:

• FastPad (1), line 8: VIP controller profile (profile 50)

• FastPad (2), line 5: VIP Host profile (profile 51).

Programming of line 8 on FastPad (1) side:

• Class 12, recurrence 8 (profile 50)

Parameter 90 = 02 (number of controllers)

Parameter 91 = 43 (position of 1st controller)

Class 19 controller table:

· Class 19 parameter 42 (1st controller):
	1st byte:	03 (No. of auto-call), see class 8
	2nd byte:	00 (1st controller address)
	3rd byte:	04 (number of stations)
	4th byte:	13 (position of 1st station),
		class 13: extension line connection
		parameters (recurrence 8)
		Profile 60 (BSC 3270):
		Parameter 13-11
		Parameter 14-12
		Parameter 15-13
		Parameter 16-14

· Class 19 parameter 43 (2nd controller):
	1st byte:	03 (No. of auto-call), see class 8
	2nd byte:	01 (2nd controller address)
	3rd byte:	03 (number of stations)
	4th byte:	07 (position of 1st station),
		parameter 7-21
		parameter 8-22
		parameter 9-23

• To program line 5 on FastPad (2): according to the same principle as FastPad (1), the controllers and stations connected to the host have to be described.

• Class 12, recurrence 5 (profile 61)

parameter 90 = 02 (number of controllers)

parameter 91 = 43 (position of 1st controller).
