The Cisco 2000 is a two-port multiprotocol router in a fixed-configuration system with specific software features that is ready for external network hardware connections. (See Figure 1-1.) This chapter contains the following sections:

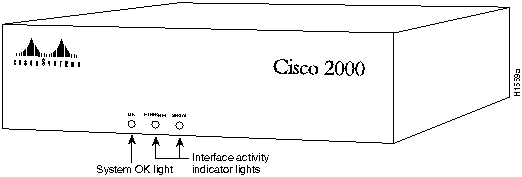

Figure 1-1 : Router with Ethernet and Serial Interface Configuration Option
Licensed software features of the router are as follows.
Design specifications of the router follow:
Table 1-1 lists the router system specifications.
Table 1-1 : System Specifications
| Description | Design Specifications |
|---|---|
| Dimensions W x D x H | 13" x 14" x 4" (33 x 35.6 x 10 cm) |
| Weight | 15 lb (6.8 kg) |
| Power | 110/220 VAC at 50--60 Hz
55W (max.) 273 Btu/hr |
| Processor | Motorola 68EC030---20 MHz |
| Memory | 1-MB RAM
32-KB nonvolatile configuration RAM |
| Network Interface Options | 1 Token Ring and 1 synchronous serial
or 1 Ethernet and 1 synchronous serial |
| Token Ring | 802.5 |
| Ethernet Interfaces | Ethernet (AUI) 802.3 |
| Serial Interfaces | RS-232, RS-449, V.35, X.21, EIA-530 |
| Console Port | RS-232 DB-25 female connector |
| Auxiliary Port | RS-232 DB-25 male connector |
| Operating Environment | 32--104°F (0--40°C) |
| Nonoperating Temperature | -40--185°F (-40--85°C ) |
| Operating Humidity | 5--95%, noncondensing |
| Noise Level | 40 dBa |
|
