Cabling Specifications for Cisco 4000 Series Routers
This appendix provides cable pinout descriptions for the Cisco 4000 series routers.
Following are the signal summaries contained in this appendix:
The cables available from Cisco meet Federal Communications Commission (FCC) part 15J Class A requirements and Verband Deutscher Electrotechniker (VDE) 0871 Limit B levels. When constructing your own cables, refer to the appropriate documentation regarding interference considerations and cable length limitations.
EIA/TIA-232 Console and Auxiliary Port Pinouts
Refer to Table B-1 when assembling an EIA/TIA-232 console cable or auxiliary port cable for the Cisco 4000-M and to Table B-2 when assembling an EIA/TIA-232 console cable or auxiliary port cable for the Cisco 4500-M and Cisco 4700-M.
Table B-1 : Cisco 4000-M Console and Auxiliary Port Signals
| Console Port | Auxiliary Port | ||||
|---|---|---|---|---|---|
| DCE DB-25 Connector | DCE DB-25 Connector | ||||
| Pin | Signal Name | Input/Output | Pin | Signal Name | Input/Output |
| 1 | Frame GND1 | -- | 1 | Frame GND | -- |
| 2 | TXD | Input | 2 | TXD | Output |
| 3 | RXD | Output | 3 | RXD | Input |
| 4 | RTS | Shorted to pin 5 | 4 | RTS | Output |
| 5 | CTS | Shorted to pin 4 | 5 | CTS | Input |
| 6 | Shorted to pin 8 | Output | 7 | GND | -- |
| 7 | GND | -- | 8 | CD | Input |
| 8 | CD2 | Output | 20 | DTR | Output |
| 20 | DTR | Input | 22 | Ring Indicator | Input |
Table B-2 : Cisco 4500-M and Cisco 4700-M Console Port Signals
| Console Port | ||
|---|---|---|
| DCE DB-25 Connector | ||
| Pin | Signal Name | Direction |
| 1 | Frame Ground | -- |
| 2 | Received Data | Input |
| 3 | Transmitted Data | Output |
| 4 | Request To Send | Looped to Clear To Send |
| 5 | Clear To Send | Looped to Request To Send |
| 6 | Connected to Pin 8 | Output |
| 7 | Signal Ground | -- |
| 8 | Data Carrier Detect | Output |
| 20 | Data Terminal Ready | Input |
Table B-3 : Cisco 4500-M and Cisco 4700-M Auxiliary Port Signals
| Auxiliary Port | ||
|---|---|---|
| DCE DB-25 Connector | ||
| Pin | Signal Name | Direction |
| 1 | Frame Ground | -- |
| 2 | Transmitted Data | Output |
| 3 | Received Data | Input |
| 4 | Request To Send | Output |
| 5 | Clear To Send | Input |
| 7 | Signal Ground | -- |
| 8 | Data Carrier Detect | Input |
| 20 | Data Terminal Ready | Output |
All interface types except EIA-530 are available in DTE or DCE format: DTE with a plug connector at the network end and DCE with a receptacle at the network end. V.35 is available in either mode with either gender at the network end. EIA-530 is available in DTE only.
The tables that follow list the signal pinouts for both the DTE-mode and DCE-mode serial port adapter cables for each serial interface type.
EIA/TIA-232 Dual Serial Module Cable Assembly

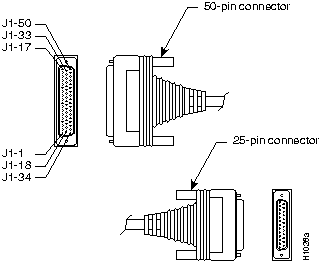

Figure B-1 shows the dual serial module EIA/TIA-232 cable assembly. Table B-4 lists the DTE and DCE pinouts.
Figure B-1 : Dual Serial EIA/TIA-232 Cable Assembly
Table B-4 : Dual Serial Module EIA/TIA-232 DTE and DCE Serial Cable Pinouts
| 72-0670-01 DTE Connections | 72-0736-01 DCE Connections | ||||||
|---|---|---|---|---|---|---|---|
| 50 Pin | 25 Pin | Type | 50 Pin | 25 Pin | Signal | Type | |
| J1-3 | J1-36 | J1-3 | J1-36 | MUX | |||
| J1-39
J1-40 |
J2-5
J2-4 |
Twisted pair | J1-47
J1-17 |
J2-24
J1-38 |
SCTE
DCE |
Twisted pair | |
| J1-9
J1-42 |
J2-8
J2-6 |
Twisted pair | J1-40
J1-39 |
J2-5
J2-4 |
CTS
RTS |
Twisted pair | |
| J1-11
J1-44 |
J2-2
J2-7 |
Twisted pair | J1-14
J1-30 |
J2-8
J2-6 |
DCD
DSR |
Twisted pair | |
| J1-46
J1-30 |
J2-3
J2-20 |
Twisted pair | J1-46
J1-44 |
J2-2
J2-7 |
TXD
GND |
Twisted pair | |
| J1-14
J1-47 |
J2-18
J2-17 |
Twisted pair | J1-11
J1-42 |
J2-3
J2-20 |
RXD
DTR |
Twisted pair | |
| J1-31
J1-15 |
J2-15
J2-1 |
Twisted pair | J1-9
J1-23 |
J2-18
J2-17 |
LTST
RXC |
Twisted pair | |
| J1-16 | J2-24 | Twisted pair | J1-16
J1-15 |
J2-15
J2-1 |
TXC
Chassis ground |
Twisted pair | |
EIA/TIA-232 Four-Port Serial Module Cable Assembly

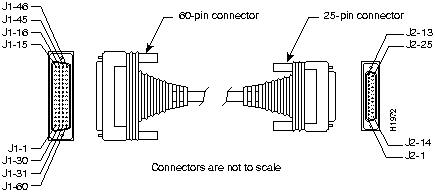

Figure B-2 shows the four-port serial module EIA/TIA-232 cable assembly; Table B-5 lists the DTE pinouts; and Table B-6 lists the DCE pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.
Figure B-2 : EIA/TIA-232 Cable Assembly
Table B-5 : Four-Port Serial EIA/TIA-232 DTE Cable Pinouts (DB-60 to DB-25)
| 60 Pin | Signal | Note | Direction | 25 Pin | Signal |
|---|---|---|---|---|---|
| J1-50
J1-51 J1-52 |
MODE_0
GND MODE_DCE |
Shorting group | -- | -- | -- |
| J1-46 | Shield GND | Single | -- | J2-1 | Shield GND |
| J1-46 | Shield GND | Single | -- | J2-1 | Shield GND |
| J1-41
Shield |
TXD/RXD
-- |
Twisted pair no. 5 | --->
-- |
J2-2
Shield |
TXD
-- |
| J1-36
Shield |
RXD/TXD
-- |
Twisted pair no. 9 | <---
-- |
J2-3
Shield |
RXD
-- |
| J1-42
Shield |
RTS/CTS
-- |
Twisted pair no. 4 | --->
-- |
J2-4
Shield |
RTS
-- |
| J1-35
Shield |
CTS/RTS
-- |
Twisted pair no. 10 | <---
-- |
J2-5
Shield |
CTS
-- |
| J1-34
Shield |
DSR/DTR
-- |
Twisted pair no. 11 | <---
-- |
J2-6
Shield |
DSR
-- |
| J1-45
Shield |
Circuit GND
-- |
Twisted pair no. 1 | --
-- |
J2-7
Shield |
Circuit GND
-- |
| J1-33
Shield |
DCD/LL
-- |
Twisted pair no. 12 | <---
-- |
J2-8
Shield |
DCD
-- |
| J1-37
Shield |
TXC/NIL
-- |
Twisted pair no. 8 | <---
-- |
J2-15
Shield |
TXC
-- |
| J1-38
Shield |
RXC/TXCE
-- |
Twisted pair no. 7 | <---
-- |
J2-17
Shield |
RXC
-- |
| J1-44
Shield |
LL/DCD
-- |
Twisted pair no. 2 | --->
-- |
J2-18
Shield |
LTST
-- |
| J1-43
Shield |
DTR/DSR
-- |
Twisted pair no. 3 | --->
-- |
J2-20
Shield |
DTR
-- |
| J1-39
Shield |
TXCE/TXC
-- |
Twisted pair no. 6 | --->
-- |
J2-24
Shield |
TXCE
-- |
Table B-6 : Four-Port Serial EIA/TIA-232 DCE Cable Pinouts (DB-60 to DB-25)
| 60 Pin | Signal | Note | Direction | 25 Pin | Signal |
|---|---|---|---|---|---|
| J1-50
J1-51 |
MODE_0
GND |
Shorting group | --
|
--
|
--
|
| J1-36
Shield |
RXD/TXD
-- |
Twisted pair no. 9 | <---
-- |
J2-2
Shield |
TXD
-- |
| J1-41
Shield |
TXD/RXD
-- |
Twisted pair no. 5 | --->
-- |
J2-3
Shield |
RXD
-- |
| J1-35
Shield |
CTS/RTS
-- |
Twisted pair no. 10 | <---
-- |
J2-4
Shield |
RTS
-- |
| J1-42
Shield |
RTS/CTS
-- |
Twisted pair no. 4 | --->
-- |
J2-5
Shield |
CTS
-- |
| J1-43
Shield |
DTR/DSR
-- |
Twisted pair no. 3 | --->
-- |
J2-6
Shield |
DSR
-- |
| J1-45
Shield |
Circuit GND
-- |
Twisted pair no. 1 | --
-- |
J2-7
Shield |
Circuit GND |
| J1-44
Shield |
LL/DCD
-- |
Twisted pair no. 2 | --->
-- |
J2-8
Shield |
DCD
-- |
| J1-39
Shield |
TXCE/TXC
-- |
Twisted pair no. 7 | --->
-- |
J2-15
Shield |
TXC
-- |
| J1-40
Shield |
NIL/RXC
-- |
Twisted pair no. 6 | --->
-- |
J2-17
Shield |
RXC
-- |
| J1-33
Shield |
DCD/LL
-- |
Twisted pair no. 12 | <---
-- |
J2-18
Shield |
LTST
-- |
| J1-34
Shield |
DSR/DTR
-- |
Twisted pair no. 11 | <---
-- |
J2-20
Shield |
DTR
-- |
| J1-38
Shield |
RXC/TXCE
-- |
Twisted pair no. 8 | <---
-- |
J2-24
Shield |
TXCE
-- |
EIA/TIA-449 Dual Serial Module Cable Assembly

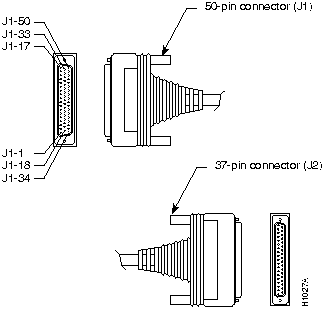

Figure B-3 shows the dual serial module EIA/TIA-449 cable assembly. Table B-7 lists the DTE and DCE pinouts and signal descriptions.
Figure B-3 : Dual Serial Module EIA/TIA-449 Cable Assembly
Table B-7 : Dual Serial Module EIA/TIA-449 DTE and DCE Cable Pinouts
| 72-0672-01 DTE Connection Table | 72-0738-01 DCE Connection Table | ||||||
|---|---|---|---|---|---|---|---|
| 50 Pin | 37 Pin | Type | 50 Pin | 37 Pin | Type | Signal Name | |
| J1-5 | J1-38 | J1-5 | J1-38 | MUX | |||
| J1-7 | J2-10 | J1-13 | J2-10 | LL | |||
| J1-1
J1-34 |
J2-4
J2-22 |
Twisted pair | J1-35
J1-19 |
J2-4
J2-22 |
Twisted pair | TXD+
TXD-- |
|
| J1-2
J1-18 |
J2-5
J2-23 |
Twisted pair | J1-43
J1-27 |
J2-5
J2-23 |
Twisted pair | SCT+
SCT-- |
|
| J1-35
J1-19 |
J2-6
J2-24 |
Twisted pair | J1-1
J1-34 |
J2-6
J2-24 |
Twisted pair | RXD+
RXD-- |
|
| J1-4
J1-20 |
J2-7
J2-25 |
Twisted pair | J1-6
J1-22 |
J2-7
J2-25 |
Twisted pair | RTS+
RTS-- |
|
| J1-37
J1-21 |
J2-8
J2-26 |
Twisted pair | J1-49
J1-50 |
J2-8
J2-26 |
Twisted pair | SCR+
SCR-- |
|
| J1-22
J1-6 |
J2-27
J2-9 |
Twisted pair | J1-17 | J1-44 | DCE | ||
| J1-8
J1-24 |
J2-11
J2-29 |
Twisted pair | J1-20
J1-4 |
J2-27
J2-9 |
Twisted pair | CTS--
CTS+ |
|
| J1-41
J1-25 |
J2-12
J2-30 |
Twisted pair | J1-41
J1-25 |
J2-11
J2-29 |
Twisted pair | DSR+
DSR-- |
|
| J1-10
J1-26 |
J2-13
J2-31 |
Twisted pair | J1-8
J1-24 |
J2-12
J2-30 |
Twisted pair | DTR+
DTR-- |
|
| J1-43
J1-27 |
J2-17
J2-35 |
Twisted pair | J1-10
J1-26 |
J2-13
J2-31 |
Twisted pair | RLSD+
RLSD-- |
|
| J1-36
J1-15 |
J2-19
J2-1 |
Twisted pair | J1-37
J1-21 |
J2-17
J2-35 |
Twisted pair | SCTE+
SCTE-- |
|
| J1-44
J1-48 |
J2-37
J2-20 |
Twisted pair | J1-36
J1-15 |
J2-19
J2-1 |
Twisted pair | Ground
Chassis ground |
|
EIA/TIA-449 Four-Port Serial Module Cable Assembly
Figure B-4 shows the four-port EIA/TIA-449 cable assembly; Table B-8 lists the DTE pinouts; Table B-9 lists the DCE pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.
Figure B-4 : EIA/TIA-449 Four-Port Module Cable Assembly
Table B-8 : EIA/TIA-449 DTE Cable Pinouts (DB-60 to DB-37)
| 60 Pin | Signal Name | Note | Direction | 37 Pin | Signal Name |
|---|---|---|---|---|---|
| J1-49
J1-48 |
MODE_1
GND |
Shorting group | -- | -- | -- |
| J1-51
J1-52 |
GND
MODE_DCE |
Shorting group | -- | -- | -- |
| J1-46 | Shield_GND | Single | _ | J2-1 | Shield GND |
| J1-11
J1-12 |
TXD/RXD+
TXD/RXD-- |
Twisted pair no. 6 | --->
---> |
J2-4
J2-22 |
SD+
SD-- |
| J1-24
J1-23 |
TXC/RXC+
TXC/RXC-- |
Twisted pair no. 9 | <---
<--- |
J2-5
J2-23 |
ST+
ST-- |
| J1-28
J1-27 |
RXD/TXD+
RXD/TXD-- |
Twisted pair no. 11 | <---
<--- |
J2-6
J2-24 |
RD+
RD-- |
| J1-9
J1-10 |
RTS/CTS+
RTS/CTS-- |
Twisted pair no. 5 | --->
---> |
J2-7
J2-25 |
RS+
RS-- |
| J1-26
J1-25 |
RXC/TXCE+
RXC/TXCE-- |
Twisted pair no. 10 | <---
<--- |
J2-8
J2-26 |
RT+
RT-- |
| J1-1
J1-2 |
CTS/RTS+
CTS/RTS-- |
Twisted pair no. 1 | <---
<--- |
J2-9
J2-27 |
CS+
CS-- |
| J1-44
J1-45 |
LL/DCD
Circuit_GND |
Twisted pair no. 12 | --->
_ |
J2-10
J2-37 |
LL
SC |
| J1-3
J1-4 |
DSR/DTR+
DSR/DTR-- |
Twisted pair no. 2 | <---
<--- |
J2-11
J2-29 |
DM+
DM-- |
| J1-7
J1-8 |
DTR/DSR+
DTR/DSR-- |
Twisted pair no. 4 | --->
---> |
J2-12
J2-30 |
TR+
TR-- |
| J1-5
J1-6 |
DCD/DCD+
DCD/DCD-- |
Twisted pair no. 3 | <---
<--- |
J2-13
J2-31 |
RR+
RR-- |
| J1-13
J1-14 |
TXCE/TXC+
TXCE/TXC-- |
Twisted pair no. 7 | --->
---> |
J2-17
J2-35 |
TT+
TT-- |
| J1-15
J1-16 |
Circuit_GND
Circuit_GND |
Twisted pair no. 9 | --
-- |
J2-19
J2-20 |
SG
RC |
Table B-9 : EIA/TIA-449 DCE Four-Port Cable Pinouts (DB-60 to DB-37)
| 60 Pin | Signal Name | Note | Direction | 37 Pin | Signal Name |
|---|---|---|---|---|---|
| J1-49
J1-48 |
MODE_1
GND |
Shorting group | -- | -- | -- |
| J1-46 | Shield_GND | Single | -- | J2-1 | Shield GND |
| J1-28
J1-27 |
RXD/TXD+
RXD/TXD-- |
Twisted pair no. 11 | <---
<--- |
J2-4
J2-22 |
SD+
SD-- |
| J1-13
J1-14 |
TXCE/TXC+
TXCE/TXC-- |
Twisted pair no. 7 | --->
---> |
J2-5
J2-23 |
ST+
ST-- |
| J1-11
J1-12 |
TXD/RXD+
TXD/RXD-- |
Twisted pair no. 6 | --->
---> |
J2-6
J2-24 |
RD+
RD-- |
| J1-1
J1-2 |
CTS/RTS+
CTS/RTS-- |
Twisted pair no. 1 | <---
<--- |
J2-7
J2-25 |
RS+
RS-- |
| J1-24
J1-23 |
TXC/RXC+
TXC/RXC-- |
Twisted pair no. 9 | --->
---> |
J2-8
J2-26 |
RT+
RT-- |
| J1-9
J1-10 |
RTS/CTS+
RTS/CTS-- |
Twisted pair no. 5 | --->
---> |
J2-9
J2-27 |
CS+
CS-- |
| J1-29
J1-30 |
NIL/LL
Circuit_GND |
Twisted pair no. 12 | --->
-- |
J2-10
J2-37 |
LL
SC |
| J1-7
J1-8 |
DTR/DSR+
DTR/DSR-- |
Twisted pair no. 4 | --->
---> |
J2-11
J2-29 |
DM+
DM-- |
| J1-3
J1-4 |
DSR/DTR+
DSR/DTR-- |
Twisted pair no. 2 | <---
<--- |
J2-12
J2-30 |
TR+
TR-- |
| J1-5
J1-6 |
DCD/DCD+
DCD/DCD-- |
Twisted pair no. 3 | --->
---> |
J2-13
J2-31 |
RR+
RR-- |
| J1-26
J1-25 |
RXC/TXCE+
RXC/TXCE-- |
Twisted pair no. 10 | <---
<--- |
J2-17
J2-35 |
TT+
TT-- |
| J1-15
J1-16 |
Circuit_GND
Circuit_GND |
Twisted pair no. 8 | _
_ |
J2-19
J2-20 |
SG
RC |
V.35 Dual Serial Module Cable Assembly
Figure B-5 shows the dual serial module V.35 cable assembly with the resistor (1/4 watt, ±1%, 301 ohms). Table B-10 lists the DTE pinouts; Table B-11 lists the DCE pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

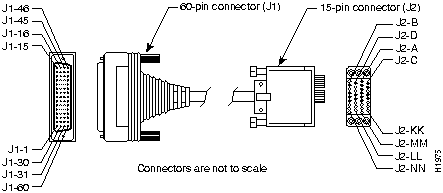

Figure B-5 : Dual Serial Module V.35 Cable Assembly
Table B-10 : Dual Serial Module V.35 DTE Cable Pinouts
| 72-0671-02 DTE Connections | ||||
|---|---|---|---|---|
| 50 Pin | 34 Pin | Type | Signal Name | Direction |
| J1-3 | J1-36 | Jumper | MUX | To ground |
| J1-5 | J1-38 | Jumper | MUX | To ground |
| J1-14
J1-Shield |
J2-K
J2-Shield |
Twisted pair | LTST
Not used |
---> |
| J1-2
J1-18 |
J2-Y
J2-AA |
Twisted pair | SCT+
SCT- |
<---
<--- |
| J1-12
J1-28 |
J2-P
J2-S |
Twisted pair | TXD+
TXD- |
--->
---> |
| J1-35
J1-19 |
J2-R
J2-T |
Twisted pair | RXD+
RXD-- |
<---
<--- |
| J1-37
J1-21 |
J2-V
J2-X |
Twisted pair | SCR+
SCR-- |
<---
<--- |
| J1-45
J1-29 |
J2-U
J2-W |
Twisted pair | SCTE+
SCTE-- |
--->
---> |
| J1-42
J1-Shield |
J2-E
J2-Shield |
Twisted pair | DSR
Not used |
<--- |
| J1-9
J1-48 |
J2-F
J2-A |
Twisted pair | RLSD
Ground |
<---
<--- |
| J1-40
J1-Shield |
J2-C
J2-Shield |
Twisted pair | RTS
Not used |
---> |
| J1-2
J1-18 |
J1-3
J1-5 |
Resistor
Resistor |
SCT+
SCT-- |
R to
Ground |
| J1-35
J1-19 |
J1-36
J1-38 |
Resistor
Resistor |
RXD+
RXD-- |
R to
Ground |
| J1-37
J1-21 |
J1-44
J1-48 |
Resistor
Resistor |
SCR+
SCR-- |
R to
Ground |
| J1-30
J1-44 |
J2-H
J2-B |
Twisted pair | DTR
Ground |
--->
---> |
| J1-39
J1-Shield |
J2-D
J2-Shield |
Twisted pair | CTS
Not used |
---> |
| J1-Shield
J1-Shield |
J2-Shield
J2-Shield |
Twisted pair | Not used
Not used |
|
| J1-Shield | J2-Shield | Single | Not used | |
Table B-11 : Dual Serial Module V.35 DCE Cable Pinouts
| 72-0740-02 DCE Connections | ||||
|---|---|---|---|---|
| 50 Pin | 34 Pin | Type | Signal Name | Direction |
| J1-3 | J1-36 | Jumper | MUX | To ground |
| J1-5 | J1-38 | Jumper | MUX | To ground |
| J1-9
J1-Shield |
J2-K
J2-Shield |
Twisted pair | LTST
|
<--- |
| J1-45
J1-29 |
J2-Y
J2-AA |
Twisted pair | SCT+
SCT-- |
--->
---> |
| J1-35
J1-19 |
J2-P
J2-S |
Twisted pair | TXD+
TXD-- |
<---
<--- |
| J1-12
J1-28 |
J2-R
J2-T |
Twisted pair | RXD +
RXD-- |
--->
---> |
| J1-32
J1-33 |
J2-V
J2-X |
Twisted pair | SCR+
SCR-- |
--->
---> |
| J1-37
J1-21 |
J2-U
J2-W |
Twisted pair | SCTE+
SCTE-- |
<---
<--- |
| J1-30
J1-Shield |
J2-E
J2-Shield |
Twisted pair | DSR
|
---> |
| J1-14
J1-48 |
J2-F
J2-A |
Twisted pair | RLSD
Ground |
--->
---> |
| J1-39
J1-Shield |
J2-C
J2-Shield |
Twisted pair | RTS
Not used |
<--- |
| J1-17 | J1-5 | Jumper | DCE Mode | To ground |
| J1-Shield | J2-Shield | Single | Not used | |
| J1-351
J1-19 |
J1-36
J1-38 |
Resistor
Resistor |
TXD+
TXD-- |
R to ground |
| J1-37
J1-21 |
J1-44
J1-48 |
Resistor
Resistor |
SCTE+
SCTE-- |
R to ground |
| J1-42
J1-44 |
J2-H
J2-B |
Twisted pair | DTR
Ground |
<---
<--- |
| J1-40
J1-Shield |
J2-D
J2-Shield |
Twisted pair | CTS
Not used |
---> |
| J1-Shield
J1-Shield |
J2-Shield
J2-Shield |
Twisted pair |
|
|
V.35 Four-Port Serial Module Cable Assembly
Figure B-6 shows the V.35 cable assembly; Table B-12 lists the DTE pinouts; Table B-13 lists the DCE pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

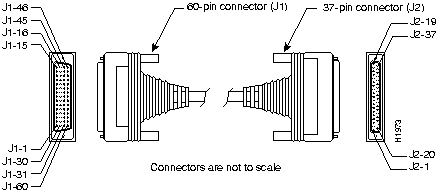

Figure B-6 : Four-Port Serial Module V.35 Cable Assembly
Table B-12 : Four-Port Serial Module V.35 DTE Cable Pinouts (DB-60 to Winchester-Type 34 Pin)
| 60 Pin | Signal Name | Type | Direction | 34 Pin | Signal Name |
|---|---|---|---|---|---|
| J1-49
J1-48 |
MODE_1
GND |
Shorting group | -- | -- | -- |
| J1-50
J1-51 J1-52 |
MODE_0
GND MODE_DCE |
Shorting group | -- | -- | -- |
| J1-53
J1-54 J1-55 J1-56 |
TXC/NIL
RXC_TXCE RXD/TXD GND |
Shorting group | -- | -- | -- |
| J1-46 | Shield_GND | Single | -- | J2-A | Frame GND |
| J1-45
Shield |
Circuit_GND
-- |
Twisted pair no. 12 | --
-- |
J2-B
Shield |
Circuit GND
-- |
| J1-42
Shield |
RTS/CTS
-- |
Twisted pair no. 9 | --->
-- |
J2-C
Shield |
RTS
-- |
| J1-35
Shield |
CTS/RTS
-- |
Twisted pair no. 8 | <---
-- |
J2-D
Shield |
CTS
-- |
| J1-34
Shield |
DSR/DTR
-- |
Twisted pair no. 7 | <---
-- |
J2-E
Shield |
DSR
-- |
| J1-33
Shield |
DCD/LL
-- |
Twisted pair no. 6 | <---
-- |
J2-F
Shield |
RLSD
-- |
| J1-43
Shield |
DTR/DSR
-- |
Twisted pair no. 10 | --->
-- |
J2-H
Shield |
DTR
-- |
| J1-44
Shield |
LL/DCD
-- |
Twisted pair no. 11 | --->
-- |
J2-K
Shield |
LT
-- |
| J1-18
J1-17 |
TXD/RXD+
TXD/RXD-- |
Twisted pair no. 1 | --->
---> |
J2-P
J2-S |
SD+
SD-- |
| J1-28
J1-27 |
RXD/TXD+
RXD/TXD-- |
Twisted pair no. 5 | <---
<--- |
J2-R
J2-T |
RD+
RD-- |
| J1-20
J1-19 |
TXCE/TXC+
TXCE/TXC-- |
Twisted pair no. 2 | --->
---> |
J2-U
J2-W |
SCTE+
SCTE-- |
| J1-26
J1-25 |
RXC/TXCE+
RXC/TXCE-- |
Twisted pair no. 4 | <---
<--- |
J2-V
J2-X |
SCR+
SCR-- |
| J1-24
J1-23 |
TXC/RXC+
TXC/RXC-- |
Twisted pair no. 3 | <---
<--- |
J2-Y
J2-AA |
SCT+
SCT-- |
Table B-13 : Four-Port Serial V.35 DCE Cable Pinouts (DB-60 to Winchester-Type 34 Pin)
| 60 Pin | Signal Name | Type | Direction | 34 Pin | Signal Name |
|---|---|---|---|---|---|
| J1-49
J1-48 |
MODE_1
GND |
Shorting group | -- | -- | -- |
| J1-50
J1-51 |
MODE_0
GND |
Shorting group | -- | -- | -- |
| J1-53
J1-54 J1-55 J1-56 |
TXC/NIL
RXC_TXCE RXD/TXD GND |
Shorting group | -- | -- | -- |
| J1-46 | Shield_GND | Single | -- | J2-A | Frame GND |
| J1-45
Shield |
Circuit_GND
-- |
Twisted pair no. 12 | --
-- |
J2-B
Shield |
Circuit GND
-- |
| J1-35
Shield |
CTS/RTS
-- |
Twisted pair no. 8 | <---
-- |
J2-C
Shield |
RTS
-- |
| J1-42
Shield |
RTS/CTS
-- |
Twisted pair no. 9 | --->
-- |
J2-D
Shield |
CTS
-- |
| J1-43
Shield |
DTR/DSR
-- |
Twisted pair no. 10 | --->
-- |
J2-E
Shield |
DSR
-- |
| J1-44
Shield |
LL/DCD
-- |
Twisted pair no. 11 | --->
-- |
J2-F
Shield |
RLSD
-- |
| J1-34
Shield |
DSR/DTR
-- |
Twisted pair no. 7 | <---
-- |
J2-H
Shield |
DTR
-- |
| J1-33
Shield |
DCD/LL
-- |
Twisted pair no. 6 | <---
-- |
J2-K
Shield |
LT
-- |
| J1-28
J1-27 |
RXD/TXD+
RXD/TXD-- |
Twisted pair no. 5 | <---
<--- |
J2-P
J2-S |
SD+
SD-- |
| J1-18
J1-17 |
TXD/RXD+
TXD/RXD-- |
Twisted pair no. 1 | --->
---> |
J2-R
J2-T |
RD+
RD-- |
| J1-26
J1-25 |
RXC/TXCE+
RXC/TXCE-- |
Twisted pair no. 4 | <---
<--- |
J2-U
J2-W |
SCTE+
SCTE-- |
| J1-22
J1-21 |
NIL/RXC+
NIL/RXC-- |
Twisted pair no. 3 | --->
---> |
J2-V
J2-X |
SCR+
SCR-- |
| J1-20
J1-19 |
TXCE/TXC+
TXCE/TXC-- |
Twisted pair no. 2 | --->
---> |
J2-Y
J2-AA |
SCT+
SCT-- |
X.21 Dual Serial Module Cable Assembly
Figure B-7 shows the dual serial module X.21 cable assembly. Table B-14 lists the DTE pinouts; Table B-15 lists the DCE pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

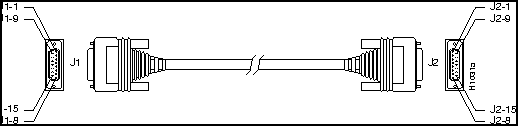

Figure B-7 : Dual Serial Module X.21 Cable Assembly
Table B-14 : Dual Serial Module X.21 DTE Cable Pinouts
| 72-0683-02 DTE Connections | ||||
|---|---|---|---|---|
| From | Signal Name | Type | To | Signal Name |
| J1-5 | MUX SEL | J1-38 | GND | |
| J1-36 | 449 GND | J2-8 | X.21 GND | |
| J1-41
J1-25 |
449 DTR | Jumper | J1-6
J1-22 |
449 CTS |
| J1-41
J1-25 |
449 DTR | Jumper | J1-8
J1-24 |
449 DSR |
| J1-43
J1-27 |
449 SCTE | Jumper | J1-37
J1-21 |
449 SCR |
| J1-1
J1-34 |
449 TXD | Twisted pair | J2-2
J2-9 |
X.21 TXD |
| J1-4
J1-20 |
449 RTS | Twisted pair | J2-3
J2-10 |
X.21 CTL |
| J1-35
J1-19 |
449 RXD | Twisted pair | J2-4
J2-11 |
X.21 RXD |
| J1-10
J1-26 |
449 RLSD | Twisted pair | J2-5
J2-12 |
X.21 IND |
| J1-2
J1-18 |
449 SCT | Twisted pair | J2-6
J2-13 |
X.21 CLK |
Table B-15 : Dual Serial Module X.21 DCE Cable Pinouts
| 72-0737-01 DCE Connections | ||||
|---|---|---|---|---|
| From | Signal Name | Type | To | Signal Name |
| J1-5 | MUX SEL | J1-38 | GND | |
| J1-36 | 449 GND | J2-8 | X.21 GND | |
| J1-41
J1-25 |
449 DSR | Jumper | J1-8
J1-24 |
449 DTR |
| J1-35
J1-19 |
449 TXD | Twisted pair | J2-2
J2-9 |
X.21 TXD |
| J1-6
J1-22 |
449-RTS | Twisted pair | J2-3
J2-10 |
X.21 CTL |
| J1-1
J1-34 |
449 RXD | Twisted pair | J2-4
J2-11 |
X.21 RXD |
| J1-10
J1-26 |
449 RLSD | Twisted pair | J2-5
J2-12 |
X.21 IND |
| J1-43
J1-27 |
449 SCT | Twisted pair | J2-6
J2-13 |
X.21 CLK |
| J1-17 | DCE SEL | J1-44 | ||
| J1-15 | Chassis GND | J2-1 | ||
X.21 Four-Port Serial Module Cable Assembly
Figure B-8 shows the four-port serial X.21 cable assembly; Table B-16 lists the DTE pinouts; Table B-17 lists the DCE pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.

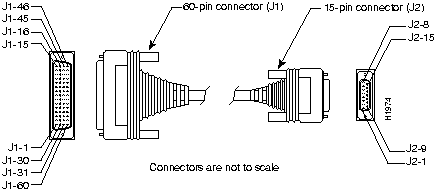

Figure B-8 : Four-Port Serial Module X.21 Cable Assembly
Table B-16 : Four-Port Serial X.21 DTE Cable Pinouts (DB-60 to DB-15)
| 60 Pin | Signal Name | Type | Direction | 15 Pin | Signal Name |
|---|---|---|---|---|---|
| J1-48
J1-47 |
GND
MODE_2 |
Shorting group | - | -- | -- |
| J1-51
J1-52 |
GND
MODE_DCE |
Shorting group | -- | -- | -- |
| J1-46 | Shield_GND | Single | -- | J2-1 | Shield GND |
| J1-11
J1-12 |
TXD/RXD+
TXD/RXD-- |
Twisted pair no. 3 | --->
---> |
J2-2
J2-9 |
Transmit+
Transmit-- |
| J1-9
J1-10 |
RTS/CTS+
RTS/CTS-- |
Twisted pair no. 2 | --->
---> |
J2-3
J2-10 |
Control+
Control-- |
| J1-28
J1-27 |
RXD/TXD+
RXD/TXD-- |
Twisted pair no. 6 | <---
<--- |
J2-4
J2-11 |
Receive+
Receive-- |
| J1-1
J1-2 |
CTS/RTS+
CTS/RTS-- |
Twisted pair no. 1 | <---
<--- |
J2-5
J2-12 |
Indication+
Indication-- |
| J1-26
J1-25 |
RXC/TXCE+
RXC/TXCE-- |
Twisted pair no. 5 | <---
<--- |
J2-6
J2-13 |
Timing+
Timing-- |
| J1-15
Shield |
Control_GND
-- |
Twisted pair no. 4 | --
-- |
J2-8
Shield |
Control GND
-- |
Table B-17 : Four-Port Serial X.21 DCE Cable Pinouts (DB-60 to DB-15)
| 60 Pin | Signal Name | Type | Direction | 15 Pin | Signal Name |
|---|---|---|---|---|---|
| J1-48
J1-47 |
GND
MODE_2 |
Shorting group | -- | -- | -- |
| J1-46 | Shield_GND | Single | -- | J2-1 | Shield GND |
| J1-28
J1-27 |
RXD/TXD+
RXD/TXD-- |
Twisted pair no. 6 | <---
<--- |
J2-2
J2-9 |
Transmit+
Transmit-- |
| J1-1
J1-2 |
CTS/RTS+
CTS/RTS-- |
Twisted pair no. 1 | <---
<--- |
J2-3
J2-10 |
Control+
Control-- |
| J1-11
J1-12 |
TXD/RXD+
TXD/RXD-- |
Twisted pair no. 3 | --->
---> |
J2-4
J2-11 |
Receive+
Receive-- |
| J1-9
J1-10 |
RTS/CTS+
RTS/CTS-- |
Twisted pair no. 2 | --->
---> |
J2-5
J2-12 |
Indication+
Indication-- |
| J1-24
J1-23 |
TXC/RXC+
TXC/RXC-- |
Twisted pair no. 4 | --->
---> |
J2-6
J2-13 |
Timing+
Timing-- |
| J1-15
Shield |
Control_GND
-- |
Twisted pair no. 5 | --
-- |
J2-8
Shield |
Control GND
-- |
EIA-530 Dual Serial Module Cable Assembly
Figure B-9 shows the dual serial module EIA-530 cable assembly and Table B-18 lists the EIA-530 DTE serial cable pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.
Figure B-9 : Dual Serial Module EIA-530 Cable Assembly
Table B-18 : Dual Serial Module EIA-530 DTE Serial Cable Pinouts
| 72-0732-01 Connections | ||||
|---|---|---|---|---|
| 50 Pin | Signal Name | Direction | 25 Pin | Type |
| J1-5
J1--38 |
Looped | NC | Jumper | |
| J1-1
J1-34 |
TXD+
TXD-- |
--->
---> |
J2-2
J2-14 |
Twisted pair |
| J1-35
J1-19 |
RXD+
RXD-- |
<---
<--- |
J2-3
J2-16 |
Twisted pair |
| J1-4
J1-20 |
RTS+
RTS-- |
--->
---> |
J2-4
J2-19 |
Twisted pair |
| J1-6
J1-22 |
CTS+
CTS-- |
<---
<--- |
J2-5
J2-13 |
Twisted pair |
| J1-10
J1-26 |
RLSD+ (RR+)
RLSD-- (RR--) |
<---
<--- |
J2-8
J2-10 |
Twisted pair |
| J1-2
J1-18 |
SCT+
SCT-- |
<---
<--- |
J2-15
J2-12 |
Twisted pair |
| J1-37
J1-21 |
SCR+
SCR-- |
<---
<--- |
J2-17
J2-9 |
Twisted pair |
| J1-43
J1-27 |
SCTE+ (TT+)
SCTE-- (TT--) |
<---
<--- |
J2-24
J2-11 |
Twisted pair |
| J1-7 | LL | ---> | J2-18 | Twisted pair |
| J1-48
J1-36 |
Ground | J2-23
J2-7 |
Twisted pair | |
| J1-15 | Shield | J2-1 | Single wire | |
| J1-8
J1-24 |
DCE Ready
Ground |
<--- | J2-6
J2-23 |
Twisted pair |
| J1-41 | DTE Ready | ---> | J2-20 | Twisted pair |
EIA-530 Four-Port Serial Module Cable Assembly
Figure B-10 shows the four-port serial module EIA-530 cable assembly, and Table B-19 lists the pinouts. Arrows indicate signal direction: ---> indicates DTE to DCE, and <--- indicates DCE to DTE.
Figure B-10 : Four-Port Serial Module EIA-530 Cable Assembly
Table B-19 : Four-Port Serial EIA-530 DTE Cable Pinouts (DB-60 to DB-25)
|
60 Pin |
Signal Name |
25 Pin |
Signal Name |
Direction
DTE DCE1 |
|---|---|---|---|---|
| J1-11
J1-12 |
TXD/RXD+
TXD/RXD-- |
J2-2
J2-14 |
BA(A), TXD+
BA(B), TXD-- |
--->
---> |
| J1-28
J1-27 |
RXD/TXD+
RXD/TXD-- |
J2-3
J2-16 |
BB(A), RXD+
BB(B), RXD-- |
<---
<--- |
| J1-9
J1-10 |
RTS/CTS+
RTS/CTS-- |
J2-4
J2-19 |
CA(A), RTS+
CA(B), RTS-- |
--->
---> |
| J1-1
J1-2 |
CTS/RTS+
CTS/RTS-- |
J2-5
J2-13 |
CB(A), CTS+
CB(B), CTS-- |
<---
<--- |
| J1-3
J1-4 |
DSR/DTR+
DSR/DTR-- |
J2-6
J2-22 |
CC(A), DSR+
CC(B), DSR-- |
<---
<--- |
| J1-46
J1-47 |
Shield_GND
MODE_2 |
J2-1
-- |
Shield
-- |
Shorted |
| J1-48
J1-49 |
GND
MODE_1 |
--
-- |
--
-- |
Shorted |
| J1-5
J1-6 |
DCD/DCD+
DCD/DCD-- |
J2-8
J2-10 |
CF(A), DCD+
CF(B), DCD-- |
<---
<--- |
| J1-24
J1-23 |
TXC/RXC+
TXC/RXC-- |
J2-15
J2-12 |
DB(A), TXC+
DB(B), TXC-- |
<---
<--- |
| J1-26
J1-25 |
RXC/TXCE+
RXC/TXCE-- |
J2-17
J2-9 |
DD(A), RXC+
DD(B), RXC-- |
<---
<--- |
| J1-44
J1-45 |
LL/DCD
Circuit_GND |
J2-18
J2-7 |
LL
Circuit_ GND |
--->
-- |
| J1-7
J1-8 |
DTR/DSR+
DTR/DSR-- |
J2-20
J2-23 |
CD(A), DTR+
CD(B), DTR-- |
--->
---> |
| J1-13
J1-14 |
TXCE/TXC+
TXCE/TXC-- |
J2-24
J2-11 |
DA(A), TXCE+
DA(B), TXCE-- |
--->
---> |
| J1-51
J1-52 |
GND
MODE_DCE |
--
-- |
--
-- |
Shorted |
Table B-20 shows the signal pinouts for each type of E1-G.703/G.704 interface cable. All cables use a DB-15 connector at the G.703/G.704 network processor module end.
Table B-20 : E1-G.703/G.704 Adapter Cable Connector Pinouts
| E1-G.703/G.704 Network
Processor Module End |
Network End | |||||
|---|---|---|---|---|---|---|
|
DB-151 |
DB-15 |
Null Modem
DB-15 |
BNC |
Twinax |
||
| Pin | Signal2 | Pin | Pin | Signal | Pin | Signal |
| 9 | TX Tip | 1 | 3 | TX Tip | Tip | Signal |
| 2 | TX Ring | 9 | 11 | TX Shield | Ring | Signal |
| 10 | TX Shield | 2 | 4 | -- | Shield | Shield |
| 8 | RX Tip | 3 | 1 | RX Tip | Tip | Signal |
| 15 | RX Ring | 11 | 9 | RX Shield | Ring | Signal |
| 7 | RX Shield | 4 | 2 | -- | Shield | Shield |
The following figures and tables provide the pinouts and signal descriptions for the Ethernet (AUI) cable and RJ-45 connector.
Figure B-11 shows the Ethernet (AUI) cable assembly, and Table B-21 lists the pinouts.
Figure B-11 : Ethernet (AUI) Cable Assembly
Table B-21 : Ethernet (AUI) Pinouts
| Pin1 | Ethernet Circuit | Signal Name |
|---|---|---|
| 3 | DO-A | Data Out Circuit A |
| 10 | DO-B | Data Out Circuit B |
| 11 | DO-S | Data Out Circuit Shield |
| 5 | DI-A | Data In Circuit A |
| 12 | DI-B | Data In Circuit B |
| 4 | DI-S | Data In Circuit Shield |
| 7 | CO-A | Control Out Circuit A (not connected) |
| 15 | CO-B | Control Out Circuit B (not connected) |
| 8 | CO-S | Control Out Circuit Shield (not connected) |
| 2 | CI-A | Control In Circuit A |
| 9 | CI-B | Control In Circuit B |
| 1 | CI-S | Control In Circuit Shield |
| 6 | VC | Voltage Common |
| 13 | VP | Voltage Plus |
| 14 | VS | Voltage Shield (L25 and M25) |
| Shell | PG | Protective Ground |
RJ-45 10BaseT Connector Pinouts
Figure B-12 shows the RJ-45 10BaseT connector, and Table B-22 lists the pinouts.
Figure B-12 : RJ-45 10BaseT Connector
Table B-22 : RJ-45 C onnector Pinout
| Pin1 | Description |
|---|---|
| 1 | TX+ |
| 2 | TX-- |
| 3 | RX+ |
| 4 | -- |
| 5 | -- |
| 6 | RX-- |
| 7 | -- |
| 8 | -- |
Table B-23 shows the original single-port Token Ring network processor module (Cisco product number NP-1R) port pinouts.
Table B-23 : Token Ring Port Pinouts (DB-9 Connector)
| 9-Pin | Signal Name |
|---|---|
| 1 | RX-- |
| 2 | NC1 |
| 3 | NC |
| 4 | NC |
| 5 | TX-- |
| 6 | RX+ |
| 7 | NC |
| 8 | NC |
| 9 | TX+ |
Table B-24 shows the dual-port and newer single-port (Cisco product numbers NP-2R and NP-1RV2) Token Ring network processor module port pinouts:
Table B-24 : Dual-Port Token Ring Pinouts (DB-9 Connector)
| 9-Pin | Signal Name |
|---|---|
| 1 | RX-- |
| 2 | Ground |
| 3 | +5 Volt, fused |
| 4 | Ground |
| 5 | TX-- |
| 6 | +RX |
| 7 | Ground |
| 8 | Ground |
| 9 | +TX |
The BRI interface port pinouts are shown in Table B-25.
Table B-25 : BRI Port Pinouts (RJ-45)
| 8 Pin1 | TE2 | NT3 | Polarity |
|---|---|---|---|
| 3 | Transmit | Receive | + |
| 4 | Receive | Transmit | + |
| 5 | Receive | Transmit | -- |
| 6 | Transmit | Receive | -- |
For the CT1, two standard T1 serial cables are available from Cisco Systems: null-modem and straight-through. A straight-through cable connects your router to an external CSU. Null-modem cables are used for back-to-back operation and testing.
The cables have male 15-pin DB connectors at each end to connect the CT1with the external CSU.
The T1 interface cable has two 15-pin DB connectors at each end to connect the CT1with the external T1 CSU. Figure B-13 shows the T1 interface cable, connectors and pinouts.
The T1 interface cables have two, male, 15-pin DB connectors (one at each end) to connect the CT1 with the external CSU. Table B-26 lists the pinouts for the null-modem T1 cable and Table B-27 lists the pinouts for the straight-through T1 cable.
Figure B-13 : T1 Interface Cable
Table B-26 : T1 Null-Modem Cable Pinouts
Table B-27 : T1 Straight-Through Cable Pinouts
For the CE1 module, four serial cables are available from Cisco Systems. All three have DB-15 connectors on the CE1 end and either BNC, DB-15, twinax, or RJ-45 connectors on the network end. Figure B-14, Figure B-15, Figure B-16, and Figure B-17 show the E1 interface cables.
Figure B-14 : E1 Interface Cable for 75-Ohm, Unbalanced Connections (with BNC Connectors)
Figure B-15 : E1 Interface Cable for 120-Ohm, Balanced Connections (with DB-15 Connector)
Figure B-16 : E1 Interface Cable for 120-Ohm, Balanced Connections (with Twinax Connectors)
Figure B-17 : E1 Interface Cable for 120-Ohm, Balanced Connections (with RJ-45 Connector)
The E1 interface cables have two, male, 15-pin DB connectors (one at each end) to connect the CE1with the external CSU. Table B-28 lists the pinouts for the E1 interface cables available from Cisco Systems.
Table B-28 : E1 Interface Cable Pinouts
Copyright 1988-1996 © Cisco Systems Inc.
15-Pin DB Connector
15-Pin DB Connector
Signal
Pin
Pin
Signal
Transmit Tip
1
3
Receive Tip
Receive Tip
3
1
Transmit Tip
Transmit Ring
9
11
Receive Ring
Receive Ring
11
9
Transmit Ring
15-Pin DB Connector
15-Pin DB Connector
Signal
Pin
Pin
Signal
Transmit Tip
1
1
Transmit Tip
Transmit Ring
9
9
Transmit Ring
Receive Tip
3
3
Receive Tip
Receive Ring
11
11
Receive Ring
CE1 End
Network End
DB-151
BNC
DB-15
Twinax
RJ-45
Pin
Signal2
Signal
Pin
Signal
Pin
Signal
Pin
Signal
9
TX Tip
TX Tip
1
TX Tip
TX-1
TX Tip
1
TX Tip
2
TX Ring
TX Shield
9
TX Ring
TX-2
TX Ring
2
TX Ring
10
TX Shield
--
2
TX Shield
Shield
TX Shield
3
TX Shield
8
RX Tip
RX Tip
3
RX Tip
RX-1
RX Tip
4
RX Tip
15
RX Ring
RX Shield
11
RX Ring
RX-2
RX Ring
5
RX Ring
7
RX Shield
--
4
RX Shield
Shield
RX Shield
6
RX Shield
1 Any pins not described in this table are not connected.
2 TX = transmit. RX = receive.
