Configuring the Cisco 200 Software for Use in Windows

Step 1 Make sure your NET.CFG file correctly calls out the Ethernet_II Frame Type.

Use any text editor or word processor that can save files to DOS ASCII text, and open the NET.CFG file. Several Ethernet frame types appear following the line:

Link Driver CISCO200

For Cisco 200 software to function properly, the frame types list should conform with the following rules:

• Frame Ethernet_II should appear first.


• Frame Ethernet_II should be enabled (that is, it should not be commented out with a leading semicolon).


An example Ethernet_II Frame type setting appears below:

Link Driver CISCO200

Frame Ethernet_II

If your NET.CFG file matches the example, proceed to Step 2. If your NET.CFG file does not conform with this example, edit the NET.CFG file to match the example above, and save the file as DOS ASCII text.

Step 2 Edit your AUTOEXEC.BAT file to make sure it contains the following statements:

@CALL drive\path\directory\ CONNECT.BAT routername

C:\WINDOWS\SMARTDRV

PROMPT $P$G

PATH C:\WINDOWS;C:\DOS;C:\TOOLS;

PATH drive\path\directory\ ;%PATH%

SET TEMP=C:\TEMP

C:\DOS\DOSKEY

where

• drive\path\directory\ indicates the path to the CONNECT.BAT file. This will be the directory into which you installed the Cisco 200 software.


• routername is the name of the connecting router.


Step 3 The following line might have been added to the AUTOEXEC.BAT file during NetWare installation. If it appears in the AUTOEXEC.BAT file, remove it.

@CALL C:\NWCLIENT\STARTNET

Save the AUTOEXEC.BAT file as ASCII text.

Step 4 Edit your CONFIG.SYS file. Make sure it contains the following statement, which the NetWare Client software installation process should have placed there:

LASTDRIVE = Z

Step 5 Reboot the PC. This will bring up the ISDN connection and generate a call.

Step 6 Follow the procedures described in your NetWare documentation to log in to the file server.

Step 7 Start Windows 3.1 or Windows for Workgroups 3.11.

Windows will show the NetWare support logo, and display a new program group containing the NetWare User Tools. You can use this utility to log on to a file server, add or remove mappings, and capture print queues.

The basic configuration for Windows 3.x support is completed.

• If you were configuring for Windows 3.1, the configuration is complete. For information on using the Cisco 200 software, refer to the chapter "Using the Cisco 200."


• If you were configuring for Windows for Workgroups 3.11, your configuration might not be complete:


  • If you are not installing a Windows for Workgroups peer-to-peer system, the configuration is complete. If you created a temporary WFWT32 directory, you can delete the directory and all the files in it. For information on using the Cisco 200 software, refer to the chapter "Using the Cisco 200."


  • If you are installing a Windows for Workgroups peer-to-peer system or you want to share services with another Windows for Workgroups PC at the connecting router's location, proceed with the following section, "Windows for Workgroups 3.11 NDIS Support."


Windows for Workgroups 3.11 NDIS Support

This section provides the instructions for adding support for the Microsoft Network Driver Interface Specification (NDIS) when using Windows for Workgroups 3.11. NDIS is used for peer-to-peer connections or for sharing services with other Windows for Workgroups PCs at the connecting router site.

Before You Begin

Before you begin to configure your system for Windows for Workgroups 3.11 NDIS support, you should already have completed the "Editing Files for Windows 3.x Support" above and configured your system for Windows for Workgroups.

Enabling MAC Layer Bridging

If you want to establish a peer-to-peer connection, all connecting parties must have Media Access Control (MAC) Layer Bridging (MLB) enabled.

Check your ISDN.CFG file to make sure that MLB is enabled for NetBEUI traffic on both the sending and receiving PCs (there should be a semicolon at the beginning of the line).

; MLB     = DISABLE    ; To use MLB, comment out this line

                      ; by adding a leading semicolon to it

Bring up one Cisco 200 PC in listening mode and another in calling mode. To do this, use any text editor or word processor that can save files to DOS ASCII text to edit the CONNECT.BAT files of the two PCs. The ISDN200 lines read as follows:

• For the listening PC:


isdn200 -l

• For the calling PC:


isdn200 -c

See the chapter "Using the Cisco 200" for more information on ISDN200.CFG parameters and the CONNECT.BAT file.

NDIS Support Installation

To add NDIS support, follow this procedure:

Step 1 From the Program Manager, open the Network program group and double-click the Network Setup icon.

The Network Setup dialog box displays. See Figure 3-1.

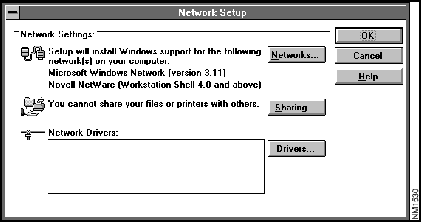

Figure 3-1 : Network Setup Dialog Box

Step 2 Click Networks.

The Networks dialog box displays. See Figure 3-2.

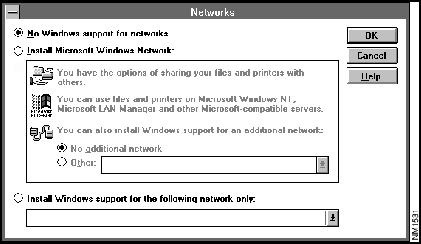

Figure 3-2 : Networks Dialog Box

Step 3 Click Install Microsoft Windows Network.

Step 4 Click Other.

Step 5 Using the drop-down list, scroll to the Novell NetWare (Workstation Shell 4.0 or above) option and click. See Figure 3-3.

Figure 3-3 : Networks Dialog Box: Installing Windows Support for an Additional Network

Step 6 Click OK.

The Network Setup dialog box displays. See Figure 3-1.

Adding Network Driver

Step 1 Click the Drivers button.

The Network Drivers dialog box displays. See Figure 3-4. No network driver will show as installed.

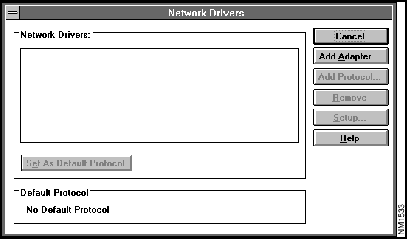

Figure 3-4 : Network Drivers Dialog Box

Step 2 Click Add Adapter.

The Add Network Adapter dialog box, which contains a list of available NDIS drivers, displays. See Figure 3-5.

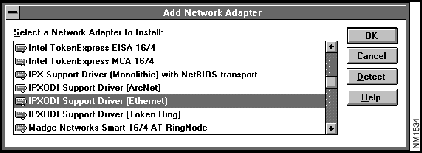

Figure 3-5 : Add Network Adapter Dialog Box

Step 3 Select the IPXODI Support Driver (Ethernet) option. This is the Microsoft ODI-to-NDIS converter.

Step 4 Click OK.

The Network Drivers dialog box displays. See Figure 3-6.

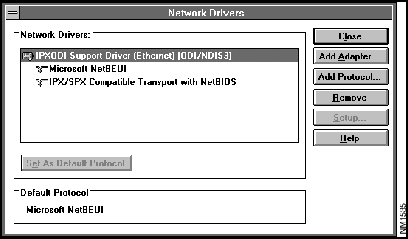

Figure 3-6 : Network Drivers Dialog Box

Step 5 Select the IPX/SPX Compatible Transport with NetBIOS option.

Step 6 The IPX/SPX Compatible Transport with NetBIOS emulates the native Novell NetWare IPX/SPX network protocol. To avoid a conflict between the two protocols, you should remove the IPX/SPX Compatible Transport with NetBIOS. Click Remove.

Adding TCP/IP

Step 1 Click the Add Protocol button.

The Add Network Protocol dialog box displays. See Figure 3-7.

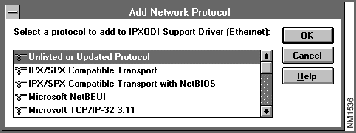

Figure 3-7 : Add Network Protocol Dialog Box

Step 2 To add TCP/IP, select the Microsoft TCP/IP-32 3.11a option from the list of available protocols.

If the Microsoft TCP/IP-32 3.11a option does not appear, proceed to Step 4.

Step 3 Click OK.

The Network Drivers dialog box displays. Proceed to the section "Configuring TCP/IP."

Step 4 Select the Unlisted or Updated Protocol option. See Figure 3-7.

Step 5 Enter the path to the temporary directory in which you expanded the WFWT32 file. See Figure 3-8.

Figure 3-8 : Install Driver Directory Dialog Box

Step 6 Click OK.

The Network Drivers Dialog Box displays.

Configuring TCP/IP

Step 1 Select the Microsoft TCP/IP-32 3.11a driver and click the Setup button. See Figure 3-9.

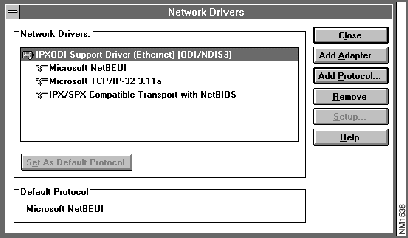

Figure 3-9 : Select the TCP/IP 32 3.11a Driver

The Microsoft TCP/IP Configuration dialog box displays. See Figure 3-10.

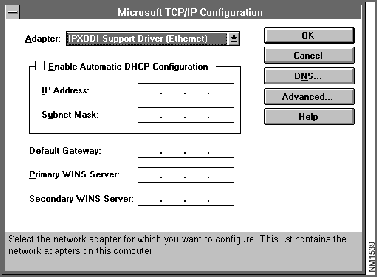

Figure 3-10 : Microsoft TCP/IP Configuration Dialog Box

Step 2 Specify your IP address, subnetwork mask, and connecting router (listed here as default gateway).

Step 3 Click OK. The Network Drivers dialog box displays.

Step 4 Click Close. The Network Setup dialog box displays.

Step 5 Click OK.

Windows will modify your WIN.INI, SYSTEM.INI, PROTOCOL.INI, AUTOEXEC.BAT, and NET.CFG files. Two dialog boxes appear. See Figure 3-11 and Figure 3-12.

Figure 3-11 : Windows Setup Dialog Boxes: Modified NET.CFG File

Step 6 Click OK.

Figure 3-12 : Windows Setup Dialog Boxes: Modified System Files

Step 7 Click OK.

Step 8 If you have previously installed these files, Windows for Workgroups will ask if you are sure you want to replace them. The Enhanced Protocol Warning dialog box displays. See Figure 3-13.

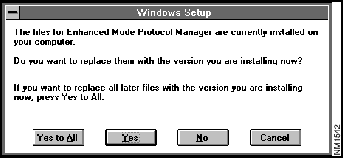

Figure 3-13 : Enhanced Protocol Warning Dialog Box

Step 9 Click No.

Windows for Workgroups will then ask if you want to restart your computer. See Figure 3-14.

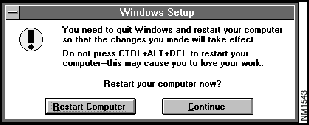

Figure 3-14 : Windows Setup: Restart Your Computer Dialog Box

Step 10 Do not restart your computer at this time. Click Continue and exit Windows for Workgroups in the normal way.

Editing System Configuration Files

Step 1 Using any text editor or word processor that can save files in DOS ASCII text format, edit your AUTOEXEC.BAT file. It should contain statements similar to the following:

C:\WINDOWS\NET START ; Delete this line

@@CALL C:\ directory \CONNECT routername

C:\WINDOWS\ODIHLP ; Delete this line

C:\WINDOWS\SMARTDRV

@@ECHO OFF

PROMPT $P$G

PATH C:\WINDOWS;C:\DOS;C:\TOOLS;

PATH C:\ directory \;%PATH%

SET TEMP=C:\TEMP

C:\DOS DOSKEY

Step 2 Delete the following line from your AUTOEXEC.BAT file:

C:\WINDOWS\ODIHLP

Step 3 When you have finished editing, save the AUTOEXEC.BAT file as ASCII text and exit the text editor or word processor.

Step 4 Edit the section in the CONNECT.BAT file in C:\directory to add or confirm the following statements:

drive:

CD \ path\directory

LH CAPI200

LH LSL

LH CISCO200

ISDN200 %1

IF ERRORLEVEL 1 GO TO UNLOAD

C:\WINDOWS\ODIHLP

LH IPXODI

VLM

LOGIN userid ; have a local "login.exe" file

where:

• drive is the driver letter of the directory directory. This statement is necessary only if the directory directory is not on the C: drive.


• path\directory is the path and name of the directory into which you installed both the Cisco 200 software and the NetWare Client software.


• routername is the name of the connecting router.


• userid is the name you were assigned to use when logging on to your file server.


ODIHLP allows 32-bit MS VxDs to get packets on the wire via LSL and the Cisco 200 ODI driver, but they can be displayed only if you have NDIS support installed.

Step 5 When you have finished editing, save the STARTNET.BAT file as DOS ASCII text and exit the text editor or word processor.

Step 6 Do not reboot now; return to DOS.

Step 7 Using any text editor or word processor that can save files in DOS ASCII text format, edit your NET.CFG file:

• Make sure that Ethernet_II is the first frame type for the "Cisco 200 Link Driver" section.


• Do not change the "Link Driver XXXX" section; leave Ethernet_II in the second position, as shown below:


Link Driver CISCO200

Frame Ethernet_II

Frame Ethernet_802.3

Frame Ethernet_802.2

Frame Ethernet_SNAP

NODE ADDRESS 801cc1234

Link Driver XXXX ; additional lines from WFWG

Frame Ethernet_802.3

Frame Ethernet_II

Frame Ethernet_802.2

Frame Ethernet_SNAP

If you do not see the second set of Ethernet Frame Types, reinstall starting from Step 1.

Step 8 Exit the NET.CFG file, saving any changes in DOS ASCII text format.

Step 9 Check your CONFIG.SYS file to make sure that Windows for Workgroups 3.11 has added the following statement:

DEVICE=C:\WINDOWS\IFSHLP.SYS

If this line does not appear in the CONFIG.SYS file, use any text editor or word processor that can save files in DOS ASCII text format to add the statement to the other device statements.

Step 10 Reboot the PC.

Step 11 Enter the following:

LOGIN userid

where userid is the name you were assigned to use when logging on to your file server.

Step 12 After the connection to the connecting router has been made, start Windows for Workgroups. Your network drives will display according to your mappings.

Step 13 You can now delete the temporary directory you created to install WFWT32 and its files.

What to Do Next

You have now completed configuring the Cisco 200 software to run in Windows 3.1 or Windows for Workgroups 3.11.

If you need to modify your Cisco 200 configuration---to add another connecting router for example---see the appendix "Modifying the Cisco 200 Configuration Files."

For information on using the Cisco 200, refer to the chapter "Using the Cisco 200."
