Access Servers

Access Servers

(See also "CiscoSecure Access Control Server Software", the next chapter)

Product Overview

Cisco access servers include the following products:

The Cisco 2500 access servers series represents Cisco's low-cost entry into the access server marketplace. This product family gives users the ability to connect asynchronous devices such as terminals, modems, router consoles, slot machines, etc. into a routed network. This product family also allows users to backhaul routed traffic through T1/E1 lines. The Cisco 2500 access server series consists of the following models:

The following software applications are used to allow Internet traffic to pass through access servers, use Internet applications, establish remote connections, manage modems, and control access to networks:

Standard Features


Table  10-47: Cisco Access Server Series Summary of Features
Characteristic Cisco AS5300 Universal
Access Server
Cisco AS5200 Universal
Access Server
Cisco AS5100 Access Server Cisco 2500 Access Server Series
Supported network interfaces Ethernet

T1/PRI and E1/PRI

Ethernet

Synchronous serial

T1/PRI and E1/PRI

Ethernet

Synchronous serial

Asynchronous serial

Ethernet

Synchronous serial

Asynchronous serial

Token Ring

Maximum asynchronous connections 120 60 48 8 or 16
Slots available for network interface cards 3 3 16 -
Software options--
Cisco IOS Release 11.21 and 11.3
IP

IP Plus

Desktop (IP/IPX/AppleTalk/DEC)

Desktop (IP/IPX/AppleTalk/DEC) Plus

Enterprise

Enterprise Plus

Enterprise/APPN Plus

IP

IP Plus/IBM

Desktop (IP/IPX/AppleTalk/DEC)

Desktop (IP/IPX/AppleTalk/DEC) Plus

Enterprise

Enterprise Plus

IP

IP Plus

IP Plus 40

IP Plus 56

Desktop (IP/IPX/AppleTalk/DEC)

Desktop (IP/IPX/AppleTalk/DEC) Plus

Desktop (IP/IPX/AppleTalk/DEC) Plus 40

Desktop (IP/IPX/AppleTalk/DEC) Plus 56

IP/APPN/Plus

IP/APPN/Plus 40

IP/APPN/Plus 56

Enterprise

Enterprise Plus

Enterprise Plus 40

Enterprise Plus 56

Enterprise/APPN Plus

Enterprise/APPN Plus 40

Enterprise/APPN Plus 56

IP

IP Plus

IP Plus 40

IP Plus 56

Desktop (IP/IPX/AppleTalk/DEC)

Desktop (IP/IPX/AppleTalk/DEC) Plus

Desktop (IP/IPX/AppleTalk/DEC) Plus 40

Desktop (IP/IPX/AppleTalk/DEC) Plus 56

IP/APPN/Plus

IP/APPN/Plus 40

IP/APPN/Plus 56

Enterprise

Enterprise Plus

Enterprise Plus 40

Enterprise Plus 56

Enterprise/APPN Plus

Enterprise/APPN Plus 40

Enterprise/APPN Plus 56

Software options--
Cisco IOS Release 11.1 and 11.02
IP Routing

IP/IPX Routing

Desktop

Enterprise/RMON4

IP Routing

IP Routing with IBM base functionality

IP/IPX Routing

IP/IPX Routing with IBM base functionality

Desktop

Desktop with IBM base functionality

Enterprise (includes IBM base functionality)

Remote Access Server

RMON4

IP Routing

IP Routing with IBM base functionality

IP/IPX Routing

IP/IPX Routing with IBM base functionality

IP/IPX with IBM base functionality and APPN3

Desktop

Desktop with IBM base functionality

Enterprise (includes IBM base functionality)

Enterprise/APPN3

Remote Access Server

RMON4

Flash memory 4-MB boot Flash

16-MB system Flash

8-MB boot Flash

16-MB system Flash

Minimum of 4 MB of Flash memory; however, depending on the Cisco IOS release level shipped with the system, it might require more memory. Refer to Table 10-59, later in this chapter, for the minimum Flash memory required for each feature set.5 Each access server card (AS51-16A-E) has one Flash SIMM socket; Cisco 2500 access server series have two Flash SIMM sockets. Minimum of 4 MB of Flash memory; however, depending on the Cisco IOS release level shipped with the system, it might require more memory. Refer to Table 10-59, later in this chapter, for the minimum Flash memory required for each feature set.
Memory expandability 16 MB Packet memory

32 MB Main memory6

16 MB Packet memory

16 MB Main memory

Minimum DRAM required by the Cisco IOS release level shipped with the system. Refer to Table 10-59, later in this chapter, for the minimum DRAM required for each feature set.5 Minimum DRAM required by the Cisco IOS release level shipped with the system. Refer to Table 10-59, later in this chapter, for the minimum DRAM required for each feature set.
Dimensions
(H x W x D)
3.5 x 17.5 x 18.25 in. (8.89 x 44.45 x 46.36 cm)

3.5 x 17 x 15 in.
(two rack units)
8.89 x 43.18 x 38.10 cm)
7 x 19 x 18.5 in.
(17.78 x 48.26 x 47.21 cm)
1.75 x 17.5 x 10.5 in.
(4.44 x 44.45 x 26.82 cm)
Weight
(average shipping)
32 lb maximum (14.5 kg)

25 lb (11.4 kg) 54.5 lb (24.4 kg) 10 lb (4.5 kg)
Standard components Power supply and cord

Console cable

Power supply and cord

Console cable

2 RJ-48 cables

Power supply and cord

Console cable

RJ-45-to-DB-25 adapter

Rack-mount /wall-mount kit

Power supply and cord

Console cable

EasyACS software

RJ-45-to-DB-25 and RJ-45-to-DB-9 adapters

AS2509-RJ and AS2511-RJ come with a full complement of modem-ready RJ-45-to-DB25 asynchronous cables

Rack-mount /wall-mount kit

Processor type 150 MHz R4700 20-MHz 68030 20-MHz 68030 20-MHz 68030

1 The AS2509-RJ and AS2511-RJ are supported by Cisco IOS Release 11.2 and later releases.
2 The AS5200 is supported by Cisco IOS Release 11.1 and later releases. It is not supported by Cisco IOS Release 11.0.
3 This feature set is available with Cisco IOS Release 11.0 and later releases.
4 This feature set is available with Cisco IOS Release 11.1 and later releases.
5 There are three access server cards (AS51-16A-E) in each fully configured chassis. DRAM and Flash memory are required for each of the three cards.
6 The AS5300's default memory configuration will accommodate all IOS images


Table  10-48: Cisco Access Server Series Environmental Specifications
Description Cisco AS5300 Universal Access Server Cisco AS5200 Universal Access Server Cisco AS5100 Access Server Cisco 2500 Access Server Series
Power 400W (maximum)
(1365 Btu/hour),
3A AC or 9A DC
180W (maximum),
514 Btu/hour
Input:

Maximum: 475W
(1621 Btu/hour), 4A (AC) or 9.9A (DC)

Typical1: 325W
(1105 Btu/hour),
2.7A (AC) or 6.8A (DC)

Output:

325W

+5V, 45A

-5V, 2A

+12V, 3.5A

-12V, 3.5A

40W (135.5 Btu2/hour)
AC Input 100 to 240 VAC

50 to 60 Hz

1.5 to 3.0A

100 to 240 VAC

50 to 60 Hz

1.5 to 3.0A

Strap selectable:

120V (90 to 132 VAC), 47 to 63 Hz or

240V (180 to 264 VAC), 47 to 63 Hz

110 to 220 VAC3

50 to 60 Hz

1.0 to 0.5A

DC Input -48 VDC (-48 to -60 VDC) -48 VDC (-48 to -60 VDC) -48 VDC (-42 to -60 VDC) -48 VDC4 (Cisco 2509-DC and Cisco 2511-DC only)
Operating temperature range 32 to 104°F (0 to 40°C) 32 to 104°F (0 to 40°C) 32 to 104°F (0 to 40°C) 32 to 104°F (0 to 40°C)

-4 to 145°F (-20 to 63°C) (Cisco 2509-ET, available in U.S. only)

Nonoperating temperature range -40 to 185°F (-40 to 85°C) -4 to 149°F (-20 to 65°C) -40 to 185°F (-40 to 85°C) -40 to 185°F (-40 to 85°C)
Humidity (noncondensing) 5 to 95%

5 to 95% 0 to 95% 5 to 95%

1 Configured with a T1 card, NMC, 3 AS51 cards, and 12 V.34 quad modem cards.
2 Btu = British thermal unit.
3 VAC = volts alternating current.
4 VDC = volts direct current.

Interface Options


Table 10-49: Cisco Access Server Interfaces
Model Ethernet Token Ring Serial Asynchronous T1/PRI E1/PRI
Cisco 2509 1 0 2 8 0
AS2509-RJ 1 0 1 8 0
Cisco 2511 1 0 2 16 0
AS2511-RJ 1 0 1 16 0
Cisco 2512 0 1 2 16 0
AS5100 3 0 3 481 0
AS5200 1 0 2 0 2
AS5300 2 0 0 0 4

1 You can choose between 48 individual basic telephone service connections or two channelized T1 connections.

Hardware

Cisco AS5300 Universal Access Server

The Cisco AS5300 universal access server is a versatile data communications platform that provides the functions of an access server, router, and digital modems in a single modular chassis. The access server is intended for Internet service providers (ISPs), telecommunications carriers, and other service providers that offer managed Internet connections, as well as medium- to large-sized sites that provide both digital and analog access to users on an enterprise network. By terminating both analog and digital calls on the same chassis simultaneously, the access server provides you with a clear, simple, and easy migration path from today's analog dial access services to tomorrow's digital dial access services.

System Components

The access server consists of the following components:

Figure 10-78 and Figure 10-79 show the front and rear panels of the Cisco AS5300 universal access server.

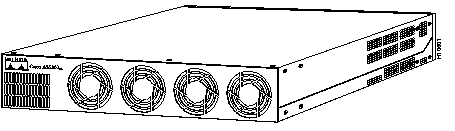

Figure 10-78: Cisco AS5300 Front View

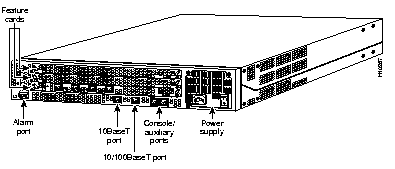

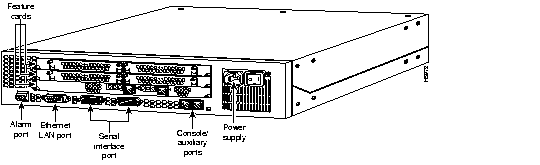

Figure 10-79:
Cisco AS 5300 Rear View



Feature Cards

The access server includes three slots (see Figure 10-79Figure 10-79) in which you can install a combination of feature cards.

In any one slot you can install your choice of:

In the remaining two slots you can install your choice of:

Quad T1/PRI Card

You can install a quad T1/PRI card (Figure 10-80) in any unpopulated slot of the access server chassis.

The quad T1/PRI card includes four RJ-45 ports. Cables are not included with the card.

A 10-position rotary switch allows the user to chose which of the four ports is selected for monitoring through the bantam jacks (TXMON, TXIN, TXOUT and RXMON, RXIN, RXOUT).


Figure 10-80: Quad T1/PRI Card



Quad E1/PRI Card

You can install a quad E1/PRI card (Figure 10-81) in any slot of the access server chassis.

The quad E1/PRI card includes four RJ-45 ports for terminating 120-ohm balanced lines or 75-ohm unbalanced lines. Cables are not included with the card.

A 10-position rotary switch allows the user to chose the number of ports that are terminated as 75-ohm unbalanced lines. Jumper settings on the card can be used to configure the 75-ohm unbalanced ports so the receive shield is connected to ground.


Figure 10-81: Quad E1/PRI Card



MICA Carrier Card

You can install up to two MICA carrier cards () in any slot of the access server chassis. Each MICA carrier card includes 10 slots in which you can install 6-port modem modules. Each 6-port module includes 6 modems. Therefore, in a fully populated MICA carrier card, you can have up to 60 modems. Or, in a fully populated access server chassis, you can have up to 120 modems.

You must install the 6-port modem modules in the MICA carrier card. The 6-port modules cannot be used as stand-alone cards and they cannot be installed in Microcom carrier cards.


Figure 10-82:
MICA Carrier Card



6-Port MICA Modem Modules

Utilizing Cisco's breakthrough MICA DSP technology, network managers are assured of the highest performing, highest flexibility, standards compliant access platform for today and tomorrow. Future technologies and enhancements, such as ITU 56k, are easily implemented via a simple software upgrade. In addition, future software enhancements will provide functionality beyond simple modem call termination.

These DSPs are incorporated into the MICA 6-Port modem module. As outlined above in the carrier card section, these modem modules are configured with a carrier card for a total of 60 ports per carrier card, with a maximum of two carrier cards per chassis.

The Cisco AS5300 provides complete centrally managed modem capabilities, key requirements for service providers and enterprises building large dial-in pools. The modems can be managed via the same tools used to manage the rest of the network, providing network managers with one solution at a central management point. Cisco provides extensive modem management that no other vendor of access servers on the market provides. This includes the ability to directly access the modem at anytime (including when the modem is connected and on-line) to capture statistics, force a reset or check a modem's configuration. To take advantage of this modem management feature, customers must purchase an IOS "Plus" image as well as a Modem Management Technology License for the appropriate number of modems.


Figure 10-83: Cisco AS5300 MICA Carrier Card with 6-Port Modem Modules



Microcom Carrier Card

You can install up to two Microcom carrier cards (Figure 10-84) in any two slots of the access server chassis. Each Microcom carrier card includes two slots in which you can install two 12-port modem modules, as described below.


Note The 12-port modem modules can also be used in the Cisco AS5200 universal access server. The modular design of the Cisco AS5300 universal access server allows you to use those cards you may have already purchased for use with the Cisco AS5200 universal access server.

The modules connect through the Microcom carrier card and the system backplane to a quad T1/PRI or quad E1/PRI card installed in the access server chassis. Data is transmitted or received on T1 or E1 lines connected to the quad T1/PRI or quad E1/PRI card and then routed to the 12-port modules installed in the Microcom carrier card.


Figure 10-84: Microcom Carrier Card FacePlate

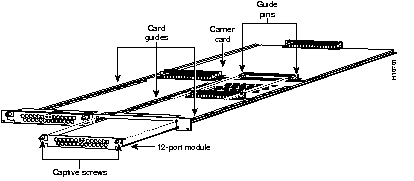

Figure 10-85: Microcom Carrier Card with 12-Port Card



12-Port Microcom Modem Modules

The access server supports up to 4 of the following 12-port modules:

56K 12-port modem module, see Figure 10-86

Note You must install the 12-port modules in the Microcom carrier card. The 12-port modules cannot be used as stand-alone cards and they cannot be installed in MICA carrier cards The 12-port modem modules are not included unless specified in your order. You can order the modem modules separately as spares.

Figure 10-86:
56K 12-Port Modem Module



Power Supply

Either an AC or DC power supply is available. The power supply provides DC power to the installed feature cards via connectors on the backplane.

The internal power supply is a four-output switching power supply with power factor correction and regulated outputs.

Management

The AS5300 is managed via the easy to use CiscoView Application. Using a point-and-click Graphical User Interface, Network Managers can monitor the real-time performance and call status of their Universal Access Server. Multiple displays, including a physical and logical view, provide in-progress call status information for both ISDN and Analog K56-Flex Modem calls, PRI, Channelized Line and Ethernet interface statistics.

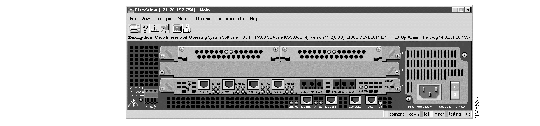

Figure 10-87: CiscoView Management Application Screen Shot



Useful administrative tools, including the ability to capture individual caller statistics and information such as IP address per port, remote phone number, etc. are quickly monitored and reported via easily accessible call-information screens.

Cisco AS5300 Universal Access Server Product Numbers

Product numbers for the Cisco AS5300 are provided in Table 10-50.


Table 10-50: Cisco AS5300 Product Numbers=
Description Part Number
Ethernet Base Chassis AS5300
AC power option AS53-AC-PWR
DC power option AS53-DC-PWR
Quad T1/PRI Card AS53-4CT1
Quad E1/PRI Card-Balanced/Unbalanced AS53-4CE1
Microcom Carrier Card AS53-MCC
MICA Carrier Card AS53-MICA-CC
Microcom K56 12-Port Modem Module (For use with Microcom Carrier Card) AS53-12-M-56K
MICA 6-Port Modem Module (For use with MICA Carrier Card) AS53-MICA-6MOD
MICA Carrier Card, 48 Modems AS53-48-C
MICA Carrier Card, 54 Modems AS53-54-C
MICA Carrier Card, 60 Modems AS53-60-C
48 digital modems, one MICA Carrier Card and one 4xT1/PRI carrier card AS53-T1-48DM
60 digital modems one MICA Carrier Card and one 4xE1/PRI carrier card AS53-E1-60DM
96 digital modems 2 MICA Carrier Cards and one 4xT1/PRI carrier card AS53-T1-96DM
108 digital modems 2 MICA Carrier Cards and one 4xT1/PRI card AS53-T1-108DM
120 digital modems 2 MICA Carrier Cards and one 4xE1/PRI card AS53-E1-120DM
AS5300 System Flash Upgrade (from 16 MB to 32 MB) MEM-32F-AS53
AS5300 Main DRAM Upgrade (from 32 MB to 64 MB) MEM-64M-AS53
AS5300 Boot Flash Upgrade (from 4 MB to 8 MB) MEM-8BF-AS53
AS5300 System Flash Upgrade (from 16 MB to 32 MB), spare MEM-32F-AS53=
AS5300 Main DRAM Upgrade (from 32 MB to 64 MB), spare MEM-64M-AS53=
AS5300 Boot Flash Upgrade (from 4 MB to 8 MB), spare MEM-8BF-AS53=
T1 Cable RJ45 to DB15 CAB-T1-RJ45DB15
T1 Cable RJ45 to DB15 Null CAB-T1-RJ45DB15N
E1 Cable RJ45 to dual BNC (unbalanced) CAB-E1-RJ45BNC
E1 Cable RJ45 to Twinax (balanced) CAB-E1-RJ45TWIN
T1 Cable RJ45 to RJ45 TE CAB-T1-RJ45TE
T1 Cable RJ45 to RJ45 NT CAB-T1-RJ45NT
T1 Cable RJ45 to RJ45 CAB-T1-RJ45
T1 Cable RJ45 to RJ45 Bare CAB-T1-RJ45Bare
Power Cord, 110V CAB-AC
Power Cord Europe CAB-ACE
Power Cord Italian CAB-ACI
Power Cord UK CAB-ACU
Plug, Power Cord,Australian,10A CAB-ACA
Quad T1/PRI Card, spare AS53-4CT1=
Quad E1/PRI Card-Balanced/Unbalanced, spare AS53-4CE1=
Microcom K56 12-Port Modem Module, spare AS53-12-M-56K=
MICA Carrier Card, spare AS53-MICA-CC=
Microcom Carrier Card, spare AS53-MCC=
MICA 6-Port Modem Module, spare MICA-6MOD=
AS5300 Large Blank For MCC Carrier Card AS53-BLANK
AS5300 Modem Blank AS53M-BLANK
AS5300 Large Blank For MCC Carrier Card, spare AS53-BLANK=
AS5300 Modem Blank, spare AS53M-BLANK=
19 Inch Rack Mount Kit for AS5300 AS5300RM-19=
24 Inch Rack Mount Kit for AS5300 AS5300RM-24=
AS5300 AC Power Supply (350W), spare AS53-AC-PWR=
AS5300 DC Power Supply (350W), spare AS53-DC-PWR=
T1 Cable RJ45 to DB15, spare CAB-T1-RJ45DB15=
T1 Cable RJ45 to DB15 Null, spare CAB-T1-RJ45DB15N=
E1 Cable RJ45 to dual BNC (unbalanced), spare CAB-E1-RJ45BNC
E1 Cable RJ45 to Twinax (balanced), spare CAB-E1-RJ45TWIN=
T1 Cable RJ45 to RJ45 TE, spare CAB-T1-RJ45TE=
T1 Cable RJ45 to RJ45 NT, spare CAB-T1-RJ45NT=
T1 Cable RJ45 to RJ45, spare CAB-T1-RJ45=
T1 Cable RJ45 to RJ45 Bare, spare CAB-T1-RJ45Bare=
Cisco AS5300 48-Modem Management Technology License FR53-MMTL-48
Cisco AS5300 54-Modem Management Technology License FR53-MMTL-54
Cisco AS5300 60-Modem Management Technology License FR53-MMTL-60
Cisco AS5300 96-Modem Management Technology License FR53-MMTL-96
Cisco AS5300 120-Modem Management Technology License FR53-MMTL-120
Cisco AS5300 48-Modem Management Technology License, spare FR53-MMTL-48=
Cisco AS5300 54-Modem Management Technology License, spare FR53-MMTL-54=
Cisco AS5300 60-Modem Management Technology License, spare FR53-MMTL-60=
Cisco AS5300 96-Modem Management Technology License, spare FR53-MMTL-96=
Cisco AS5300 120-Modem Management Technology License, spare FR53-MMTL-120=
AS5300 Series Enterprise Feature Set SF53A-11.2.X
AS5300 Series Desktop Feature Set SF53B-11.2.X
AS5300 Series IP-Only Feature Set SF53C-11.2.X
AS5300 Series Enterprise-Plus Feature Set SF53AP-11.2.X
AS5300 Series Desktop-Plus Feature Set SF53BP-11.2.X
AS5300 Series IP-Plus Feature Set SF53CP-11.2.X

For Cisco IOS Feature Set information, please refer to the Cisco AS5300 web page on Cisco Connection On-line at http://www.cisco.com

Cisco AS5200 Universal Access Server

The Cisco AS5200 universal access server (see Figure 10-88) is a versatile data communications platform that provides the functions of an access server, a router, and digital modems in a single modular chassis. The Cisco AS5200 is intended for Internet service providers (ISPs), telecommunications carriers, and other providers that offer managed Internet connections, as well as small- to medium-sized sites that provide both digital and analog access to users on an enterprise network. By terminating both analog and digital calls in the same chassis simultaneously, the Cisco AS5200 provides you with a clear, simple, and easy migration path from today's predominantly analog dial-in services to tomorrow's digital dial-in services. Furthermore, the AS5200 can be deployed in Global Systems for Mobile Telecommunications (GSM) cellular environments to provide remote access to mobile users.


Figure 10-88: Cisco AS5200 Universal Access Server Rear View



Cisco AS5200 Universal Access Server Summary of Benefits

The unique combination of Cisco IOS software and the Cisco AS5200 universal access server mixed-media platform results in a host of benefits for network managers.

Universal Access

The Cisco AS5200 universal access server is the first product in an entire line of universal access solutions offered by Cisco Systems. Universal access is more than just providing connections from ISDN or asynchronous modems; it is also the ability to perform the following:

The Cisco AS5200 universal access server provides universal access via a single chassis for small- to medium-sized dial-in sites, and access to larger sites via logically stacked chassis. This access allows you to save money by using the same trunk line for both asynchronous and ISDN calls, which reduces the number of system components and operational costs. The latest hardware option (V.110 Port Module) allows mobile users to access the corporate network or the Internet through GSM cellular networks.

The Cisco AS5200 universal access server also supports the widest array of networking and routing protocols available in the industry. Not only does the Cisco AS5200 universal access server support remote node and remote LAN dial-in protocols, but it also supports all Cisco IOS software routing protocols.

Scalability

The scalability and manageability of a network are a concern for all network managers. With Cisco IOS Software Release 11.2, the Cisco AS5200 universal access server will support call aggregation among multiple chassis. Using multichassis multilink PPP, Cisco Systems has developed the means to aggregate multiple calls terminated on multiple servers. Network managers will have the ability to stack multiple AS5200 universal access servers for high-density applications.

Another important feature of scalability is managing the components of a growing network. The Cisco AS5200 universal access server supports both the command-line interface and the CiscoWorks GUI. Network managers can collect statistics from the modems, upgrade your modem software, group modems for configuration, soft- or hard-busy-out modems, and even monitor call-in-progress signals from individual modems, all from the same platform they already use to manage their routers.

Virtual Provide Dial-up Networks

The Cisco AS5200 complements Cisco IOS Virtual Provide Dial-up Network (VPDN) features to provide substantial cost savings to enterprise and small/medium businesses by eliminating the need for expensive private leased lines. Customers can also benefit by outsourcing non-strategic activities while maintaining security and control. Service providers may also benefit by leveraging the existing infrastructure to generate additional revenue opportunities. Furthermore, since remote access calls are terminated locally, they also reduce the amount of telephony switching capacity consumed by RBOCs, carriers, or PTTs (dial off-load).

Security

Cisco IOS software provides tight security in the core network, and with the Cisco AS5200 universal access server, extends that core security to mixed-media dial-in sites. Some of the features supported by Cisco IOS software are access lists, violation logging, Terminal Access Controller Access Control System (TACACS+), and Remote Access Dial-in User Service (RADIUS).

WAN Optimization

Cisco IOS software offers a wide array of WAN optimization features, including compression, routing filters, snapshot, bandwidth-on-demand, and dial-on-demand routing. These features help control WAN costs--the largest single cost of operating an internetwork.

Compatibility

In multibox, multivendor installations, incompatibility is an issue. Because the Cisco AS5200 universal access server combines the CSU, modems, routers, and access server components in one chassis, you get seamless interoperability among its integrated components. Fewer individual pieces of equipment reduce configuration and incompatibility issues.

Cisco AS5200 Universal Access Server Port Modules

The following cards and port modules are available for the Cisco AS5200 universal access server.

Dual T1/PRI and E1/PRI Card

Each Cisco AS5200 universal access server must have one dual T1/PRI or E1/PRI card installed in the chassis. The system does not support more than one of these cards. These cards provide the channelized interface necessary to handle digital and analog calls that are terminated in the unit.


Note The E1 card only supports ISDN. Channelized services are provided via an external converter, which can be ordered separately at no charge.

The T1 card is software switchable between channelized T1 and ISDN PRI. You can configure the T1 card so that both ports are channelized T1, both ports are ISDN PRI, or one port is channelized T1 and one port is ISDN PRI.

If you configure the T1/PRI or E1/PRI card to support ISDN PRI, it can terminate analog modem calls, GSM cellular data calls, and ISDN BRI calls on the same PRI span. Based on ISDN Q.931 call bearer information, Cisco IOS software routes calls to the appropriate port module for termination. For example, analog calls are terminated by the modem modules, GSM calls are serviced by the V.110 Terminal Adapter (TA) modules, and ISDN calls are sent to the PPP termination engine. This flexibility allows providing one telephone number to users for analog, GSM, and ISDN data calls

Carrier Card

The carrier card can hold up to two 12-port modules. You can configure a Cisco AS5200 universal access server to support up to two carrier cards. If you order a Cisco AS5200 universal access server with a T1/PRI card with modems or TA option, it must have one carrier card for each two port modules ordered. If you order a Cisco AS5200 universal access server with an E1/PRI card with modem or TA option, a single port module can be plugged directly into the E1 card, which provides an extra port module slot. This enables a Cisco AS5200 universal access server with an E1/PRI card to support up to 60 modems or 60 V.110 TAs, whereas a Cisco AS5200 universal access server with a T1/PRI card can support up to 48 modems or 48 V.110 TAs.


Note A port module must be ordered separately when you order an E1/PRI.
Microcom 12-Port Modem Module

The Microcom 12-port modem module supports Rockwell's K56Flex technology. Each modem module contains 12 modems. These modems are Flash based, so you can upgrade their microcode remotely. You can order up to two of these modules with a carrier card. Modems can be upgraded via software from basic modem configuration to a managed modem configuration. Managed modems support real-time call-in-progress monitoring. Microcom 12-port modem modules are software upgradable to final K56 standard.

The following conditions apply to the 56K modules:

V.110 12-port Terminal Adapter Module

The V.110 12-port module includes onboard terminal adapters that can terminate up to 12 V.110 bit rate adapted digital calls. Bit rate adaption protocols map the PC communications port speed to the faster data rate (64000 bps) of Integrated Services Digital Network (ISDN) B channels. The V.110 module supports a maximum data rate of 19200 bps on all ports simultaneously.

Cisco AS5200 Universal Access Server Product Numbers

Table 10-51 lists the product numbers for the Cisco AS5200 universal access server.


Table 10-51: Cisco AS5200 Universal Access Server Product Numbers
Description Product Number
Base Systems
Ethernet AS5200 chassis with AC power supply AS5201
Ethernet AS5200 chassis with DC power supply AS5201-DC
Feature Cards and Modems
Dual T1/PRI card AS52-2CT1
Dual E1/PRI card, unbalanced AS52-2E1-U
Dual E1/PRI card, balanced AS52-2E1-B
60-channel E1 (R2) converter kit, unbalanced, DC AS52-2E1R2-UDC-60
60-channel E1 (R2) converter kit, balanced, DC AS52-2E1R2-BDC-60
60-channel E1 (R2) converter kit, unbalanced, AC AS52-2E1R2-UAC-60
60-channel E1 (R2) converter kit, balanced, AC AS52-2E1R2-BAC-60
Anadigicom line card kit, unbalanced AS52-2E1R2-ULC-60
Anadigicom line card kit, balanced AS52-2E1R2-BLC-60
Modem carrier card AS52-MC1
Microcom 56K 12-port module AS52-12-M-56K
Carrier card and two 56K modem modules AS52-24B-M-56K
V.110 terminal adapter 12-port module AS52-12-TA-V110
Bundled Systems
AS5201 base system, 48 modems (56K), dual T1, AC power supply AS5248-56K
AS5201-DC base system, 48 modems (56K), dual T1, DC power supply AS5248-56K-DC
AS5201 base system, 60 modems (56K), dual ISDN E1, AC power supply AS5260-56K
AS5201-DC base system, 60 modems (56K), dual ISDN E1, DC power supply AS5260-56K-DC
AS5201 base system, 60 modems (56K), dual E1, AC power supply, converter kit AS5260-R2E1-56K
AS5201-DC base system, 60 modems (56K), dual E1, DC power supply,
converter kit
AS5260-R2E1-56K-DC
AS5201 base system, 24 modems (56K), dual T1, AC power supply AS5224-56K
AS5201-DC base system, 24 modems (56K), dual T1, DC power supply AS5224-56K-DC
AS5201 base system, 36 modems (56K), dual E1, AC power supply AS5236-56K
AS5201-DC base system, 36 modems (56K), dual E1, DC power supply AS5236-56K-DC
AS5201 base system, 36 modems (56K), dual E1, AC power supply, converter kit AS5236-R2E1-56K
AS5201-DC base system, 36 modems (56K), dual E1, DC power supply,
converter kit
AS5236-R2E1-56K-DC
Cisco AS5200 V.110 Bundled Systems
AS5201 base system, 48 V.110 terminal adapters, dual T1, AC power supply AS5248-V110
AS5201-DC base system, 48 V.110 terminal adapters, dual T1, DC power supply AS5248-V110-DC
AS5201 base system, 60 V.110 terminal adapters, dual E1, AC power supply AS5260-V110
AS5201-DC base system, 60 V.110 terminal adapters, dual E1, DC power supply AS5260-V110-DC
Memory Options
Shared DRAM upgrade (4 MB to 8 MB) MEM-8S-52
Shared DRAM upgrade (4 MB to 16 MB) MEM-16S-52
Main DRAM upgrade (8 MB to 16 MB) MEM-16M-52
Boot Flash upgrade (4 MB to 8 MB) MEM-8BF-52
System Flash upgrade, dual bank (8 MB to 16 MB) MEM-1X16-AS52
Technology Licenses
5200 24-modem management technology license FR52-MMTL-24
5200 48-modem management technology license FR52-MMTL-48
5200 60-modem management technology license FR52-MMTL-60
Technology License Upgrades
5200 Upgrade 24-modem management technology license to 48 FR52-MMTL-24/48
5200 Upgrade 48-modem management technology license to 60 FR52-MMTL-48/60
Maintenance
SMARTnet for AS5200 universal access server CON-SNT-AS5200

Note: Ordering Cisco IOS feature set "PLUS" is required for Modem Management Technology licenses.

Cisco AS5100 Access Server

The Cisco AS5100 access server (see Figure 10-89) is a versatile data communications platform that combines in one chassis the functions of a Cisco access server with analog and digital modems, CSUs, and T1 channel banks.

The Cisco AS5100 access server provides the greatest benefit for organizations that need to centralize processing capabilities for remote offices and LANs. It enables organizations to aggregate their modem traffic onto analog or digital telephone lines and route it through the Public Switched Telephone Network (PSTN).

The Cisco AS5100 access server is optimized for high-speed modem access and is ideally suited for all traditional dial-up applications, such as access to a host, electronic mail, file transfer, and dial-in access to a LAN.

The Cisco AS5100 access server is available with Quad V.34 modems that connect at rates up to 33.6 kbps. These modems are available as digital, analog, or analog/digital.

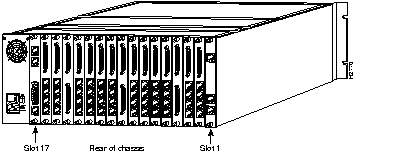

Figure 10-89: Cisco AS5100 Access Server Rear View



The Cisco AS5100 access server consists of the following components:

Chassis/Chassis Midplane

The Cisco AS5100 access server is built around a three-bus chassis that can be managed by optional SNMP management software.

The midplane design supports a wide array of NACs and NICs that can be configured and installed in the chassis to meet diverse connectivity needs. The chassis provides 17 connectors in front for NACs, and 17 connectors in the rear for NICs. All NACs and most NICs can support hot-swapping, which allows you to insert and remove cards while the power is on.

Power Supply

Optional AC or DC-powered chassis are available. DC power is supplied to the installed NICs and NACs via connectors in the midplane. All configured chassis include two power supplies. One unit provides sufficient power to a fully loaded chassis, and the second provides full redundancy.

T1 Cards

The T1 NIC provides a four-wire T1 interface to the Cisco  AS5100 access server, and the T1 NAC provides mapping of individual DS-0s to the quad modem NACs across the Time Division Multiplexer (TDM) bus.

The T1 NIC is available as a dual-trunk version, which handles up to 48 DS-0 channels from two trunks. Each channel carries either a pulse code modulation (PCM)-encoded voice channel or digital data. The T1 NAC supports 64-kbps clear channel operation for data channels, and supports Feature Group B for voice channels. Again, each of the DS-0 channels connect to other NACs via the midplane.

The T1 NIC provides RJ-48 connectors to terminate the trunks. It also provides an RJ-45 connector for the EIA/TIA-232 interface port. The T1 NIC performs all CSU functions including auto equalization and auto gain functions to support 6000 feet of 24-gage shielded cable. This card complies with all Bellcore standards relating to T1 alarms, loopbacks, error detection, and so forth. The T1 NIC is compatible with an external CSU if desired, and provides a serial interface to the T1 NAC.

The T1 NAC allows you to use dial number identification string (DNIS) and automatic number identification (ANI) information provided by the public 950 services, Feature Groups B and D, and enhanced 800 services to route data. Using this call information, the Cisco AS5100 access server chassis can independently configure the specific modems according to the dialed number requirements.

The T1 cards support the following features:

Management Cards

The network management NAC and NIC cards act as proxy agents for the T1 and modem cards in the chassis. The NAC and NIC cards communicate with the T1 and modem cards over a dedicated management bus on the midplane. An SNMP console communicates with the management cards via a serial console port or over a LAN interface. Total Control Manager (TCM) software provides users with easy and immediate access to configuration/management of the modem and T1 card sets.

Access Server Cards

The access server NAC and associated NIC cards function as a communications server system with 16 asynchronous serial ports, one synchronous serial port, and one 10BaseT Ethernet port. Up to three access server cards can be installed in each Cisco AS5100 access server chassis. Each one is functionally equivalent to a standalone Cisco 2511, with the following exceptions:

Modem Cards

Each chassis houses up to 48 high-speed analog or digital modems. Digital modems connect to the phone system by a direct T1 link through the T1 NIC. Modems can be managed with software ranging from a simple terminal interface menu system for device configuration or via SNMP using the network management card.

The quad modem cards provide four dial-up modems on a single card. Each modem is capable of supporting V.32 or V.34 and MNP-5 or V.42/V.42bis error correction and data compression.

The modem can also make use of the DNIS and ANI information provided by the public 950 services, Feature Groups B and D, and enhanced 800 services to customize the configuration of the modem before answering a call. For example, the dialed phone number can be associated with specific applications, and the same modem pool can be dynamically configured on a call-by-call basis to adjust to the requirements of the application.

The Quad EIA/TIA-232 NIC provides the physical interface for four EIA/TIA-232 ports via a 50-pin connector on the rear of the card.

Each EIA/TIA-232 port supports the full complement of EIA/TIA-232 signals necessary for synchronous or asynchronous operation. The ports support operation at speeds up to 115.2 kbps, and provide four serial interfaces to the quad modem NAC.

The modem cards support the following features:

Cisco AS5100 Access Server Network Management Products

The Cisco AS5100 access server uses two network management products:

Total Control Manager/SNMP is a Windows-based SNMP host software package that runs on any IBM-compatible 486 PC. This package communicates with the management card in each Cisco AS5100 access server chassis to perform all network management functions for the modem and T1 cards.
CiscoWorks Windows includes the Configuration Builder application. The Configuration Builder application allows you to create configuration files for your access server without requiring you to remember complicated command-line language or syntax. For more information, refer to "CiscoWorks Windows" in the chapter "Internetwork Management Applications," earlier in the catalog.

Cisco AS5100 Access Server Product Numbers

Table 10-52 lists Cisco AS5100 access server product numbers. For document product numbers, see the chapter "Documentation," later in this catalog.


Table 10-52: Cisco AS5100 Access Server System Spares or Options
Description Product Number
Base Systems
Complete chassis, AC, Ethernet network management card, and console cable AS5101-A
Complete chassis, DC, Ethernet network management card, and console cable AS5101-D
Spare Chassis
AS5100 16-slot AC chassis AS51-CHAS-A=
AS5100 16-slot DC chassis AS51-CHAS-D=
Spare Power Supplies and Fan Trays
AS5100 AC-45A power supply AS51-PWR-A=
AS5100 DC-45A power supply AS51-PWR-D=
AS5100 AC fan tray1 AS51-FAN-A=
AS5100 DC fan tray1 AS51-FAN-D=
Cables
Cables See Table 10-56
Interface Card Sets
AS5100 Ethernet network management card set AS51-NMCS-E=
AS5100 Dual T1 card set AS51-2T
AS5100 Dual PRI T1 card set AS51-2P2T-CS
Quad V.34 digital modem set AS51-4V34D
Quad V.34 analog modem set AS51-4V34A
Quad V.34 analog/digital modem set AS51-4V34AD
Access Server card set--16A, 1E, 1T2 AS51-16A-E

1 You should purchase a fan tray with any fully populated unit.
2 Includes two CAB-AS51-8 (spare 8A cable from the AS5100 access server card set to two quad modem card sets).

Cisco 2500 Access Server Series

The Cisco 2500 access server series represents Cisco's low cost entry into the access server marketplace. Three new products have recently been added to this family; the dial optimized AS2509-RJ and AS2511-RJ, and the temperature hardened Cisco 2509-ET. The Cisco 2500 access server series gives users the ability to connect asynchronous devices such as dumb terminals, modems, router consoles, slot machines, and ISDN TA's into a routed network. This product family contains new features that make them easier to use then ever, and they run the same Cisco IOS software that runs the backbone of the Internet on a high-performance router engine. They also give users integrated synchronous serial ports to backhaul routed traffic through T1/E1 lines.

The Cisco 2500 access server series (see Figure 10-90 through Figure 10-94) provide a variety of models designed for small office and remote site environments. Each model is a fixed-configuration router that supports at least two interface types. Each access server comes standard with Flash EPROM technology for simplified software maintenance. For software, the Cisco 2500 access server series offer a wide choice of feature sets, so you can select the appropriate protocol set for your network environment. These feature sets range from IP and bridging-only to a feature set containing the full array of Cisco's software functionality.

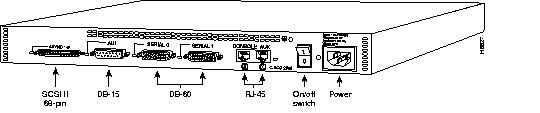

Figure 10-90: Cisco 2509/2509-ET Rear View

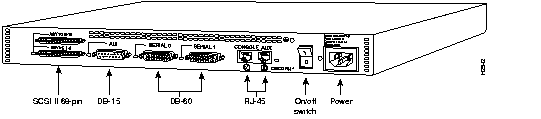

Figure 10-91: Cisco 2511 Rear View




Figure 10-92:
Cisco 2512 Rear View

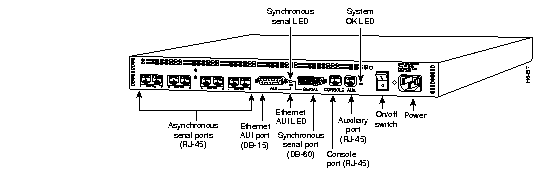

Figure 10-93: AS2509-RJ Rear Panel

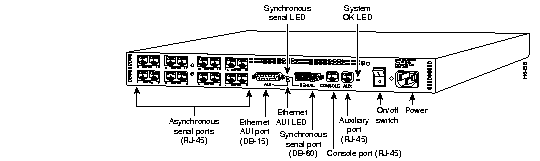

Figure 10-94:
AS2511-RJ Rear Panel



Table 10-53 lists the product numbers for the Cisco 2500 access server series.


Table  10-53: Cisco 2500 Series Access Server Product Numbers
Product LAN WAN Async Ports Position
AS2509-RJ AUI or 10BaseT Ethernet Single 5 in 1 synchronous serial port Eight RJ-45 Ports Low cost dial-in access server
AS2511-RJ AUI or 10BaseT Ethernet Single 5 in 1 synchronous serial port 16 RJ-45 Ports Low cost dial-in access server
Cisco 2509 AUI Ethernet Dual 5 in 1 synchronous serial ports Eight ports via octal
fan out cable
Low density general purpose access server
Cisco 2511 AUI Ethernet Dual 5 in 1 synchronous serial ports 16 ports via octal
fan out cable
Low density general purpose access server
Cisco 2512 4/16 MB Token Ring Dual 5 in 1 synchronous serial ports 16 ports via octal
fan out cable
Low density general purpose access server
Cisco 2509-ET AUI Ethernet Dual 5 in 1 synchronous serial ports Eight ports via octal
fan out cable
Extended temperature general purpose access server

Cisco 2500 Access Server Series Summary

The Cisco 2500 access server series runs on the same Cisco IOS that runs the backbone of the Internet. This family of products has sold well over 1,000,000 ports since its introduction in September, 1994. This makes it the most popular remote LAN access server in the world today. Table 10-54 shows the features and benefits of the Cisco 2500 access server series.


Table 10-54: Cisco 2500 Access Server Features and Benefits
Features Benefits
WAN Interface

  • One port available on AS5209-RJ and AS2511-RJ for cost sensitive environments.

  • Two ports available on Cisco 2509, Cisco 2509-ET, Cisco 2511 and Cisco 2512 for multipoint or redundant backhaul applications

  • Enables connections to fast WAN technologies such as T1/E1, Frame Relay, Leased Lines, etc.

Eight or 16 Asynchronous Ports

  • Technology Migration - Can update modems and other devices as new technology becomes available, not tied down to one manufacturer

  • High speed asynchronous ports support everything from legacy terminals to advanced PPP applications

  • AS25XX-RJ products come with a full compliment of color coded modem ready RJ45 to DB25 cables as standard equipment

  • Cisco 25xx access servers have octal fan out cable options

Based on Cisco 2500 Family

  • Proven, reliable architecture - over one million units sold in Cisco 2500 family

  • Full IOS compatibility gives customers the most feature rich routing and access server software in the world

Flexible Memory Architecture

  • Back-up image stored in Flash

  • Single DRAM SIMM for both packet buffer and routing table storage

Auxiliary and Console Ports

  • Back-up asynchronous WAN interface

  • Local configuration interface

Hardware Product Numbers for All Access Server Options

The Cisco access server series supports the hardware options listed in Table 10-55 and Table 10-56. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order.


Note For options that apply to most systems, refer to "Cables and Transceivers" or "Power Cords," later in the catalog.


Table 10-55: Cisco 2500 Series and Cisco AS5100 Access Servers
Hardware Option Product Numbers
Option Cisco 2500 Access Server Series Cisco AS5100 Access Server
Memory
Boot ROM upgrade (spare) BOOT-2509/12= -
4-MB DRAM MEM-1X4D -
4-MB DRAM (spare) MEM-1X4D= MEM-1X4D=
8-MB DRAM MEM-1X8D -
8-MB DRAM (spare) MEM-1X8D= -
16-MB DRAM MEM-1X16D MEM-1X16D
16-MB DRAM (spare) MEM-1X16D= MEM-1X16D=
4-MB Flash SIMM MEM-1X4F -
4-MB Flash SIMM (spare) MEM-1X4F= MEM-1X4F=
4- to 8-MB Flash SIMM upgrade MEM-1X8F-U1 MEM-1X8F-DFB-U1, 2
8-MB Flash SIMM MEM-1X8F MEM-1X8F
8-MB Flash SIMM (spare) MEM-1X8F= MEM-1X8F-DFB=2
8-MB Flash SIMM MEM-1X8F-U -
Dual-sided 16-MB Flash SIMM - MEM-1X16F-DFB3
Dual-sided 16-MB Flash SIMM (spare) - MEM-1X16F-DFB=3
Rack-Mount Kits
19-in. rack-mount kit ACS-2500RM-19= -
24-in. rack-mount kit ACS-2500RM-24= -
Asynchronous Serial Cables
8-lead octal cable and 8 male DB-25 modem connectors CAB-OCTAL-KIT -
8-lead octal cable (68-pin to 8 male RJ-45 connectors) CAB-OCTAL-ASYNC -
8-lead octal cable and 8 female DB-25 terminal connectors CAB-OCTAL-FDTE -
Octal cable with male DB-25 modem connectors CAB-OCTAL-MODEM -
Male DB-25 modem connector CAB-25AS-MMOD -
Female DB-25 terminal connector CAB-25AS-FDTE -
8 female RJ-45 to female RJ-45 adapters CAB-ADPTRS-RJ45 -

1 Applies to Cisco IOS Release 11.x feature sets that require 8-MB Flash memory.
2 Dual-bank Flash memory is required for AS5100 access servers because these models contain only one slot for Flash memory. It can operate as either two banks of 4 MB for dual-Flash bank operation or as 8 MB contiguous.
3 Dual-bank Flash memory is required for AS5100 access servers because these models contain only one slot for Flash memory. It can operate as either two banks of 8 MB for dual-Flash bank operation or as 16 MB contiguous.


Table 10-56: Cisco AS5200 Universal Access Server Hardware Option Product Numbers
Option Product Number
Memory Upgrades
Shared DRAM upgrade (4 MB to 8 MB) (spare) MEM-8S-52=
Shared DRAM upgrade (4 MB to 16 MB) (spare) MEM-16S-52=
Main DRAM upgrade (8 MB to 16 MB) (spare) MEM-16M-52=
Boot Flash upgrade (4 MB to 8 MB) (spare) MEM-8BF-52=
System Flash upgrade, dual bank (8 MB to 16 MB) (spare) MEM-1X16-AS52=
Spares and Accessories
Dual T1/PRI card (spare) AS52-2CT1=
Dual E1/PRI card, unbalanced (spare) AS52-2E1-U=
Dual E1/PRI card, balanced (spare) AS52-2E1-B=
Carrier card with two Microcom modules (spare) AS52-24B-M-56K=
Carrier card (spare) AS52-MC1=
Microcom 56K 12-port module (spare) AS52-12-M-56K=
AS5200 modem blank panel (spare) AS52M-BLANK=
AS5200 blank panel (spare) AS52-BLANK=
19-in. rack-mount kit (spare) AS5200RM-19=
24-in. rack-mount kit (spare) AS5200RM-24=
60 channel E1 (R2) convertor, unbalanced DC (Spare) AS52-E1/E1-U=
60 channel E1 (R2) convertor, balanced DC (Spare) AS52-E1/E1-B=
Anadigicom line card, unbalanced (spare) AS52-ANA-30-U=
Anadigicom line card, balanced (spare) AS52-ANA-30-B=
13500.0015 Cable AS52-E1R2-CABLE
Model CLK100-1 clock/switch module AS52-E1R2-CLOCK=
CPU101-1 CPU module AS52-E1R2-CPU
PSU400-4 Power Supply Unit AS52-E1R2-PSU400
5200 AC Power Supply (spare) AS5200-PWR-AC=
5200 DC Power Supply (spare) AS5200-PWR-DC=
Cables1
Synchronous Serial Cables2
EIA/TIA-232 male DTE interface, 10 ft (3 m) CAB-232MT
EIA/TIA-232 female DCE interface, 10 ft (3 m) CAB-232FC
EIA/TIA-449 male DTE interface, 10 ft (3 m) CAB-449MT
EIA/TIA-449 female DCE interface, 10 ft (3 m) CAB-449FC
EIA-530 male DTE interface, 10 ft (3 m) CAB-530MT
V.35 male DTE interface, 10 ft (3 m) CAB-V35MT
V.35 female DCE interface, 10 ft (3 m) CAB-V35FC
X.21 male DTE interface, 10 ft (3 m) CAB-X21MT
X.21 female DCE interface, 10 ft (3 m) CAB-X21FC
E1 cable, 75-ohm, unbalanced (BNC) CAB-E1-BNC
E1 cable, 120-ohm, balanced (DB-15) CAB-E1-DB15
E1 cable, 120-ohm, balanced (2 BNC) CAB-E1-TWINAX
E1 ISDN PRI cable, 10 ft (3 m) CAB-E1-PRI
DB15 to RJ48C Cable for connecting AS5200 E1 as a Network Terminal CAB-E1-PRI/NT
Auxiliary/Console Port Cable Kit2 ACS-2500ASYN
Power Cords See the chapter "Power Cords," later in the catalog.
Cisco AS5100 Cables
8A cable from card set to two quad modem cards3 CAB-AS51-8=

1 For cable illustrations, refer to the section "Specifications" in the chapter "Cables and Transceivers," later in the catalog.
2 These cables can also be used with the Cisco AS5100 access server.
3 Two cables are included with each card.

Note The Cisco AS5200 universal access server can be ordered with any of the current power cables offered with the Cisco 2500 access server series. It can also be ordered with up to two of the serial cables offered with the Cisco 2500 access server series.

Software

The Cisco IOS software available for the Cisco access servers is described in the following sections:

Cisco access servers support the following software releases:


Note The Cisco AS5200 universal access server supports Cisco IOS Release 11.1 and later releases only.

Note that all Cisco AS5100 access server cards (AS51-16A-E) must use the same Cisco IOS release level and feature set.

Software Feature Sets

This section describes the Cisco IOS feature sets available for Cisco access servers.

Cisco access servers offer the following types of feature sets:


Note Cisco IOS images with 40-bit Data Encryption Standard (DES) support may legally be distributed to any party eligible to receive Cisco IOS software. 40-bit DES is not a cryptographically strong solution so its use should be carefully evaluated.
Cisco IOS images with 56-bit DES are possibly subject to export and/or import controls and may have a limited distribution. For more information, contact your sales representative or distributor, or visit CCO at
http://www.cisco.com/wwl/export/encrypt.html , or send e-mail to export@cisco.com.

Cisco AS5200 universal access servers do not offer the Plus 40 and Plus 56 feature sets.

The Cisco IOS feature set tables use the following conventions to identify features:

Software Feature Packs

Software feature packs consist of CD-ROMs that contain Cisco IOS software feature set images and a Windows 95 application, which loads the images onto a router.

For more information about Cisco IOS software feature packs, see Chapter 2, "Cisco Internetworking Operating System (IOS) Software."


Note You can also order a Cisco IOS software feature pack for the Cisco 2509, Cisco 2511, and AS5200 universal access server models.


Table  10-57: Cisco IOS Release 11.2, 11.1, and 11.0 Feature Sets--Cisco 2500 Series and AS5100 Access Server Feature Sets
(AS2509-RJ and AS2511-RJ available with 11.2 software)
Cisco 2500 Series and AS5100 Access Server Feature Sets
Features IP Routing IP/IPX/
IBM/
APPN1
IP/IPX Routing2 Desktop (IP/IPX/AppleTalk/DEC) Enterprise3
Cisco IOS Release 11.2 11.1 11.0 11.2 11.1 11.0 11.2 11.1 11.0 11.2 11.1 11.0
LAN Support
Apollo Domain - - - - - - - - - X X X
AppleTalk 1 and 24 - - - X - - X X X X X X
Banyan VINES - - - - - - - - - X X X
Concurrent routing and bridging X X X X X X X X X X X X
DECnet IV - - - - - - X X X X X X
DECnet V - - - - - - - - - X X X
GRE X X X X X X X X X X X X
Integrated routing and bridging (IRB)5 X - - X - - X - - X - -
IP X X X X X X X X X X X X
LAN extension host X X X X X X X X X X X X
Multiring X X X X X X X X X X X X
Novell IPX6 - - - X X X X X X X X X
OSI - - - - - - - - - X X X
Source-route bridging7 - - - - - - - - - - - -
Transparent and translational bridging7 X X X X X X X X X X X X
XNS - - - - - - - - - X X X
WAN Services
Combinet Packet Protocol (CPP) X - - X - - X - - X - -
Dialer profiles X - - - - - X - - X - -
Frame Relay X X X X X X X X X X X X
Frame Relay SVC Support (DTE) - - - - - - - - - X - -
Frame Relay traffic shaping8 X - - X - - X - - X - -
Half bridge/half router for CPP and PPP X - - X - - X - - X - -
HDLC X X X X X X X X X X X X
IPXWAN 2.0 - - - X X X X X X X X X
ISDN9 X X X X X X X X X X X X
Multichassis Multilink PPP (MMP) - - - - - - - - - X - -
PPP10 X X X X X X X X X X X X
SMDS X X X X X X X X X X X X
Switched 56 X X X X X X X X X X X X
Virtual Provide Dial-up Network (VPDN) - - - - - - X - - X - -
X.2511 X X X X X X X X X X X X
WAN Optimization
Bandwidth-on-demand X X X X X X X X X X X X
Custom and priority queuing X X X X X X X X X X X X
Dial backup X X X X X X X X X X X X
Dial-on-demand X X X X X X X X X X X X
Header12, link and payload compression13 X X X X X X X X X X X X
Snapshot routing X X X X X X X X X X X X
Weighted fair queuing X X X X X X X X X X X X
IP Routing
BGP X X X X X X X X X X X X
BGP414 X - - - - - X - - X - -
EGP X X X X X X X X X X X X
Enhanced IGRP X X X X X X X X X X X X
Enhanced IGRP optimizations X - - X - - X - - X - -
ES-IS - - - - - - - - - X X X
IGRP X X X X X X X X X X X X
IS-IS - - - - - - - - - X X X
Named IP Access Control List X - - X - - X - - X - -
Network Address Translation (NAT) Plus - - - - - Plus - - Plus - -
NHRP X X X X X X X X X X X X
On Demand Routing (ODR) X - - - - - X - - X - -
OSPF X X X X X X X X X X X X
OSPF Not-So-Stubby-Areas (NSSA) X - - - - - X - - X - -
OSPF On Demand Circuit (RFC 1793) X - - - - - X - - X - -
PIM X X X X X X X X X X X X
Policy-based routing X X X X X X X X X X X X
RIP X X X X X X X X X X X X
RIP Version 2 X X - X X - X X - X X -
Other Routing
AURP - - - - - - X X X X X X
IPX RIP - - - X X X X X X X X X
NLSP - - - X X X X X X X X X
RTMP - - - - - - X X X X X X
SMRP - - - - - - X X X X X X
SRTP - - - - - - - - - X X X
Multimedia and Quality of Service
Generic traffic shaping X - - - - - X - - X - -
Random Early Detection (RED) X - - - - - X - - X - -
Resource Reservation Protocol (RSVP) X - - - - - X - - X - -
Management
AutoInstall X X X X X X X X X X X X
Automatic modem configuration15 X X - X X - X X - X X -
HTTP server X - - - - - X - - X - -
RMON events and alarms16 X X - X X - X X - X X -
RMON full Plus - - - - - Plus - - Plus - -
SNMP X X X X X X X X X X X X
Telnet X X X X X X X X X X X X
Security
Access lists X X X X X X X X X X X X
Access security X X X X X X X X X X X X
Extended access lists X X X X X X X X X X X X
Kerberized login - - - - - - - - - X X -
Kerberos V client support - - - - - - - - - X - -
Lock and key X - - X - - X - - X X -
MAC security for hubs17 X X - X X - X X - X X -
MD5 routing authentication X X X X X X X X X X X X
Network layer encryption and router authentication18 Encrypt - - - - - Encrypt - - Encrypt - -
RADIUS X X - X X - X X - X X -
TACACS+19 X X X X X X X X X X X X
IBM Support (Optional)
APPN (optional)3 - - - X X X - - - X X X
BAN for SNA Frame Relay support Plus X X X X X Plus X X X X X
Bisync20 Plus X X X X X Plus X X X X X
Caching and filtering Plus X X X X X Plus X X X X X
DLSw+ Plus X X X X X Plus X X X X X
Downstream PU concentration (DSPU) Plus - - X - - Plus - - X X X
Frame Relay SNA support (RFC 1490) Plus X X X X X Plus X X X X X
Native Client Interface Architecture (NCIA) Server Plus - - - - - Plus - - X - -
NetView Native Service Point Plus X X X X X Plus X X X X X
Polled asynch security protocol (ASP) Plus - - X - - Plus - - X - -
QLLC20 Plus X X X X X Plus X X X X X
Response Time Reporter (RTR) Plus - - - - - Plus - - X - -
SDLC integration Plus X X X X X Plus X X X X X
SDLC transport (STUN) Plus X X X X X Plus X X X X X
SDLC-to-LAN conversion (SDLLC) Plus X X X X X Plus X X X X X
SNA and NetBIOS WAN optimization via local acknowledgment Plus X X X X X Plus X X X X X
SRB/RSRB21 Plus X X X X X Plus X X X X X
SRT Plus X X X X X Plus X X X X X
TG/COS - - - - - - - - - X X X
TN3270 - - - - - - - - - X X X
Protocol Translation
LAT - - - - - - - - - X X X
PPP - - - - - - - - - X X X
Rlogin - - - - - - - - - X X X
Telnet - - - - - - - - - X X X
TN3270 - - - - - - - - - X X X
X.25 - - - - - - - - - X X X
Remote Node22
ARAP 1.0/2.0 - - - - - - X X X X X X
Asynchronous master interfaces X X X X X X X X X X X X
ATCP - - - - - - X X X X X X
CPPP X X X X X X X X X X X X
CSLIP X X X X X X X X X X X X
DHCP X X X X X X X X X X X X
IP pooling X X X X X X X X X X X X
IPX and ARAP on virtual asynch interfaces - - - - - - - - - X X X
IPXCP12 - - - X X X X X X X X X
MacIP - - - - - - X X X X X X
NASI23 - - - - - - - - - X X -
NetBEUI over PPP - - - - - - - - - X X -
PPP X X X X X X X X X X X X
SLIP X X X X X X X X X X X X
Terminal Services22
LAT24 - - - - - - - - - X X X
Rlogin X X X X X X X X X X X X
Telnet X X X X X X X X X X X X
TN3270 - - - - - - - - - X X X
X.25 PAD X X X X X X X X X X X X
Xremote - - - - - - - - - X X X

1 IP/IPX/IBM/APPN has no additional options. It offers a low-end APPN solution for Cisco 2500 access server series.
2 IP/IPX was discontinued in Cisco IOS Release 11.2. All features in IP/IPX prior to Cisco IOS Release 11.2 are available in the Desktop (IP/IPX/AppleTalk/DEC)/IBM feature set, including APPN.
3 Enterprise is available with APPN in a separate feature set. Use the product numbers that specify APPN. In Cisco IOS Release 11.2 and later releases, APPN includes APPN Central Registration (CRR) and APPN over DLSw+. APPN is supported on Cisco 2500 access server series.
4 AppleTalk load balancing is available in Cisco IOS Release 11.2 and later releases.
5 IRB supports IP, IPX, and AppleTalk; it is supported for transparent bridging, but not for SRB; it is supported on all media-type interfaces except X.25 and ISDN bridged interfaces; and IRB and concurrent routing and bridging (CRB) cannot operate at the same time.
6 In Cisco IOS Release 11.2 and later releases, the Novell IPX feature includes display SAP by name, IPX Access Control List violation logging, and plain-English IPX access lists.
7 See the feature category "IBM Support" for information about source-route bridging (SRB).
8 Frame Relay traffic shaping is not available in Cisco IOS Release 11.2(1). This feature will be available in a subsequent maintenance release of Cisco IOS Release 11.2.
9 ISDN support includes calling line identification (ANI), X.25 over the B channel, ISDN subaddressing, and applicable WAN optimization features.
10 PPP includes support for LAN protocols supported by the feature set, address negotiation, PAP and CHAP authentication, and PPP compression. Multilink PPP is available in Cisco IOS   Release 11.0(4) and later releases.
11 X.25 includes X.25 switching.
12 IPX header compression (RFC 1553) is available in the feature sets that support IPX in Cisco IOS Release 11.1(1) and later releases.
13 X.25 and Frame Relay payload compression are supported in Cisco IOS Release 11.0(4) and later releases.
14 BGP4 includes soft configuration, multipath support, and prefix filtering with inbound route maps.
15 Automatic modem configuration is available for all features sets in Cisco IOS Release 11.1(2) and later releases. For the Enterprise feature set, automatic modem configuration is available in   Cisco IOS 11.1(1) and later releases.
16 The RMON events and alarms groups are supported on all interfaces in Cisco IOS Release 11.1 and later releases. Separate enhanced RMON feature sets are also available with Cisco IOS Release 11.1. In Cisco IOS Release 11.2 and later releases, RMON full is available with the plus feature sets.
17 MAC security for hubs is applicable to the following Cisco 2500 series Ethernet hub models: Cisco 2505, Cisco 2507, and Cisco 2516.
18 For more details, see the description of the new data encryption options in the section "Software" earlier in this chapter.
19 With Cisco IOS Release 11.2 and later releases, TACACS+ Single Connection and TACACS+ SENDAUTH enhancements are supported.
20 Bisync and QLLC are available in IP/IBM in Cisco IOS Release 11.0(3) and later releases, and in IP/IPX/IBM and Desktop/IBM base in Cisco IOS Release 11.0(2) and later releases.
21 With Cisco IOS Release 11.2 and later releases, SRB/RSRB is fast switched. This enhancement is on by default, but can be disabled.
22 Supported on access severs (with limited support on router auxiliary ports).
23 NASI is supported in Cisco IOS Release 11.1(2) and later releases.
24 LAT terminal services are available on Cisco 2500 access server series; not routers. Use of LAT requires a terminal license. For more details, see the section "LAT Terminal License," later in this chapter.

The Remote Monitoring (RMON) MIB (RFC 1757) allows you to monitor all nodes and their interaction on a LAN segment. Standard Cisco IOS Release 11.1 feature sets provide support for RMON events and event groups only. If you prefer more network management support, you can order an enhanced RMON feature set that includes full support for the following nine groups: statistics, history, alarms, hosts, hostTopN, matrix, filter, capture, and events.

In Cisco IOS Release 11.2, the feature RMON full is available in the Plus feature sets.

Software Product Numbers

This section describes the software product numbers for Cisco access servers. Table 10-57 lists the software feature set and feature pack product numbers and minimum memory requirements for the Cisco 2500 series and AS5100 access servers for Cisco IOS Release 11.2. Table 10-59 lists the software feature set product numbers and minimum memory requirements for the Cisco 2500 series and AS5100 access servers for Cisco IOS Releases 11.1 and 11.0. For additional details about how to order software updates and upgrades, see the section "Cisco IOS Feature Set Upgrades" later in this chapter.


Note All models include a minimum of 4-MB Flash memory; however, depending on the Cisco IOS release feature set or feature pack that you order with the system, your system might require more memory. Refer to Table 10-58 and Table 10-59 for the minimum Flash memory required and product numbers for each feature set.


Table 10-58: Software Product Numbers and Minimum Memory Requirements for Cisco IOS Release 11.2--Cisco 2500 Series and AS5100 Access Server
Product Numbers and Minimum Memory Requirements
Cisco IOS Release 11.2
Feature Set Product Number1 Access Server Model2 Flash Total DRAM

IP

SF25C-11.2.x SW25C-11.2.x=

CD25-C-11.2=3

2500 series 8 MB 4 MB4
AS5100 - -

IP Plus

SF25CP-11.2.x SW25CP-11.2.x=

CD25-CP/E-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

IP Plus 40

SF25CW-11.2.x
SW25CW-11.2.x=

CD25-CW-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

IP Plus 56

SF25CY-11.2.x
SW25CY-11.2.x=

CD25-CY-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Desktop

SF25B-11.2.x SW25B-11.2.x=

CD25-B-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Desktop Plus

SF25BP-11.2.x
SW25BP-11.2.x=

CD25-BP-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Desktop Plus 40

SF25BW-11.2.x
SW25BW-11.2.x=

CD25-BW-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Desktop Plus 56

SF25BY-11.2.x
SW25BY-11.2.x=

CD25-BY-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Enterprise

SF25A-11.2.x SW25A-11.2.x=

CD25-A-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Enterprise Plus

SF25AP-11.2.x SW25AP-11.2.x=

CD25-AP-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Enterprise Plus 40

SF25AW-11.2.x SW25AW-11.2.x=

CD25-AW-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Enterprise Plus 56

SF25AY-11.2.x SW25AY-11.2.x=

CD25-AY-11.2=3

2500 series 8 MB 4 MB
AS5100 - -

Enterprise/APPN Plus5

SF25ANP-11.2.x
SW25ANP-11.2.x=

2500 series 16 MB 8 MB
AS5100 - -

Enterprise/APPN Plus 405

SF25ANW-11.2.x
SW25ANW-11.2.x=

2500 series 16 MB 8 MB
AS5100 - -

Enterprise/APPN Plus 565

SF25ANY-11.2.x
SW25ANY-11.2.x=

2500 series 16 MB 8 MB
AS5100 - -

ISDN

SF25I-11.2.x
SW25I-11.2.x=

2500 series 8 MB 4 MB
AS5100 - -

CFRAD

SF25F-11.2.x
SW25F-11.2.x=

2500 series 4 MB 4 MB
AS5100 - -

LAN FRAD

SF25LF-11.2.x
SW25LF-11.2.x=

2500 series 4 MB 2 MB
AS5100 - -

1 Substitute the release number for .x in the product number (for example, SW25C-11.2.1=).
2 AS2509-RJ and AS2511-RJ available with 11.2 software.
3 Software feature pack on CD-ROM is available for the Cisco 2509 and Cisco 2511 access servers. You must order a feature pack with a -CH model of the Cisco 2509 or Cisco 2511. The feature pack software is preinstalled on the -CH models.
4 The Cisco 2522 and Cisco 2523 require 4-MB DRAM. All other models require 2-MB DRAM.
5 Not available for the CiscoAS5100 access server.


Table  10-59: Software Product Numbers and Minimum Memory Requirements for Cisco IOS Release 11.1 and 11.0--Cisco 2500 Series and AS5100 Access Servers
Product Numbers and Minimum Memory Requirements
Cisco IOS Releases
11.1 11.0
Feature Set Product Number1 Access Server Model Flash Total DRAM Flash Total DRAM

IP

SF25C-xx.x.x
SW25C-xx.x.x=

2500 series 4 MB 4 MB 4 MB 4 MB
AS5100 4 MB 6 MB 4 MB 6 MB

IP with IBM base

SF25CS-xx.x.x
SW25CS-xx.x.x=

2500 series 8 MB 4 MB 8 MB 4 MB
AS5100 8 MB 6 MB 8 MB 6 MB

IP/IPX

SF25D-xx.x.x
SW25D-xx.x.x=

2500 series 8 MB 4 MB 4 MB 4 MB
AS5100 8 MB 6 MB 4 MB 6 MB

IP/IPX with IBM base

SF25DS-xx.x.x
SW25DS-xx.x.x=

2500 series 8 MB 4 MB 8 MB 4 MB
AS5100 8 MB 6 MB 8 MB 6 MB

IP/IPX with IBM base and APPN2

SF25DSN-xx.x.x
SW25DSN-xx.x.x=

2500 series 8 MB 8 MB 8 MB 8 MB
AS5100 - - - -

Desktop

SF25B-xx.x.x
SW25B-xx.x.x=

2500 series 8 MB 4 MB 8 MB 4 MB
AS5100 8 MB 6 MB 8 MB 6 MB

Desktop with IBM base

SF25BS-xx.x.x
SW25BS-xx.x.x=

2500 series 8 MB 4 MB 8 MB 4 MB
AS5100 8 MB 6 MB 8 MB 6 MB

Enterprise

SF25A-xx.x.x
SW25A-xx.x.x=

2500 series 8 MB 6 MB 8 MB 6 MB
AS5100 8 MB 6 MB 8 MB 6 MB

Remote Access Server

SW25E-xx.x.x=

2500 series 4 MB 4 MB 4 MB 4 MB
AS5100 4 MB 6 MB 4 MB 6 MB

IP and RMON2, 3

SF25CR-xx.x.x
SW25CR-xx.x.x=

2500 series 4 MB 4 MB - -
AS5100 - - - -

IP with IBM and RMON 2, 3

SF25CSR-xx.x.x
SW25CSR-xx.x.x=

2500 series 8 MB 4 MB - -
AS5100 - - - -

IP/IPX and RMON2, 3

SF25DR-xx.x.x
SW25DR-xx.x.x=

2500 series 8 MB 4 MB - -
AS5100 - - - -

IP/IPX with IBM and RMON2, 3

SF25DSR-xx.x.x
SW25DSR-xx.x.x=

2500 series 8 MB 4 MB - -
AS5100 - - - -

Enterprise and RMON2, 3

SF25AR-xx.x.x
SW25AR-xx.x.x=

2500 series 8 MB 6 MB - -
AS5100 - - - -

1 Substitute the release number for xx.x.x in the product number (for example, SW25C-11.2.1=).
2 Not available for the CiscoAS5100 access server.
3 An Ethernet segment with 50 nodes and 10 hosts or more requires more memory, particularly when promiscuous rather than native mode is chosen. In native mode, only the packets traversing the router are monitored. In promiscuous mode, everything on the Ethernet segment is monitored.

Table 10-60 lists the software feature set product numbers and minimum memory requirements for the Cisco AS5200 universal access server for Cisco IOS Release 11.2, and Table 10-61 lists the software feature set product numbers and minimum memory requirements for the Cisco AS5200 universal access server for Cisco IOS Releases 11.1.


Note Depending on the Cisco IOS release feature set or feature pack that you order with the system, it might require more memory than comes standard with the system. Refer to Table 10-60 for the minimum Flash memory required. Refer to Table 10-65 for memory upgrade ordering information.


Table 10-60: Software Product Numbers and Minimum Memory Requirements for Cisco IOS Release 11.2--Cisco AS5200 Universal Access Server
Product Numbers and Minimum Memory Requirements1
Cisco IOS Releases
Cisco IOS 11.2
Feature Set Product Number2 Boot Flash Main DRAM System Flash Shared DRAM
IP SF52C-xx.x.x
SW52C-xx.x.x=
CD52-C-11.2=3
8 MB 8 MB 8 MB 4 MB
IP Plus SF52CP-xx.x.x
SW52CP-xx.x.x=
CD52-CP-11.2=3
8 MB 8 MB 8 MB4 4 MB
Desktop SF52B-xx.x.x
SW52B-xx.x.x=
CD52-B-11.2=3
8 MB 8 MB 8 MB 4 MB
Desktop Plus SF52BP-xx.x.x
SW52BP-xx.x.x=
CD52-BP-11.2=3
8 MB 8 MB 8 MB 4 MB
Enterprise SF52A-xx.x.x
SW52A-xx.x.x=
CD52-A-11.2=3
8 MB 8 MB 8 MB4 4 MB
Enterprise Plus SF52AP-xx.x.x
SW52AP-xx.x.x=
CD52-AP-11.2=3
8 MB 8 MB 8 MB4 4 MB

1 Cisco AS5200 universal access servers are shipped with a default of 4 MB of boot Flash, 8 MB of main DRAM, 8 MB of system Flash, and 4 MB of shared DRAM. All of the Cisco IOS feature sets listed in this table will run within the default memory configuration for the AS5200 universal access server.
2 Substitute the release number for xx.x.x in the product number (for example, SF52C-11.2.5=).
3 Software feature pack on CD-ROM. You must order a feature pack with a -CH model of the AS5200 universal access servers. The feature pack software is preinstalled on -CH models.
4 Cisco IOS Release 11.2(5) and later releases of the Enterprise, Enterprise Plus, and IP Plus feature sets may require additional system Flash.


Table 10-61: Software Product Numbers and Minimum Memory Requirements for Cisco IOS Release 11.1-Cisco AS5200 Universal Access Server
Product Numbers and Minimum Memory Requirements1
Cisco IOS Releases
Cisco IOS 11.1
Feature Set Product Number2 Boot Flash Main DRAM System Flash Shared DRAM
IP SF52C-xx.x.x
SW52C-xx.x.x=
8 MB 8 MB 8 MB 4 MB
IP/Modem SF52CM-xx.x.x
SW52CM-xx.x.x=
8 MB 8 MB 8 MB 4 MB
Desktop SF52B-xx.x.x
SW52B-xx.x.x=
8 MB 8 MB 8 MB 4 MB
Desktop/Modem SF52BM-xx.x.x
SW52BM-xx.x.x=
8 MB 8 MB 8 MB 4 MB
Enterprise/Modem SF52AM-xx.x.x
SW52AM-xx.x.x=
8 MB 8 MB 8 MB 4 MB
Enterprise/Modem/
RMON/
SF52AMR-xx.x.x
SW52AMR-xx.x.x=
8 MB 8 MB 8 MB 4 MB

1 Cisco AS5200 universal access servers are shipped with a default of 4 MB of boot Flash, 8 MB of main DRAM, 8 MB of system Flash, and 4 MB of shared DRAM. All of the Cisco IOS feature sets listed in this table will run within the default memory configuration for the AS5200 universal access server.
2 Substitute the release number for xx.x.x in the product number (for example, SF52CM-11.1.10=).

There are two types of DRAM memory in the Cisco 2500 series and AS5100 access servers: primary and shared (packet). Primary memory is used to store the operating configuration, routing tables, caches, queues, and packets. Shared memory is used to store incoming and outgoing packets. In Table 10-62, the physical configuration column lists the amount of fixed DRAM and DRAM SIMM memory supported. The system usage column lists how the system allocates the total DRAM memory installed.


Table  10-62: Recommended Shared and Primary DRAM Memory--Cisco 2500 Series and AS5100 Access Servers
Physical Configuration System Usage
Access Server Model Total DRAM
Memory
Fixed DRAM1, 2 DRAM SIMM Shared DRAM Memory Primary DRAM Memory
Cisco 2500 series
4 MB - 4 MB 2 MB 2 MB
6 MB 2 MB 4 MB 2 MB 4 MB
8 MB - 8 MB 2 MB 6 MB
10 MB 2 MB 8 MB 2 MB 8 MB
16 MB - 16 MB 2 MB 14 MB
18 MB 2 MB 16 MB 2 MB 16 MB
AS5100
6 MB 2 MB 4 MB 2 MB 4 MB
10 MB 2 MB 8 MB 2 MB 8 MB
18 MB 2 MB 16 MB 2 MB 16 MB

1 Fixed DRAM is soldered on the system card. Depending on the Cisco IOS feature originally ordered, the system may or may not include fixed DRAM.
2 Each AS5100 card (AS51-16A-E) ships with 2 MB of fixed DRAM memory soldered on the card.

Cisco IOS Feature Set Upgrades

Cisco IOS feature set upgrades are easy to order for Cisco access servers. The following is an example:

You have a Cisco 2511 access server running the Cisco IOS Release 11.2 IP Routing feature set. You want to upgrade to the Cisco IOS Release 11.2 Enterprise Plus 40 feature set. You are crossing two feature sets: one to get from IP to Enterprise, and one to get to the Plus 40 feature set. To complete the upgrade, use the following guidelines:

Feature sets for Cisco IOS Release 11.2 can be upgraded as described in Table 10-63. Adding a feature set or feature pack might require you to purchase additional memory. The minimum memory requirements for Cisco 2500 series, AS5100, and AS5200 universal access servers are listed in Table 10-57 and Table 10-59. The minimum memory requirements listed were chosen for typical branch and remote office applications. If your network is very large, using complex routing protocols, or using RMON, you may need more memory. Configuration analysis and testing are encouraged.


Table 10-63: Cisco IOS Upgrades for Cisco IOS Release 11.2--
Ci
sco 2500 Series and AS5100 Access Servers
Feature Set Upgrade Product Number1
Plus
with Enterprise
with Desktop (IP/IPX/AT/DEC)
with IP
FL25-P= and
SW25AP-xx.x.x=
SW25BP-xx.x.x=
SW25CP-xx.x.x=
Plus 40
with Enterprise
with Desktop (IP/IPX/AT/DEC)
with IP
FL25-W= and
SW25AW-xx.x.x=
SW25BW-xx.x.x=
SW25CW-xx.x.x=
Plus 56
with Enterprise
with Desktop (IP/IPX/AT/DEC)
with IP
FL25-Y= and
SW25AY-xx.x.x=
SW25BY-xx.x.x=
SW25CY-xx.x.x=
Plus and APPN2
with Enterprise
with IP/IPX/IBM
FL25-APPN= and
SW25ANP-xx.x.x=
SW25DSN-xx.x.x=
Plus 40 and APPN with Enterprise2 FL25-APPN=, FL25-W=, and SW25ANW-xx.x.x=
Plus 56 and APPN with Enterprise2 FL25-APPN=, FL25-Y=, and SW25ANY-xx.x.x=
CFRAD to IP FL25-FC= and SW25C-xx.x.x=
CFRAD to Desktop (IP/IPX/AT/DEC) FL25-FB= and SW25B-xx.x.x=
CFRAD to Enterprise FL25-FA= and SW25A-xx.x.x=
LAN FRAD to IP FL25-LFC= and SW25C-xx.x.x=
LAN FRAD to Desktop (IP/IPX/AT/DEC) FL25-LFB= and SW25B-xx.x.x=
LAN FRAD to Enterprise FL25-LFA= and SW25A-xx.x.x=
ISDN to IP FL25-IC= and SW2525C-xx.x.x=
ISDN to Desktop (IP/IPX/AT/DEC) FL25-IB= and SW25B-xx.x.x=
ISDN to Enterprise FL25-IA= and SW25A-xx.x.x=
IP to Desktop (IP/IPX/AT/DEC) FL25-CB= and SW25B-xx.x.x=
IP to Enterprise FL25-CA= and SW25A-xx.x.x=
Desktop (IP/IPX/AT/DEC) to Enterprise FL25-BA= and SW25A-xx.x.x=
IP/IPX to Desktop (IP/IPX/AT/DEC) FL25-DB= and SW25B-xx.x.x=
IP/IPX to Enterprise FL25-DA and SW25A-xx.x.x=

1 Substitute the release number for xx.x.x in the product number (for example, SW25A-11.2.1=).
2 Not available with AS5100 access servers.

Feature sets for Cisco IOS Release 11.1 and 11.0 can be upgraded for the Cisco 2500 series and AS5100 access servers as described in Table 10-64. To order an upgrade, you must use two product numbers; one represents the upgrade license, and the other represents the software. For example, to upgrade from an IP feature set to an IP feature set with IBM base functionality, order product number FR25-CCS= (the upgrade license) and SW25CS-xx.x.x= (the software). To upgrade to a feature set with APPN, you must first purchase the upgrade license for the desired feature set and then purchase the upgrade license and upgrade software for the APPN feature set.


Table 10-64: Cisco IOS Release 11.1 and 11.0 Software Upgrades--Cisco 2500 Series and
AS
5100 Access Servers
Feature Set Upgrade Product Number1
IP to IP with IBM base functionality FR25-CCS= and SW25CS-xx.x.x=
IP to IP/IPX FR25-CD= and SW25D-xx.x.x=
IP to IP/IPX with IBM base functionality FR25-CDS= and SW25DS-xx.x.x=
IP to IP/IPX with IBM base functionality and APPN2 FR25-CDS=, FR25-APPN=, and SW25DSN-xx.x.x=
IP to Desktop FR25-CB= and SW25B-xx.x.x=
IP to Desktop with IBM base functionality FR25-CBS= and SW25BS-xx.x.x=
IP to Enterprise FR25-CA= and SW25A-xx.x.x=
IP to Enterprise and APPN2 FR25-CA=, FR25-APPN=, and SW25AN-xx.x.x=
IP with IBM base to IP/IPX with IBM base functionality FR25-CSDS= and SW25DS-xx.x.x=
IP with IBM base to IP/IPX with IBM base functionality and APPN2 FR25-CSDS=, FR25-APPN=, and SW25DSN-xx.x.x=
IP with IBM base to Desktop with IBM base functionality FR25-CSBS= and SW25BS-xx.x.x=
IP with IBM base to Enterprise FR25-CSA= and SW25A-xx.x.x=
IP with IBM base to Enterprise and APPN2 FR25-CSA=, FR25-APPN=, and SW25AN-xx.x.x=
IP/IPX to IP/IPX with IBM base functionality FR25-DDS= and SW25DS-xx.x.x=
IP/IPX to IP/IPX with IBM base functionality and APPN2 FR25-DDS=, FR25-APPN=, and SW25DSN-xx.x.x=
IP/IPX to Desktop FR25-DB= and SW25B-xx.x.x=
IP/IPX to Desktop with IBM base functionality FR25-DBS= and SW25BS-xx.x.x=
IP/IPX to Enterprise FR25-DA= and SW25A-xx.x.x=
IP/IPX to Enterprise and APPN2 FR25-DA=, FR25-APPN=, and SW25AN-xx.x.x=
IP/IPX with IBM base to Desktop with IBM base functionality FR25-DSBS= and SW25BS-xx.x.x=
IP/IPX with IBM base to Enterprise FR25-DSA= and SW25A-xx.x.x=
IP/IPX with IBM base to Enterprise and APPN2 FR25-DSA=, FR25-APPN=, and SW25AN-xx.x.x=
IP/IPX with IBM base to IP/IPX with IBM base and APPN2 FR25-APPN= and SW25DSN-xx.x.x=
Desktop to Desktop with IBM base functionality FR25-BBS= and SW25BS-xx.x.x=
Desktop to Enterprise FR25-BA= and SW25A-xx.x.x=
Desktop to Enterprise and APPN2 FR25-BA=, FR25-APPN=, and SW25AN-xx.x.x=
Desktop with IBM base to Enterprise FR25-BSA= and SW25A-xx.x.x=
Desktop with IBM base to Enterprise and APPN2 FR25-BSA=, FR25-APPN=, and SW25AN-xx.x.x=
IP to IP/RMON FR25-R= and SW25CR-x.x.x=
IP to IP/IBM/RMON FR25-CCS=, FR25-R=, and SW25CSR-x.x.x=
IP to IP/IPX/RMON FR25-CD=, FR25-R=, and SW25DR-x.x.x=
IP to IP/IPX/IBM/RMON FR25-CDS=, FR25-R=, and SW25DSR-x.x.x=
IP to Enterprise/RMON FR25-CA=, FR25-R=, and SW25AR-x.x.x=
IP/RMON to IP/IBM/RMON FR25-CCS= and SW25CSR-x.x.x=
IP/RMON to IP/IPX/RMON FR25-CD= and SW25DR-x.x.x=
IP/RMON to IP/IPX/IBM/RMON FR25-CDS= and SW25DSR-x.x.x=
IP/RMON to Enterprise/RMON FR25-CA= and SW25AR-x.x.x=
IP/IBM to IP/IBM/RMON FR25-R= and SW25CSR-x.x.x=
IP/IBM to IP/IPX/IBM/RMON FR25-CSDS=, FR25-R=, and SW25DSR-x.x.x=
IP/IBM to Enterprise/RMON FR25-CSA=, FR25-R=, and SW25AR-x.x.x=
IP/IBM/RMON to IP/IPX/IBM/RMON FR25-CSDS= and SW25DSR-x.x.x=
IP/IBM/RMON to Enterprise/RMON FR25-CSA= and SW25AR-x.x.x=
IP/IPX to IP/IPX/RMON FR25-R= and SW25DR-x.x.x=
IP/IPX to IP/IPX/IBM/RMON FR25-DDS=, FR25-R=, and SW25DSR-x.x.x=
IP/IPX to Enterprise/RMON FR25-CSA=, FR25-R=, and SW25AR-x.x.x=
IP/IPX/RMON to IP/IPX/IBM/RMON FR25-DDS= and SW25DSR-x.x.x=
IP/IPX/RMON to Enterprise/RMON FR25-DA= and SW25AR-x.x.x=
IP/IPX/IBM to IP/IPX/IBM/RMON FR25-R= and SW25DSR-x.x.x=
IP/IPX/IBM to Enterprise/RMON FR25-DSA=, FR25-R=, and SW25AR-x.x.x=
IP/IPX/IBM/RMON to Enterprise/RMON FR25-DSA= and SW25AR-x.x.x=
Desktop to Enterprise/RMON FR25-BA=, FR25-R=, and SW25AR-x.x.x=
Desktop/IBM to Enterprise/RMON FR25-BSA=, FR25-R=, and SW25AR-x.x.x=
Enterprise to Enterprise/RMON FR25-R= and SW25AR-x.x.x=

1 Substitute the release number for xx.x.x in the product number (for example, SW25D-11.2.1=).
2 Not available for the Cisco AS5100 access server.

Table 10-65 lists the feature set upgrades and corresponding product numbers for Cisco IOS Release 11.2 and 11.1 for the AS5200 universal access server.


Table 10-65: Cisco IOS Software Upgrades--Cisco AS5200 Universal Access Server
Feature Set Upgrade Product Number
IP to Desktop FR52-CB=
IP to Enterprise FR52-CA=
IP/IPX to Desktop FR52-DB=
Desktop to Enterprise FR52-BA=
Plus upgrade FL52-P=

Technology Licenses

The AS5200 offers technology licenses for modem management that can be ordered separately. Table 10-66 lists the technology licenses and upgrades available and the corresponding product numbers.


Table 10-66: Technology Licenses for Modem Management--Cisco AS5200 Universal Access Server
Technology License Product Number
Cisco AS5200 24-modem management technology license FR52-MMTL-24
Cisco AS5200 48-modem management technology license FR52-MMTL-48
Cisco AS5200 60-modem management technology license FR52-MMTL-60
Cisco AS5200 technology license upgrade, 24-modem to 48-modem FR52-MMTL-24/48
Cisco AS5200 technology license upgrade, 48-modem to 60-modem FR52-MMTL-48/60

Note: Ordering Cisco IOS feature set "PLUS" is required for Modem Management Technology licenses.

LAT Terminal License

A LAT terminal license is required for each asynchronous interface to which a LAT terminal is connected. Table 10-67 lists the licenses available and the corresponding product numbers.


Table 10-67: Optional LAT Terminal Licenses
Description Product Number
Cisco 2500 Series Access Servers Cisco 3600 Series Cisco AS5100 Access Server Cisco AS5200 Universal Access Server
4-user LAT terminal license FL-LAT4
8-user LAT terminal license FL-LAT8
16-user LAT terminal license FL-LAT16
32-user LAT terminal license FL-LAT32
64-user LAT terminal license FL-LAT64


hometocprevnextglossaryfeedbacksearchhelp
Copyright 1989-1998 © Cisco Systems Inc.
