Cisco 3600 Series

Cisco 3600 Series

This chapter provides information on the Cisco 3600 series access servers/routers. It is organized into the following sections:

Product Overview

The Cisco 3600 series is a multifunction platform that combines dial access, routing, and LAN-to-LAN services and multiservice integration of voice, video, and data in the same device. The Cisco 3600 series includes the Cisco 3640 and Cisco 3620 access servers/routers. As modular solutions, the Cisco 3640 and Cisco 3620 have the flexibility to meet both current and future connectivity requirements. The Cisco 3600 series is fully supported by Cisco IOS software, which includes dial-up connectivity, LAN-to-LAN routing, data and access security, WAN optimization, and multimedia features.

The Cisco 3640 has four network module slots; the Cisco 3620 has two slots. Each network module slot accepts a variety of network module interface cards, including LAN and WAN mixed media cards supporting Ethernet, Fast Ethernet, Token Ring, and a variety of WAN technologies. These cards provide the foundation of LAN and WAN connectivity on a single, modular, network module. Additional applications are supported with a series of network module cards offering digital modems, asynchronous and synchronous serial, ISDN PRI, and ISDN BRI interfaces.

Figure 61 and Figure 62 show the Cisco 3600 series router rear views.


Figure 61: Cisco 3640 Router Rear View




Figure 62: Cisco 3620 Router Rear View



The Cisco 3640 and Cisco 3620 routers support the following network applications and services:
The Cisco 3600 is a mid-range dial-up platform that fits between Cisco's AccessPath and AS5300 products at the high end and the Cisco 2500 series access servers at the low end. Mixed-mode and high density ISDN and asynchronous configurations offer substantial flexibility in dial-up applications. New digital modes modules further enhance the dial access flexibility and scalability of the Cisco 3600.
The Cisco 3600 series offers new levels of cost effective ISDN PRI concentration. A Cisco 3640 configured with a LAN network module and three 2-port ISDN PRI network modules supports up to 138 (T1) or 180 (E1) B channels. This is a powerful and cost effective way to aggregate many branch offices and telecommuters onto one corporate network.
For areas of the world where ISDN BRI services are more widely available or cost effective, the Cisco 3600 series supports many BRI interfaces. Configured with a LAN network module and three 8-port network modules, a Cisco 3640 connects up to 48 B channels. In this way, one system provides high-density BRI interface dial-up support and local LAN and WAN routing connectivity.
With support for up to 24 synchronous serial interfaces and a mixed media network module, the Cisco 3600 series and its RISC processor are the perfect complement to the Cisco 2500 and 1600 series. The Cisco 3600's higher performance and modular design are appropriate for locations needing support for multiple 56-kbps links or the ability to change configurations in the future.
Many corporate environments require support for a mixture of ISDN PRI, ISDN BRI, asynchronous serial, and synchronous serial connections. The Cisco 3640 is ideal for this scenario. It allows migration between interfaces or simultaneous support of several technologies.
The Cisco 3620 allows new levels of connectivity and performance for branch offices with its smaller size, lower slot density, and lower cost. A combination of one mixed media network module plus another network module provides new opportunities for branch offices needing more than a fixed-configuration model. The Cisco 3620, for example, provides multiple LAN access server support for asynchronous and ISDN environments, which complements the Cisco 2500 series access servers. Alternatively, a Cisco 3620 adds multiple LAN capabilities to branch bank environments needing to assimilate legacy serial devices, connecting them all to a high-speed Frame Relay network.
Consistent with its other capabilities, the Cisco 3600 series offers midrange LAN-to-LAN connectivity for branch offices needing a flexible modular platform. This is different from other low- to mid-range Cisco routers. The Cisco 4500 and Cisco 4700 are the highest-performance access routers and support a wide array of high-speed LAN and WAN interfaces, including FDDI and ATM. The Cisco 2500 series, with a multitude of fixed configurations, offers cost effective branch office solutions including integrated routers and hubs, single and dual LAN routers, and multiple serial routers.

Standard Features

Table 45 provides a summary of features, and Table 46 provides the environmental specifications for the Cisco 3600 series routers.


Table  45: Cisco 3600 Series Summary of Features
Characteristic Description
Network interfaces supported on the Cisco 3640 and Cisco 3620 Ethernet

Fast Ethernet

Token Ring

Asynchronous

Synchronous serial

ISDN BRI (ST and U interfaces)

Channelized T1/ISDN PRI (with and without CSU)

Channelized E1/ISDN PRI (balanced and unbalanced)

Supported Cisco IOS software Release 11.1 AA and Release 11.2 P1
Flash memory 4 MB of Flash memory (SIMM), expandable to 32 MB. PCMCIA Flash memory cards are also supported by each model, available in 4 to 128 MB sizes.
DRAM memory (system and packet) 16 MB of DRAM memory. The Cisco 3640 is expandable to 128 MB. The Cisco 3620 is expandable to 64 MB.
Standard components 2 PCMCIA slots

High-speed console and auxiliary ports2

Rack- and wall-mount kit

Power supply and cord

Console Cable

Network module slots 4 slots on the Cisco 3640

2 slots on the Cisco 3620

Processor type Cisco 3640: 100-MHz IDT R4700 RISC

Cisco 3620: 80-MHz IDT R4700 RISC

Dimensions (H x W x D) Cisco 3640: 3.44 x 17.5 x 15.7 in. (8.7 x 44.5 x 36.8 cm)

Cisco 3620: 1.75 x 17.5 x 13.5 in. (4.4 x 44.5 x 34.2 cm)

Weight (average shipping) 25 lb (13.6 kg), includes chassis and 4 network modules

1 Supported in Cisco IOS Release 11.1(7)AA and Release 11.2(5)P and later releases.
2 Up to 115.2 kbps.

Table  46: Cisco 3600 Series Environmental Specifications
Description Specification
Input voltage, AC power supply

Current

Frequency

Power dissipation

 100 to 240 VAC1, autoranging

Cisco 3640: 2.0A; Cisco 3620: 1.0A

50 to 60 Hz

Cisco 3640: 140W (maximum); Cisco 3620: 60W

Input voltage, DC power supply

Current

Power dissipation

 38 to 72 VDC2

Cisco 3640: 5.0A; Cisco 3620: 2.5A

Cisco 3640: 140W (maximum); Cisco 3620: 60W

Operating humidity 5 to 95%, noncondensing
Operating temperature range 32 to 104°F (0 to 40°C)
Nonoperating temperature range -40 to 185°F (-40 to 85°C)
Regulatory compliance FCC Part 15 Class B. For additional compliance information, refer to the 3600 Series Public Network Certification document.

1 VAC = volts alternating current.
2 VDC = volts direct current.

Cables

References to cables required can be found in the following sections:



Hardware

The hardware options available for the Cisco 3600 series are described in the following sections:

Table 49 lists the product numbers for the Cisco 3600 series hardware options.

Network Module Options

The Cisco 3640 and Cisco 3620 routers are 4- and 2-slot modular access routers, respectively, whose LAN and WAN connections are configured by means of interchangeable network modules and WAN interface cards.

The following network modules are available for the Cisco 3640 and Cisco 3620 routers:

Figure 63 shows how a vacant chassis slot on the Cisco 3640 accepts a mixed media network module, which in turn accepts a WAN interface card.


Figure 63: Relationship Between Cisco 3600 Series Hardware Devices



Digital Modem Network Modules

The digital modem network modules significantly enhance the dial access flexibility and scalability of the Cisco 3600 series platform. Each network module supports up to 30 digital modems. The digital modem network modules use either the single or dual PRI network modules to offer support for up to 60 remote modem users (using two network modules), at speeds up to 56 Kbps. K56flex modem technology is currently supported, and future standards will be supported as they become available.

The digital modem network modules are available with 6, 12, 18, 24, or 30 modems per module, and are field-upgradable in six modem increments. Modem management software is also available for network managers who need to centrally monitor modem activity.

Figure 64 illustrates the digital modem network modules.


Figure 64: Digital Modem Network Module



Mixed-Media Network Modules

The versatile mixed-media network modules can have up to two fixed LAN interfaces and two user-configurable WAN interfaces. The fixed LAN interfaces reside on the main board and can be used in one Ethernet configuration, two Ethernet configurations, or one Ethernet and one Token Ring configuration. The first Ethernet port supports 10BaseT and AUI connectors while the second Ethernet port supports 10BaseT connectors only. The Token Ring port supports 4- and 16-Mbps ring speeds and STP and UTP interfaces.

The main board has two expansion slots for the WAN interface cards. The supported WAN modules include the 5-in-1 high-speed serial, ISDN BRI with S/T and U interfaces, and 1-port 4-wire 56 kbps DSU/CSU. The WAN high speed interface supports speeds up to 2.048 Mbps, full-duplex.

Figure 65, Figure 66, and Figure 67 illustrate the mixed-media network modules.


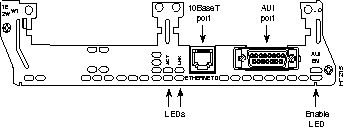

Figure 65: Network Module with 1 Ethernet and 2 WAN Card Slots




Figure 66: Network Module with 2 Ethernet and 2 WAN Card Slots




Figure 67: Network Module with 1 Ethernet, 1 Token Ring, and 2 WAN
Card Slots



Channelized T1/ISDN-PRI and E1/ISDN-PRI Network Modules

The channelized T1/ ISDN PRI modules are available with and without a built-in CSU and with one or two ports. The channelized T1/ISDN PRI modules connect to an external CSU. (See Figure 68 and Figure 69.) The channelized T1/ISDN PRI CSU modules connect directly to the network. (See Figure 70 and Figure 71.) Each of the T1 modules provides up to 24 virtual channels per T1 port.

The channelized E1/ISDN PRI modules are available with one or two E1 ports with balanced or unbalanced interfaces and are compatible with the International Telecommunication Union Telecommunication Standardization Sector (ITU-T) G.703/G.704 specifications. (See Figure 72 through Figure 75.) The channelized E1/ISDN PRI modules receive and transmit data bidirectionally at the E1 rate of 2.048 Mbps and provide up to 30 virtual channels per E1 port.

When configured for PRI, the T1/E1 modules are not compatible with the 4-port or 8-port ISDN BRI modules in the same chassis. However, they are compatible when configured for channelized service.


Figure 68: 1-Port Channelized T1/ISDN PRI Network Module




Figure 69: 2-Port Channelized T1/ISDN PRI Network Module




Figure 70: 1-Port Channelized T1/ISDN PRI CSU Network Module




Figure 71: 2-Port Channelized T1/ISDN PRI CSU Network Module




Figure 72: 1-Port Channelized E1/ISDN PRI B Network Module




Figure 73: 2-Port Channelized E1/ISDN PRI B Network Module




Figure 74: 1-Port Channelized E1/ISDN PRI U Network Module




Figure 75: 2-Port Channelized E1/ISDN PRI U Network Module



4- and 8-Port ISDN BRI Network Modules

Four versions of BRI network modules are available. Each 4- and 8-port module has the option of an S/T interface or an onboard NT1 for each port. (See Figure 76 through Figure 79.) These modules are installed in any slot in the Cisco 3600 series routers. Local SRAM is used for buffer descriptors and input queues. The 4-port module is not field upgradeable to the 8-port module.

With all eight BRI ports running continuous data (144 kbps each) and 50-byte packets, the maximum performance possible is 5760 pps and an aggregate full-duplex data rate of 2.3 Mbps.

The ISDN BRI network modules support the following features:


Figure 76: 4-Port ISDN BRI with NT1 Network Module (U Interface)




Figure 77: 4-Port ISDN BRI Network Module (S/T Interface)




Figure 78: 8-Port ISDN BRI Network Module (S/T Interface)




Figure 79: 8-Port ISDN BRI with NT1 Network Module (U Interface)



16-Port and 32-Port Asynchronous Network Modules

When used with corresponding octal cables, the 16-port and 32-port asynchronous network modules provide 16 or 32 EIA/TIA-232 data terminal equipment (DTE) serial interfaces at speeds up to 134.4 kbps. (See Figure 80 and Figure 81.)


Figure 80: 16-Port Asynchronous Network Module




Figure 81: 32-Port Asynchronous Network Module



4- and 8-Port Asynchronous and Synchronous Network Modules

The 4- and 8-port asynchronous/synchronous network modules are high density, low-speed serial modules used in the Cisco 3600 series routers. (See Figure 82 and Figure 83.) They provide up to eight synchronous ports with speeds up to 128 kbps or eight asynchronous ports with speeds up to 115.2 kbps with 10 percent return traffic.
The 4-port module is not upgradeable to the 8-port module.


Figure 82: 4-Port Asynchronous/Synchronous Network Module




Figure 83: 8-Port Asynchronous/Synchronous Network Module



1-Port and 4-Port Ethernet Network Modules

There are two different Ethernet network modules available for the Cisco 3600 series routers: 1-port and 4-port. The 1-port Ethernet network module has one Ethernet attachment unit interface (AUI) DB-15 connector and one 10BaseT RJ-45 connector. Only one of these two connections can be active at a time. (See Figure 84.)

The 4-port Ethernet network module supports up to four Ethernet connections. Ethernet port 0 uses either the AUI (DB-15) connector on the right side of the module or the 10BaseT (RJ-45) connector next to it, but only one of these two connections can be active at a time. Ethernet ports 1, 2, and 3 use 10BaseT connectors; these ports do not provide an AUI connector. (See Figure 85.)

The 1-port and 4-port Ethernet network modules require Cisco IOS Release 11.2(4)XA, 11.2(5)P, or later.


Figure 84: 1-Port Ethernet Network Module




Figure 85: 4-Port Ethernet Network Module



1-Port Fast Ethernet Network Module

The 1-port Fast Ethernet network module has one RJ-45 port. (See Figure 86.) This port connects to two-pair Category 5 UTP cabling following the 100BaseTX physical layer protocol.


Figure 86: 1-Port Fast Ethernet Network Module



4-Port Serial Network Module

The 4-port serial network module has four DB-60 ports and provides a data rate of 8 Mbps on port 0, 4 Mbps each on port 0 and port 2, or 2 Mbps on all four ports simultaneously. (See Figure 87.)


Figure 87: 4-Port Serial Network Module



Compression Network Module

The compression network module compresses and decompresses data passing through interfaces on other network modules or WAN interface cards in the router. (See Figure 88.) The following interfaces are supported:

Hardware compression is supported only over PPP links and only by means of the Stacker compression algorithm.


Figure 88: Compression Network Module



WAN Interface Card Options

The following WAN interface cards are available for network modules installed in a Cisco 3640 or Cisco 3620 router:

Note The ISDN BRI, ISDN with NT1, serial WAN interface, and ISDN BRI with 56/64-kbps DSU/CSU WAN port cards are compatible with Cisco 1600 series routers.

The ISDN BRI, ISDN BRI with NT1, and 1-port, 4-wire, 56-kbps DSU/CSU interface cards require Cisco IOS Release 11.2(4)XA, 11.2(5)P, or later.

Figure 89 through Figure 92 illustrate the WAN interface cards.


Figure 89: 1-Port ISDN BRI S/T WAN Interface Card




Figure 90: 1-Port ISDN BRI U with NT1 WAN Interface Card




Figure 91: 1-Port Serial WAN Interface Card




Figure 92:

1-Port, 4-Wire, 56 kbps DSU/CSU WAN Interface Card



Network Module Configuration Restrictions

Table 47 lists the maximum number of network modules that can be configured on a 3640/3620, and the minimum IOS version required. Table 48 lists the number of WAN interface cards that can be configured, along with the minimum IOS version required.


Table  47: Network Module Maximum Configurations
Network Module 3640 Max 3620 Max Minimum IOS Version
NM-1E2W 4 2 11.1(7+)AA
NM-2E2W 4 2 11.1(7+)AA
NM-1E1R 4 2 11.1(7+)AA
NM-1E 4 2 11.2(6)P
NM-4E 3 2 11.2(6)P
NM-1FE-TX 2 2 11.2(6)P
NM-4T 4 2 11.2(5)P
NM-16A 3 1 11.2(7a)P
NM-32A 3 1 11.2(7a)P
NM-4A/S 3 1 11.1(7+)AA
NM-8A/S 3 1 11.1(7+)AA
NM-4B/U 3 1 11.1(7+)AA
NM-8B/U 3 1 11.1(7+)AA
NM-4B-S/T 3 1 11.1(7+)AA
NM-8B-S/T 3 1 11.1(7+)AA
NM-1CT1 3 1 11.1(7+)AA
NM-1CT1-CSU 3 1 11.1(7+)AA
NM-2CT1 3 1 11.1(7+)AA
NM-2CT1-CSU 3 1 11.1(7+)AA
NM-COMPR 3 1 11.1(7a)P

Table  48: WAN Interface Card Configurations
WAN Interface Card Max per Combo (NM-1E2W, 2E2W, iEiR) Minimum IOS Version
WIC-1T 2 11.1(7+)AA
WIC36-1B-U 1 11.1(7+)AA
WIC36-1B-S/T 1 11.1(7+)AA
WIC-1B-U 2 11.2(4)XA
WIC-1B-S/T 2 11.2(4)XA
WIC-1DSU-56K4 2 11.2(4)XA

Memory, Power Supply, and Cable Options

This section describes the memory, power supply, and cable options for the Cisco 3600 series routers.

The Cisco 3600 series uses two types of replaceable or upgradeable memory: DRAM memory and Flash memory. Both types of memory are implemented with SIMMs. Each router has two Flash SIMM sockets and four DRAM SIMM sockets. In the standard Flash memory configuration, the first socket contains a 4-MB Flash SIMM, and the second socket is empty. You can upgrade the Flash memory to 32 MB on both routers. Each Cisco 3600 router ships standard with 16 MB of DRAM. The Cisco 3640 is expandable to 128 MB of DRAM. The Cisco 3620 is expandable to 64 MB of DRAM.

The Cisco 3600 series routers use a DRAM memory configuration that is different from other Cisco routers. Unlike the Cisco 4000 series routers, for example, which have separate physical locations for processor memory and packet memory, the Cisco 3600 series routers use one pool of DRAM memory. The DRAM is partitioned into processor memory and packet memory areas. For example, the memory of a 16-MB DRAM configuration is split into 12 MB for processor memory and 4 MB for the packet memory.

Note For guidelines on how to order the proper amount of memory to support different network module configurations, refer to product bulletin 544, 3600 Series Memory Options and Configuration Guide. This document is accessible from Cisco Connection On-line (CCO). The URL is http://www.cisco.com/warp/public/728/3600/index.html.

The Cisco 3600 allows you to load new system images using a PCMCIA Flash memory card. You can also load images from a local or remote PC through the console or auxiliary ports using the Xmodem or Ymodem protocols.

Hardware Product Numbers

The Cisco 3600 series routers offer the hardware, network modules, WAN interface cards, memory options, power supplies, and cables listed in Table 49. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order. If a base system product number ends with -CH, the item is available either through the Cisco authorized reseller channel, or through your local Cisco sales office. Other hardware options can also be ordered through the Cisco authorized reseller channel.


Table  49: Cisco 3600 Series Hardware Product Numbers
Description Product Number
Base Systems
Cisco 3640 4-slot modular router with an AC power supply CISCO3640-CH
Cisco 3620 2-slot modular router with an AC power supply CISCO3620-CH
Mixed Media Network Modules
1 Ethernet and 2 WAN interface card slots NM-1E2W
2 Ethernet and 2 WAN interface card slots NM-2E2W
1 Ethernet, 1 Token Ring, and 2 WAN interface card slots NM-1E1R2W
Channelized T1 and E1 ISDN PRI Network Modules
1-port channelized T1/ISDN PRI network module NM-1CT1
1-port channelized T1/ISDN PRI with CSU network module NM-1CT1-CSU
2-port channelized T1/ISDN PRI network module NM-2CT1
2-port channelized T1/ISDN PRI with CSU network module NM-2CT1-CSU
1-port channelized E1/ISDN PRI balanced network module NM-1CE1B
1-port channelized E1/ISDN PRI unbalanced network module NM-1CE1U
ISDN BRI Network Modules
4-port ISDN BRI network module with an S/T interface1 NM-4B-S/T
4-port ISDN BRI with NT1 network module1 NM-4B-U
8-port ISDN BRI network module with an S/T interface NM-8B-S/T
8-port ISDN BRI with NT1 network module NM-8B-U
Asynchronous/Synchronous Network Modules
4-port asynchronous/synchronous serial network module1 NM-4A/S
8-port asynchronous/synchronous serial network module NM-8A/S
Ethernet Network Modules
1-port Ethernet network module NM-1E
4-port Ethernet network module NM-4E
Fast Ethernet Network Module
1-port Fast Ethernet network module NM-1FE-TX
Serial Network Module
4-port serial network module NM-4T
WAN Interface Cards
1-port serial WAN interface card2 WIC-1T
1-port ISDN BRI WAN interface card2 WIC-1B-S/T
1-port ISDN BRI with NT1 WAN interface card2 WIC-1B-U
1-port, 4-wire, 56-kbps DSU/CSU WAN interface card WIC-1DSU-56K4
Cisco 3640 DRAM Memory
4-MB DRAM SIMM MEM3640-4D=
8-MB DRAM SIMM MEM3640-8D=
16-MB DRAM SIMM MEM3640-16D=
32-MB DRAM SIMM MEM3640-32D=
Cisco 3620 DRAM Memory
4-MB DRAM SIMM MEM3620-4D=
8-MB DRAM SIMM MEM3620-8D=
16-MB DRAM SIMM MEM3620-16D=
Cisco 3600 Series Flash Memory
4-MB Flash memory SIMM MEM3600-4FS=
8-MB Flash memory SIMM MEM3600-8FS=
4-MB blank Flash memory PCMCIA card MEM3600-4FC
8-MB blank Flash memory PCMCIA card MEM3600-8FC
Cisco 3600 Power Supply Options
Redundant power supply 22/18 Y load cable CAB-RPSY-2218
Redundant power supply 22/18 load cable CAB-RPS-2218=
Cisco 3640 redundant power system field upgrade ACS-3640RPS=
Cisco 3620 redundant power system field upgrade ACS-3620RPS=
Cisco 3600 Cable3 and Rack-Mount Kit Options
Male DTE V.35 cable, 10 ft CAB-V35MT
Female DCE V.35 cable, 10 ft CAB-V35FC
Male DTE EIA/TIA-232 cable, 10 ft CAB-232MT
Female DCE EIA/TIA-232 cable, 10 ft CAB-232FC
Male DTE EIA/TIA-449 cable, 10 ft CAB-449MT
Female DCE EIA/TIA-449 cable, 10 ft CAB-449FC
Male DTE X.21 cable, 10 ft CAB-X21MT
Female DCE X.21 cable, 10 ft CAB-X21FC
Male DTE EIA/TIA-530 cable, 10 ft CAB-530MT
MIP-CT1: DSX1 to CSU DB-15 thru cable CAB-7KCT1DB15
MIP-CT1: DSX1 to CSU DB-15 null cable CAB-7KCT1NULL
E1 cable ISDN PRI, 10 ft CAB-E1-PRI
E1 cable Twinax 120 ohm, balanced, 9.8 ft CAB-E1-TWINAX
E1 cable DB-15 120 ohm, balanced, 16 ft CAB-E1-DB15
E1 cable BNC 75 ohm, unbalanced, 16 ft CAB-E1-BNC
Auxiliary and console port cable kit ACS-3600ASYN
19-inch rack-mount kit for the Cisco 3640 ACS-3640RM-19=
19-inch rack-mount kit for the Cisco 3620 ACS-3620RM-19=
24-inch rack-mount kit for the Cisco 3640 ACS-3640RM-24=
24-inch rack-mount kit for the Cisco 3620 ACS-3620RM-24=
Cisco 3600 Series Maintenance
Cisco 3640 SMARTnet maintenance

Cisco 3620 SMARTnet maintenance

1 The 4-port module is not upgradeable to the 8-port module.
2 These interface cards are compatible with the Cisco 1600 series routers.
3 For cable illustrations, refer to the "Cables and Transceivers" chapter, later in this catalog.



Software

The Cisco IOS software available for the Cisco 3600 series routers is described in the following sections:

The Cisco 3600 series routers support Cisco IOS Release 11.2 and 11.1.

Software Feature Sets

This section describes Cisco IOS feature sets for the Cisco 3600 series routers.

The Cisco 3600 series offers the following type of feature sets:

Note Cisco IOS Release 11.1 does not include plus, Plus 40 or Plus 56 encryption feature sets.
Note Cisco IOS images with 40-bit Data Encryption Standard (DES) support may legally be distributed to any party eligible to receive Cisco IOS software. 40-bit DES is not a cryptographically strong solution so its use should be carefully evaluated.

Cisco IOS images with 56-bit DES are possibly subject to export and/or import controls and may have a limited distribution. For more information, contact your sales representative or distributor, or visit CCO at http://www.cisco.com/wwl/export/encrypt.html , or send e-mail to export@cisco.com.

The Cisco IOS feature set tables use the following conventions to identify features:

Software Feature Packs

Software feature packs consist of CD-ROMs that contain Cisco IOS software feature set images and a Windows 95 application, which loads the images onto a router.

Software feature packs are available for most of the Cisco IOS Release 11.2. Table 50 lists the product numbers for feature sets and feature packs available in Cisco IOS Release 11.2. Software feature packs are only available for Cisco IOS Release 11.2 and later releases.

For more information about software feature packs, see the section "Cisco IOS Feature Packs" in the chapter "Cisco IOS Software," earlier in the catalog.

Note You can also order a Cisco IOS software feature pack for Cisco 3640 and Cisco 3620 models.If you order a reseller channel model of the Cisco 3600 series (Cisco 3640-CH and Cisco 3620-CH), you must order Cisco IOS software in a feature pack.

Software Product Numbers

This section describes the software product numbers and minimum memory requirements for the Cisco 3600 series routers.

Adding a feature set or feature pack might require you to purchase additional memory. Table 50 lists the software feature set and feature pack product numbers and minimum memory requirements for Cisco IOS Release 11.2.


Table  50: Software Product Numbers and Minimum Memory Requirements for Cisco IOS Release 11.2--Cisco 3600 Series
Product Numbers and Minimum Memory Requirements
Cisco IOS Release 11.2

 Feature Set1 		Cisco 3600 Series Model Product Number2 Required
Flash3 		Required
DRAM

 IP only

  Cisco 3640 CD36-C-11.2=4

4 MB

16 MB

 Cisco 3620 CD36-C-11.2=4

4 MB

16 MB

 IP Plus

  Cisco 3640 CD36-CP-11.2=4

4 MB

16 MB

 Cisco 3620 CD36-CP-11.2=4

4 MB

16 MB

 Desktop
(IP/IPX/AppleTalk/DEC)

  Cisco 3640 CD36-B-11.2=4

4 MB

24 MB

 Cisco 3620 CD36-B-11.2=4

4 MB

24 MB

 Desktop Plus

  Cisco 3640 CD36-BP-11.2=4

4 MB

24 MB

 Cisco 3620 CD36-BP-11.2=4

4 MB

24 MB

 Enterprise

  Cisco 3640 CD36-A-11.2=4

8 MB

24 MB

 Cisco 3620 CD36-A-11.2=4

8 MB

24 MB

 Enterprise Plus

  Cisco 3640 CD36-AP-11.2=4

8 MB

24 MB

 Cisco 3620 CD36-AP-11.2=4

8 MB

24 MB


1 Cisco IOS Release 11.2 P is required for all Release 11.2 orders.
2 Substitute the release number for xx.x.x in the product number (for example, SW364C-xx.x.xx= is equivalent to SW364C-11.1.7A=).
3 8 MB of Flash memory is required to run the Cisco IOS Enterprise feature sets listed in this table. If you order one of the Enterprise feature sets and less than 8 MB of Flash, the 4-MB to 8-MB Flash memory upgrade will be added to your order.
4 Software feature pack on CD-ROM. You must order a feature pack with a -CH model of the Cisco 3640 or Cisco 3620. The feature pack software is preinstalled on -CH models.



CiscoSecure EasyACS

CiscoSecure EasyACS (Version 1.0) is easy-to-use, access control server software designed to provide basic authentication, authorization, and accounting services on a Windows NT server for a single Cisco access server or firewall router. It is included on a CD-ROM with Cisco 3600 series routers. CiscoSecure EasyACS is also available via CCO if you have a Cisco 3600 series router installed at your site that is covered by a SMARTnet contract.


hometocprevnextglossaryfeedbacksearchhelp
Copyright 1989-1997 © Cisco Systems Inc.
