This chapter provides information on the Cisco 1600 series of modular routers for small offices. The information is organized into the following sections:
The Cisco 1600 series of access routers delivers the next-generation set of features and benefits for small-office Internet and intranet access: WAN flexibility, end-to-end security, end-to-end quality of service, ease of use, deployment, and management. The Cisco 1600 series routers connect small offices with Ethernet LANs to the public Internet and to a company's internal intranet or corporate LAN through several WAN connections such as ISDN, asynchronous serial, and synchronous serial. The Cisco 1600 series routers include the following models: the Cisco 1601, Cisco 1602, Cisco 1603, Cisco 1604, and Cisco 1605-R.
All Cisco 1600 series models include one Ethernet port, one built-in WAN port, and one WAN interface card expansion slot for additional connectivity and flexibility. The Cisco 1601 (see Figure 114) includes a built-in serial WAN port; the Cisco 1602 (see Figure 115) has an onboard 56-kbps, four-wire Channel Service Unit/Data Service Unit (CSU/DSU); the Cisco 1603 (see Figure 116) has an ISDN BRI S/T port; the Cisco 1604 (see Figure 118) includes an ISDN BRI U interface with a built-in NT1 device; and the Cisco 1605-6 (see Figure 118) includes an ISDN BRI U interface with a built-in NT1 device.
The WAN-card slot in the Cisco 1600 series allows you to change or add WAN interface cards as your WAN requirements grow or change over time. With this feature, the Cisco 1600 series routers offer you more flexibility and investment protection than any other products in their class.
The Cisco 1600 series routers help protect your investment in an environment of rapid change in WAN requirements and telecommunications. If your business requirements or choices from the service provider change, simply add or change (upgrade) the WAN interface card to use a new WAN technology or service. Most WAN interface cards are interchangeable with any Cisco 1600 and Cisco 3600 series routers. The ISDN WAN interface cards are not supported by the Cisco 1603 and Cisco 1604 routers.The Cisco 1605-R router has an integrated WAN interface.
The Cisco 1600 series routers offer the most complete set of internetworking software features for a small-office Internet or intranet access device. Cisco IOS software and its suite of protocol and applications support differentiates the Cisco 1600 from the competition in the following areas:
The Cisco 1600 series routers are designed to be plug-and-play devices--installation can be performed by nontechnical personnel while ongoing administration can be performed through a centralized site. Preconfigured software can be loaded into a PC Flash memory card at a central site and then sent to remote sites, where users can simply perform plug-and-play installation. The Cisco 1600 also comes with a variety of easy, user-friendly installation features such as Web browser-based ClickStart for initial configuration. AutoInstall allows you to download software upgrades and configuration modifications from a central site over the Frame Relay or leased line WAN. Additionally, the Cisco 1600 allows for centralized administration/management using SNMP, Telnet, or through the console port. These features combine to give the lowest total-cost-of-ownership (the sum of deployment costs, administrative costs, and WAN costs).
Table 60 lists the features common to all Cisco 1600 series routers.
| Characteristic | Description |
|---|---|
| Flash memory | 4 MB of Flash memory, which is expandable to 12 MB. Depending on the Cisco IOS release that shipped with the system, more memory might be required. Refer to Table 64, later in this chapter, for the minimum Flash memory required for each feature set. |
| DRAM memory | 2 MB of DRAM memory, which is expandable to 18 MB. Refer to Table 64, later in this chapter, for the minimum DRAM required for each feature set. |
| Processor type | Motorola 68360 33-MHz CPU |
| Software options--Cisco IOS Releases 11.2 and 11.1 | IP
IP Plus IP/IPX IP/IPX Plus IP/AppleTalk IP/AppleTalk Plus IP/IPX/AppleTalk IP/IPX/AppleTalk Plus |
| Dimensions (H x W x D) | All models--9.5 x 7.5 x 1.6 in. (24 x 19 x 4 cm) |
| Weight (average shipping) | All models--1.65 lb (0.75 kg) to 1.80 lb (0.82 kg) |
| Standard hardware components | External power supply and cord
Console port (RJ-45 connector) 10BaseT port (RJ-45 connector) AUI port (DB-15 connector) Flash memory PCMCIA Type 2-compatible Slot for a WAN interface card RJ-45-to-DB-9 adapter |
| Router management options | Router management through the console port
Router management over the network using SNMP AutoInstall for downloading configuration files automatically over a WAN ClickStart, a World Wide Web (WWW) browser-based tool for initial router configuration |
Table 61 lists the environmental specifications for the Cisco 1600 series.
| Description | Specification |
|---|---|
| Output | 27W maximum |
| AC input voltage | 100 to 240 VAC1 |
| AC input current | 0.2 to 0.4A |
| Frequency | 50 to 60 Hz |
| Operating temperature range | All models: -32 to 104°F (0 to 40°C) |
| Nonoperating temperature range | All models: -4 to 149°F (-20 to 65°C) |
| Operating humidity | All models: 10 to 85% noncondensing and operating, 5 to 95%, noncondensing and not operating |
Available hardware for the Cisco 1600 series routers is described in the following section:
Table 63 lists the product numbers for the Cisco 1600 series hardware.

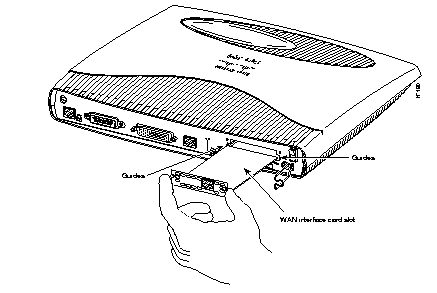

A WAN interface card slides into a WAN interface card slot, which is located on the rear panel connector of a Cisco 1600 series chassis, as shown in Figure 119.
Table 62 lists the LAN interfaces, fixed WAN interfaces, and WAN interface cards supported on each Cisco 1600 series router.
| Model | LAN Interface | Fixed WAN Interface | WAN Interface Cards Supported |
|---|---|---|---|
| Cisco 1601 | 10BaseT (RJ-45), AUI (DB-15) | Serial interface (DB-60),1 which supports asynchronous analog connections up to 115.2 kbps, and synchronous connections, such as digital leased lines, Frame Relay, switched-56, SMDS, and X.25, up to 2.048 Mbps. | Serial,1synchronous, and asynchronous
ISDN BRI S/T ISDN BRI U |
| Cisco 1602 | 10BaseT (RJ-45), AUI (DB-15) | Synchronous serial with integrated 56 kbps, four-wire CSU/DSU interface (RJ-48S), which supports permanent and switched 56 kbps and dataphone digital service (DDS) connections. | Serial, synchronous, and asynchronous
ISDN BRI S/T ISDN BRI U |
| Cisco 1603 | 10BaseT (RJ-45), AUI (DB-15) | ISDN BRI with an S/T interface (RJ-45), which supports one ISDN BRI connection. (An ISDN BRI connection consists of two 64-kbps B channels and one 16-kbps D channel.) | Serial, synchronous, and asynchronous |
| Cisco 1604 | 10BaseT (RJ-45) AUI (DB-15) | ISDN BRI U interface (RJ-45) with an integrated NT1, one ISDN S-bus port (RJ-45), which supports one additional ISDN nondata device (such as an ISDN telephone or fax) on the same ISDN line as the router. | Serial, synchronous, and asynchronous |
| Cisco 1605-R | 10BaseT (RJ-45) AUI (DB-15) | ISDN BRI U interface (RJ-45) with an integrated NT1, one ISDN S-bus port (RJ-45), which supports one additional ISDN nondata device (such as an ISDN telephone or fax) on the same ISDN line as the router. Integrated WAN interface. | Serial, synchronous, and asynchronous |
Figure 120 through Figure 123 show the WAN interface cards available for the Cisco 1600 series routers.
Table 63 lists the hardware product numbers for the Cisco 1600 series routers. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order.
| Description | Product Number |
|---|---|
| Base Router Models | |
| Cisco 1601 Ethernet and serial modular router | CISCO1601 -CH |
| Cisco 1602 Ethernet and serial modular router with 56 kbps DSU (4-wire) | CISCO1602 -CH |
| Cisco 1603 Ethernet and ISDN BRI modular router | CISCO1603 -CH |
| Cisco 1604 Ethernet and ISDN BRI modular router with NT1 | CISCO1604 -CH |
| Cisco 1605 Ethernet and ISDN BRI modular router with WAN interface | CISCO1605-R |
| WAN Interface Cards | |
| 1-port serial | WIC-1T |
| 1-port ISDN BRI with S/T interface | WIC-1B-S/T |
| 1-port ISDN BRI with S/T interface for leased lines (Cisco 1603) | WIC-1B-S/T-LL |
| 1-port ISDN BRI with NT-1 and U interface | WIC-1B-U |
| 1-port ISDN BRI with 56/64-kbps DSU/CSU WAN port | WIC-1DSU-56K4 |
| DRAM Memory Options | |
| 2-MB DRAM SIMM | MEM1600-2D= |
| 4-MB DRAM SIMM | MEM1600-4D= |
| 8-MB DRAM SIMM | MEM1600-8D= |
| 16-MB DRAM SIMM | MEM1600-16D= |
| Flash Memory Options | |
| 4-MB Flash card | MEM1600-4F= |
| 6-MB Flash card | MEM1600-6F= |
| 8-MB Flash card | MEM1600-8F= |
| 12-MB Flash card | MEM1600-12F= |
| Options and Spares | |
| Console cable | CAB-1600-CON= |
| AC power supply, which offers world-wide support | 1600-WW1= |
| AC power supply for North America | PWR-1600-NA1= |
| AC power supply for the United Kingdom | PWR-1600-UK1= |
| AC power supply for Europe | PWR-1600-EU1= |
| AC power supply for Japan | PWR-1600-JP1= |
| Ethernet AUI adapter cable, 18 in. | CAB-3CE18= |
| Cable Options | |
| V.35 cable, DTE, male, 10 ft | CAB-V35MT= |
| V.35 cable, DCE, female, 10 ft | CAB-V35FC= |
| EIA/TIA-232 cable, DTE, male, 10 ft | CAB-232MT= |
| EIA/TIA-232 cable, DCE, female, 10 ft | CAB-232FC= |
| EIA/TIA-449 cable, DTE, male, 10 ft | CAB-449MT= |
| EIA/TIA-449 cable, DCE, female, 10 ft | CAB-449FC= |
| X.21 cable, DTE, male, 10 ft | CAB-X21MT= |
| X.21 cable, DCE, female, 10 ft | CAB-X21FC= |
| EIA-530 cable, DTE, male, 10 ft | CAB-530MT= |
| SMARTnet Maintenance | |
| Cisco 1600 series SMARTnet maintenance |
The Cisco IOS software available for the Cisco 1600 series routers is described in the following sections:
The Cisco 1600 series routers support Cisco IOS Releases 11.2 and 11.1.
The following types of feature sets are offered:
The Cisco IOS feature set tables use the following conventions to identify features:
Software feature packs consist of CD-ROMs that contain Cisco IOS software feature set images and a Windows 95 application, which loads the images onto a router.
Software feature packs are available for most of the Cisco IOS Release 11.2 feature set images. Table 64 lists the product numbers for feature sets and feature packs available in Cisco IOS Release 11.2. Software feature packs are available only for Cisco IOS Release 11.2 and later releases
For more information about software feature packs, see the "Cisco IOS Feature Packs" section in the "Cisco IOS Software" chapter earlier in the catalog.
Table 64 lists the software product numbers and minimum memory requirements for the Cisco 1600 series Cisco IOS Release 11.2 feature sets and feature packs and Cisco IOS Release 11.1 feature sets. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order.
| Product Numbers and Minimum Memory Requirements | |||||
|---|---|---|---|---|---|
| Cisco IOS Releases | |||||
| 11.2 | 11.1 | ||||
| Feature Set | Product Number1 | Total DRAM | Flash | Total DRAM | Flash |
| IP | CD16-C-11.2=2 | 2 MB | 4 MB | 2 MB | 4 MB |
| IP Plus | CD16-CP-11.2=2 | 4 MB | 6 MB | 4 MB | 6 MB |
| IP Plus 403 | CD16-CC-11.2=2 | 4 MB | 6 MB | - | - |
| IP Plus 563 | CD16-CY-11.2=2 | 4 MB | 6 MB | - | - |
| IP/IPX | CD16-A/B/E-11.2=2 | 2 MB | 4 MB | 2 MB | 4 MB |
| IP/IPX Plus | CD16-BP/EP-11.2=2 | 4 MB | 6 MB | 4 MB | 6 MB |
| IP/IPX Plus 403 | CD16-BW/EW-11.2=2 | 4 MB | 6 MB | - | - |
| IP/IPX Plus 563 | CD16-BY/EY-11.2=2 | 4 MB | 6 MB | - | - |
| IP/AT | CD16-A/B/E-11.2=2 | 2 MB | 4 MB | 2 MB | 4 MB |
| IP/AT Plus | CD16-BP/EP-11.2=2 | 4 MB | 6 MB | 4 MB | 6 MB |
| IP/AT Plus 403 | CD16-BW/EW-11.2=2 | 4 MB | 6 MB | - | - |
| IP/AT Plus 563 | CD16-BY/EY-11.2=2 | 4 MB | 6 MB | - | - |
| IP/IPX/AT | CD16-A/B/E-11.2=2 | 4 MB | 6 MB | 4 MB | 6 MB |
| IP/IPX/AT Plus | CD16-AP-11.2=2 | 4 MB | 6 MB | 4 MB | 6 MB |
| IP/IPX/AT Plus 403 | CD16-AW-11.2=2 | 4 MB | 6 MB | - | - |
| IP/IPX/AT Plus 563 | CD16-AY-11.2=2 | 4 MB | 6 MB | - | - |
|
|
