Cisco 1000 Series

Product Overview

The Cisco 1000 series LAN extenders and routers are easytoinstall, inexpensive, multiprotocol access products designed for small offices and other remote sites.

There are currently four Cisco 1000 series models:

• Cisco 1001 LAN extender


  • One Ethernet port with AUI (DB-15) and 10BaseT (RJ-45) interfaces


  • One synchronous serial WAN port that supports V.35 (Winchester)


• Cisco 1003 ISDN router


  • One 10BaseT Ethernet port (RJ-45)


  • One ISDN BRI WAN port (RJ-45)


  • One console port (RJ-45)


  • One Type2 PCMCIA slot for Flash ROM card


• Cisco 1004 ISDN router


  • One 10BaseT Ethernet port (RJ-45)


  • One ISDN BRI WAN port (RJ-45), with an integrated NT1 device


  • One console port (RJ-45)


  • One Type2 PCMCIA slot for Flash ROM card


• Cisco 1005 serial router


  • One 10BaseT Ethernet port (RJ-45)


  • One serial WAN port (DB-60) that supports asynchronous serial communications up to 115.2 kbps (EIA/TIA-232 interface) and synchronous serial such as leased lines, Frame Relay, switched 56 kbps, SMDS, and X.25 up to 2.048 Mbps (EIA/TIA-232, EIA/TIA-449, V.35, X.21, and EIA-530)


  • One console port (RJ-45)


  • One Type2 PCMCIA slot for Flash ROM card


Cisco 1001 LAN Extender

The Cisco 1001 LAN extender supports Cisco's LAN extension software, which provides a seamless connection between a remote-site LAN and a central-site LAN. The Cisco 1001 at the remote site connects to Cisco host routers at the central site using permanent synchronous serial lines running at up to T1/E1 speeds (2.048 Mbps).

All configuration and management for the Cisco 1001 LAN extender is performed at the central site through the Cisco router. The LAN extender can connect to a Cisco 2500 series, Cisco 4000 series, Cisco 7000 series, or AGS+ router running Cisco IOS Release 10.2(2) or later.

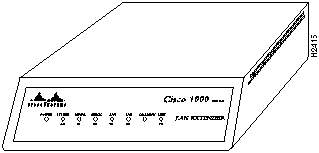

Figure 90 : Cisco 1001 LAN Extender Front Panel

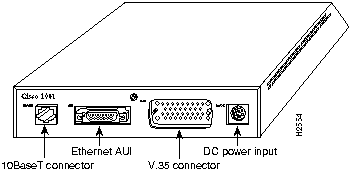

Figure 91 : Cisco 1001 LAN Extender Rear Panel

Table 187 : Cisco 1001 LAN Extender Summary of Features

Characteristic	Features
Model 1001 interfaces	1 Ethernet: AUI1 (IEEE 802.3 DB-15) 10BaseT (RJ45) 1 V.35 synchronous serial (Winchester connector)
Processor type	MC68360
Software	Ships with the LAN extender
Dimensions (H x W x D)	1.75 x 8.0 x 8.3" (4.4 x 20.3 x 21 cm)
Weight	6.0 lb (2.7 kg) shipping weight
Product number	CISCO1001

¹ AUI = attachment unit interface.

Table 188 : Cisco 1001 LAN Extender Environmental Specifications

Description	Specification
Input power	12 VDC External power supply: 100 to 240 VAC at 50 to 60 Hz
Power dissipation	12W (maximum) 135.5 Btu/hr
Frequency	50 to 60 Hz
Operating temperature range	32 to 104°F (0 to 40°C)
Nonoperating temperature range	--40 to 185°F (--40 to 85°C)
Humidity (noncondensing)	10 to 90%

Standard Features

The Cisco 1001 LAN extender includes the following features:

• AC-to-DC power supply


• Six-foot AC power cord


• MAC address on shipping carton label


• Easy installation---LAN extension software ships with the LAN extender


Software

Table 189 lists the LAN software for the Cisco 1001 LAN extender.

Table 189 : Cisco 1001 LAN Extender Software Features

Category	Description
LAN support	LAN extension
WAN services	PPP
WAN optimization	Priority queuing, protocol filtering
Management	At central site on host router

Options

Table 190 lists the options for the Cisco 1001 LAN extender. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order.

Table 190 : Cisco 1001 LAN Extender Options

Description	Product Number
DTE V.35 cable (shielded 3-meter, maletomale)	CABV35MTS
AC power supply	PWR-1000-AC1=

Cisco 1003 and Cisco 1004 ISDN Routers

The Cisco 1003 and Cisco 1004 routers are small, desktop routers that connect small, remote sites with Ethernet LANs to ISDN WANs.

The main difference between the two routers is that the Cisco 1004 router includes an integrated network termination 1 (NT1) device and the Cisco 1003 router does not. The ISDN service provider supplies the NT1 connection worldwide, except in North America, where the NT1 device is supplied by the customer. Therefore, the Cisco 1004 router is for use in North America, and the Cisco 1003 router is applicable worldwide.

The front view of the routers looks the same.

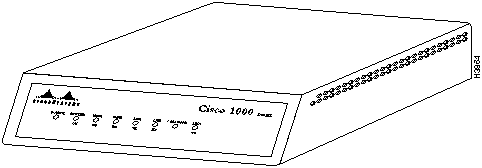

Figure 92 : Cisco 1003 and Cisco 1004 Front Panel

The rear view of the routers looks the same except for the following differences:

• The BRI port on the Cisco 1003 is labeled "ISDN S/T," and "Cisco 1003" is stamped on the upper left corner of the chassis (not illustrated).


• The BRI port on the Cisco 1004 is labeled "ISDN U," and "Cisco 1004" is stamped on the upper left corner of the chassis (not illustrated).

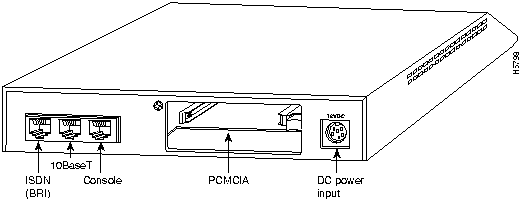

Figure 93 : Cisco 1003 and Cisco 1004 Rear Panel

Table 191 : Cisco 1003 and Cisco 1004 Summary of Features

Characteristic	Feature
Supported network interfaces	ISDN BRI (RJ-45)1 Ethernet 10BaseT (RJ-45) Console port (RJ-45) (EIA/TIA-232)
Processor type	Motorola 68360
Software	IP, IPX, AppleTalk routing and bridging over ISDN. See Table 196 and Table 198.
Dimensions (H x W x D)	1.75 x 8.0 x 8.3" (4.4 x 21 x 20.3 cm)
Weight	6.0 lb (2.7 kg) shipping weight
Product numbers	CISCO1003 and CISCO1004

¹ The ISDN BRI port is labeled "ISDN S/T" on the Cisco1003 router and "ISDN U" on the Cisco1004 router. The Cisco1004 router includes an integrated NT1 device.

Table 192 : Cisco 1003 and Cisco 1004 Environmental Specifications

Description	Specification
Power	Cisco 1003 and Cisco 1004: 12 VDC output, minimum 0.5 A Desktop external power supply: 100 to 240 VAC at 50 to 60 Hz, 1.0A input Wall-mount external power supply: 120 VAC at 60 Hz input (for Cisco 1004 routers used in North America only)
Operating temperature range	32 to 104°F (0 to 40°C)
Nonoperating temperature range	--40 to 185°F (--40 to 85°C)
Operating humidity (noncondensing)	10 to 90%

Standard Features

The Cisco 1003 and Cisco 1004 routers include the following standard features:

• One Ethernet 10BaseT port with an RJ-45 connector


• One ISDN BRI port with an RJ-45 connector (the Cisco 1004 router includes an integrated NT1 device)


• One console port with an RJ-45 connector


• Console cable kit and power supply


• One external PCMCIA slot for optional Type-2 Flash memory card


• Software booting over an Ethernet LAN using TFTP


• Optional Flash memory card to store software image and configuration files, allowing network-independent booting and software updates over the WAN or LAN connections


• LAN-to-LAN DDR routing over ISDN lines


• IP, IPX, and AppleTalk routing


• Transparent bridging


• IPX and SPX spoofing


• PPP compression and bandwidth-on-demand with load balancing for throughput up to 512 kbps


• HDLC and standards-based PPP


• Increased security with CHAP, PAP, packet filters, local password, and CLI/ANI


• Network management and monitoring through the console port or over the network using SNMP or Telnet


Software

The Cisco 1003 and Cisco 1004 routers support the following Cisco IOS releases:

• Cisco IOS Release 11.2, 11.1, 11.0, 10.3, and 10.2 feature sets (see Table 196)


• Cisco IOS product numbers and minimum memory requirements (see Table 198)


The software is available on 2-MB or 4-MB Flash ROM cards or on diskettes.

Options

Table 193 lists the options for the Cisco 1003 and Cisco 1004 routers. If a product number ends with an equal sign (=), the item can be ordered only as a spare. If a product number does not end with an equal sign, the item can be ordered as a spare or as a configurable part of a system order.

Table 193 : Cisco 1003 and Cisco 1004 Options

Option	Product Number
Console cable	CAB-1000-CON=
AC power supply	PWR-1000-AC1=
4-MB to 8-MB DRAM upgrade	MEM-1003-8MD (Cisco 1003) MEM-1004-8MD (Cisco 1004)
8-MB DRAM SIMM	MEM-1000-8MD=

Cisco 1005 Serial Router

The Cisco 1005 router is a small, desktop router that connects small, remote sites with Ethernet LANs to synchronous WANs at speeds up to 2.048 Mbps or to asynchronous WANs at speeds up to 115.2 kbps.

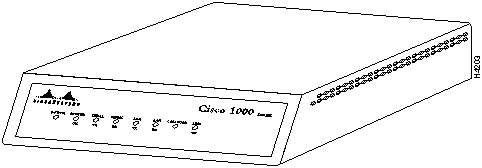

Figure 94 : Cisco 1005 Front Panel

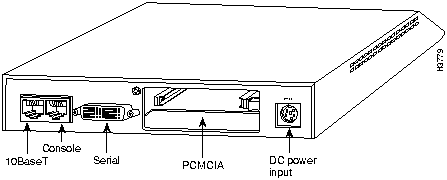

Figure 95 : Cisco 1005 Rear Panel

Table 194 : Cisco 1005 Summary of Features

Characteristic	Feature
Supported network interfaces	Serial port (DB-60)1 Ethernet 10BaseT (RJ-45) Console port (RJ-45) (EIA/TIA-232)
Processor type	MC68360
Software	IP, IPX, AppleTalk routing and bridging over leased lines, Frame Relay, Switched 56, SMDS, and X.25. IP/IPX routing over asynchronous WAN links. See Table 196 and Table 198.
Dimensions (H x W x D)	1.75 x 8.0 x 8.3" (4.4 x 21 x 20.3 cm)
Weight (average shipping)	6.0 lb (2.7 kg)
Product number	CISCO1005

¹ The serial port supports asynchronous communications through an EIA/TAI-232 interface and synchronous communications through the following interfaces: EIA/TIA-232, EIA/TIA-449, V.35, X.21, and EIA-530.

Table 195 : Cisco 1005 Environmental Specifications

Description	Specification
Power	12 VDC output, minimum 0.5A External power supply: 100 to 240 VAC at 50 to 60 Hz, 1.0A input
Operating temperature range	32 to 104°F (0 to 40°C)
Nonoperating temperature range	--40 to 185°F (--40 to 85°C)
Operating humidity (noncondensing)	10 to 90%

Standard Features

The Cisco 1005 router includes the following features:

• One Ethernet 10BaseT port (RJ-45)


• One console port (RJ-45)


• Console cable kit and power supply


• One serial port (DB-60) that supports permanent and switched synchronous WAN links up to 2.048 Mbps and asynchronous WAN links up to 115.2 kbps


• One slot for an optional PCMCIA Flash memory card


• Software boot using TFTP over an Ethernet LAN connection or by using the optional Flash memory card


• IP, IPX, and AppleTalk routing


• Transparent bridging (over synchronous WAN links only)


• Support for the following synchronous WAN encapsulations: HDLC, LAPB, Frame Relay, SMDS, and X.25


• Support for the following asynchronous WAN encapsulations: PPP and SLIP


• Router management through the console port or over the network using SNMP or Telnet


• AutoInstall for downloading configuration files automatically over a WAN


Software

The Cisco 1005 router supports the following software releases:

• Cisco IOS Release 11.2, 11.1, 11.0, 10.3, and 10.2 feature sets (see Table 196)


• Cisco IOS Release 11.2, 11.1, and 11.0 platform-specific feature sets (see Table 197)


• Cisco IOS product numbers and minimum memory requirements for Cisco IOS Release 11.2 for the Cisco 1003 and Cisco 1004 (see Table 198) and the Cisco 1005 (see Table 199)


• Cisco IOS product numbers and minimum memory requirements for Cisco IOS Release 11.1, 11.0, 10.3, and 10.2 (see Table 200)


The Cisco IOS Releases 11.0 and 11.1 feature sets support the asynchronous services, which provide dial-on-demand routing over asynchronous basic telephone lines on the Cisco 1005 router. Unlike other Cisco IOS feature sets available for the Cisco 1005 router, these asynchronous images do not support bridging.

The software is available on 2-MB or 4-MB Flash ROM cards or on diskettes.

With the introduction of Cisco IOS Release 11.2, feature sets have been updated to make it easier to select the exact feature sets you need. Feature sets names are simplified and are more consistent across Cisco hardware platforms. In addition, you can add options to the standard feature set offerings. These options provide additional features and value based on the hardware platform selected. Cisco also continues to offer specialized feature sets for key applications.

The Cisco 1000 series routers offer the following types of feature sets:

• Basic. The basic feature set for the hardware platform.


• Plus. The basic feature set plus additional features.


• Plus 40. The basic feature set, plus features, and 40-bit data encryption.


• Plus 56. The basic feature set, plus features, and 56-bit data encryption.


Cisco IOS images with 40-bit Data Encryption Standard (DES) support may legally be distributed to any party eligible to receive Cisco IOS software. 40-bit DES is not a cryptographically strong solution and should not be used to protect sensitive data.

Cisco IOS images with 56-bit DES are subject to International Traffic in Arms Regulations (ITAR) controls and have a limited distribution. Images to be installed outside the U.S. require an export license. Orders may be denied or subject to delays due to U.S. Government regulations. Contact your sales representative or distributor for more information, or send e-mail to export@cisco.com.

The new tables use the following conventions to identify features:

• X : the feature is offered in the basic feature set


• -- : the feature is not offered in the feature set


• Plus : the feature is offered only in the Plus feature sets


• Encrypt : the feature is in the Encryption feature sets


Table 196 : Cisco IOS Release 11.2, 11.1, 11.0, 10.3, and 10.2 Feature Sets---Cisco 1003, Cisco 1004, and Cisco 1005

	Cisco 1003, Cisco 1004, and Cisco 1005 Feature Sets1
Features	IP Routing2				IP/IPX Routing2, 3			IP/Appletalk Routing2, 3			IP/IPX/Appletalk Routing4
Cisco IOS Releases	11.2	11.1	11.0	10.3	11.2	11.1	11.0	11.2	11.1	11.0	11.2	11.1	11.0	10.3
LAN Support
AppleTalk 1 and 25	--	--	--	--	--	--	--	X	X	X	X	X	X	X
GRE	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Integrated routing and bridging (IRB)6	X	--	--	--	X	--	--	X	--	--	X	--	--	--
IP	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Novell IPX7	--	--	--	--	X	X	X	--	--	--	X	X	X	X
Transparent and translational bridging8	X	X	X	X	X	X	X	X	X	X	X	X	X	X
WAN Services9
Dialer profiles	X	--	--	--	X	--	--	X	--	--	X	--	--	--
Frame Relay (Cisco 1005 only)	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Frame Relay SVC Support (DTE) (Cisco 1005 only)	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
Frame Relay traffic shaping (Cisco 1005 only)	X	--	--	--	X	--	--	X	--	--	X	--	--	--
HDLC	X	X	X	X	X	X	X	X	X	X	X	X	X	X
ISDN (Cisco 1003 and Cisco 1004) 10	X	X	X	X	X	X	X	X	X	X	X	X	X	X
PPP	X	X	X	X	X	X	X	X	X	X	X	X	X	X
SMDS (Cisco 1005 only)	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Switched 56 (Cisco 1005 only)	X	X	X	X	X	X	X	X	X	X	X	X	X	X
X.25(Cisco 1005 only)	X	X	X	X	X	X	X	X	X	X	X	X	X	X
SLIP (Cisco 1005 only)	X	X	--	--	X	X	--	--	--	--	--	--	--	--
WAN Optimization
Bandwidth-on-demand (Cisco 1003 and Cisco 1004)	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Custom and priority queuing	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Dial backup	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Dial-on-demand11	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Header12 and link compression13	X	X	X	X	X	X	X	X	X	X	X	X	X	--
Payload compression (Cisco 1005 only)14	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Snapshot routing15	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Weighted fair queuing	X	X	X	--	X	X	X	X	X	X	X	X	X	--
IP Routing
Enhanced IGRP	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Enhanced IGRP Optimizations	X	--	--	--	X	--	--	X	--	--	X	--	--	--
IGRP	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Network Address Translation Table (NAT)	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
On Demand Routing (ODR)	X	--	--	--	X	--	--	X	--	--	X	--	--	--
OSPF	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
OSPF Not-So-Stubby-Areas (NSSA)	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
OSPF On Demand Circuit (RFC 1793)	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
PIM	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
RIP	X	X	X	X	X	X	X	X	X	X	X	X	X	X
RIP Version 2	X	X	--	--	X	X	--	X	X	--	X	X	--	--
Other Routing
AURP	--	--	--	--	--	--	--	Plus	--	--	Plus	--	--	--
IPX RIP	--	--	--	--	X	X	X	--	--	--	X	X	X	--
NLSP	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
SMRP	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
RTMP	--	--	--	--	--	--	--	X	X	X	X	X	X	X
Multimedia and Quality of Service
Random Early Detection (RED)	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
Resource Reservation Protocol (RSVP)	Plus	--	--	--	Plus	--	--	Plus	--	--	Plus	--	--	--
Management
ClickStart	X	X	--	--	X	X	--	X	X	--	X	X	--	--
HTTP Server	X	X	--	--	X	X	--	X	X	--	X	X	--	--
SNMP	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Telnet	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Security
Access lists	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Access security	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Extended access lists	X	X	X	X	X	X	X	X	X	X	X	X	X	X
Lock and key	X	X	--	--	X	X	--	X	X	--	X	X	--	--
Network-layer encryption (export controlled 40-bit and 56-bit DES)	Encrypt	--	--	--	Encrypt	--	--	Encrypt	--	--	Encrypt	--	--	--
Router authentication	Encrypt	--	--	--	Encrypt	--	--	Encrypt	--	--	Encrypt	--	--	--
TACACS+16	X	--	--	--	X	--	--	X	--	--	X	--	--	--

¹ This table lists feature sets that are common to the Cisco1003, Cisco1004, and Cisco1005. For Cisco1005 platform-specific feature sets, see Table197.
² The IP, IP/IPX, and IP/Appletalk feature sets are not available with Plus, Plus40, or Plus56 feature set options in Cisco IOS Release 11.2.
³ The IP/IPX and IP/Appletalk feature sets are available with Cisco IOS Release 11.0(4) and later releases.
⁴ In Cisco IOS Release 10.3, for the Cisco 1005, the IP/IPX/Appletalk feature set offers three feature set options: Option 1 includes HDLC, PPP, SDMS, and Frame Relay, but not X.25, and is available on all feature sets; Option 2 includes X.25 only, and is available with the IP/IPX, IP/Appletalk, and IP/IPX/Appletalk feature sets; and Option 3 includes Asynch, PPP, and SLIP and is available with the IP, IP/IPX features sets. In Cisco Release 11.0, only Option 1 and Option 2 were available.
⁵ Appletalk load balancing is available in Cisco IOS Release 11.2.
⁶ IRB supports IP, IPX, and AppleTalk; it is supported for transparent bridging, but not for SRB; it is supported on all media-type interfaces except X.25 and ISDN bridged interfaces; and IRB and concurrent routing and bridging (CRB) cannot operate at the same time.
⁷ In Cisco IOS Release 11.2, the Novell IPX feature includes display SAP by name, IPX Access Control List violation logging, and plain-English IPX access lists.
⁸ With Cisco IOS Release 11.2, transparent and translational bridging is fast switched. This enhancement is on by default, but can be disabled.
⁹ In Cisco IOS Release 11.1 and later releases, Cisco1005 "WAN Services" offers three feature set options: Option 1 includes HDLC, PPP, SDMS, and Frame Relay, but not X.25, and is available on all feature sets; Option 2 includes X.25 only, and is available with the IP/IPX, IP/Appletalk, and IP/IPX/Appletalk feature sets; and Option 3 includes Asynch, PPP, and SLIP and is available with the IP, IP/IPX features sets. In Cisco Release 11.0, only Option 1 and Option 2 were available. For Cisco IOS Release 10.3, see footnote 4 above.
¹⁰ ISDN support includes calling line identification (CLI/ANI), ISDN subaddressing, and applicable WAN optimization features.
¹¹ Dial-on-demand is available for the Cisco1005 with "WAN Services" Option only. See footnote 9 above.
¹² IPX header compression (RFC 1553) is available in the feature sets that support IPX in Cisco IOS Release 11.1(1) and later releases.
¹³ X.25 and Frame Relay payload compression. Frame Relay payload compression is available in Cisco IOS Release 11.0(4) and later releases for the Cisco 1005.
¹⁴ The IP/Appletalk feature set in Cisco IOS Release 10.3 for the Cisco 1005 supports header and link compression, but not header, link and payload compression.
¹⁵ Snapshot routing is not included in Cisco IOS Release 11.1 and later releases for the Cisco1005.
¹⁶ With Cisco IOS Release 11.2, TACACS+ Single Connection and TACACS+ SENDAUTH enhancements are supported.

Table 197 : Cisco IOS Release 11.2, 11.1, and 11.0 Feature Sets---Cisco 1005 Platform-Specific

	Cisco 1005 Platform-Specific Feature Sets
Features	IP/OSPF/PIM Routing1			IP/Asynch1		IP/IPX/Asynch1
Cisco IOS Releases	11.2	11.1	11.0	11.2	11.1	11.2	11.1
LAN Support
AppleTalk 1 and 2	--	--	--	--	--	--	--
GRE	X	X	X	X	X	X	X
Integrated routing and bridging (IRB)2	X	--	--	X	--	X	--
IP	X	X	X	X	X	X	X
Novell IPX3	--	--	--	--	--	X	X
Transparent and translational bridging4	X	X	X	X	X	X	X
WAN Services5
Asynch	--	--	--	X	X	X	X
Dialer profiles	X	--	--	X	--	X	--
Frame Relay	X	X	X	--	--	--	--
Frame Relay traffic shaping	X	--	--	--	--	--	--
HDLC	X	X	X	--	--	--	--
PPP6	X	X	X	X	X	X	X
SMDS	X	X	X	--	--	--	--
Switched 56	X	X	X	--	--	--	--
X.257	X	X	X	--	--	--	--
SLIP	--	--	--	X	X	X	X
WAN Optimization
Custom and priority queuing	X	X	X	X	X	X	X
Dial-on-demand8	X	X	X	X	X	X	X
Header9, link and payload compression 10	X	X	X	X	X	X	X
Snapshot routing11	X	X	X	X	X	X	X
Weighted fair queuing	X	X	X	X	X	X	X
IP Routing
Enhanced IGRP	X	X	X	X	X	X	X
Enhanced IGRP Optimizations	--	--	--	X	X	X	X
IGRP	X	X	X	X	X	X	X
On Demand Routing (ODR)	X	--	--	X	--	X	--
OSPF	X	X	X	--	--	--	--
OSPF Not-So-Stubby-Areas (NSSA)	X	--	--	--	--	--	--
OSPF On Demand Circuit (RFC 1793)	X	--	--	--	--	--	--
PIM	X	X	X	--	--	--	--
RIP	X	X	X	X	X	X	X
RIP Version 2	X	X	--	X	X	X	X
Other Routing
IPX RIP	--	--	--	--	--	X	X
Management
ClickStart	X	--	--	X	--	X	--
HTTP Server	X	--	--	X	--	X	--
SNMP	X	X	X	X	X	X	X
Telnet	X	X	X	X	X	X	X
Security
Access lists	X	X	X	X	X	X	X
Access security	X	X	X	X	X	X	X
Extended access lists	X	X	X	X	X	X	X
Kerberos V client support	--	--	--	--	--	--	--
Lock and key	X	X	--	X	X	X	X
TACACS+12	X	--	--	X	--	X	--

¹ These feature sets are not available with the Plus, Plus40, or Plus56 feature set options in Cisco IOS Release 11.2.
² IRB supports IP, IPX, and AppleTalk; it is supported for transparent bridging, but not for SRB; it is supported on all media-type interfaces except X.25 and ISDN bridged interfaces; and IRB and concurrent routing and bridging (CRB) cannot operate at the same time.
³ In Cisco IOS Release 11.2, the Novell IPX feature includes display SAP by name, IPX Access Control List violation logging, and plain-English IPX access lists.
⁴ With Cisco IOS Release 11.2, transparent and translational bridging is fast switched. This enhancement is on by default, but can be disabled.
⁵ In Cisco IOS Release 11.1 and later releases, Cisco1005 "WAN Services" offers three feature set options: Option 1 includes HDLC, PPP, SDMS, and Frame Relay, but not X.25, and is available on all feature sets; Option 2 includes X.25 only, and is available with the IP/IPX, IP/Appletalk, and IP/IPX/Appletalk feature sets; and Option 3 includes Asynch, PPP, and SLIP and is available with the IP, IP/IPX features sets. In Cisco Release 11.0, only Option 1 and Option 2 were available. In Cisco IOS Release 10.3, see footnote 2 above.
⁶ PPP includes support for LAN protocols supported by the feature set, address negotiation, PAP and CHAP authentication, and PPP compression. Multilink PPP is included with Cisco IOS Release 11.0(4) and later releases.
⁷ X.25 is available for the Cisco 1005 only and is available by itself in "WAN Services" Option 2 in Cisco IOS Release 11.0 and later releases for the following feature sets: IP/IPX, IP/Appletalk, IP/IPX/AppleTalk, and IP/OSPF/PIM.
⁸ Dial-on-demand is available for the Cisco1005 with "WAN Services" Option only. See footnote 5 above.
⁹ IPX header compression (RFC 1553) is available in the feature sets that support IPX in Cisco IOS Release 11.1(1) and later releases.
¹⁰ X.25 and Frame Relay payload compression. Frame Relay payload compression is available in Cisco IOS Release 11.0(4) and later releases.
¹¹ Snapshot routing is not included in Cisco IOS Release 11.1 and later releases for the Cisco1005.
¹² With Cisco IOS Release 11.2, TACACS+ Single Connection and TACACS+ SENDAUTH enhancements are supported.

Cisco IOS Feature Set Upgrades

Cisco IOS Release 11.2 allows software upgrades that cross multiple feature sets. This will require you to order multiple feature set licenses. The following is an example:

You have a Cisco 1003 router with a 4 MB Flash memory card, running the Cisco IOS Release 11.1 IP Routing (basic) feature set. You want to upgrade to the Cisco IOS Release 11.2 IP/IPX/Appletalk Plus 56 feature set. You are crossing two feature sets: one to get from IP to IP/IPX/Appletalk, and one to get to IP/IPX/Appletalk Plus 56 (basic to plus). To complete the upgrade, use the following guidelines:

• If you subscribe to SMARTnet Maintenance, you need to do the following:


  • Order FL1003CA= (IP to IP/IPX/Appletalk upgrade license, no charge)


  • Order FL1003-Y= (Plus 56 upgrade license, charged item)


  • Order DRAM (if you do not have the minimum required DRAM for the new feature set)


  • Download the new software feature set from CCO


• If you do not subscribe to SMARTnet Maintenance, you need to order the following:


  • FL1003CA= (IP to IP/IPX/Appletalk upgrade license, no charge)


  • FL1003-Y= (Plus 56 upgrade license, charged item)


  • DRAM (if you do not have the minimum required DRAM for the new feature set)


  • SW1003AY-11.2.1= (Cisco 1003/1004 IP/IPX/Appletalk software on diskette, charged item)
