This chapter provides information on the Catalyst 1600 Token Ring switch. The information is organized into the following sections:
The Catalyst 1600 is an 8- or 12-port Token Ring switch with optional FDDI support. It provides campus and building backbone segment switching as well as dedicated full-duplex connections to file servers. The Catalyst 1600 is the ideal solution for network administrators who need to replace slow, PC-based source-route bridges with a fast, cost-effective, manageable solution. Other applications include sites with existing router-based collapsed backbones where there is a need to centralize servers and replace existing 16-Mbps backbone rings with a switch.
The modular chassis comes with a supervisor engine in the top slot and four-port Token Ring modules in the next two slots, for a total of eight Token Ring ports. An optional slot is provided to add another four-port module or to add an FDDI or a future ATM high-speed interface. With support for source-route bridging and the implementation and management of virtual LANs (VLANs), the Catalyst 1600 Token Ring switch delivers all of the performance and management requirements for switched Token Ring server and backbone applications.
The four-slot chassis features a switch-activated LCD display to provide real-time port statistics and status information. The Catalyst 1600 supports a required Supervisor Engine and a combination of interface modules. The Supervisor Engine module enables switching and network management and provides a monitoring port for out-of-band management and a console interface for configuration.
The Catalyst 1600 Token Ring switch includes the following components:

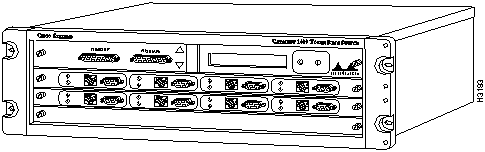

Figure 138 : Catalyst 1600 Token Ring Switch
Table 276 : Catalyst 1600 Summary of Features
| Characteristics | Description |
|---|---|
| Placement | Rack-mounted (standard 19-inch rack, 3 RU1 high) |
| Memory | 8 MB, dynamically allocated buffer memory |
| Performance | Throughput: 300,000 pps aggregate
Latency: less than 40 microseconds (64-byte to 4-kilobyte frames) |
| Network protocols | IEEE 802.5 Token Ring, 4 or 16 Mbps |
| Interfaces | 8 Token Ring ports, expandable to 12
Master/slave and 4 or 16 Mpbs supported on all ports (software configurable) Shielded RJ-45 for UTP or STP DB9 for STP cable 2 EIA/TIA-232 interfaces to support out-of-band management and diagnostics FDDI, DAS ATM, OC-3 (available 1996) |
| Media | Choice of Category 3 and 5 UTP cable and Type 1 and 2 STP cable |
| Network Management | SNMP over IP and IPX
Bridge MIB (RFC 1493) SNMP MIB II (RFC 1213) Source-route extensions (RFC 1525) Token Ring MIB (RFC 1512) |
| Safety | UL 1950
CSA M89-950 EN 60950 |
| Agency approvals | FCC Class A
CSA Doc Class A EN 55022 (CISPR 22, Class A) CE Mark |
| Dimensions (H x W x D) | 19 x 5.25 x 12.5" (48.3 x 13.3 x 31.9 cm) |
Table 277 : Catalyst 1600 Environmental Specifications
| Description | Specification |
|---|---|
| Weight | Fully configured: 21.6 lb (9.8 kg) |
| AC input voltage | 90-250 VAC, 50/60 Hz |
| Operating temperature range | 32 to 104°F (0 to 40°C) |
| Humidity (noncondensing) | 10 to 90% |
The Catalyst 1600 Token Ring switch supports the following features:
Table 278 describes the product numbers associated with the Catalyst 1600.
Table 278 : Catalyst 1600 Product Numbers
| Description | Product Number |
|---|---|
| Catalyst 1600 chassis with 8 ports | WS-C1600 |
| Catalyst 1600 FDDI module | WS-C161F |
| Catalyst 1600 Token Ring module with 4 ports | WS-C164R |
| SMARTnet maintenance | CON-SNT-WS-C1600 |
|
