This chapter provides maintenance procedures for the router, its processor modules, and its replaceable spare parts. Your router is configured to your order and ready for installation and startup when it leaves the factory. In the future, as your communication requirements change, you might want or need to upgrade your system, add components, or change the initial hardware configuration.
This chapter describes the procedures for installing, replacing, and reconfiguring interface processors, and for adding and replacing internal system components and replaceable spares. Software and microcode component upgrades require specific part numbers and other frequently updated information; therefore, only basic replacement guidelines are included in this publication.
The replaceable system components fall into two categories: those that support online insertion and removal (OIR) and those that do not (requiring you to turn off the system power before replacement). Because interface processors support OIR, you can remove and replace them while the system is operating; however, you must shut down the system power before removing the RSP2 or accessing the chassis interior.
This chapter contains information on the following:
All interface processors support OIR, which allows you to install, remove, replace, and rearrange the interface processors without turning off the system power. This feature is not supported for the RSP2 because it is required for system operation. When the system detects that an interface processor has been installed or removed, it automatically runs diagnostic and discovery routines, acknowledges the presence or absence of the interface processor, and resumes system operation without any operator intervention. This section provides installation and removal procedure for all interface processors.
This section also includes instructions for replacing spares on the interface processors and using basic configuration commands that you may need when setting up new interfaces.
An EPROM component on each interface processor contains a default microcode image. New features and enhancements to the system or interfaces are often implemented in microcode upgrades. The Cisco 7513 supports downloadable microcode for most maintenance upgrades, which enables you to download new microcode images remotely and store them in Flash memory. You can then use software commands to instruct the system to load a specific microcode image from Flash memory or to load the default microcode image from Flash memory.
System software upgrades also can contain upgraded microcode images, which will load automatically when the new software image is loaded. Although most upgrades support the downloadable microcode feature and are distributed on floppy disk or Flash memory card, some may require ROM replacement. If replacement is necessary, refer to the section "Microcode Component Replacement" in this chapter. Also, specific up-to-date replacement and configuration instructions will be provided with the replacement component in the upgrade kit.
On the FSIP and MIP interface processors, you can replace a port adapter if one fails, and with software commands you can change specific functions on the individual interfaces.
The OIR feature allows you to remove and replace interface processors while the system is operating; you do not need to prepare or shut down the system. All interface processors support OIR. The RSP2, which is a required system component and is always installed in RSP slot 6 or 7, should not be removed and replaced without first shutting down the system.
Each RSP2 and interface processor contains a bus connector with which it connects to the system backplane. The bus connector is a set of tiered pins, in three lengths. The pins send specific signals to the system as they make contact with the backplane. The system assesses the signals it receives and the order in which it receives them to determine what event is occurring and what task it needs to perform, such as reinitializing new interfaces or shutting down removed ones. For example, when you insert an interface processor, the longest pins make contact with the backplane first, and the shortest pins make contact last. The system recognizes the signals and the sequence in which it receives them. The system expects to receive signals from the individual pins in this logical sequence, and the ejector levers help to ensure that the pins mate in this sequence.
When you remove or insert an interface processor, the backplane pins send signals to notify the system, which then performs as follows:
OIR functionality enables you to add, remove, or replace interface processors with the system online, which provides a method that is seamless to end users on the network, maintains all routing information, and ensures session preservation. When you insert a new interface processor, the system runs a diagnostic test on the new interfaces and compares them to the existing configuration. If this initial diagnostic test fails, the system remains off line while it performs a second set of diagnostic tests to determine whether or not the interface processor is faulty and if normal system operation is possible.
If the second diagnostic test passes, which indicates that the system is operating normally and the new interface processor is faulty, the system resumes normal operation but leaves the new interfaces disabled. If the second diagnostic test fails, the system crashes, which usually indicates that the new interface processor has created a problem on the bus and should be removed.
The system brings online only interfaces that match the current configuration and were previously configured as up; all other interfaces require that you configure them with the configure command. On interface processors with multiple interfaces, only the interfaces that have already been configured are brought on line.
For example, if you replace a single-PCA CIP with a dual-PCA CIP, only the previously configured interface is brought on line automatically; the new interface remains in the administratively shutdown state until you configure it and bring it on line.
The function of the ejector levers (see the section"Online Insertion and Removal---An Overview" in this chapter) is to align and seat the card connectors in the backplane. Failure to use the ejector levers and insert the interface processor properly can disrupt the order in which the pins make contact with the backplane. Follow the FSIP installation and removal instructions carefully, and review the following examples of incorrect insertion practices and results:
It is also important to use the ejector levers when removing an interface processor to ensure that the board connector pins disconnect from the backplane in the logical sequence expected by the system. Any RSP2 or interface processor that is only partially connected to the backplane can hang the bus. Detailed steps for correctly performing OIR are included in the following procedures for installing and removing interface processors.

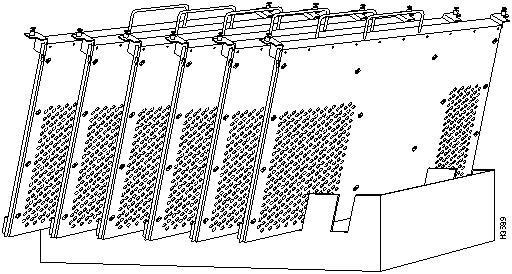

Figure 5-1 Board Rack with Processor Modules
You will need a number 1 Phillips or 3/16-inch flat-blade screwdriver to remove any blank interface processor carriers (fillers) and to tighten the captive installation screws that secure the interface processor in its slot. (Most interface processor carriers use slotted screws, but some were manufactured with Phillips screws.) Whenever you handle interface processors, use a wrist strap or other grounding device to prevent ESD damage. (See the section "Preventing Electrostatic Discharge Damage" in the chapter "Preparing for Installation.")
Following are detailed steps for removing interface processors and successfully performing OIR. Refer to Figure 5-2, which shows the functional details of the ejector levers, which you must use properly when inserting or removing interface processors.
To remove an interface processor, follow these steps:
Figure 5-2 Ejector Levers and Captive Installation Screws
You can install an interface processor in any of the 11 interface processor slots, numbered 0 through 5 and 8 through 12, from left to right, viewing the chassis from the interface processor end. (See Figure 1-6.) Slots 6 and 7 can contain only an RSP2. Following are installation steps for the interface processors, which support OIR and can be removed and installed while the system is operating.
Figure 5-3 Handling an Interface Processor during Installation
When you remove and replace interface processors, the system provides status messages across the console screen. The messages are only informational. In the following sample display, the events logged by the system show that an EIP was removed from slot 0; the system reinitialized the remaining interface processors, and marked the EIP that was removed from slot 0 as down. When the EIP was reinserted, the system marked the interfaces as up again.
Router# %OIR-6-REMCARD: Card removed from slot 0, interfaces disabled %LINK-5-CHANGED: Interface Ethernet0/1, changed state to administratively down %LINK-5-CHANGED: Interface Ethernet0/5, changed state to administratively down Router# %OIR-6-INSCARD: Card inserted in slot 0, interfaces administratively shut down %LINK-5-CHANGED: Interface Ethernet0/1, changed state to up %LINK-5-CHANGED: Interface Ethernet0/5, changed state to up
Each interface processor contains default microcode (firmware), which is an image of board-specific software instructions on a single EPROM on each board. Microcode operates with the system software and controls features and functions that are unique to an interface processor type. New features and enhancements to the system or interfaces are often implemented in microcode upgrades.
Although each processor type contains the latest available microcode version (in ROM) when it leaves the factory, updated microcode images are periodically distributed with system software images to enable new features, improve performance, or fix bugs in earlier versions. The latest available microcode version for each interface processor type is bundled with each new system software maintenance upgrade; the bundled images are distributed as a single image on floppy disk or a Flash memory card.
Although most upgrades support the downloadable microcode feature, some images may require EPROM replacement. If necessary, use the following instructions to replace an interface processor EPROM in case Flash memory is damaged or otherwise not available, or to change the default microcode on a board for any other reason. The replacement procedures are the same for each board with the exception of the FSIP, which uses a PLCC-type package for the microcode.
You must use a PLCC extractor to remove the FSIP microcode component. (See Figure 5-4.) You cannot use a small flat-blade screwdriver to pry it out of the socket as with the older type of ICs. A PLCC IC does not have legs or pins that plug into the socket; instead, the contacts are on the sides of the IC and along the inner sides of the socket. When the IC is seated in the socket, the top of the IC is flush with the top of the socket. Forcing a small screwdriver or other tool between the IC and the sides of the socket to pry out the IC will damage the component or the socket or both, and you will have to replace them.
Figure 5-4 Removing a Microcode Component from a PLCC-Type Package
You need the following tools to replace the microcode component:
Following are the steps for replacing a microcode EPROM on any interface processor. Refer to the illustrations of the individual interface processors in the section "Interface Processors" in the chapter "Product Overview" for socket locations.
The system automatically reloads the microcode when you insert an interface processor online or restart the system. The system default is to load the EPROM-based microcode for all processor types. However, because microcode upgrades are usually distributed as files to be stored and loaded from Flash memory, the system may be configured to bypass the EPROM-based microcode for a particular processor type, and load an image from a Flash memory file instead. (This can be true for any or all processor types.) To determine whether the interface processor you just upgraded is loading the new EPROM-based microcode or an image from Flash memory, issue the show controllers cyBus command. The first line of the status display for each interface processor displays the currently loaded and running microcode version for that particular processor type.
The following example shows that the EIP in slot 0 is running EIP Microcode Version 10.0:
Router# show cont cybus (display text omitted) EIP 0, hardware version 5.1, microcode version 10.0 Interface 0 - Ethernet0/0, station addr 0000.0c02.d0ec (bia 0000.0c02.d0cc) (display text omitted)
If the microcode version in the display is different from the ROM version you just installed, use the microcode card-type rom configuration command to change the configuration so the system loads the ROM microcode for that processor type. Verify that the new microcode version is loading from ROM and, if necessary, correct the configuration with the following steps:
Router> enable Password: Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# microcode eip rom Router(config)# microcode reload
Router(config)# ^Z Router# copy running-config startup-config [OK] Router#
The replacement procedure is complete. If the enabled indicator does not go on after a second installation attempt, or if any of the interfaces fail to return to their previous state, refer to the troubleshooting procedures in the chapter "Troubleshooting the Installation."
This section describes the following maintenance aspects of the RSP2:
It might become necessary for you to replace or install a Flash memory card in your RSP2. The RSP2 has two PCMCIA slots: Slot 0 (bottom) and Slot 1 (top). (See Figure 5-5 on the following page.) The following procedure is generic and can be used for a Flash memory card in either slot position.
Following is the procedure for installing and removing a Flash memory card:
Figure 5-5 Installing and Removing a Flash Memory Card
This section describes the software (virtual) configuration register that is used with the RSP2.
Following is the information included in this section:
Settings for the 16-bit software configuration register are written into the NVRAM. Following are some reasons for changing the software configuration register settings:
Table 5-1 lists the meaning of each of the software configuration memory bits, and Table 5-2 defines the boot field.
Table 5-1 Software Configuration Register Bit Meanings
| Bit Number(1) | Hexadecimal | Meaning |
|---|---|---|
| 00 to 03 | 0x0000 to 0x000F | Boot field (see Table 5-2) |
| 06 | 0x0040 | Causes system software to ignore NVRAM contents |
| 07 | 0x0080 | OEM bit enabled(2) |
| 08 | 0x0100 | Break disabled |
| 09 | 0x0200 | Use secondary bootstrap |
| 10 | 0x0400 | Internet Protocol (IP) broadcast with all zeros |
| 11 to 12 | 0x0800 to 0x1000 | Console line speed (default is 9600 baud) |
| 13 | 0x2000 | Boot default Flash software if network boot fails |
| 14 | 0x4000 | IP broadcasts do not have network numbers |
| 15 | 0x8000 | Enable diagnostic messages and ignore NVRAM contents |
Table 5-2 Explanation of Boot Field (Software Configuration Register Bits 00 to 03)
| Boot Field | Meaning |
|---|---|
| 00 | Stays at the system bootstrap prompt |
| 01 | Boots the first system image in onboard Flash memory |
| 02 to 0F | Specifies a default netboot filename Enables boot system commands that override the default netboot filename |
To change the configuration register while running the system software, follow these steps:
Router> enable Password: Router#
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# config-register 0xvalue
Configuration register is 0x141 (will be 0x101 at next reload)
The lowest four bits of the software configuration register (bits 3, 2, 1, and 0) form the boot field. (See Table 5-2.) The boot field specifies a number in binary form. If you set the boot field value to 0, you must boot the operating system manually by entering the b command at the bootstrap prompt as follows:
rommon1> b [tftp] flash filename
Definitions of the various b command options follow:
For more information about the b [tftp] flash filename command, refer to the set of router products configuration publications.
If you set the boot field value to 0x2 through 0xF, and there is a valid system boot command stored in the configuration file, then the router boots the system software as directed by that value. If you set the boot field to any other bit pattern, the router uses the resulting number to form a default boot filename for netbooting. (See Table 5-3.)
In the following example, the software configuration register is set to boot the router from onboard Flash memory and to ignore Break at the next reboot of the router:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# config-register 0x102 Router(config)# boot system flash [filename] Router(config)# ^z Router#
The server creates a default boot filename as part of the automatic configuration processes. To form the boot filename, the server starts with the name cisco and adds the octal equivalent of the boot field number, a hyphen, and the processor-type name. Table 5-3 lists the default boot filenames or actions for the processor.
Table 5-3 Default Boot Filenames
| Action/File Name | Bit 3 | Bit 2 | Bit 1 | Bit 0 |
|---|---|---|---|---|
| Bootstrap mode | 0 | 0 | 0 | 0 |
| Default software | 0 | 0 | 0 | 1 |
| cisco2-RSP | 0 | 0 | 1 | 0 |
| cisco3-RSP | 0 | 0 | 1 | 1 |
| cisco4-RSP | 0 | 1 | 0 | 0 |
| cisco5-RSP | 0 | 1 | 0 | 1 |
| cisco6-RSP | 0 | 1 | 1 | 0 |
| cisco7-RSP | 0 | 1 | 1 | 1 |
| cisco10-RSP | 1 | 0 | 0 | 0 |
| cisco11-RSP | 1 | 0 | 0 | 1 |
| cisco12-RSP | 1 | 0 | 1 | 0 |
| cisco13-RSP | 1 | 0 | 1 | 1 |
| cisco14-RSP | 1 | 1 | 0 | 0 |
| cisco15-RSP | 1 | 1 | 0 | 1 |
| cisco16-RSP | 1 | 1 | 1 | 0 |
| cisco17-RSP | 1 | 1 | 1 | 1 |
Bit 8 controls the console Break key. Setting bit 8 (the factory default) causes the processor to ignore the console Break key. Clearing bit 8 causes the processor to interpret the Break key as a command to force the system into the bootstrap monitor, thereby halting normal operation. A break can be sent in the first 60 seconds while the system reboots, regardless of the configuration settings.
Bit 9 controls the secondary bootstrap program function. Setting bit 9 causes the system to use the secondary bootstrap; clearing bit 9 causes the system to ignore the secondary bootstrap. The secondary bootstrap program is used for system debugging and diagnostics.
Bit 10 controls the host portion of the IP broadcast address. Setting bit 10 causes the processor to use all zeros; clearing bit 10 (the factory default) causes the processor to use all ones. Bit 10 interacts with bit 14, which controls the network and subnet portions of the broadcast address. Table 5-4 shows the combined effect of bits 10 and 14.
Table 5-4 Configuration Register Settings for Broadcast Address Destination
| Bit 14 | Bit 10 | Address (<net> <host>) |
|---|---|---|
| Off | Off | <ones> <ones> |
| Off | On | <zeros> <zeros> |
| On | On | <net> <zeros> |
| On | Off | <net> <ones> |
Bits 11 and 12 in the configuration register determine the baud rate of the console terminal. Table 5-5 shows the bit settings for the four available baud rates. (The factory-set default baud rate is 9600.)
Table 5-5 System Console Terminal Baud Rate Settings
| Baud | Bit 12 | Bit 11 |
|---|---|---|
| 9600 | 0 | 0 |
| 4800 | 0 | 1 |
| 1200 | 1 | 0 |
| 2400 | 1 | 1 |
Bit 13 determines the server response to a bootload failure. Setting bit 13 causes the server to load operating software from Flash memory after five unsuccessful attempts to load a boot file from the network. Clearing bit 13 causes the server to continue attempting to load a boot file from the network indefinitely. By factory default, bit 13 is cleared to 0.
To enable booting from Flash memory, set configuration register bits 3, 2, 1, and 0 to a value between 2 and 15 in conjunction with the boot system flash [filename] configuration command.
To enter configuration mode while in the system software image and to specify a Flash memory filename from which to boot, enter the configure terminal command at the enable prompt, as follows:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# boot system flash [filename]
To disable Break and enable the boot system flash command, enter the config-register command with the value shown in the following example:
Router(config)# config-reg 0x2102 Router(config)# ^Z Router#
Copying a new image to Flash memory might be required whenever a new image or maintenance release becomes available. You cannot copy a new image into Flash memory while the system is running from Flash memory.
Use the command copy tftp:filename [ bootflash | slot0 | slot1 ]:filename for the copy procedure, where tftp:filename is the source of the file and [ bootflash | slot0 | slot1 ]:filename is the destination in onboard Flash memory or on either of the Flash memory cards.
An example of the copy tftp:filename command follows:
Router# copy tftp:myfile1 slot0:myfile1 20575008 bytes available on device slot0, proceed? [confirm] Address or name of remote host [1.1.1.1]? Loading new.image from 1.1.1.1 (via Ethernet1/0): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!![OK - 7799951/15599616 bytes] CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC Router#
Following are additional commands related to the Flash memory on the RSP2 and on PCMCIA cards. (The following example assumes you are currently in PCMCIA slot 0.) You can determine which PCMCIA slot you are accessing using the pwd command as follows:
Router# pwd slot0
You can move between Flash memory media using the cd [ bootflash | slot0 | slot1 ] command as follows:
Router# cd slot0 slot0 Router# cd slot1 Router# pwd slot1
You can list the directory of any Flash memory media using the dir [ bootflash | slot0 | slot1 ] command as follows:
Router# dir -#- -length- -----date/time------ name 1 4601977 May 19 1994 09:42:19 myfile1 6 679 May 19 1994 05:43:56 todays--config 7 1 May 19 1994 09:54:53 fun1
You can delete a file from any Flash memory media using the delete command as follows:
Router# delete slot0:fun1 Router# dir -#- -length- -----date/time------ name 1 4601977 May 19 1994 09:42:19 myfile1 6 679 May 19 1994 05:43:56 todays--config
Files that are deleted are simply marked as deleted, but still occupy space in Flash memory. The squeeze command removes them permanently, and pushes all other undeleted files together to eliminate spaces between them.
Following is the syntax of the squeeze command:
Router# squeeze slot0: All deleted files will be removed, proceed? [confirm] Squeeze operation may take a while, proceed? [confirm] ebESZ
To prevent loss of data due to sudden power loss, the "squeezed" data is temporarily saved to another location of Flash memory, which is specially used by the system.
In the preceding command display output, the character "e" means this special location has been erased (which must be performed before any write operation). The character "b" means that the data that is about to be written to this special location has been temporarily copied. The character "E" signifies that the sector which was temporarily occupied by the data has been erased. The character "S" signifies that the data was written to its permanent location in Flash memory.
The squeeze command operation keeps a log of which of these functions has been performed so that on sudden power failure, it can come back to the right place and continue with the process. The character "Z" means this log was erased after the successful squeeze command operation.
The configuration register setting 0x2101 tells the system to boot the default image (the first image) from onboard Flash memory, but does not reset the Break disable or check for a default netboot filename. The configuration register setting 0x2102 tells the system to boot from Flash memory if netboot fails, disable Break, and check for a default netboot filename. For more information on the copy tftp:filename [ bootflash | slot0 | slot1 ]:filename command, and other related commands, refer to the Router Products Command Reference publication.
An overview of recovering a lost password follows:
To recover a lost password, follow these procedures.
rommon 1 >
rommon 1 > confreg Configuration Summary enabled are: console baud: 9600 boot: image specified by the boot system command or default to : cisco2-RSP do you wish to change the configuration? y/n [n]: y enable "diagnostic mode"? y/n [n]: enable "use net in IP bcast address"? y/n [n]: enable "load rom after netbootfails"? y/n [n]: enable "use all zero broadcast"? y/n [n]: enable "break/abort has effect?" y/n [n]: enable "ignore system config info?" [n]: y change console baud rate? y/n [n]: change boot characteristics? y/n [n] Configuration Summary enabled are: console baud: 9600 boot: image specified by the boot system command or default to : cisco2-RSP do you wish to change the configuration? y/n [n] You must reset or power cycle for the new config to take effect
rommon 1 > i
--- System Configuration Dialog ---
Press RETURN to get started!
Router >
Router #
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
The system DRAM resides on up to four single in-line memory modules (SIMMs) on the RSP2. The default DRAM configuration is 16 MB. This section provides the steps for increasing the amount of DRAM by replacing the SIMMs with SIMMs that you obtain from an approved vendor.
Although the SIMM specifications are defined in the manufacturers' part numbers, the SIMMs must meet the following requirements:
You need the following parts and tools to replace SIMMs. If you need additional equipment, contact a customer service representative for ordering information.
The DRAM SIMM sockets are U33 and U21 for Bank 0, and U12 and U4 for Bank 1. The default DRAM configuration is 16 MB (two 8-MB SIMMs in Bank 0). (See Figure 5-6.)
Before proceeding, ensure that you have met the following prerequisites:
To upgrade DRAM, you install SIMMs in one or both DRAM SIMM banks. Table 5-6 lists the various configurations of DRAM SIMMs that are available to you. This information is also available on CCO. Note which banks are used given the combinations of available SIMM sizes and the maximum DRAM you require. The onboard, default Flash memory is 8 MB.
Table 5-6 DRAM SIMM Configurations
| DRAM Bank 0 | Quantity | DRAM Bank 1 | Quantity | Total DRAM | Product Names |
| U33 and U21 | 2, 8-MB SIMMs | U12 and U4 | -- | 16 MB | MEM-RSP-16M= |
| U33 and U21 | 2, 16-MB SIMMs | U12 and U4 | -- | 32 MB | MEM-RSP-32M= |
| U33 and U21 | 2, 32-MB SIMMs | U12 and U4 | -- | 64 MB | MEM-RSP-64M= |
| U33 and U21 | 2, 32-MB SIMMs | U12 and U4 | 2, 32-MB SIMMs | 128 MB | MEM-RSP-128M= |
Place removed SIMMs on an antistatic mat and store them in an antistatic bag. You can use the SIMMs that you remove in compatible equipment. To prevent ESD damage, handle SIMMs by the card edges only.
Follow these steps to remove the existing SIMMs:
Figure 5-7 Releasing the SIMM Spring Clips
This completes the SIMM removal procedure. Proceed to the next section to install the new SIMMs.
SIMMs are sensitive components that are susceptible to ESD damage. Handle SIMMs by the edges only; avoid touching the memory modules, pins, or traces (the metal fingers along the connector edge of the SIMM).(See Figure 5-8.)
Follow these steps to install the new SIMMs:
This completes the SIMM replacement procedure.
To replace the RSP2 in the chassis, proceed to the section "Installing Interface Processors" in this chapter and then restart the system for an installation check.
If the system fails to boot properly, or if the console terminal displays a checksum or memory error, check the following:
If after several attempts the system fails to restart properly, contact a service representative for assistance. Before you call, make note of any error messages, unusual LED states, or any other indications that might help solve the problem.
The RSP2 supports high system availability (HSA), which is a new feature in Cisco internetwork Operating System (Cisco IOS) Release 11.1(2) or later (or a Cisco-approved beta version of Release 11.1[2]), which allows two RSP2s to be used simultaneously in a Cisco 7513 router.
One RSP2 operates as system master and the other RSP2 operates as the system slave, which takes over if the master RSP2 fails. Figure 5-9 shows a Cisco 7513 with two RSP2s installed.
Figure 5-9 Cisco 7513 with Two RSP2s
The HSA feature requires that the boot read-only memory (ROM) device be updated to Version 11.1(2) or later. New RSP2s are shipping with this new boot ROM version; however, to check the boot ROM (System Bootstrap) version currently running on your RSP2, use the show version command and check the boot ROM's version number as follows:
Router# sh version (display text omitted) System Bootstrap, Version 11.1(2)
For systems with two RSP2s installed (one as master and one as slave in RSP slots 6 and 7, using the HSA feature), you can simultaneously connect to both console or auxiliary ports using a special Y-cable. RSP2 defaults as the system masters if only one is installed. Figure 5-10 shows the console Y-cable and Figure 5-11 shows the auxiliary Y-cable.
High system availability (HSA) (available with Cisco IOS Release 11.1[2] or later) refers to how quickly your router returns to an operational status after a failure occurs. You can install two RSP2 cards in a single router to improve system availability. For more complete HSA configuration information, refer to the Configuration Fundamentals Configuration Guide and the Configuration Fundamentals Command Reference publications, which are available on Cisco Connection Documentation CD-ROM or as printed copies.
Two RSP2 cards in a router provide the most basic level of increased system availability through a "cold restart" feature. A "cold restart" means that when one RSP2 card fails, the other RSP2 card reboots the router. In this way, your router is never in a failed state for very long, thereby increasing system availability.
When one RSP2 card takes over operation from another, system operation is interrupted. Such a change is similar to issuing the reload command. The following events occur when one RSP2 card fails and the other takes over:
A router configured for HSA operation has one RSP2 card that is the master and one that is the slave. The master RSP2 card functions as if it were a single processor, controlling all functions of the router. The slave RSP2 card does nothing but actively monitor the master for failure. A system crash can cause the master RSP2 to fail or go into a nonfunctional state. When the slave RSP2 detects a nonfunctional master, the slave resets itself and takes part in master-slave arbitration. Master-slave arbitration is a ROM monitor process that determines which RSP2 card is the master and which is the slave upon startup (or reboot).
If a system crash causes the master RSP2 to fail, the slave RSP2 becomes the new master RSP2 and uses its own system image and configuration file to reboot the router. The failed RSP2 card (now the slave) remains inactive until you perform diagnostics, correct the problem, and then issue the slave reload command.
With HSA operation, the following items are important to note:

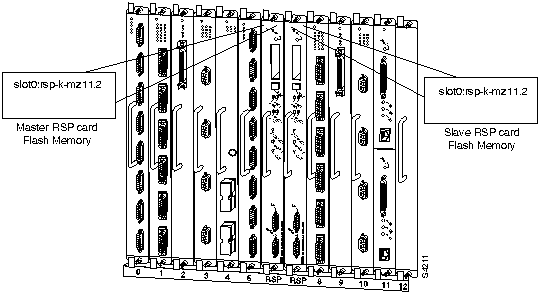

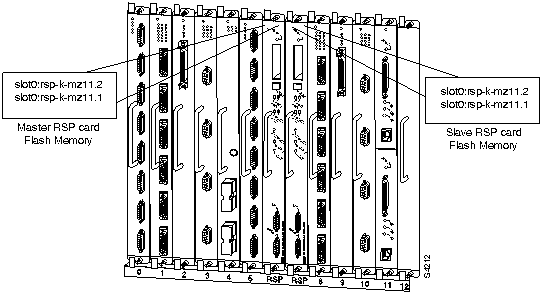

There are two common ways to use HSA as follows:

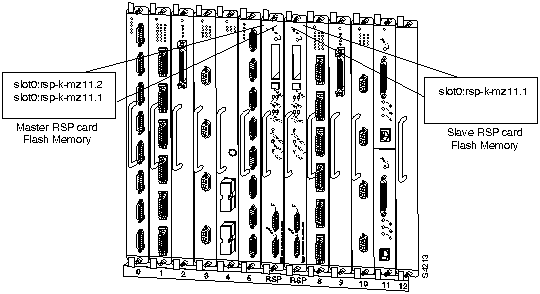

You can also use HSA for advanced implementations. For example, you can configure the RSP2 cards with the following:
To configure HSA operation, you must have a Cisco 7513 containing two RSP2 processor cards and Cisco IOS Release 11.1(2) or later (or a Cisco-approved beta version of Release 11.1[2]). The slave RSP2 should have the same DRAM configuration as the master RSP2
When configuring HSA operation, complete the tasks in the following sections. The first is required. Depending on the outcome of the first, the second or third is also required. The fourth is optional.
Before you can configure HSA operation, you must first decide how you want to use HSA in your internetwork. Do you want to use HSA for simple hardware backup or for software error protection? If you are using new or experimental Cisco IOS software, consider using the software error protection method; otherwise, use the simple hardware backup method.
Once you have decided which method to use, proceed to either the "Configuring HSA for Simple Hardware Backup" section or the "Configuring HSA for Software Error Protection" section.

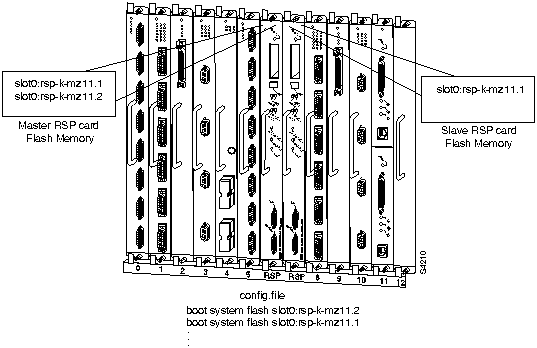

With the simple hardware backup method, you configure both RSP2 cards with the same software image and configuration information. To configure HSA for simple hardware backup, perform the tasks in the following sections. The first is optional.
Because your view of the environment is always from the master RSP2's perspective, you define a default slave RSP2. The router uses the default slave information when booting:
To define the default slave RSP2, perform the following task, beginning in global configuration mode:
| Tasks | Command |
| |
configure terminal |
| |
slave default-slot processor-slot-number |
| |
Ctrl-Z |
| |
copy running-config startup-config |
Upon the next system reboot, the above changes take effect (if both RSP2 cards are operational). Thus, the specified default slave becomes the slave RSP2 card. The other RSP2 card takes over mastership of the system and controls all functions of the router.
If you do not specifically define the default slave RSP2, the RSP2 card located in the higher number processor slot is the default slave. On the Cisco 7513, processor slot 7 contains the default slave RSP2.
The following example sets the default slave RSP2 to processor slot 7 on a Cisco 7513:
Router# configure terminal Router (config)# slave default-slot 7 Ctrl-Z Router# copy running-config startup-config
To ensure that both RSP2 cards have the same system image, perform the following tasks in EXEC mode:
| Tasks | Command |
| |
show boot |
| |
dir [/all | /deleted] [/long] {bootflash | slot0 | slot1} [filename] |
| |
dir [/all | /deleted] [/long] {slavebootflash | slaveslot0 | slaveslot1} [filename] |
| |
copy file_id {slavebootflash | slaveslot0 | slaveslot1} Note that you might also have to use the delete and/or squeeze command in conjunction with the copy command to accomplish this step. |
The following example ensures that both RSP2 cards have the same system image. Note that because no environment variables are set, the default environment variables are in effect for both the master and slave RSP2.
Router# show boot BOOT variable = CONFIG_FILE variable = Current CONFIG_FILE variable = BOOTLDR variable does not exist Configuration register is 0x0 Slave auto-sync config mode is on current slave is in slot 7 BOOT variable = CONFIG_FILE variable = BOOTLDR variable does not exist Configuration register is 0x0 Router# dir slot0: -#- -length- -----date/time------ name 1 3482498 May 4 1993 21:38:04 rsp-k-mz11.2 7993896 bytes available (1496 bytes used) Router# dir slaveslot0: -#- -length- -----date/time------ name 1 3482498 May 4 1993 21:38:04 rsp-k-mz11.1 7993896 bytes available (1496 bytes used) Router# delete slaveslot0:rsp-k-mz11.1 Router# copy slot0:rsp-k-mz11.2 slaveslot0:rsp-k-mz11.2
To ensure that both RSP2 cards have the same microcode images, perform the following tasks beginning in privileged EXEC mode:
| Tasks | Command |
| |
show controller cbus |
| |
dir [/all | /deleted] [/long] {bootflash | slot0 | slot1} [filename] |
| |
dir [/all | /deleted] [/long] {slavebootflash | slaveslot0 | slaveslot1} [filename] |
| |
copy file_id {slavebootflash | slaveslot0 | slaveslot1} Note that you might also have to use the delete and/or squeeze command in conjunction with the copy command to accomplish this step. |
The following example ensures that both RSP2 cards have the same microcode image. Notice that slots 0, 1, 4, 9, and 10 load microcode from the bundled software, as noted by the statement software loaded from system. Slot 11, the FSIP processor, does not use the microcode bundled with the system. Instead, it loads the microcode from slot0:pond/bath/rsp_fsip20-1
.
Thus, you must ensure that the slave RSP2 has a copy of the same FSIP microcode in the same location.
Router# show controller cbus
MEMD at 40000000, 2097152 bytes (unused 416, recarves 3, lost 0)
RawQ 48000100, ReturnQ 48000108, EventQ 48000110
BufhdrQ 48000128 (2948 items), LovltrQ 48000140 (5 items, 1632 bytes)
IpcbufQ 48000148 (16 items, 4096 bytes)
3571 buffer headers (48002000 - 4800FF20)
pool0: 28 buffers, 256 bytes, queue 48000130
pool1: 237 buffers, 1536 bytes, queue 48000138
pool2: 333 buffers, 4544 bytes, queue 48000150
pool3: 4 buffers, 4576 bytes, queue 48000158
slot0: EIP, hw 1.5, sw 20.00, ccb 5800FF30, cmdq 48000080, vps 4096
software loaded from system
Ethernet0/0, addr 0000.0ca3.cc00 (bia 0000.0ca3.cc00)
gfreeq 48000138, lfreeq 48000160 (1536 bytes), throttled 0
rxlo 4, rxhi 42, rxcurr 0, maxrxcurr 2
txq 48000168, txacc 48000082 (value 27), txlimit 27
.........
slot1: FIP, hw 2.9, sw 20.02, ccb 5800FF40, cmdq 48000088, vps 4096
software loaded from system
Fddi1/0, addr 0000.0ca3.cc20 (bia 0000.0ca3.cc20)
gfreeq 48000150, lfreeq 480001C0 (4544 bytes), throttled 0
rxlo 4, rxhi 165, rxcurr 0, maxrxcurr 0
txq 480001C8, txacc 480000B2 (value 0), txlimit 95
slot4: AIP, hw 1.3, sw 20.02, ccb 5800FF70, cmdq 480000A0, vps 8192
software loaded from system
ATM4/0, applique is SONET (155Mbps)
gfreeq 48000150, lfreeq 480001D0 (4544 bytes), throttled 0
rxlo 4, rxhi 165, rxcurr 0, maxrxcurr 0
txq 480001D8, txacc 480000BA (value 0), txlimit 95
slot9: MIP, hw 1.0, sw 20.02, ccb 5800FFC0, cmdq 480000C8, vps 8192
software loaded from system
T1 9/0, applique is Channelized T1
gfreeq 48000138, lfreeq 480001E0 (1536 bytes), throttled 0
rxlo 4, rxhi 42, rxcurr 0, maxrxcurr 0
txq 480001E8, txacc 480000C2 (value 27), txlimit 27
.......
slot10: TRIP, hw 1.1, sw 20.00, ccb 5800FFD0, cmdq 480000D0, vps 4096
software loaded from system
TokenRing10/0, addr 0000.0ca3.cd40 (bia 0000.0ca3.cd40)
gfreeq 48000150, lfreeq 48000200 (4544 bytes), throttled 0
rxlo 4, rxhi 165, rxcurr 1, maxrxcurr 1
txq 48000208, txacc 480000D2 (value 95), txlimit 95
.........
slot11: FSIP, hw 1.1, sw 20.01, ccb 5800FFE0, cmdq 480000D8, vps 8192
software loaded from flash slot0:pond/bath/rsp_fsip20-1
Serial11/0, applique is Universal (cable unattached)
gfreeq 48000138, lfreeq 48000240 (1536 bytes), throttled 0
rxlo 4, rxhi 42, rxcurr 0, maxrxcurr 0
txq 48000248, txacc 480000F2 (value 5), txlimit 27
...........
Router# dir slot0:pond/bath/rsp_fsip20-1
-#- -length- -----date/time------ name
3 10242 Jan 01 1995 03:46:31 pond/bath/rsp_fsip20-1
Router# dir slaveslot0:pond/bath/rsp_fsip20-1
No such file
4079832 bytes available (3915560 bytes used)
Router# copy slot0:pond/bath/rsp_fsip20-1 slaveslot0:
4079704 bytes available on device slaveslot0, proceed? [confirm]
Router# dir slaveslot0:pond/bath/rsp_fsip20-1
-#- -length- -----date/time------ name
3 10242 Mar 01 1993 02:35:04 pond/bath/rsp_fsip20-1
4069460 bytes available (3925932 bytes used)
Router#
With the simple hardware backup and software error protection implementation methods, you always want your master and slave configuration files to match. To ensure that they match, turn on automatic synchronization. In automatic synchronization mode, the master copies its startup configuration to the slave's startup configuration when you issue a copy command that specifies the master's startup configuration (startup-config) as the target.
Automatic synchronization mode is on by default; however, to turn it on manually, perform the following tasks, beginning in global configuration mode:
| Tasks | Command |
| |
configure terminal |
| |
slave auto-sync config |
| |
Ctrl-Z |
| |
copy running-config startup-config |
The following example turns on automatic configuration file synchronization:
Router# configure terminal Router (config)# slave auto-sync config Ctrl-Z Router# copy running-config startup-config
With the software error protection method, you configure the RSP2 cards with different software images, but with the same configuration information. To configure HSA for software error protection, perform the tasks in the following sections. The first is optional.
When the factory sends you a new Cisco 7513 with two RSP2s, you receive the same system image on both RSP2 cards. For the software error protection method, you need two different software images on the RSP2 cards. Thus, you copy a desired image to the master RSP2 card and modify the boot system commands to reflect booting two different system images. Each RSP2 card uses its own image to boot the router when it becomes the master.
To specify different startup images for the master and slave RSP2, perform the following tasks, beginning in EXEC mode:
| Tasks | Command |
| |
dir [/all | /deleted] [/long] {bootflash | slot0 | slot1} [filename] |
| |
dir [/all | /deleted] [/long] {slavebootflash | slaveslot0 | slaveslot1} [filename] |
| |
copy file_id {bootflash | slot0 | slot1} copy flash {bootflash | slot0 | slot1} copy rcp {bootflash | slot0 | slot1} copy tftp {bootflash | slot0 | slot1} |
| |
configure terminal |
| |
boot system flash bootflash:[filename]boot system flash slot0:[filename]boot system flash slot1:[filename] |
| |
boot system flash bootflash:[filename]boot system flash slot0:[filename]boot system flash slot1:[filename] |
| |
boot system
[rcp
| tftp]
filename [ip-address] |
| |
config-register value (1) |
| |
Ctrl-Z |
| |
copy running-config startup-config |
| |
reload |
In the following example scenario, assume the following:
Figure 5-12 illustrates the software error protection configuration for this example scenario. The configuration commands for this configuration follow the figure.
Figure 5-12 Software Error Protection: Upgrading to a New Software Version
Because you always view the environment from the master RSP2's perspective, in the following command you view the master's slot 0 to verify the location and version of the master's software image:
Router# dir slot0: -#- -length- -----date/time------ name 1 3482496 May 4 1993 21:38:04 rsp-k-mz11.1 7993896 bytes available (1496 bytes used)
Now view the slave's software image location and version:
Router# dir slaveslot0: -#- -length- -----date/time------ name 1 3482496 May 4 1993 21:38:04 rsp-k-mz11.1 7993896 bytes available (1496 bytes used)
Because you want to run the Release 11.2 system image on one RSP2 card and the Release 11.1 system image on the other RSP2 card, copy the Release 11.2 system image to the master's slot 0:
Router# copy tftp slot0:rsp-k-mz11.2
Enter global configuration mode and configure the system to boot first from a Release 11.2 system image and then from a Release 11.1 system image.
Router# configure terminal Router (config)# boot system flash slot0:rsp-k-mz11.1.2 Router (config)# boot system flash slot0:rsp-k-mz11.1
With this configuration, when the slot 6 RSP2 card is master, it looks first in its PCMCIA slot 0 for the system image file rsp-k-mz11.2 to boot. Finding this file, the router boots from that system image. When the slot 7 RSP2 card is master, it also looks first in its slot 0 for the system image file rsp-k-mz11.2 to boot. Because that image does not exist in that location, the slot 7 RSP2 card looks for the system image file rsp-k-mz11.1 in slot 0 to boot. Finding this file in its PCMCIA slot 0, the router boots from that system image. In this way, each RSP2 card can reboot the system using its own system image when it becomes the master RSP2 card.
Configure the system further with a fault-tolerant booting strategy:
Router (config)# boot system tftp rsp-k-mz11.1 192.37.1.25
Set the configuration register to enable loading of the system image from a network server or from Flash and save the changes to the master and slave startup configuration file:
Router (config)# config-register 0x010F Ctrl-Z Router# copy running-config startup-config
Reload the system so that the master RSP2 uses the new Release 11.2 system image:
Router# reload
In the following example scenario, assume the following:
In this scenario, you begin with the configuration shown in Figure 5-13.
Figure 5-13 Software Error Protection: Backing Up with an Older Software Version, Part I
Next, you copy the rsp-k-mz11.1 image to the master and slave RSP2 card, as shown in Figure 5-14.
Figure 5-14 Software Error Protection: Backing Up with an Older Software Version, Part II
Last, delete the rsp-k-mz11.2 image from the slave RSP2 card as shown in Figure 5-15.
Figure 5-15 Software Error Protection: Backing Up with an Older Software Version, Part III
The following commands configure software error protection for this example scenario.
View the master and slave slot 0 to verify the location and version of their software images:
Router# dir slot0: -#- -length- -----date/time------ name 1 3482498 May 4 1993 21:38:04 rsp-k-mz11.2 7993896 bytes available (1496 bytes used) Router# dir slaveslot0: -#- -length- -----date/time------ name 1 3482498 May 4 1993 21:38:04 rsp-k-mz11.2 7993896 bytes available (1496 bytes used)
Copy the Release 11.1 system image to the master and slave slot 0:
Router# copy tftp slot0:rsp-k-mz11.1 Router# copy tftp slaveslot0:rsp-k-mz11.1
Delete the rsp-k-mz11.2 image from the slave RSP2 card:
Router# delete slaveslot0:rsp-k-mz11.2
Configure the system to boot first from a Release 11.2 system image and then from a Release 11.1 system image.
Router# configure terminal Router (config)# boot system flash slot0:rsp-k-mz11.2 Router (config)# boot system flash slot0:rsp-k-mz11.1
Configure the system further with a fault-tolerant booting strategy:
Router(config)# boot system tftp rsp-k-mz11.1 192.37.1.25
Set the configuration register to enable loading of the system image from a network server or from Flash and save the changes to the master and slave startup configuration file:
Router(config)# config-register 0x010F Ctrl-Z Router# copy running-config startup-config
You can optionally set environment variables on both RSP2 cards in a Cisco 7513.
You set environment variables on the master RSP2 just as you would if it were the only RSP2 card in the system. You can set the same environment variables on the slave RSP2 card, manually or automatically.
The following sections describe these two methods:
For more complete configuration information on how to set environment variables, refer to the Configuration Fundamentals Configuration Guide and the Configuration Fundamentals Command Reference publications, which are available on Cisco Connection Documentation CD-ROM or as printed copies.
Once you set the master's environment variables, you can manually set the same environment variables on the slave RSP2 card using the slave sync config command.
To manually set environment variables on the slave RSP2, perform the following steps beginning in global configuration mode:
| Tasks | Command |
| |
boot system boot bootldr boot config |
| |
copy running-config startup-config |
| |
slave sync config |
| |
show boot |
With automatic synchronization turned on, the system automatically saves the same environment variables to the slave's startup configuration when you set the master's environment variables and save them.
To set environment variables on the slave RSP2 when automatic synchronization is on, perform the following steps beginning in global configuration mode:
| Tasks | Command |
| |
boot system boot bootldr boot config |
| |
copy running-config startup-config |
| |
show boot |
To monitor and maintain HSA operation, you can override the slave image that is bundled with the master image. To do so, perform the following task in global configuration mode:
| Tasks | Command |
| Specify which image the slave runs. | slave image {system | device:filename} |
You can manually synchronize configuration files and ROM monitor environment variables on the master and slave RSP2 card. To do so, perform the following task in privileged EXEC mode:
| Tasks | Command |
| Manually synchronize master and slave configuration files. | slave sync config |
The slave sync config command is also a useful tool for more advanced implementation methods not discussed in this document. Refer to the Configuration Fundamentals Configuration Guide and the Configuration Fundamentals Command Reference publications, which are available on Cisco Connection Documentation CD-ROM or as printed copies.
Following are the steps required to verify HSA operation:
System Bootstrap, Version 11.1(2), RELEASED SOFTWARE Copyright (c) 1986-1996 by cisco Systems, Inc. SLOT 6 RSP2 is system master SLOT 7 RSP2 is system slave RSP2 processor with 16384 Kbytes of main memory [additional displayed text omitted from this example] Cisco Internetwork Operating System Software IOS (tm) GS Software (RSP-K-M), Version 11.1(2) [biff 51096] Copyright (c) 1986-1996 by cisco Systems, Inc. Compiled Mon 22-Jan-96 21:15 by biff Image text-base: 0x600108A0, data-base: 0x607B8000 cisco RSP2 (R4600) processor with 16384K bytes of memory. R4600 processor, Implementation 32, Revision 2.0 [additional displayed text omitted from this example] 8192K bytes of Flash PCMCIA card at slot 0 (Sector size 128K). 8192K bytes of Flash internal SIMM (Sector size 256K). Slave in slot 7 is halted. [additional displayed text omitted from this example]
Router> show version Cisco Internetwork Operating System Software IOS (tm) GS Software (RSP-K-M), Version 11.1(2) [biff 51096] Copyright (c) 1986-1996 by cisco Systems, Inc. Compiled Mon 22-Jan-96 21:15 by biff Image text-base: 0x600108A0, data-base: 0x607B8000 [additional displayed text omitted from this example] Slave in slot 7 is running Cisco Internetwork Operating System Software (Note that this could also be "slot 6" depending on which RSP2 is configured as the slave or the recent crash history of your router.) IOS (tm) GS Software (RSP-DW-M), Version 11.1(2) [biff 51096] Copyright (c) 1986-1996 by cisco Systems, Inc. Compiled Mon 22-Jan-96 20:59 by biff Configuration register is 0xF Router>
When you have verified all the conditions in Steps 1 through 4, the installation is complete.
When a new master RSP2 takes over mastership of the router, it automatically reboots the failed RSP2 as the slave RSP2. You can access the state of the failed RSP2 in the form of a stack trace from the master console using the show stacks command.
You can also manually reload a failed RSP2 from the master console. To do so, perform the following task from global configuration mode:
| Tasks | Command |
| Reload the inactive slave RSP card. | slave reload |
You can also display information about both the master and slave RSP2s. To do so, perform any of the following tasks from EXEC mode:
| Tasks | Command |
| Display the environment variable settings and configuration register settings for both the master and slave RSP cards. | show boot |
| Show a list of flash devices currently supported on the router. | show flash devices |
| Display the software version running on the master and slave RSP card. | show version |
| Display the stack trace and version information of the master and slave RSP cards. | show stacks (1) |
Configuration of the AIP is a two-step process: you will configure the AIP, then you will configure the ATM switch. To configure your ATM switch, refer to the appropriate user document. To configure ATM, complete the following tasks. The first two tasks are required, and then you must configure at least one PVC or SVC. The VC options you configure must match in three places: on the router, on the ATM switch, and at the remote end of the PVC or SVC connection.
On power up, a new AIP is shut down. To enable the AIP, you must enter the no shutdown command in the configuration mode. (See the section "Using the Configure Command" which follows.) If you installed a new AIP or want to change the configuration of an existing interface, you must enter the configuration mode. When the AIP is enabled (taken out of shutdown) with no additional arguments, the default interface configuration file parameters are as listed in Table 5-7.
Table 5-7 AIP Configuration Default Values
| Parameter | Configuration Command | Default Value |
|---|---|---|
| MTU | mtu bytes | 4470 bytes |
| Exception queue buffers | atm exception-queue | 32 |
| ATM virtual path filter | atm vp-filter hexvalue | 0x7B (hexadecimal) |
| Receive buffers | atm rxbuff | 256 |
| Transmit buffers | atm txbuff | 256 |
| Maximum number of VCs | atm maxvc | 2048 |
| AAL encapsulation | atm aal aal5 | AAL5 |
| ATM raw cell queue size | atm rawq-size | 32 |
| ATM VCs per VP | atm vc-per-vp | 1024 |
| E3 interface framing | atm framing g751 | G.804 |
After you verify that the new AIP is installed correctly (the enabled LED goes on), you can use the configure command to configure the new ATM interface. Be prepared with the information you will need, such as the interface IP address, maximum transmission unit (MTU) size, ATM Adaptation Layer (AAL) mode, and desired rate queues.
Following are instructions for a basic configuration: enabling an interface and specifying IP routing. You might also need to enter other configuration subcommands, depending on the requirements for your system configuration and the protocols you plan to route on the interface. For complete descriptions of configuration subcommands and the configuration options available for ATM, refer to the Router Products Configuration Guide and Router Products Command Reference publication.
The router identifies an interface number by its interface processor slot number (slots 0 through 5 and 8 through 12) and port number (port numbers 0 to 7, depending on the interface processor type) in the format slot/port. Because each AIP contains a single ATM interface, the port number is always 0. For example, the slot/port address of an ATM interface on an AIP installed in interface processor slot 1 would be 1/0.
The following steps describe a basic configuration. Before using the configure command, you must enter the privileged level of the EXEC command interpreter with the enable command. The system will prompt you for a password if one is set. Press the Return key after each configuration step unless otherwise noted.
Router# configure terminal
Router(config)# interface atm 1/0
Router(config)# ip address 1.1.1.1 255.255.255.0
Router(config-if)# no shutdown
Router# copy running-config startup-config
A rate queue defines the maximum speed at which an individual virtual circuit (VC) transmits data to a remote ATM host.
There are no default rate queues. Every VC must be associated with one rate queue. The AIP supports up to eight different peak rates. The peak rate is the maximum rate, in kilobits per second, at which a VC can transmit. After attachment to this rate queue, the VC is assumed to have its peak rate set to that of the rate queue.
You can configure each rate queue independently to a portion of the overall bandwidth available on the ATM link. The combined bandwidths of all rate queues should not exceed the total bandwidth available for the AIP physical-layer interface. The total bandwidth depends on the PLIM. (See the section "ATM Connection Equipment" in the chapter "Preparing for Installation.")
The rate queues are broken into a high (0 through 3) and low (4 through 7) bank. When the rate queues are configured, the AIP will service the high-priority banks until they are empty and then service the low-priority banks.
VCs get the entire bandwidth of the associated rate queue. If oversubscription occurs, the other rate queues in bank A will miss the service opportunities. In the worst case, a 10-Mbps rate queue will take 100 Mbps if there are 10 VCs attached to it and all of them have packets to send at the same time.
To configure rate queue 1 at 10 Mbps, use the atm rate-queue queuenumber rate command in interface configuration mode as follows:
Router(config-if)# atm rate-queue 1 10
where the queue number is in the range of 0 to 7 and the rate (in Mbps) in the range of 1 to 155. The no form of the command removes the rate queue.
You must create a rate queue before you can create PVCs or SVCs. If all rate queues are unconfigured, a warning message will appear, as follows:
%WARNING:(ATM4/0): All rate queues are disabled
If the combined queue rates exceed the AIP physical layer interface bandwidth maximum, a warning message will appear, as follows:
%WARNING(ATM4/0): Total rate queue allocation nMbps exceeds maximum of nMbps
The AIP default values may be changed to match your network environment. Perform the tasks in the following sections if you need to customize the AIP:
The AIP interface is referred to as atm in the RP configuration commands. An interface is created for each AIP found in the system at reset time. To select a specific AIP interface, use the interface atm command, as follows:
interface atm n / i
where n is the slot number and i is the interface number.
To set the MTU size, use the following command:
mtu bytes no mtu
where bytes is in the range of 64 through 9188 bytes and the default is 4470 bytes. (4470 bytes exactly matches FDDI and HSSI interfaces for autonomous switching.) The no form of the command restores the default.
In STM-1 mode, the AIP sends idle cells for cell-rate decoupling. In STS-3C mode, the AIP sends unassigned cells for cell-rate decoupling. The default SONET setting is STS-3C. To configure for STM-1, use the following command:
atm sonet stm-1
To change back to STS-3C, use the no atm sonet stm-1 command.
To configure an ATM interface for local loopback (useful for checking that the AIP is working), use the following command:
loopback plim
no loopback plim
The no form of the command turns off loopback.
The atm rxbuff command sets the maximum number of reassemblies that the AIP can perform simultaneously. The AIP allows up to 512 simultaneous reassemblies; the default is 256. The no form of the command restores the default.
The E3 interface supports G.804 and G.751 framing. The default is G.804. To set the framing to G.751, use the following command:
atm framing g751
no atm framing g751
The no atm framing g751 command resets the E3 interface to the default G.804 framing.
To set the number of transmit buffers for simultaneous fragmentation, use the following command:
atm txbuff n
no atm txbuff
where n is in the range 0 to 512. The default is 256.
By default, the AIP uses the recovered receive clock to provide transmit clocking. To specify that the AIP generates the transmit clock internally for SONET, E3, and DS3 PLIM operation, use the following command:
atm clock internal
A VC is a point-to-point connection between remote hosts and routers. A VC is established for each ATM end node with which the router communicates. The characteristics of the VC are established when the VC is created and include the following:
Each VC supports the following router functions:
By default, fast switching is enabled on all AIP interfaces. These switching features can be turned off with interface configuration commands. Autonomous switching must be explicitly enabled for each interface.
All PVCs, configured into the router, remain active until the circuit is removed from the configuration. The PVCs also require a permanent connection to the ATM switch.
All virtual circuit characteristics apply to PVCs. When a PVC is configured, all the configuration options are passed on to the AIP. These PVCs are writable into the nonvolatile RAM (NVRAM) as part of the RP configuration and are used when the RP image is reloaded.
Some ATM switches have point-to-multipoint PVCs that do the equivalent of broadcasting. If a point-to-multipoint PVC exists, then that PVC can be used as the sole broadcast PVC for all multicast requests.
To configure a PVC, you must perform the following tasks:
When you create a PVC, you create a virtual circuit descriptor (VCD) and attach it to the VPI and VCI. A VCD is an AIP-specific mechanism that identifies to the AIP which VPI/VCI to use for a particular packet. The AIP requires this feature to manage the packets, for transmission. The number chosen for the VCD is independent of the VPI/VCI used.
When you create a PVC, you also specify the AAL and encapsulation. A rate queue is used that matches the peak and average rate selections, which are specified in kilobits per second. Omitting a peak and average value causes the PVC to be connected to the highest bandwidth rate queue available. In that case, the peak and average values are equal.
To create a PVC on the AIP interface, use the atm pvc command. To remove a PVC, use the no form of this command.
atm pvc vcd vpi vci aal-encap [peak] [average] [cell-quota] no atm pvc vcd
For example:
Router(config)# interface atm 2/0 Router(config-if)# atm pvc 2048 255 128 aal5snap 10 10 2046
vcd---A per-AIP unique index value describing this VC in the range of 1 to MAXVC.
vpi---The ATM network VPI to use for this VC in the range of 0 through 255.
vci---The ATM network VCI to use for this VC in the range of 0 through 65,535.
encapsulation---The encapsulation type to use on this VC from the following:
protocol-type-for-mux---A protocol type compatible with the MUX is required from the following protocols: ip, decnet, novell, vines, xns.
peak-rate---(Optional) The maximum rate, in Kbps, at which this VC can transmit.
average-rate---(Optional) The average rate, in Kbps, at which this VC will transmit.
cell quota---(Optional) The cell-quota is an integer value, in the range 1 through 2047, describing the maximum number of credits that a VC can accumulate. The AIP makes use of this in multiples of 32 cells. Every cell transfer consumes one cell credit. One cell transfer credit is issued to a VC in the average rate speed.
The atm pvc command creates PVC n and attaches the PVC to VPI and VCI. The AAL used is specified by aal and encapsulation by encap. A rate queue is used that matches the peak and average (avg) rate selection. The peak and avg rate selection values are specified in Kbps. Not specifying a peak and avg value causes the PVC to default to the highest bandwidth rate queue available.
The defaults for peak-rate and average-rate is that peak = average, and the PVC is automatically connected to the highest bandwidth rate queue available. A VCD is an AIP specific mechanism that identifies to the AIP which VPI/VCI to use for a particular packet. The AIP requires this feature to manage the packets for transmission.
The vp filter (vp_filter) configures the hex value used in the vp filter register in the reassembly operation. When a cell is received, the right half (most-significant byte) of the filter is exclusively NORed with the incoming VPI. The result is then ORed with the left half (least-significant byte) of the filter (the mask). If the result is all ones, then reassembly is done using the VCI/MID table. Otherwise, reassembly is done using the VPI/VCI table. The vp filter mechanism allows a way of specifying which VPI (or range of VPIs) will be used for AAL3/4 processing, all other VPIs mapping to AAL5 processing. In the case where only AAL5 processing is desired, the vp filter should be set to the default VPI of 0x7B (hexadecimal). AAL5 processing will be performed on the first 127 VPIs in that case. Currently you can only configure one VPI for all the AAL3/4 packets.
Examples follow:
atm vp-filter 1
All incoming cells with VPI = 1 will be reassembled via AAL3/4 processing. AAL3/4 is supported with IOS Release 10.2 and later.
atm vp-filter 0
All incoming cells with VPI = 0 will be reassembled via AAL3/4 processing. All other cells will be reassembled via AAL5 processing.
A mapping scheme identifies the ATM address of remote hosts/routers. This address can be specified either as a VCD for a PVC or an NSAP address for SVC operation.
Enter mapping commands as groups; multiple map entries can exist in one map list. First create a map list, then associate the list with an interface. Enter the map-list name command; then enter the protocol, protocol address, and other variables, as follows:
map-list name protocol protocol address atm-vc vcd | atm-nsap nsap [broadcast]
The broadcast keyword specifies that this map entry receives the corresponding protocol broadcast requests to the interface (for example, any network routing protocol updates). If you do not specify broadcast, the ATM software is prevented from sending routing protocol updates to the remote hosts.
After you create the map list, specify the ATM interface to which it applies with the interface command, as follows:
interface atm slot/port
Associate the map list to an interface with the following command:
map-group name
You can create multiple map lists, but only one map list can be associated with an interface. Different map lists can be associated with different interfaces. The following is an example of mapping a list to an interface:
interface atm4/0 ip address 1.1.1.1 255.255.255.0 map-group atm atm rate-queue 1 100 atm pvc 1 0 8 aal5snap atm pvc 2 0 9 aal5mux decnet decnet cost 1 ! map-list atm ip 1.1.1.1 atm-vc 1 broadcast decnet 10.2 atm-vc 2 broadcast
After configuring the new interface, use the show commands to display the status of the new interface or all interfaces.
ATM show commands are available to display the current state of the ATM network and the connected VCs.
To show current VCs and traffic information, use the following command:
show atm vc [vcd]
Specifying a VCD will display specific information about that VCD.
To show current information about an ATM interface, use the following command:
show atm int interface
The show atm int interface command will display ATM-specific information about an interface.
To show current ATM traffic, use the following command:
show atm traffic
The show atm traffic command displays global traffic information to and from all ATM networks connected to the router.
To show the current ATM mapping, use the following command:
show atm map
The show atm map command displays the active list of ATM static maps to remote hosts on an ATM network.
Following are descriptions and examples of the show commands that display AIP information.
Router# show cont cbus
AIP 4, hardware version 1.0, microcode version 10.1
Microcode loaded from system
Interface 32 - ATM4/0, PLIM is 4B5B(100Mbps)
15 buffer RX queue threshold, 36 buffer TX queue limit, buffer size 4496
ift 0007, rql 12, tq 0000 0620, tql 36
Transmitter delay is 0 microseconds
Router# show atm vc Intfc. VCD VPI VCI Input Output AAL/Encaps Peak Avg. Burst ATM4/0.1 1 1 1 305 0 AAL3/4-SMDS 0 0 0 ATM4/0 2 2 2 951 0 AAL5-SNAP 0 0 0 ATM4/0 3 3 3 0 0 AAL5-SNAP 0 0 0 ATM4/0 4 4 4 162 0 AAL5-MUX 0 0 0 ATM4/0 6 6 6 2722 0 AAL5-SNAP 0 0 0 ATM4/0 7 7 7 733 0 AAL5-SNAP 0 0 0
Router# show atm vc 4 ATM4/0: VCD: 4, VPI: 4, VCI: 4, etype:0xBAD, AAL5 - MUX, Flags: 0x34 PeakRate: 0, Average Rate: 0, Burst: 0 *32cells, Vcmode: 0xE200 InPkts: 164, OutPkts: 0, InFast: 0, OutFast: 0, Broadcasts: 0
Router# show atm vc 1 ATM4/0.1: VCD: 1, VPI: 0, VCI: 1, etype:0x1, AAL3/4 - SMDS, Flags: 0x35 PeakRate: 0, Average Rate: 0, Burst: 0 *32cells, VCmode: 0xE200 MID start: 1, MID end: 16 InPkts: 0, OutPkts: 0, InFast: 0, Broadcasts: 0
Router# show atm int atm 4/0 ATM interface ATM4/0: AAL enabled: AAL5, Maximum VCs: 1024, Current VCs: 6 Tx buffers 256, Rx buffers 256, Exception Queue: 32, Raw Queue: 32 VP Filter: 0x7B, VCIs per VPI: 1024 PLIM Type:4B5B - 100Mbps, No Framing, TX clocking: LINE 4897 input, 2900 output, 0 IN fast, 0 OUT fast Rate-Queue 1 set to 100Mbps, reg=0x4EA Config. is ACTIVE
Router# show atm map Map list atm: vines 3004B310:0001 maps to VC 4, broadcast ip 1.1.1.1 maps to VC 1, broadcast clns 47.0004.0001.0000.0c00.6e26.00 maps to VC 6, broadcast appletalk 10.1 maps to VC 7, broadcast decnet 10.1 maps to VC 2, broadcast
Router# show atm traffic 4915 Input packets 0 Output packets 2913 Broadcast packets 0 Packets for non-existent VC 0 Packets with CRC errors 0 OAM cells received 0 Cells lost
Router> show version GS Software (RSP-K), Version 10.3(571) Copyright (c) 1986-1995 by cisco Systems, Inc. Compiled Wed 10-May-95 14:44 System Bootstrap, Version 4.6(1) Current date and time is Fri 5-12-1995 2:18:52 Boot date and time is Fri 5-12-1993 11:42:38 Router uptime is 2 hours, 36 minutes System restarted by power-on Running default software Network configuration file is "Router", booted via tftp from 1.1.1.1 RSP2 (Risc 4600) processor with 16384K bytes of memory. X.25 software. Bridging software. 1 Route Switch Processor. 1 TRIP controller (4 Token Ring). 4 Token Ring/IEEE 802.5 interface. 1 AIP controller (1(ATM) 1 ATM network interface 8192K bytes of flash memory on embedded flash (in RSP2). Configuration register is 0x0 (display text omitted)
Router# write term interface atm2/0 ip address 1.1.1.1 255.255.255.0 atm rate-queue 1 100 atm rate-queue 2 5 atm pvc 1 1 1 aal5mux ip atm pvc 3 3 3 aal5snap atm pvc 4 4 5 aal5snap 4000 3000 appletalk address 10.1 appletalk zone atm
The FSIP supports EIA/TIA-232, EIA/TIA-449, V.35, and X.21 electrical interfaces in both DTE and DCE mode, and EIA-530 interfaces in DTE mode. The port adapter cable connected to each port determines the electrical interface type and mode of the port. To change the electrical interface type or mode of a port, you replace the port adapter cable and use software commands to reconfigure the port for the new interface. At system startup or restart the FSIP polls the interfaces and determines the electrical interface type of each port (according to the type of port adapter cable attached). However, it does not necessarily repoll an interface when you change the adapter cable on line.
To ensure that the system recognizes the new interface type, you must shut down and reenable the interface after changing the cable. When setting up a new DCE interface or changing the mode of an interface from DTE to DCE, or when setting up a loopback test, you must also set the clock rate on the interface. If necessary, you can also use software commands to invert the clock to compensate for phase shifts caused by circuit delays or variances in cable lengths.
The default configuration for serial ports is DCE mode, NRZ format, and 16-bit CRC error detection. All serial interfaces support nonreturn to zero inverted (NRZI) format and 32-bit error detection, both of which are enabled with a software command.
This section contains brief descriptions and examples of software commands that you may need when installing or changing the configuration of serial interface ports. For complete command descriptions and instructions, refer to the related software documentation.
To use an FSIP port as a DCE interface, you must connect a DCE port adapter cable and set the clock speed with the clockrate command. You must also set the clock rate to perform a loopback test. This section describes how use software commands to set the clock rate on a DCE port and, if necessary, how to invert the clock to correct a phase shift between the data and clock signals.
All DCE interfaces require a noninverted internal transmit clock signal, which is generated by the FSIP. The default operation on an FSIP DCE interface is for the DCE device (FSIP) to generate its own clock signal (TxC) and send it to the remote DTE. The remote DTE device returns the clock signal to the DCE (FSIP port). When using DCE interfaces, you must connect a DCE-mode adapter cable to the port and specify the rate of the internal clock with the clockrate configuration command followed by the bits-per-second value.
In the following example, the first serial interface on an FSIP in interface processor slot 2 (2/0) is defined as having a clock rate of 2 Mbps.
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 2/0 Router(config-if)# clockrate 2000000 Router(config-if)# ^z Router#
Following are acceptable clockrate settings:
1200 , 2400, 4800, 9600, 19200, 38400 , 56000, 64000, 72000, 125000, 148000, 500000, 800000, 1000000, 1300000 , 2000000, and 4000000
Speeds above 64 kbps (64000) are not appropriate for EIA/TIA-232; use EIA/TIA-449 on faster interfaces. And, the faster speeds might not work if your cable is too long. If you change an interface from DCE to DTE, you can use the no clockrate command to remove the clock rate although it is not necessary to do so. The port automatically recognizes the DTE cable and ignores the clock rate until a DCE cable is attached to the port again.
The FSIP ports support full duplex operation at DS1 (1.544 Mbps) and E1 (2.048 Mbps) speeds. Each four-port module (see the section "Fast Serial Interface Processor" in the chapter "Product Overview.") is controlled by a dedicated MC68040 processor and can support up to 4 T1 or 3 E1 interfaces. An eight-port FSIP, which has two modules, can support up to 8 T1 or 6 E1 interfaces.
Because each four-port module shares a processor, you can delegate bandwidth to a single port and leave the other ports idle to optimize speed and bandwidth on a single interface. For example, you can configure each of the four ports on a module to operate at 2 Mbps, or configure one port to operate at 8 Mbps and leave the remaining three ports idle. The type of interface, the amount of traffic, and the types of external network devices connected to the ports affect actual rates.
Systems that use long cables may experience high error rates when operating at the higher speeds. Slight variances in cable length, temperature, and network configuration can cause the data and clock signals to shift out of phase. Inverting the clock can often correct this shift. The invert-transmit-clock configuration command inverts the TxC clock signal for DCE interfaces. This prevents phase shifting of the data with respect to the clock. To change the clock back to its original phase, use the no invert-transmit-clock command.
In the example that follows, the clock is inverted for the first serial port on an FSIP in interface processor slot 2:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 2/0 Router(config-if)# invert-transmit-clock Router(config-if)# ^z Router#
The default for all interface types is for nonreturn to zero (NRZ) format; however, all types also support nonreturn to zero inverted (NRZI). NRZ encoding is most common. NRZI encoding is used primarily with EIA/TIA-232 connections in IBM environments. To enable NRZI encoding on any interface, specify the slot and port address of the interface followed by the command nrzi-encoding. In the example that follows, the first serial port on an FSIP in interface processor slot 2 is configured for NRZI encoding:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 2/0 Router(config-if)# nrzi-encoding Router(config-if)# ^z Router#
To disable NRZI encoding on a port, specify the slot and port address and use the no nrzi-encoding command. For a brief overview of NRZ and NRZI, refer to the section "NRZ and NRZI Formats" in the chapter "Preparing for Installation." For complete command descriptions and instructions, refer to the related software documentation.
All interfaces (including the HIP) use a 16-bit cyclic redundancy check (CRC) by default but also support a 32-bit CRC.
CRC is an error-checking technique that uses a calculated numeric value to detect errors in transmitted data. Because 32-bit CRC transmits longer data streams at faster rates, it provides better ongoing error detection with less retransmits. However, both the sender and the receiver must use the same setting. The default for all serial interfaces is for 16-bit CRC. To enable 32-bit CRC on an interface, specify the slot and port address of the interface followed by the command crc32. In the example that follows, the first serial port on an FSIP in interface processor slot 2 is configured for 32-bit CRC:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 2/0 Router(config-if)# crc32 Router(config-if)# ^z Router#
To disable 32-bit mode and return to the default 16-bit setting on a specific interface, specify the slot and port address of the interface and use the no crc32 command. For a brief overview of CRCs, refer to the section "Cyclic Redundancy Checks" in the chapter "Preparing for Installation." For complete command descriptions and instructions, refer to the related software documentation.
The E1-G.703/G.704 interface supports 4-bit CRC in framed mode only. CRC-4 is not enabled by default. To enable CRC-4 on the E1-G.703/G.704 interface, specify the slot and port address of the interface followed by the crc4 command. In the example that follows, the top port on an FSIP in interface processor slot 3 is configured for CRC:
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# interface serial 3/0 Router(config-if)# crc4 Router(config-if)# ^z Router#
To disable CRC-4 and return to the default of no CRC error checking, specify the slot and port address and use the no crc4 command. For complete command descriptions and instructions, refer to the related software documentation.
The port adapter cable connected to each FSIP port determines the electrical interface type and mode of the port. The FSIP ports are not configured for either DTE or DCE mode by default. When there is no cable attached to a port, the software identifies the port as Universal, Cable Unattached rather than either a DTE or DCE interface. When a cable is attached, the port recognizes the mode and automatically uses the clock signal from the appropriate source (external for DTE or internal for DCE).
Although you do not have to configure a clock source for the ports, you do have to define the clock speed the first time you configure a port as a DCE interface. Because the ports automatically use the appropriate clock source for the type (mode) of cable it detects, you can configure a clock rate for a DCE interface and later replace the DCE cable with a DTE cable; the FSIP will ignore the internal clock rate unless it detects that a DCE cable is attached. This configuration allows you to perform a loopback test on a serial port without a port adapter cable attached.
Following is an example of the show controllers cybus command that shows an interface port (2/0) that has an EIA/TIA-232 DTE cable attached, and a second port (2/1) that does not have a cable attached:
Router# show controller cybus
FSIP 2, hardware version 3, microcode version 10.0
Interface 16 - Serial2/0, electrical interface is RS-232 DTE
31 buffer RX queue threshold, 101 buffer TX queue limit, buffer size 1520
Transmitter delay is 0 microseconds
Interface 17 - Serial2/1, electrical interface is Universal (cable unattached)
31 buffer RX queue threshold, 101 buffer TX queue limit, buffer size 1520
To change the electrical interface type or mode of a port on line, replace the serial adapter cable and use software commands to restart the interface and, if necessary, reconfigure the port for the new interface. At system startup or restart, the FSIP polls the interfaces and determines the electrical interface type of each port (according to the type of port adapter cable attached). However, it does not necessarily repoll an interface when you change the adapter cable on line. To ensure that the system recognizes the new interface type, shut down and reenable the interface after changing the cable.
Perform the following steps to change the mode or interface type of a port by replacing the adapter cable. If you are replacing a cable with one of the same interface type and mode, these steps are not necessary. (Simply replace the cable without interrupting operation.)
Router> ena Password: Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# int serial 2/5 Router(config-int)# shutdown Router(config-int)# ^z Router# Router# copy running-config startup-config
Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)# Router(config-int)# int serial 2/5 Router(config-int)# no shutdown Router(config-int)# ^z Router#
These steps will prompt the system to poll the interface and recognize the new interface immediately. When configuring a port for a DCE interface for the first time, or when setting up a loopback test, you must set the clock rate for the port. When you connect a DCE cable to a port, the interface will remain down, the clock LEDs will remain off, and the interface will not function until you set a clock rate (regardless of the DCE mode default).
If you are changing the mode of the interface from DCE to DTE, you do not need to change the clock rate for the port. After you replace the DCE cable with a DTE cable and the system recognizes the interface as a DTE, it will use the external clock signal from the remote DCE device and ignore the internal clock signal that the DCE interface normally uses. Therefore, once you configure the clock rate on a port for either a DCE interface or loopback, you can leave the clock rate configured and still use that port as a DTE interface.
Serial port adapters provide the high-density ports for FSIP serial interfaces. Each port adapter provides two ports, and each port supports any one of the available interface types: EIA/TIA-232, EIA/TIA-449, V.35, X.21, and EIA-530. (See the section "Fast Serial Interface Processor" in the chapter "Product Overview" for a discussion of the universal serial port adapters.) The adapter cable connected to the port determines the electrical interface type and mode (DTE or DCE) of the interface. Each FSIP is shipped from the factory with four or eight port adapters installed. FSIP port adapters are spare parts; if you have spares on hand and have a failure, you can replace interfaces without having to return the FSIP to the factory. You cannot, however, add ports to an FSIP by installing additional port adapters.
The four-port FSIP supports only one four-port module. To change the electrical interface type or mode of a port, you need only replace the adapter cable and reset the interface. When setting up the DCE port, you must also set the clock rate. Although DCE is the default mode, you do not need to specify the mode when configuring DTE interfaces. When the port recognizes the DTE interface cable, it automatically uses the clock signal from the remote DCE device.
All serial interface types support NRZI format and 32-bit CRC, both of which you set with software commands. (Refer to the section "Configuring the FSIP" earlier in this chapter.) For complete command descriptions and instructions, refer to the related software documentation.
You need the following tools to complete this procedure:
Two or four port adapters are installed on each FSIP at the factory (each port adapter provides two ports), so in order to install a new port adapter (or to replace an existing one), you need to remove an existing port adapter. Each four-port module on an FSIP is driven by a CPU; four-port FSIPs contain one processor, and eight-port FSIPs contain two processors. You cannot add additional ports to a four-port FSIP to upgrade it to eight ports.
Follow these steps to remove and replace the FSIP:
Port adapters are installed on each FSIP at the factory. You must remove an existing port adapter in order to replace or install a new one. Each port adapter is anchored to the FSIP with two double-row vertical board-to-board (BTB) connectors and two Phillips-head screws that extend down into the standoffs. (See Figure 5-16.) The port adapter is also anchored to the carrier faceplate with four jackscrews with lock washers (two per port).
To remove a port adapter from the FSIP, perform the following steps:
Figure 5-16 Removing FSIP Port Adapters
The FSIP should already be out of the chassis and have an empty space available for the new port adapter. If it is not, refer to the two preceding sections to remove the FSIP from the chassis and remove a port adapter from the FSIP. Refer to Figure 5-17 while performing the following steps.
Figure 5-17 Installing FSIP Port Adapters
There should now be four or eight port adapters installed on the FSIP. If there are not, do not install the FSIP until you install all port adapters or until you install a blank interface processor filler in the FSIP slot.
This completes the port adapter replacement procedure. For complete command descriptions and instructions, refer to the related software documentation.
If you installed a new MIP or if you want to change the configuration of an existing controller, you must enter the configuration mode. If you replaced the MIP that was previously configured, the system will recognize the new MIP and bring it up in the existing configuration.
After you verify that the new MIP is installed correctly (the enabled LED is on), use the
privileged-level configure command to configure the new MIP controller. Be prepared with the information you will need, such as the following:
Refer to the Router Products Configuration Guide and Router Products Command Reference publications for a summary of the configuration options available and instructions for configuring the MIP controller.
By default, channelized E1 port adapters are set with capacitive coupling between the receive (Rx) shield and chassis ground. This provides direct current (DC) isolation between the chassis and external devices, as stated in the G.703 specification. Jumper J6 controls this function. To make changes, remove the E1 port adapter from the mother board, place one of the spare jumpers on J6 pins one and two or pins two and three (refer to Table 5-8), and replace the port adapter on the mother board. Pin 1 of J6 is designated with a square. (See Figure 5-18.)
Figure 5-18 Location of Jumper J6 on the E1 Port Adapter---Partial View
Table 5-8 Jumper Settings and Functions
| Jumper | Pins and Impedance | Function | |
|---|---|---|---|
| J6 | 1 and 2 for 120 ohm2 and 3 for 75 ohm | Controls capacitive coupling for either 120-ohm or 75-ohm operation; an installed jumper directly connects the Rx shield to chassis ground. | |
After you set jumper J6, proceed to the section "Removing and Replacing MIP Port Adapters" to replace the MIP port adapter.
Following are instructions for a configuration that enables a controller and specifies IP routing. You might also need to enter other configuration subcommands, depending on the requirements for your system configuration and the protocols you plan to route on the interface. The channel-groups must be mapped before the MIP controller can be configured.
For complete descriptions of configuration subcommands and the configuration options available, refer to the Router Products Configuration Guide and Router Products Command Reference publication.
Before you use the configure command, you must enter the privileged level of the EXEC command interpreter with the enable command. The system will prompt you for a password if one has been set.
The system prompt for the privileged level ends with a pound sign (#) instead of an angle bracket (>). At the console terminal, enter the privileged level as follows:
Router> enable Password:
Router#
Following are commands used to map the channel-group, with the default variable listed first:
| Commands for T1: | Commands for E1: |
|---|---|
| controller t1 slot/applique | controller e1 slot/applique |
| clock source [line | internal] | Not required for E1 |
| linecode [ami | b8zs] | linecode [hdb3 | ami] |
| framing [sf | esf] | framing [crc4 | no-crc4] |
| loopback [local | remote] | loopback |
| shutdown | shutdown |
| channel-group number timeslots list [speed {56 | 48 | 64}] For speed, 56 is the default. | channel-group number timeslots list [speed {56 | 48 |64}] For speed, 64 is the default. |
Number is the channel-group 0 to 23 for T1 and 0 to 29 for E1.
Timeslots list is a number between 1 to 24 for T1 and 1 to 31 for E1. It conforms to D3/D4 numbering for T1. Timeslots may be entered individually and separated by commas or as a range that is separated by a hyphen (for example, 1-3, 8, 9-18). For E1 and T1, 0 is illegal.
Speed specifies the DSO speed of the channel-group: T1 default is 56 kbps and E1 default is 64 kbps.
The following steps describe a basic T1 configuration. Press the Return key after each configuration step.
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# cont t1 4/1
Router(config-controller)# clock source line
Router(config-controller)# framing esf
Router(config-controller)# linecode b8zs Router(config-controller)# %CONTROLLER-3-UPDOWN: Controller T1 4/1, changed state to up Router(config-controller)#
Router(config-controller)# channel-group 0 timeslots 1,3-5,7 Router(config-controller)# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial4/1:0, changed state to down %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial4/1:0, changed state to up Router(config-controller)# Router(config-controller)#
Router(config-controller)# int serial 4/1:0
Router(config-if)# ip address 1.1.1.1 255.255.255.0 Router(config-if)#
Router# copy running-config startup-config
Router# disable Router>
The following steps describe a basic E1 configuration. Press the Return key after each step.
Router# conf t Enter configuration commands, one per line. End with CNTL/Z. Router(config)#
Router(config)# cont e1 4/1
Router(config-controller)# framing crc4
Router(config-controller)# linecode hdb3 Router(config-controller)# %CONTROLLER-3-UPDOWN: Controller E1 4/1, changed state to up Router(config-controller)#
Router(config-controller)# channel-group 0 timeslots 1,3-5,7 Router(config-controller)# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial4/1:0, changed state to down %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial4/1:0, changed state to up Router(config-controller)# Router(config-controller)#
Router(config-controller)# int serial 4/1:0
Router(config-if)# ip address 1.1.1.1 255.255.255.0 Router(config-if)#
Router# copy running-config startup-config
Router# disable Router>
After configuring the new interface, use the show commands to display the status of the new interface or all interfaces.
Following are descriptions and examples of the show commands. Descriptions are limited to fields that are relevant for verifying the configuration.
Router> show version GS Software (RSP-K), Version 10.3(571) Copyright (c) 1986-1994 by cisco Systems, Inc. Compiled Wed 10-May-95 15:52 System Bootstrap, Version 4.6(1) [fc2], SOFTWARE Router uptime is 42 minutes System restarted by reload System image file is "myfile-gs7-k", booted via tftp from 1.1.1.1 RSP2 (Risc 4600) processor with 16384K bytes of memory. X.25 software, Version 2.0, NET2, BFE and GOSIP compliant. Bridging software. 1 Route Switch Processor. 1 EIP controller (6 Ethernet). 1 TRIP controller (4 Token Ring). 1 FSIP controller (4 Serial). 1 MIP controller (1 T1). (or 1 E1, and so forth) 6 Ethernet/IEEE 802.3 interfaces. 4 Token Ring/IEEE 802.5 interfaces. 6 Serial network interfaces. 1 FDDI network interface. 128K bytes of non-volatile configuration memory. 8192K bytes of flash memory sized on embedded flash. Configuration register is 0x100
Router# show controller cbus FIP 0, hardware version 2.2, microcode version 10.1 Microcode loaded from system Interface 0 - Fddi0/0, address 0000.0c03.648b (bia 0000.0c03.648b) 15 buffer RX queue threshold, 37 buffer TX queue limit, buffer size 4496 ift 0006, rql 13, tq 0000 01A0, tql 37 (text omitted from example) MIP 2, hardware version 1.0, microcode version 10.0 Microcode loaded from system Interface 16 - T1 2/0, electrical interface is Channelized T1 10 buffer RX queue threshold, 14 buffer TX queue limit, buffer size 1580 ift 0001, rql 7, tq 0000 05B0, tql 14 Transmitter delay is 0 microseconds Router#
Router# show cont t1 3/1
T1 3/1 is up.
Description: Connected back-to-back to RouterA, nw side
No alarms detected.
Framing is ESF, Line Code is B8ZS, Clock Source is Internal.
Data in current interval (65 seconds elapsed):
0 Line Code Violations, 4390918 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
6 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
Data in Interval 1:
0 Line Code Violations, 5373952 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
Total Data (last 1 15 minute intervals):
0 Line Code Violations, 5373952 Path Code Violations,
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins,
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
Router#
Router# show cont e1 1/1
E1 1/1 is up.
Applique type is Channelized E1 - balanced
No alarms detected.
Framing is CRC4, Line Code is HDB3.
Data in current interval (280 seconds elapsed):
3 Line Code Violations, 1 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 1 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 1 Unavail Secs
Total Data (last 79 15 minute intervals):
0 Line Code Violations, 0 Path Code Violations, 0 Slip Secs, 0 Fr Loss Secs,
0 Line Err Secs, 0 Degraded Mins, 0 Errored Secs, 0 Bursty Err Secs,
0 Severely Err Secs, 0 Unavail Secs
Router#
Router# show config Using 1708 out of 130048 bytes ! version 11.0 ! hostname Router ! enable password ***** ! clns routing ! controller T1 4/1 (for E1, E1 4/1, and so forth) framing esf (for E1, crc4, and so forth) linecode b8zs (for E1, hdb3, and so forth) channel-group 0 1,3,5,7 channel-group 1 2,4,6,8-10 ! interface Ethernet 1/0 ip address 1.1.1.1 255.255.255.0 no mop enabled ! interface Ethernet1/1 no ip address shutdown ! interface Ethernet1/2 no ip address shutdown ! interface Ethernet1/3 (display text omitted)
Router> show protocols Global values: Internet Protocol routing is enabled CLNS routing is enabled (address 41.0000.0000.0000.0001.0000.0000.00) Fddi0/0 is down, line protocol is down Internet address is 1.1.1.1, subnet mask is 255.255.255.0 CLNS enabled Ethernet1/0 is up, line protocol is up Internet address is 1.1.1.1, subnet mask is 255.255.255.0 (display text omitted)
The following procedure describes how to use the show commands to verify that the new MIP interface is configured correctly:
If the interface is down and you configured it as up, or if the displays indicate that the hardware is not functioning properly, ensure that the network interface is properly connected and terminated. If you still have problems bringing the interface up, contact a customer service representative for assistance.
This completes the configuration procedure for the new MIP interface.
Port adapters provide the ports for the E1 and T1 interfaces. Each port adapter provides one port. Each MIP is shipped from the factory with one or two port adapters installed. You cannot add ports to a MIP by installing an additional port adapter. Port adapters cannot be replaced in the field. However, you need to remove an existing E1 port adapter in order to access jumper J6.
Before proceeding, refer to the section "Removing Interface Processors" in this chapter.
You need the following tools to complete this procedure:
Port adapters are installed on each MIP at the factory. Each port adapter is anchored to the MIP with one plastic double-row vertical board-to-board (BTB) connector and four Phillips screws that extend through standoffs, into the mother board. (See Figure 5-19.) The port adapter is also anchored to the carrier faceplate with two jackscrews and two lock washers.
To remove an E1 port adapter from the MIP, refer to Figure 5-19 and perform the following steps:
Figure 5-19 Removing a MIP Port Adapter
If necessary, refer to the preceding section to remove an E1 port adapter from the MIP. Refer to Figure 5-20 while you perform the following steps:
Figure 5-20 Installing a MIP Port Adapter
When you insert the new MIP, the console terminal will display several lines of status information about OIR as it reinitializes the interfaces. Change the state of the interfaces to up and verify that the configuration matches that of the interfaces you replaced.
Use the configure command or the setup command facility to configure the new interfaces. You do not have to do this immediately, but the interfaces will not be available until you configure them and bring them up.
After you configure the interfaces, use the show controller cbus, show controller T1, and show controller E1 commands to display the status of the new interface. For brief descriptions of commands, refer to "Using Show Commands to Verify the MIP Status" earlier in this section.
For complete descriptions of commands and the options available, refer to the Router Products Configuration Guide and Router Products Command Reference publication.
Spare parts fall into two categories: those that support OIR and those that require you to shut down the system power before replacement. Because interface processors support OIR, you can remove and replace them while the system is operating; however, you must shut down the system power before removing the RSP2.
This section contains replacement procedures for the following spares:
This document does not include replacement instructions for all chassis spares or packing materials. However, specific replacement instructions, called configuration notes, accompany all spares. In addition to the internal spares, the following assemblies are also available as spares:
All spare parts and FRUs are shipped with detailed, up-to-date instructions (called configuration notes) for installation and, if applicable, configuration.
The blower module comprises a blower and a fan control printed circuit board to which the system LEDs are mounted. To remove the blower module, you need only loosen two captive screws that anchor the module to the chassis frame; a receptacle on the end of the module mates with a plug at the back of the module opening. The blower module slides into the chassis (when viewing the chassis from the noninterface processor end).
For the AC-input power supply, an external modular power cable delivers AC source power to the external AC receptacle on the interface processor end of the power supply. For the DC-input power supply, a three-lead, 6-AWG power cable (that you provide) delivers DC source power to the terminal block on the power supply. To remove a power supply, turn off the power switch, disconnect the power cable, loosen the captive screw on the bottom of the power supply faceplate, and pull the power supply from the chassis.
You need the following tools to replace any one of the internal spares:
The blower provides cooling air to the internal system components. When viewing the chassis from the noninterface processor end, the blower module is located above the card cage. (See Figure 5-21.) Two slotted captive screws hold the blower module in place. The front panel LEDs are located on a printed circuit board inside the blower module. If one of these LEDs fails, the blower module must be replaced. The LED board inside the blower module assembly is not separately replaceable.
Follow these steps to replace the blower module.
Figure 5-21 Removing and Replacing the Blower Module
This completes the blower module removal and replacement procedure.
The power supplies rest on the floor of the chassis under the card cage. On the AC receptacle, located on the faceplate of the AC-input power supply, a cable-retention band wraps around the molded power cable connector to prevent the cable from accidentally being pulled out or from falling out. On the DC-input power supply, you provide two nylon cable ties for cable strain relief. Replace the nylon cable ties after you install the new DC-input power supply. In addition to a large slotted screwdriver, you also need a pair of wire cutters for this procedure.
Follow these steps to remove a power supply:
Figure 5-22 Removing a Power Supply---AC-Input Power Supplies Shown
Figure 5-23 Supporting the Power Supply---AC-Input Power Supply Shown
Figure 5-24 Power Supply Blank
This completes the power supply removal procedure.
Follow these steps to replace the power supply:
Figure 5-25 20-Amp AC Power Cable Connector and Plug, and 20-Amp Receptacle
This completes the power supply replacement procedure.
The card cage and backplane comprise one assembly that can be removed to reduce the chassis weight for rack-mounting, moving the chassi from location to another, and so forth. There are no wires, harnesses, or connectors. The assembly slides into and out of the chassis and attaches the chassis frame with four slotted, captive screws. (See Figure 5-28.) For this procedure, you will need one large flat-blade screwdriver, an antistatic bag for each removed processor module, or several antistatic mats or pieces of antistatic foam.
Place removed processor modules in the collapsible, black-cardboard board racks that were provided with your packing material, as shown in Figure 5-27.
Figure 5-27 Placing Removed Processor Modules in a Board Rack
Following is the procedure to remove the card cage and backplane assembly:
Figure 5-28 Removing and Replacing the Card Cage and Backplane Assembly
This completes the procedure for removing and replacing the card cage and backplane assembly.
|
Copyright 1988-1996 © Cisco Systems Inc.
