Product Overview

The Cisco 7200 series routers provide routing and bridging for a wide variety of protocols and network media and include the Cisco 7206 and the Cisco 7204. Network interfaces reside on port adapters that provide a connection between the router's Peripheral Component Interconnect (PCI) buses and external networks.

The Cisco 7200 series combines Cisco Systems' proven software technology with exceptional reliability, availability, serviceability, and performance features to meet the requirements of today's most mission-critical internetworks. The Cisco 7200 series provides information system professionals with the flexibility they need to meet the constantly changing requirements at the core and distribution points of the internetwork.

The Cisco 7200 series runs the industry-leading networking software, Cisco Internetwork Operating System (Cisco IOS) software. Cisco IOS software assures robust, reliable internetworks by supporting both LAN and WAN protocols, optimizing WAN services, and controlling internetwork access. In addition, Cisco IOS software allows centralized, integrated, and automated installation and management of internetworks.

The Cisco 7200 series offers software feature sets and feature licenses, which allows you to select the package that best meets your needs. You can select from four feature sets, one of which is required. The feature sets can be enhanced with additional feature licenses, which are required to use specific features with subsets. If requirements change in the future, you can upgrade to a higher level feature set and add another feature license.

The Cisco 7204 contains four slots for port adapters and two slots for Personal Computer Memory Card International Association (PCMCIA) Flash memory cards.

The Cisco 7206 contains six slots for port adapters and two slots for PCMCIA Flash memory cards. The port adapter/service adapter types follow:

10BaseT Ethernet
10BaseFL Ethernet
HSSI
100BaseT Fast Ethernet
FDDI
Synchronous serial
Token Ring

The Cisco 7200 series routers also contain a slot for an input/output (I/O) controller. The I/O controller can be purchased with or without Fast Ethernet support. The Fast Ethernet input/output controller includes an MII connector.

The reliability, availability, and serviceability features of the Cisco 7200 series include the following:

Online software reconfiguration---Enables software configuration changes to occur without rebooting or interrupting network applications and services.
Online insertion and removal (OIR)---Allows seamless upgrades to higher density and new port adapters without rebooting or taking the system offline. Reduces operator intervention because like port adapters are automatically reconfigured.
Fast boot---Enables the system to come online quickly (35 seconds is typical) after software upgrades, minimizing impact on the network.
Environmental monitoring---Alerts you to fluctuations before critical conditions occur, allowing proactive resolution while the system stays online.
Self-diagnostics and tools---Ensures that modules are operational before going online, eliminating potential network problems.
Optional dual power supply systems, AC- or DC-input---Extends individual power supplies by load sharing.

Allows you to implement dual sources of primary power. Each supply has its own power cord, eliminating the risks associated with failure of uninterruptable power supply systems or building power.

Flash memory---Enables fast, reliable software and microcode updates. Allows a single, centralized point of administration, eliminating the need to visit each router site when updating software or microcode.

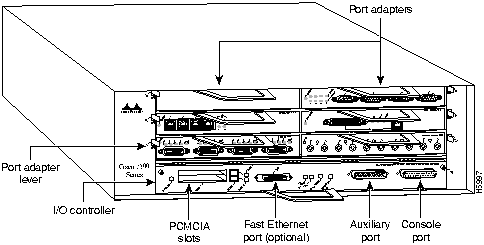

Figure 14 : Cisco 7206 Front View

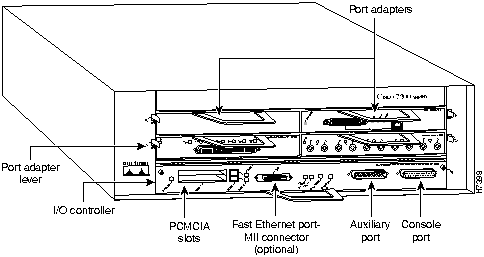

Figure 15 : Cisco 7204 Front View

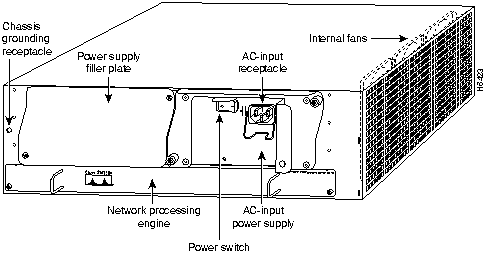

Figure 16 : Cisco 7200 Series Rear View

Table 88 : Cisco 7200 Series Summary of Features

Characteristics Cisco 7206 Cisco 7204

Supported network interfaces Ethernet 10BaseT and 10BAaseFL
Fast Ethernet 100BaseT
(RJ-45 and MII)
Token Ring
FDDI
Synchronous serial Ethernet 10BaseT and 10BaseFL
Fast Ethernet 100BaseT
(RJ-45 and MII)
Token Ring
FDDI
Synchronous serial

Power supplies 2¹ 2¹

Port adapter slots 6 4

Input/output controller With or without Fast Ethernet With or without Fast Ethernet

Software options---Cisco IOS Release 11.1(5) Network Layer 3 Switching
Enterprise
Enterprise and APPN
Desktop and IBM Network Layer 3 Switching
Enterprise
Enterprise and APPN
Desktop and IBM

Software options---Cisco IOS Release 11.2 Network Layer 3 Switching
Desktop and IBM
Desktop, IBM, and APPN
Enterprise
Enterprise and APPN
IP routing Network Layer 3 Switching
Desktop and IBM
Desktop, IBM, and APPN
Enterprise
Enterprise and APPN
IP routing

PCMCIA Flash memory card
(optional, 2 slots available) 8 MB expandable to 40 MB (8, 16, or 20 MBs per card) 8 MB expandable to 40 MB (8, 16, or 20 MBs per card)

Processor type MIPS RISC MIPS RISC

Dimensions (H x W x D) 5.25 x 16.8 x 17" (13.34 x 42.67 x 43.18 cm) 5.25 x 16.8 x 17" (13.34 x 42.67 x 43.18 cm)

Weight Chassis fully configured with a network processing engine, I/O controller, six port adapters, two power supplies, and a fan tray:
~ 50 lbs (22.7 kg) Chassis fully configured with a network processing engine, I/O controller, four port adapters, two power supplies, and a fan tray:
~ 50 lbs (22.7 kg)

High-speed midplane 6 port adapters 4 port adapters

¹ Second power supply is optional.

Characteristics	Cisco 7206	Cisco 7204
Supported network interfaces	Ethernet 10BaseT and 10BAaseFL Fast Ethernet 100BaseT (RJ-45 and MII) Token Ring FDDI Synchronous serial	Ethernet 10BaseT and 10BaseFL Fast Ethernet 100BaseT (RJ-45 and MII) Token Ring FDDI Synchronous serial
Power supplies	2¹	2¹
Port adapter slots	6	4
Input/output controller	With or without Fast Ethernet	With or without Fast Ethernet
Software options---Cisco IOS Release 11.1(5)	Network Layer 3 Switching Enterprise Enterprise and APPN Desktop and IBM	Network Layer 3 Switching Enterprise Enterprise and APPN Desktop and IBM
Software options---Cisco IOS Release 11.2	Network Layer 3 Switching Desktop and IBM Desktop, IBM, and APPN Enterprise Enterprise and APPN IP routing	Network Layer 3 Switching Desktop and IBM Desktop, IBM, and APPN Enterprise Enterprise and APPN IP routing
PCMCIA Flash memory card (optional, 2 slots available)	8 MB expandable to 40 MB (8, 16, or 20 MBs per card)	8 MB expandable to 40 MB (8, 16, or 20 MBs per card)
Processor type	MIPS RISC	MIPS RISC
Dimensions (H x W x D)	5.25 x 16.8 x 17" (13.34 x 42.67 x 43.18 cm)	5.25 x 16.8 x 17" (13.34 x 42.67 x 43.18 cm)
Weight	Chassis fully configured with a network processing engine, I/O controller, six port adapters, two power supplies, and a fan tray: ~ 50 lbs (22.7 kg)	Chassis fully configured with a network processing engine, I/O controller, four port adapters, two power supplies, and a fan tray: ~ 50 lbs (22.7 kg)
High-speed midplane	6 port adapters	4 port adapters

Table 89 : Cisco 7206 Environmental Specifications

Description Specification

Midplane Two primary PCI buses and one secondary PCI bus with an aggregate bandwidth of 600 Mbps

Power dissipation ~370W maximum configuration

Heat dissipation 370W (1262 Btu¹)

AC-input power 370W maximum (single or dual power supply configuration)

AC-input voltage 100-240 VAC² wide input with power factor correction (PFC)

AC-input rating 5A maximum @ 110 VAC and 2.5A maximum @ 240 VAC fully configured

AC-input cable 18 AWG ³ three-wire cable, with three-lead IEC-320 receptacle on the power supply end, and a country-dependent plug on the power source end

DC-output power 280W maximum (single or dual power supply configuration)

DC-input power 370W maximum (single or dual power supply configuration)

DC-input voltage --48 VDC⁴ nominal in North America
--60 VDC maximum in the European Community

DC-input current rating 14A maximum at --48 VDC

DC voltages supplied and a maximum steady-state current ratings +5.2V @ 360A
+12.2V @ 9A
-12.0V @ 1.5A
+3.5V @ 13A

DC-input cable 14 AWG recommended minimum. with at least three conductors rated for at least 140°F (60 °C)

Frequency 50/60 Hz

Airflow ~80 cfm⁵

Temperature 32 to 104°F (0 to 40°C), operating; --4 to 149°F (--20 to 65°C), nonoperating

Humidity 10 to 90% noncondensing

Agency approvals Safety: UL 1950, CSA 22.2 No. 950, EN60950, EN41003, AUSTEL TS001,
AS/NZ 3260
EMI: FCC Class A, CSA Class A, EN55022 Class B, VCCI Class 2, AS/NRZ 3548 Class A
Immunity: IEC-1000-4-2, IEC-1000-4-3, IEC-1000-4-4, IEC-1000-4-5, IEC-1000-4-6, IEC-1000-4-11, IEC-1000-3-2

Software requirement Cisco IOS Release 11.1(472) or later for the Cisco 7206, and 11.1(6) or later for the Cisco 7204

¹ BTU = British thermal units.
² VAC = volts alternating current.
³ AWG = American Wire Gauge.
⁴ VDC = volts direct current.
⁵ cfm = cubic feet per minute.

Description	Specification
Midplane	Two primary PCI buses and one secondary PCI bus with an aggregate bandwidth of 600 Mbps
Power dissipation	~370W maximum configuration
Heat dissipation	370W (1262 Btu¹)
AC-input power	370W maximum (single or dual power supply configuration)
AC-input voltage	100-240 VAC² wide input with power factor correction (PFC)
AC-input rating	5A maximum @ 110 VAC and 2.5A maximum @ 240 VAC fully configured
AC-input cable	18 AWG ³ three-wire cable, with three-lead IEC-320 receptacle on the power supply end, and a country-dependent plug on the power source end
DC-output power	280W maximum (single or dual power supply configuration)
DC-input power	370W maximum (single or dual power supply configuration)
DC-input voltage	--48 VDC⁴ nominal in North America --60 VDC maximum in the European Community
DC-input current rating	14A maximum at --48 VDC
DC voltages supplied and a maximum steady-state current ratings	+5.2V @ 360A +12.2V @ 9A -12.0V @ 1.5A +3.5V @ 13A
DC-input cable	14 AWG recommended minimum. with at least three conductors rated for at least 140°F (60 °C)
Frequency	50/60 Hz
Airflow	~80 cfm⁵
Temperature	32 to 104°F (0 to 40°C), operating; --4 to 149°F (--20 to 65°C), nonoperating
Humidity	10 to 90% noncondensing
Agency approvals	Safety: UL 1950, CSA 22.2 No. 950, EN60950, EN41003, AUSTEL TS001, AS/NZ 3260 EMI: FCC Class A, CSA Class A, EN55022 Class B, VCCI Class 2, AS/NRZ 3548 Class A Immunity: IEC-1000-4-2, IEC-1000-4-3, IEC-1000-4-4, IEC-1000-4-5, IEC-1000-4-6, IEC-1000-4-11, IEC-1000-3-2
Software requirement	Cisco IOS Release 11.1(472) or later for the Cisco 7206, and 11.1(6) or later for the Cisco 7204

Standard Features

The Cisco 7200 series base system includes the following standard features:

System chassis
Four slots for port adapters in the Cisco 7204; six slots for port adapters in the Cisco 7206
Subchassis with midplane
AC-input power supply
AC power cord

You must order the other major system components separately. These components include the network processing engine, input/output controller, DRAM and PCMCIA memory, port adapters, dual power supplies, and Cisco IOS software. See the section "Configuration Worksheets" in the chapter "Configuration Guidelines for the Cisco 7000 Family" for more details.

Table 90 lists the Cisco 7200 series base system product numbers.

Table 90 : Cisco 7200 Series Base System Product Numbers

Description Product Number

Cisco 7206

6-slot chassis, 1 AC-input power supply CISCO7206

6-slot chassis, 1 DC-input power supply CISCO7206-DC

Cisco 7204

4-slot chassis, 1 AC-input power supply CISCO7204

4-slot chassis, 1 DC-input power supply CISCO7204-DC

Field-Replaceable Units

The Cisco 7200 series routers are easily serviced; all major components are field replaceable units (FRUs). The following Cisco 7200 series components are FRUs:

Network processing engine
Input/output controller
Memory---DRAM and PCMCIA
Port adapters
Power supplies
Fan tray
Subchassis (including the midplane)
Chassis

Options

Options for the Cisco 7200 series include port adapters, memory, serial cables, software feature sets, software feature licenses, a second power supply, accessories, and upgrades for the network processing engine.

Note For additional options that apply to most systems, refer to the chapters "Cables and Transceivers" or "Power Cords" in Part 7.

Network Processing Engine

The network processing engine maintains and executes the system management functions for the Cisco 7200 series routers. The network processing engine also shares the system memory and environmental monitoring functions for the router with the I/O controller.

The Cisco 7200 series requires one network processing engine, which can be ordered in three ways: as part of an initial system, or as a spare. The network processing engine can be ordered with your choice of 16-, 24-, 32-, 64-, or 128-MB DRAM. The default is 16-MB. The network processing engine consists of the following components:

Orion/R4700 RISC processor operating at an internal clock speed of 150 MHz and an external clock speed of 75 MHz.
Galileo GT-64010 system controller that uses DMA to transfer data between port adapters on two PCI buses, and DRAM and packet SRAM on the network processing engine.
DRAM for storing routing tables, protocols, network accounting applications, packets of information in preparation for process switching, and packet buffering for SRAM overflow. The standard configuration is 16 MB, with up to 128 MB available through SIMM upgrades.
Packet SRAM (1 MB) for storing packets of information in preparation for fast switching.
Unified cache SRAM that functions as the secondary cache for the R4700 RISC processor. (The primary cache is within the processor.)
Environmental sensor for monitoring the air temperature in the proximity of the CPU.

The network processing engine performs the following system management functions:

Sending and receiving routing protocol updates
Managing tables, caches, and buffers
Monitoring interface and environmental status
Providing Simple Network Management Protocol (SNMP) management and the console/Telnet interface
Data traffic accounting and switching
Image booting and reloading
Port adapter management (recognition and initialization during OIR)

Table 91 lists network processing engine product numbers, and Table 92 lists network processing engine DRAM upgrade product numbers.

Table 91 : Cisco 7200 Series Network Processing Engines

Description Product Numbers

Cisco 7200 network processing engine, 150 MHz, 16-MB DRAM NPE-150

Cisco 7200 network processing engine, 150 MHz, 16-MB DRAM (spare) NPE-150=

Description	Product Numbers
Cisco 7200 network processing engine, 150 MHz, 16-MB DRAM	NPE-150
Cisco 7200 network processing engine, 150 MHz, 16-MB DRAM (spare)	NPE-150=

Table 92 : Cisco 7200 Series Network Processing Engine
DRAM Upgrade Options

Description Product Number SIMM
Quantity SIMM Size

8-MB DRAM upgrade kit MEM-NPE-8MB=¹ 2 4-MB SIMMs

16-MB DRAM upgrade kit MEM-NPE-16MB 2 8-MB SIMMs

16-MB DRAM upgrade kit (spare) MEM-NPE-16MB=¹ 2 8-MB SIMMs

24-MB DRAM upgrade kit MEM-NPE-24MB² 2
2 8-MB SIMMs
4-MB SIMMs

32-MB DRAM upgrade kit MEM-NPE-32MB 2 16-MB SIMMs

32-MB DRAM upgrade kit (spare) MEM-NPE-32MB=¹ 2 16-MB SIMMs

64-MB DRAM upgrade kit MEM-NPE-64MB 2 32-MB SIMMs

64-MB DRAM upgrade kit (spare) MEM-NPE-64MB=¹ 2 32-MB SIMMs

128-MB DRAM upgrade kit MEM-NPE-128MB 4 32-MB SIMMs

128-MB DRAM upgrade kit (spare) MEM-NPE-128MB=¹ 4 32-MB SIMMs

¹ By default, spare processors ship with an 8-MB PCMCIA Flash memory card, which is unformatted and does not contain a Cisco IOS software image.
² A spare 24-MB DRAM upgrade kit is not available.

Description	Product Number	SIMM Quantity	SIMM Size
8-MB DRAM upgrade kit	MEM-NPE-8MB=¹	2	4-MB SIMMs
16-MB DRAM upgrade kit	MEM-NPE-16MB	2	8-MB SIMMs
16-MB DRAM upgrade kit (spare)	MEM-NPE-16MB=¹	2	8-MB SIMMs
24-MB DRAM upgrade kit	MEM-NPE-24MB²	2 2	8-MB SIMMs 4-MB SIMMs
32-MB DRAM upgrade kit	MEM-NPE-32MB	2	16-MB SIMMs
32-MB DRAM upgrade kit (spare)	MEM-NPE-32MB=¹	2	16-MB SIMMs
64-MB DRAM upgrade kit	MEM-NPE-64MB	2	32-MB SIMMs
64-MB DRAM upgrade kit (spare)	MEM-NPE-64MB=¹	2	32-MB SIMMs
128-MB DRAM upgrade kit	MEM-NPE-128MB	4	32-MB SIMMs
128-MB DRAM upgrade kit (spare)	MEM-NPE-128MB=¹	4	32-MB SIMMs

Table 93 summarizes the memory components of the network processing engine.

Table 93 : Cisco 7200 Network Processing Engine Memory Components

Type Size Quantity Description

DRAM 16 to 128 MB 2 to 4 4-, 8-, 16-, or 32-MB SIMMs (based on maximum DRAM required)

SRAM 1 MB 8 8 chips each being 128K words x 72 bits wide

Unified cache 512 KB 4 Secondary cache for the R4700 RISC processor

Input/Output Controller

Input/output controllers share the system memory functions and the environmental monitoring functions for the Cisco 7200 series routers with the network processing engine.

The I/O controllers consist of the following components:

Dual EIA/TIA-232 channels for local console and auxiliary ports
An optional Fast Ethernet port with a single female MII receptacle configurable to 100 Mbps
NVRAM for storing system configuration and environmental monitoring logs
Two PCMCIA slots
Flash memory SIMM and Flash memory cards
EPROM to boot the Cisco IOS software
Environmental exhaust sensor

Table 94 : Cisco 7200 Series Input/Output Controllers

Description Product Number

Fast Ethernet (100BaseT) input/output controller C7200-I/O-FE-MII

Fast Ethernet (100BaseT) input/output controller (spare) C7200L-I/O-FE-MII=

Input/output controller¹ C7200-I/O

Input/output controller (spare)¹ C7200-I/O=

¹ The C7200-I/O is an input/output controller without a FastEthernet port.

Description	Product Number
Fast Ethernet (100BaseT) input/output controller	C7200-I/O-FE-MII
Fast Ethernet (100BaseT) input/output controller (spare)	C7200L-I/O-FE-MII=
Input/output controller¹	C7200-I/O
Input/output controller (spare)¹	C7200-I/O=

Flash Memory Cards

Flash memory cards can be used to store and boot Cisco IOS images and/or system configurations. A Cisco 7200 series router can also be used as a TFTP server, with the Flash card memory used to store other files such as software and microcode images for other systems. Cisco recommends using one card for image storage, and another for configurations. The number of system images that can be stored on the card depends both on the Flash card size and the file size.

The Flash memory card is available in 8-, 16-, or 20-MB densities. The card is an Intel Series 2+ Flash memory card, which conforms with the PCMCIA format. The Flash memory card that is shipped with the system contains a software image; the same Flash memory card that is ordered as a spare is shipped blank and must be formatted before use. Table 95 provides a description of each Cisco 7200 series Flash memory card along with its corresponding product number.

Table 95 : Cisco 7200 Series Flash Memory Cards

Description Product Number

8-MB PCMCIA Flash memory card (default) MEM-I/O-FLC8M

8-MB PCMCIA Flash memory card (spare)¹ MEM-I/O-FLC8M=

16-MB PCMCIA Flash memory card MEM-I/O-FLC16M

16-MB PCMCIA Flash memory card (spare)¹ MEM-I/O-FLC16M=

20-MB PCMCIA Flash memory card MEM-I/O-FLC20M

20-MB PCMCIA Flash memory car (spare)¹ MEM-I/O-FLC20M=

¹ Spares are shipped blank and unformatted.

Description	Product Number
8-MB PCMCIA Flash memory card (default)	MEM-I/O-FLC8M
8-MB PCMCIA Flash memory card (spare)¹	MEM-I/O-FLC8M=
16-MB PCMCIA Flash memory card	MEM-I/O-FLC16M
16-MB PCMCIA Flash memory card (spare)¹	MEM-I/O-FLC16M=
20-MB PCMCIA Flash memory card	MEM-I/O-FLC20M
20-MB PCMCIA Flash memory car (spare)¹	MEM-I/O-FLC20M=

Port Adapters

Interface support for the Cisco 7200 series is provided by port adapters installed in port adapter slots 1 through 6 for the Cisco 7206, and 1 through 4 for the Cisco 7204. Table 96 lists the available port adapters.

Note The Cisco 7200 series routers and the VIP2 interface processor for the Cisco 7000 series and Cisco 7500 series routers use the same port adapters, unless otherwise indicated.

Table 96 : Cisco 7200 Series Port Adapters

Description Product Number

4 Ethernet 10BaseT ports PA-4E

8 Ethernet 10BaseT ports PA-8E

1 Fast Ethernet port PA-FE-TX
PA-FE-FX

4 synchronous serial ports supporting EIA/TIA-232, EIA/TIA-449, EIA-530, X.21, and V.35 PA-4T

4 Token Ring ports PA-4R

5 Ethernet10BaseFL ports PA-5EFL

1 FDDI multimode
1 full-duplex FDDI multimode PA-F-MM
PA-F/FD-MM

1 FDDI single-mode
1 full-duplex FDDI single-mode PA-F-SM
PA-F/FD-SM

1 HSSI port
2 HSSI ports PA-H
PA-2H

Description	Product Number
4 Ethernet 10BaseT ports	PA-4E
8 Ethernet 10BaseT ports	PA-8E
1 Fast Ethernet port	PA-FE-TX PA-FE-FX
4 synchronous serial ports supporting EIA/TIA-232, EIA/TIA-449, EIA-530, X.21, and V.35	PA-4T
4 Token Ring ports	PA-4R
5 Ethernet10BaseFL ports	PA-5EFL
1 FDDI multimode 1 full-duplex FDDI multimode	PA-F-MM PA-F/FD-MM
1 FDDI single-mode 1 full-duplex FDDI single-mode	PA-F-SM PA-F/FD-SM
1 HSSI port 2 HSSI ports	PA-H PA-2H

Spare Chassis

Table 97 lists spare chassis assemblies for the Cisco 7200 series routers.

Table 97 : Cisco 7200 Series Chassis Assemblies

System¹ Product Number

Cisco 7206, 6-slot chassis, 1 AC-input power supply CISCO7206

Cisco 7206, 6-slot chassis, 1 DC-input power supply CISCO7206-DC

Cisco 7204, 4-slot chassis, 1 AC-input power supply CISCO7204

Cisco 7204, 4-slot chassis, 1 DC-input power supply CISCO7204-DC

¹ Each order must include a software feature set.

System¹	Product Number
Cisco 7206, 6-slot chassis, 1 AC-input power supply	CISCO7206
Cisco 7206, 6-slot chassis, 1 DC-input power supply	CISCO7206-DC
Cisco 7204, 4-slot chassis, 1 AC-input power supply	CISCO7204
Cisco 7204, 4-slot chassis, 1 DC-input power supply	CISCO7204-DC

Power Supplies

Table 98 provides product numbers for single power supplies ordered as part of an initial system or a spare. Power supplies for United States and international use are listed. For international spare AC-input power supply orders, Cisco uses country-specific product numbers, which specify the type of power cord to be included in the order.

Table 98 : Cisco 7200 Series Single Power Supplies

Description Product Numbers

AC-input power supply for United States PWR-7200-AC=

AC-input power supply for Australia PWR-7200-ACA=

AC-input power supply for Europe PWR-7200-ACE=

AC-input power supply for Italy PWR-7200-ACI=

AC-input power supply for United Kingdom PWR-7200-ACU=

DC-input power supply ¹ PWR-7200-DC

DC-input power supply (spare)¹ PWR-7200DC=

¹ DC-input power supplies do not include a powercord.

Description	Product Numbers
AC-input power supply for United States	PWR-7200-AC=
AC-input power supply for Australia	PWR-7200-ACA=
AC-input power supply for Europe	PWR-7200-ACE=
AC-input power supply for Italy	PWR-7200-ACI=
AC-input power supply for United Kingdom	PWR-7200-ACU=
DC-input power supply ¹	PWR-7200-DC
DC-input power supply (spare)¹	PWR-7200DC=

The Cisco 7200 series supports dual power supplies. The optional additional power supply system provides dual load-sharing for protection against system interruption should one power supply system or one source of power fail. Table 99 provides product numbers for dual power supplies that are ordered as part of an initial system.

Note Dual power supplies must both be AC-input or DC-input. The Cisco 7200 series does not support mixed power supply types.

Table 99 : Cisco 7200 Series Dual Power Supplies

Description Product Numbers

Dual AC-input power supply PWR-7200/2

Dual DC-input power supply¹ PWR-7200/2-DC

¹ DC-input power supplies do not include a powercord.

Description	Product Numbers
Dual AC-input power supply	PWR-7200/2
Dual DC-input power supply¹	PWR-7200/2-DC

Spare Accessories

Several spare accessories are available for the Cisco 7200 series: a rack-mount kit, cable-management bracket, packing material, power supply covers, fans, midplane assemblies, blank card carriers, and a port adapter divider. Table 100 lists spare accessories.

Table 100 : Cisco 7200 Series Accessories

Product Description Product
Number

Rack-mount kit Cisco 7200 rack-mount kit ACS-7200-RMK=

Cable-management bracket Cisco 7200 cable-management bracket (spare) ACS-7200-CBLM=

Spare packaging Cisco 7200 spare system packaging material PKG-7200=

Redundant power supply cover Cisco 7200 redundant power supply cover MAS-7200PSCOVER=

Fan assembly Cisco 7200 fan tray assembly (spare) MAS-7200FAN=

Midplane assembly Cisco 7206 midplane assembly (spare) MAS-7206MP=

Midplane assembly Cisco 7204 midplane assembly (spare) MAS-7204MP=

Blank card carrier Cisco 7200 blank card carrier MAS-72KBLANK

Blank card carrier, spare Cisco 7200 blank card carrier (spare) MAS-72KBLANK=

Slot divider CIsco 7200 port adapter divider MAS-72KSLOTDIV=

Product	Description	Product Number
Rack-mount kit	Cisco 7200 rack-mount kit	ACS-7200-RMK=
Cable-management bracket	Cisco 7200 cable-management bracket (spare)	ACS-7200-CBLM=
Spare packaging	Cisco 7200 spare system packaging material	PKG-7200=
Redundant power supply cover	Cisco 7200 redundant power supply cover	MAS-7200PSCOVER=
Fan assembly	Cisco 7200 fan tray assembly (spare)	MAS-7200FAN=
Midplane assembly	Cisco 7206 midplane assembly (spare)	MAS-7206MP=
Midplane assembly	Cisco 7204 midplane assembly (spare)	MAS-7204MP=
Blank card carrier	Cisco 7200 blank card carrier	MAS-72KBLANK
Blank card carrier, spare	Cisco 7200 blank card carrier (spare)	MAS-72KBLANK=
Slot divider	CIsco 7200 port adapter divider	MAS-72KSLOTDIV=

Software Options

This section describes Cisco IOS software feature sets for the Cisco 7200 series routers. With feature sets, you can order software combinations that support your particular application. Optional licenses expand the feature sets by providing WAN packet protocol, interdomain routing, and NetFlow switching software. To order, select one feature set (there is no default) and order as many of the optional feature licenses as needed.

With the introduction of Cisco IOS Release 11.2, feature sets have been updated to make it easier to select the exact feature sets you need. Feature sets names are simplified and are more consistent across Cisco hardware platforms. In addition, you can add options to the standard feature set offerings. These options provide additional features and value based on the hardware platform selected. Cisco also continues to offer specialized feature sets for key applications.

The Cisco 7200 series offers the following type of feature sets:

Basic. The basic feature set for the Cisco 7500 series.

The new feature set tables use the following conventions to identify features:

X : the feature is offered in the basic feature set
-- : the feature is not offered in the feature set

Table 101 lists the Cisco IOS Release 11.2 and 11.1 (as of Release 11.1.6) feature sets. Table 102 lists the software product numbers, Table 103 lists optional feature set licenses and their product numbers, and Table 104 lists feature set upgrade product numbers.

Table 101 : Cisco IOS Release 11.2 and 11.1 Feature Sets---Cisco 7200 Series

Cisco 7200 Series Feature Sets

Features Network Layer 3 Switching IP Routing¹
Desktop/IBM²
Enterprise²

Cisco IOS Release 11.2 11.1³ 11.2 11.2 11.1³ 11.2 11.1³

LAN Support

Apollo Domain -- -- -- -- -- X X

AppleTalk 1 and 2⁴ -- -- X X X X X

Banyan VINES -- -- -- -- -- X X

Concurrent routing and bridging⁵ X X X X X X X

DECnet IV -- -- X X X X X

DECnet V -- -- -- -- -- X X

GRE -- -- X X X X X

Integrated routing and bridging (IRB)⁶ X -- X X -- X --

IP X X X X X X X

LAN extension host X X X X X X X

Multiring X X X X X X X

Novell IPX⁷ X X X X X X X

OSI -- -- -- -- -- X X

Transparent and translational bridging⁸ X X X X X X X

XNS -- -- -- -- -- X X

WAN Services

ATM LAN emulation: Rate queues for SVC per subinterface -- -- -- -- -- X --

Combinet Packet Protocol X -- X X -- X --

Dialer profiles X -- X X -- X --

Half bridge/half router for CPP and PPP X -- X X -- X --

HDLC X X X X X X X

IPXWAN 2.0 X X X X X X X

ISDN⁹ -- -- X X X X X

Multichassis Multilink PPP (MMP) -- -- -- -- -- X --

PPP¹⁰ -- -- X X X X X

Virtual Private Dial-up Network (VPDN) -- -- -- X -- X --

WAN Optimization

Bandwidth-on-demand -- -- X X X X X

Custom and priority queuing -- -- X X X X X

Dial backup -- -- X X X X X

Dial-on-demand -- -- X X X X X

Header¹¹, link and payload compression¹² -- -- X X X X X

NetFlow Switching (NFS)¹³ -- -- X X -- X --

Snapshot routing X X X X X X X

Weighted fair queuing -- X X X X X X

IP Routing

Enhanced IGRP X X X X X X X

Enhanced IGRP Optimizations X -- X X -- X --

ES-IS -- -- -- -- -- X X

IGRP X X X X X X X

IS-IS -- -- -- -- -- X X

Named IP Access Control List¹⁴ -- -- X X -- X --

Network Address Translation (NAT) X -- X X -- X --

NHRP X X X X X X X

On Demand Routing (ODR) X -- X X -- X --

OSPF X X X X X X X

OSPF Not-So-Stubby-Areas (NSSA) X -- X X -- X --

OSPF On Demand Circuit (RFC 1793) X -- X X -- X --

PIM X X X X X X X

Policy-based routing X X X X X X X

RIP X X X X X X X

RIP Version 2 X X X X X X X

Other Routing

AURP -- -- -- X X X X

IPX RIP X X X X X X X

NLSP X X X X X X X

RTMP X X X X X X X

SMRP X X X X X X X

SRTP -- -- -- -- -- X X

Multimedia and Quality of Service

Generic traffic shaping X -- X X -- X --

Random Early Detection (RED) X -- X X -- X --

Resource Reservation Protocol (RSVP) X -- X X -- X --

Management

AutoInstall X X X X X X X

HTTP Server X -- X X -- X --

RMON events and alarms X X X X X X X

SNMP X X X X X X X

Telnet X X X X X X X

Security

Access lists X X X X X X X

Access security X X X X X X X

Extended access lists X X X X X X X

Kerberized login -- -- -- -- -- X X

Kerberos V client support -- -- -- -- -- X --

Lock and key X X X X X X X

MD5 routing authentication X X X X X X X

RADIUS X X X X X X X

TACACS+¹⁵ X X X X X X X

IBM Support

APPN (optional)² -- -- -- X -- X X

BAN for SNA Frame Relay support -- -- -- X X -- --

Caching and filtering -- -- -- X X X X

DLSw+¹⁶^,¹⁷ -- -- -- X X X X

Downstream PU concentration (DSPU) -- -- -- -- -- X X

Frame Relay SNA support (RFC 1490) -- -- -- X X X X

Native Client Interface Architecture (NCIA) Server -- -- -- X -- X --

NetView Native Service Point -- -- -- X X X X

Response Time Reporter (RTR) -- -- -- X -- X --

QLLC -- -- -- X X X X

SDLC integration -- -- -- X X X X

SDLC transport (STUN) -- -- -- X X X X

SDLC-to-LAN conversion (SDLLC) -- -- -- X X X X

SNA and NetBIOS WAN optimization
via local acknowledgment -- -- -- X X X X

SRB/RSRB^{¹⁸, ¹⁹} X X -- X X X X

SRT X -- -- X X X X

TG/COS -- -- -- -- -- X X

¹ The IP routing feature set is new in Cisco IOS Releases 11.2.
² Desktop/IBM and Enterprise are available with APPN in a separate feature set. Use the product numbers that specify APPN. In Cisco IOS Release 11.2, APPN includes APPN Central Registration (CRR) and APPN over DLSw+.
³ Cisco IOS Release 11.1(5) and later releases required.
⁴ Appletalk load balancing is available in Cisco IOS Release 11.2.
⁵ Concurrent routing and bridging feature only applies to transparent bridging, not source-route bridging (SRB).
⁶ IRB supports IP, IPX, and AppleTalk; it is supported for transparent bridging, but not for SRB; it is supported on all media-type interfaces except X.25 and ISDN bridged interfaces; and IRB and concurrent routing and bridging (CRB) cannot operate at the same time.
⁷ In Cisco IOS Release 11.2, the Novell IPX feature includes display SAP by name, IPX Access Control List violation logging, and plain-English IPX access lists.
⁸ See the category "IBM Support" for information about SRB.
⁹ ISDN support includes calling line identification (ANI), X.25 over the B channel, ISDN subaddressing, and applicable WAN optimization features. Asynchronous ISDN Access (V.120) is only supported in the Enterprise feature set.
¹⁰ PPP includes support for LAN protocols supported by the feature set, address negotiation, PAP and CHAP authentication, and PPP compression.
¹¹ IPX header compression (RFC 1553) is available in the feature sets that support IPX in Cisco IOS Release 11.1(1) and later releases.
¹² X.25 and Frame Relay payload compression.
¹³ In Cisco IOS Release 11.2, NFS supports IP over all interfaces with optimal performance on Ethernet, FDDI, and HDLC.
¹⁴ In Cisco IOS Release 11.2, named IP Access Control List can only be used by packet and route filters, it is not backward-compatible with earlier CiscoIOS releases, and is not supported with distributed fast switching.
¹⁵ With Cisco IOS Release 11.2, TACACS+ Single Connection and TACACS+ SENDAUTH enhancements are supported.
¹⁶ DLSw+ over TCP/IP is supported.
¹⁷ Cisco IOS Release 11.2 introduces several DLSw+ enhancements. See the section "IBM Support" in the chapter "Cisco IOS Software" for more details.
¹⁸ SRB/RSRB and SRT are available in the Network Layer 3 feature set in Cisco IOS Release 11.1(6) and later releases.
¹⁹ With Cisco IOS Release 11.2, SRB/RSRB is fast switched. This enhancement is on by default, but can be disabled.

	Cisco 7200 Series Feature Sets
Features	Network Layer 3 Switching	IP Routing¹	Desktop/IBM²	Enterprise²
Cisco IOS Release	11.2	11.1³	11.2	11.2	11.1³	11.2	11.1³
LAN Support
Apollo Domain	--	--	--	--	--	X	X
AppleTalk 1 and 2⁴	--	--	X	X	X	X	X
Banyan VINES	--	--	--	--	--	X	X
Concurrent routing and bridging⁵	X	X	X	X	X	X	X
DECnet IV	--	--	X	X	X	X	X
DECnet V	--	--	--	--	--	X	X
GRE	--	--	X	X	X	X	X
Integrated routing and bridging (IRB)⁶	X	--	X	X	--	X	--
IP	X	X	X	X	X	X	X
LAN extension host	X	X	X	X	X	X	X
Multiring	X	X	X	X	X	X	X
Novell IPX⁷	X	X	X	X	X	X	X
OSI	--	--	--	--	--	X	X
Transparent and translational bridging⁸	X	X	X	X	X	X	X
XNS	--	--	--	--	--	X	X
WAN Services
ATM LAN emulation: Rate queues for SVC per subinterface	--	--	--	--	--	X	--
Combinet Packet Protocol	X	--	X	X	--	X	--
Dialer profiles	X	--	X	X	--	X	--
Half bridge/half router for CPP and PPP	X	--	X	X	--	X	--
HDLC	X	X	X	X	X	X	X
IPXWAN 2.0	X	X	X	X	X	X	X
ISDN⁹	--	--	X	X	X	X	X
Multichassis Multilink PPP (MMP)	--	--	--	--	--	X	--
PPP¹⁰	--	--	X	X	X	X	X
Virtual Private Dial-up Network (VPDN)	--	--	--	X	--	X	--
WAN Optimization
Bandwidth-on-demand	--	--	X	X	X	X	X
Custom and priority queuing	--	--	X	X	X	X	X
Dial backup	--	--	X	X	X	X	X
Dial-on-demand	--	--	X	X	X	X	X
Header¹¹, link and payload compression¹²	--	--	X	X	X	X	X
NetFlow Switching (NFS)¹³	--	--	X	X	--	X	--
Snapshot routing	X	X	X	X	X	X	X
Weighted fair queuing	--	X	X	X	X	X	X
IP Routing
Enhanced IGRP	X	X	X	X	X	X	X
Enhanced IGRP Optimizations	X	--	X	X	--	X	--
ES-IS	--	--	--	--	--	X	X
IGRP	X	X	X	X	X	X	X
IS-IS	--	--	--	--	--	X	X
Named IP Access Control List¹⁴	--	--	X	X	--	X	--
Network Address Translation (NAT)	X	--	X	X	--	X	--
NHRP	X	X	X	X	X	X	X
On Demand Routing (ODR)	X	--	X	X	--	X	--
OSPF	X	X	X	X	X	X	X
OSPF Not-So-Stubby-Areas (NSSA)	X	--	X	X	--	X	--
OSPF On Demand Circuit (RFC 1793)	X	--	X	X	--	X	--
PIM	X	X	X	X	X	X	X
Policy-based routing	X	X	X	X	X	X	X
RIP	X	X	X	X	X	X	X
RIP Version 2	X	X	X	X	X	X	X
Other Routing
AURP	--	--	--	X	X	X	X
IPX RIP	X	X	X	X	X	X	X
NLSP	X	X	X	X	X	X	X
RTMP	X	X	X	X	X	X	X
SMRP	X	X	X	X	X	X	X
SRTP	--	--	--	--	--	X	X
Multimedia and Quality of Service
Generic traffic shaping	X	--	X	X	--	X	--
Random Early Detection (RED)	X	--	X	X	--	X	--
Resource Reservation Protocol (RSVP)	X	--	X	X	--	X	--
Management
AutoInstall	X	X	X	X	X	X	X
HTTP Server	X	--	X	X	--	X	--
RMON events and alarms	X	X	X	X	X	X	X
SNMP	X	X	X	X	X	X	X
Telnet	X	X	X	X	X	X	X
Security
Access lists	X	X	X	X	X	X	X
Access security	X	X	X	X	X	X	X
Extended access lists	X	X	X	X	X	X	X
Kerberized login	--	--	--	--	--	X	X
Kerberos V client support	--	--	--	--	--	X	--
Lock and key	X	X	X	X	X	X	X
MD5 routing authentication	X	X	X	X	X	X	X
RADIUS	X	X	X	X	X	X	X
TACACS+¹⁵	X	X	X	X	X	X	X
IBM Support
APPN (optional)²	--	--	--	X	--	X	X
BAN for SNA Frame Relay support	--	--	--	X	X	--	--
Caching and filtering	--	--	--	X	X	X	X
DLSw+¹⁶^,¹⁷	--	--	--	X	X	X	X
Downstream PU concentration (DSPU)	--	--	--	--	--	X	X
Frame Relay SNA support (RFC 1490)	--	--	--	X	X	X	X
Native Client Interface Architecture (NCIA) Server	--	--	--	X	--	X	--
NetView Native Service Point	--	--	--	X	X	X	X
Response Time Reporter (RTR)	--	--	--	X	--	X	--
QLLC	--	--	--	X	X	X	X
SDLC integration	--	--	--	X	X	X	X
SDLC transport (STUN)	--	--	--	X	X	X	X
SDLC-to-LAN conversion (SDLLC)	--	--	--	X	X	X	X
SNA and NetBIOS WAN optimization via local acknowledgment	--	--	--	X	X	X	X
SRB/RSRB^{¹⁸, ¹⁹}	X	X	--	X	X	X	X
SRT	X	--	--	X	X	X	X
TG/COS	--	--	--	--	--	X	X

Table 102 : Cisco IOS Software Product Numbers---Cisco 7200 Series

Description Cisco IOS Release 11.2 Cisco IOS Release 11.1

Network Layer 3 switching SF72R-11.2.x
SW72R-11.2.x= SF-G72R-11.1.x
SW-G72R-11.1.x=

IP SF72C-11.2.x¹
SW72C-11.2.x= --

Desktop and IBM SF72BS-11.2.x
SW72BS-11.2.x= SF-G72DS-11.1.x
SW-G72DS-11.1.x=

Desktop, IBM and APPN SF72BSN-11.2.x
SW72BSN-11.2.x= --

Enterprise SF72A-11.2.x
SW72A-11.2.x= SF-G72A-11.1.x ¹
SW-G72A-11.1.x=

Enterprise, APPN² SF72AN-11.2.x
SW72AN-11.2.x= SF-G72AN-11.1.x
SW-G72AN-11.1.x=

¹ Where x represents the current maintenance release number. Requires Cisco IOS Release 11.1(5) or later.
² See "DRAM Guidelines" in the chapter "Configuration Guidelines for the Cisco 7000 Family."

Description	Cisco IOS Release 11.2	Cisco IOS Release 11.1
Network Layer 3 switching	SF72R-11.2.x SW72R-11.2.x=	SF-G72R-11.1.x SW-G72R-11.1.x=
IP	SF72C-11.2.x¹ SW72C-11.2.x=	--
Desktop and IBM	SF72BS-11.2.x SW72BS-11.2.x=	SF-G72DS-11.1.x SW-G72DS-11.1.x=
Desktop, IBM and APPN	SF72BSN-11.2.x SW72BSN-11.2.x=	--
Enterprise	SF72A-11.2.x SW72A-11.2.x=	SF-G72A-11.1.x ¹ SW-G72A-11.1.x=
Enterprise, APPN²	SF72AN-11.2.x SW72AN-11.2.x=	SF-G72AN-11.1.x SW-G72AN-11.1.x=

Table 103 : Cisco IOS Release 11.2 and 11.1 Feature Licenses---Cisco 7200 Series

Category Features Product Number

WAN packet protocols X.25, X.25 switching, Frame Relay, SMDS, Frame Relay switching, Switched 56, ATM DXI, SMDS over ATM
In Cisco IOS Release 11.2 only, all of the above plus Frame Relay SVC support (DTE) and Frame Relay traffic shaping FR-WPP72, FR-WPP72=

Interdomain routing BGP, EGP for Internet scale routing
In Cisco IOS Release 11.2 only, all of the above plus BGP4¹ FR-IR72, FR-IR72=

NetFlow Switching NetFlow switching software FR-NF72, FR-NF72=

¹ BGP4 includes soft configuration, multipath support, and prefix filtering with inbound route maps.

Category	Features	Product Number
WAN packet protocols	X.25, X.25 switching, Frame Relay, SMDS, Frame Relay switching, Switched 56, ATM DXI, SMDS over ATM In Cisco IOS Release 11.2 only, all of the above plus Frame Relay SVC support (DTE) and Frame Relay traffic shaping	FR-WPP72, FR-WPP72=
Interdomain routing	BGP, EGP for Internet scale routing In Cisco IOS Release 11.2 only, all of the above plus BGP4¹	FR-IR72, FR-IR72=
NetFlow Switching	NetFlow switching software	FR-NF72, FR-NF72=

Cisco IOS Feature Set Upgrades

Cisco IOS feature set upgrades are easy to order for Cisco 7200 series routers. The following is an example:

You have a Cisco 7206 router running the Cisco IOS Release 11.1 Network Layer 3 (basic) feature set. You want to upgrade to the Cisco IOS Release 11.2 Enterprise feature set. To complete the upgrade, use the following guidelines:

If you subscribe to SMARTnet Maintenance, you need to do the following:
- Order FR72-RA (Network Layer 3 to Enterprise upgrade license, charged item)
- Download the new software feature set from CCO
If you do not subscribe to SMARTnet Maintenance, you need to do the following:
- Order FR72-RA (Network Layer 3 to Enterprise upgrade license, charged item)
- SWG72A-11.2.1= (Cisco 7200 Enterprise software on diskette, charged item)

Table 104 : Cisco IOS Software Upgrades---Cisco 7200 Series

Feature Set Upgrade Product Number

Desktop, IBM to Enterprise¹ FR72-BSA=

IP to Desktop, IBM¹ FR72-CBS=

IP to Enterprise¹ FR72-CA=

Network Layer 3 to IP¹ FR72-RI=

Network Layer 3 to Desktop, IBM¹ FR72-RBS=

Network Layer 3 to Enterprise¹ FR72-RA

Desktop, IBM to Enterprise² SW-G72BSA-11.1.x= ³

IP to Desktop, IBM² SW-G72CDS-11.1.x=

IP to Enterprise² SW-G72CA-11.1.x=

¹ Available for Cisco IOS Release 11.2 only.
² Available for Cisco IOS Release 11.1 only
³ Where x represents the current maintenance release number. Requires Cisco IOS Release 11.1(6) or later

Description	Product Number
Cisco 7206
6-slot chassis, 1 AC-input power supply	CISCO7206
6-slot chassis, 1 DC-input power supply	CISCO7206-DC
Cisco 7204
4-slot chassis, 1 AC-input power supply	CISCO7204
4-slot chassis, 1 DC-input power supply	CISCO7204-DC

Type	Size	Quantity	Description
DRAM	16 to 128 MB	2 to 4	4-, 8-, 16-, or 32-MB SIMMs (based on maximum DRAM required)
SRAM	1 MB	8	8 chips each being 128K words x 72 bits wide
Unified cache	512 KB	4	Secondary cache for the R4700 RISC processor

Feature Set Upgrade	Product Number
Desktop, IBM to Enterprise¹	FR72-BSA=
IP to Desktop, IBM¹	FR72-CBS=
IP to Enterprise¹	FR72-CA=
Network Layer 3 to IP¹	FR72-RI=
Network Layer 3 to Desktop, IBM¹	FR72-RBS=
Network Layer 3 to Enterprise¹	FR72-RA
Desktop, IBM to Enterprise²	SW-G72BSA-11.1.x= ³
IP to Desktop, IBM²	SW-G72CDS-11.1.x=
IP to Enterprise²	SW-G72CA-11.1.x=

Table of Contents
